Kenmore
Central Air Conditioner

Model #10669770 Kenmore air conditioner

Here are the diagrams and repair parts for Kenmore 10669770 air conditioner, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 241 parts

Bracket Support

#34

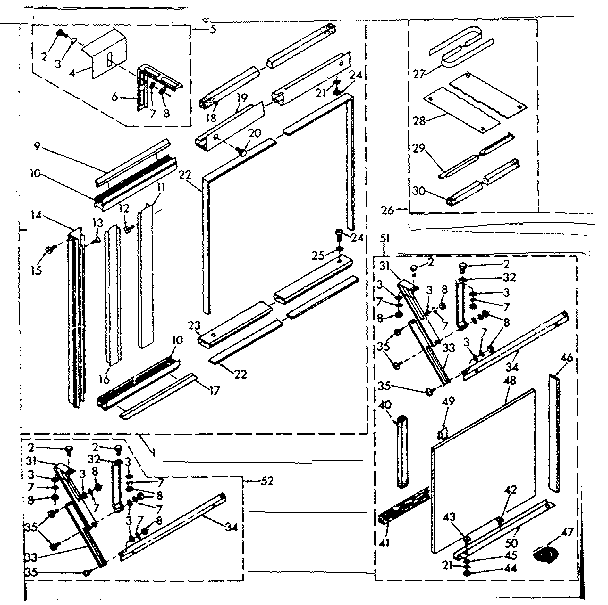

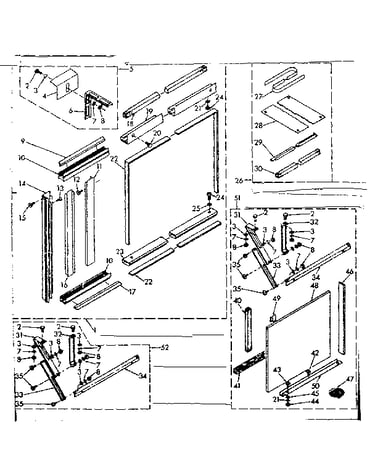

Accessory kit parts Diagram

Bracket support

Part #644281
$42.20

In Stock

Screw

#2

Accessory kit parts Diagram

Screw

Part #486562

The manufacturer no longer makes this part, and there's no substitute part

Thread-Forming Screw, 8-pack

#18

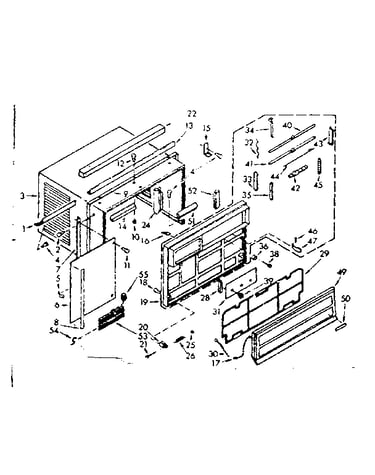

Cabinet parts Diagram

Thread-forming screw, 8-pack

Part #STD610805
?
Manufacturer substitution
This part replaces 487729. Substitute parts can look different from the original.
This part replaces 487729
This item is not returnable
$2.55

In Stock

Dishwasher Screw

#31

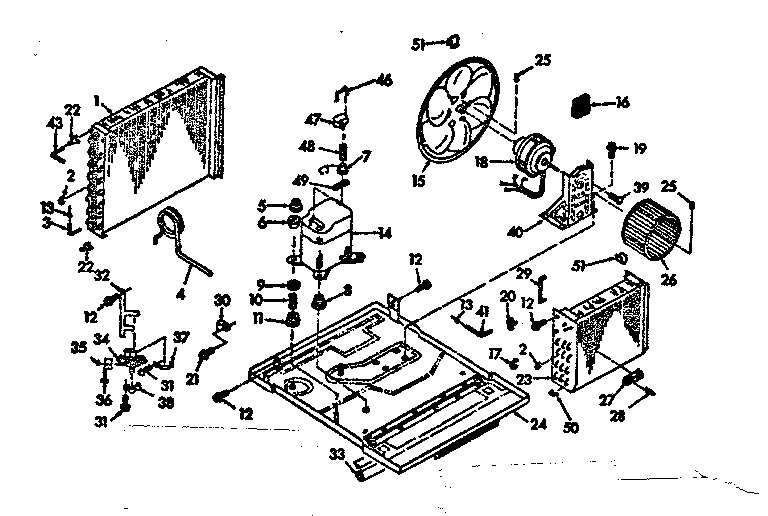

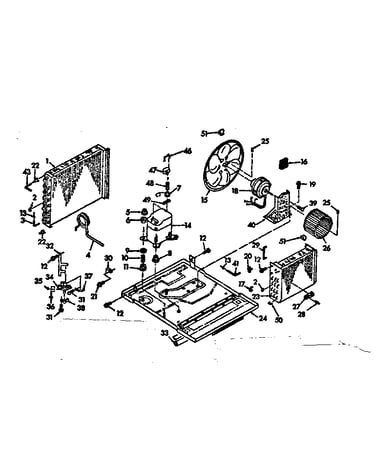

Unit parts Diagram

Dishwasher screw

Part #WP965173
?
Manufacturer substitution
This part replaces 487869. Substitute parts can look different from the original.
This part replaces 487869
This item is not returnable
$5.48

In Stock

Appliance Screw

#1

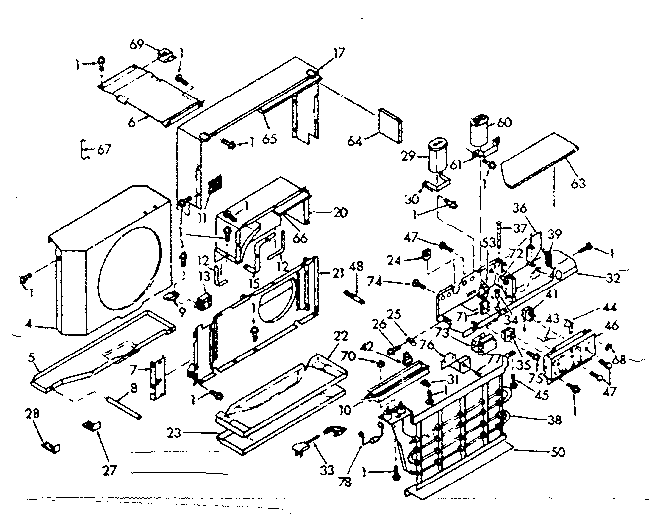

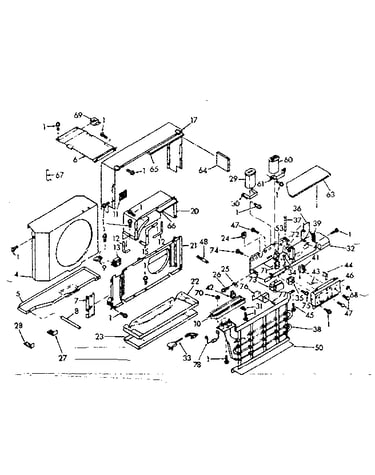

Air flow parts Diagram

Appliance screw

Part #WP489069
?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This part replaces 488480
This item is not returnable
$2.48 |
25% OFF MSRP:$3.29

In Stock

Screw

#25

Unit parts Diagram

Screw

Part #595085

The manufacturer no longer makes this part, and there's no substitute part

Bracket

#61

Air flow parts Diagram

Bracket

Part #WP43449
?
Manufacturer substitution
This part replaces 43449. Substitute parts can look different from the original.
This part replaces 43449
This item is not returnable
$3.29

In Stock

Ring

#25

Cabinet parts Diagram

Ring

Part #469641

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Air Filter

#29

Cabinet parts Diagram

Room air conditioner air filter

Part #91561
?
Manufacturer substitution
This part replaces 47-9156. Substitute parts can look different from the original.
This part replaces 47-9156
This item is not returnable
$8.19

In Stock

Screw

#75

Air flow parts Diagram

Screw

Part #486985

The manufacturer no longer makes this part, and there's no substitute part
