Frigidaire
Room Air Conditioner

Model # FAM18EQ2A2 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAM18EQ2A2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

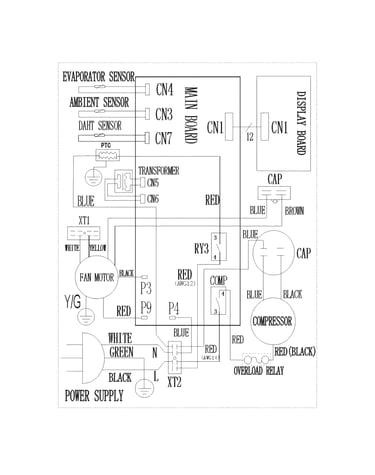

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |

Overlay 5304456757
#52

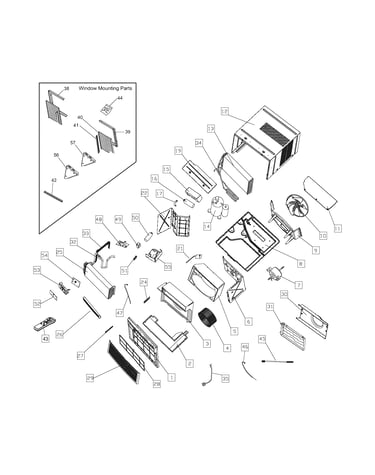

Recommended spare parts diagram

Overlay

Part #5304456757

In Stock
Fan Blade 5304455480
#10

Recommended spare parts diagram

Fan blade

Part #5304455480

Replaced by #5304472356

?
Manufacturer substitution
This part replaces 5304455480. Substitute parts can look different from the original.
$104.39
9% OFF Phone Price : $114.39
In Stock
Capacitor 5304455583
#50

Recommended spare parts diagram

Capacitor

Part #5304455583

Replaced by #5304472609

?
Manufacturer substitution
This part replaces 5304455583. Substitute parts can look different from the original.
$77.89
6% OFF Phone Price : $82.89
In Stock
Terminal 5304455486
#51

Recommended spare parts diagram

Terminal

Part #5304455486

The manufacturer no longer makes this part, and there's no substitute part

Shroud 5304455544
#9

Recommended spare parts diagram

Shroud

Part #5304455544

The manufacturer no longer makes this part, and there's no substitute part

Cover 5304455567
#19

Recommended spare parts diagram

Cover

Part #5304455567

The manufacturer no longer makes this part, and there's no substitute part

Scroll 5304456638
#3

Recommended spare parts diagram

Scroll

Part #5304456638

The manufacturer no longer makes this part, and there's no substitute part

Scroll 5304456639
#5

Recommended spare parts diagram

Scroll

Part #5304456639

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 5304436530
#17

Recommended spare parts diagram

Capacitor

Part #5304436530

The manufacturer no longer makes this part, and there's no substitute part

Heater 5304456644
#31

Recommended spare parts diagram

Heater

Part #5304456644

The manufacturer no longer makes this part, and there's no substitute part
