Model # BDV-N5200W Official Sony dvd home theater system

Here are the diagrams and repair parts for Official Sony BDV-N5200W dvd home theater system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

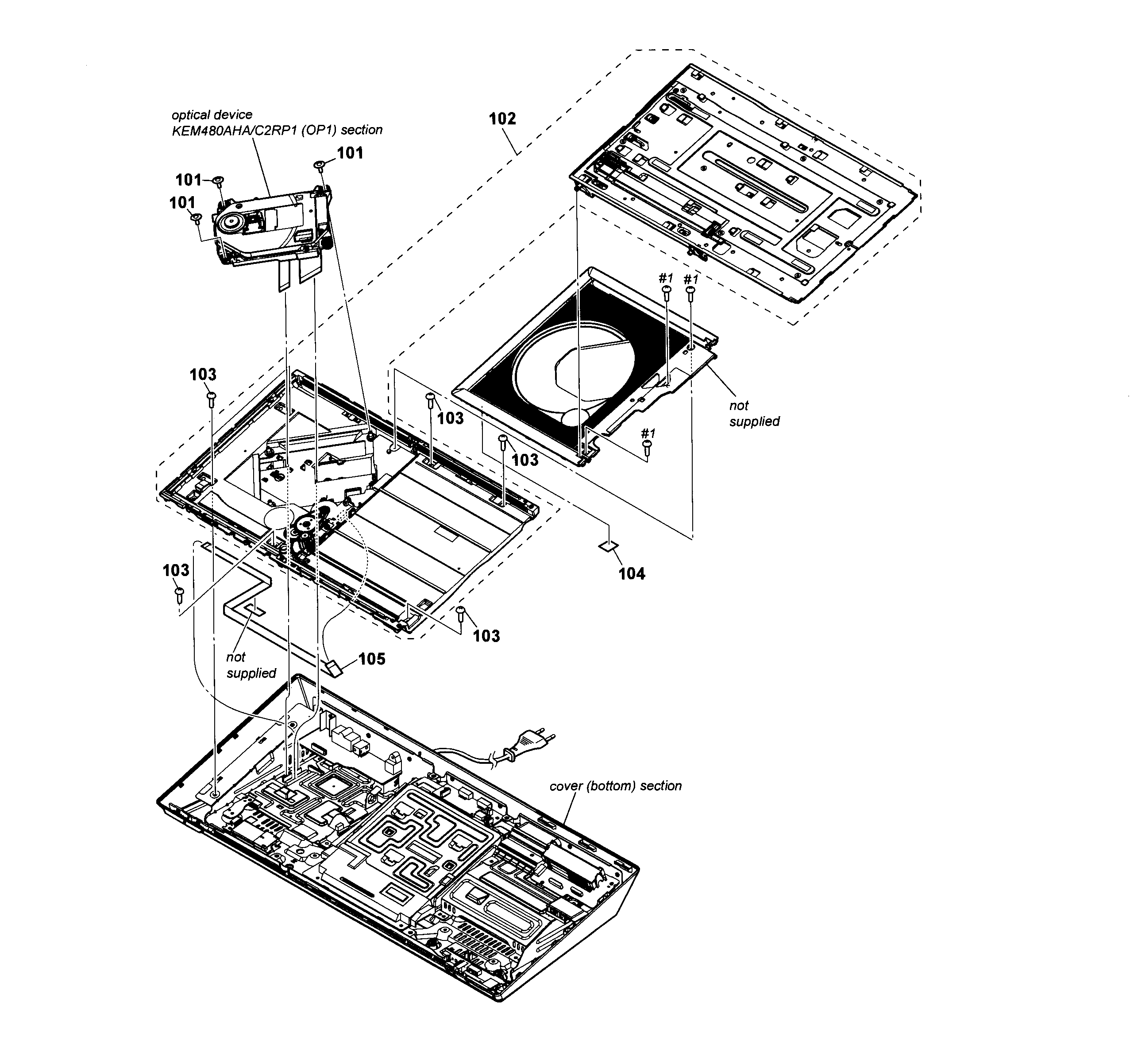

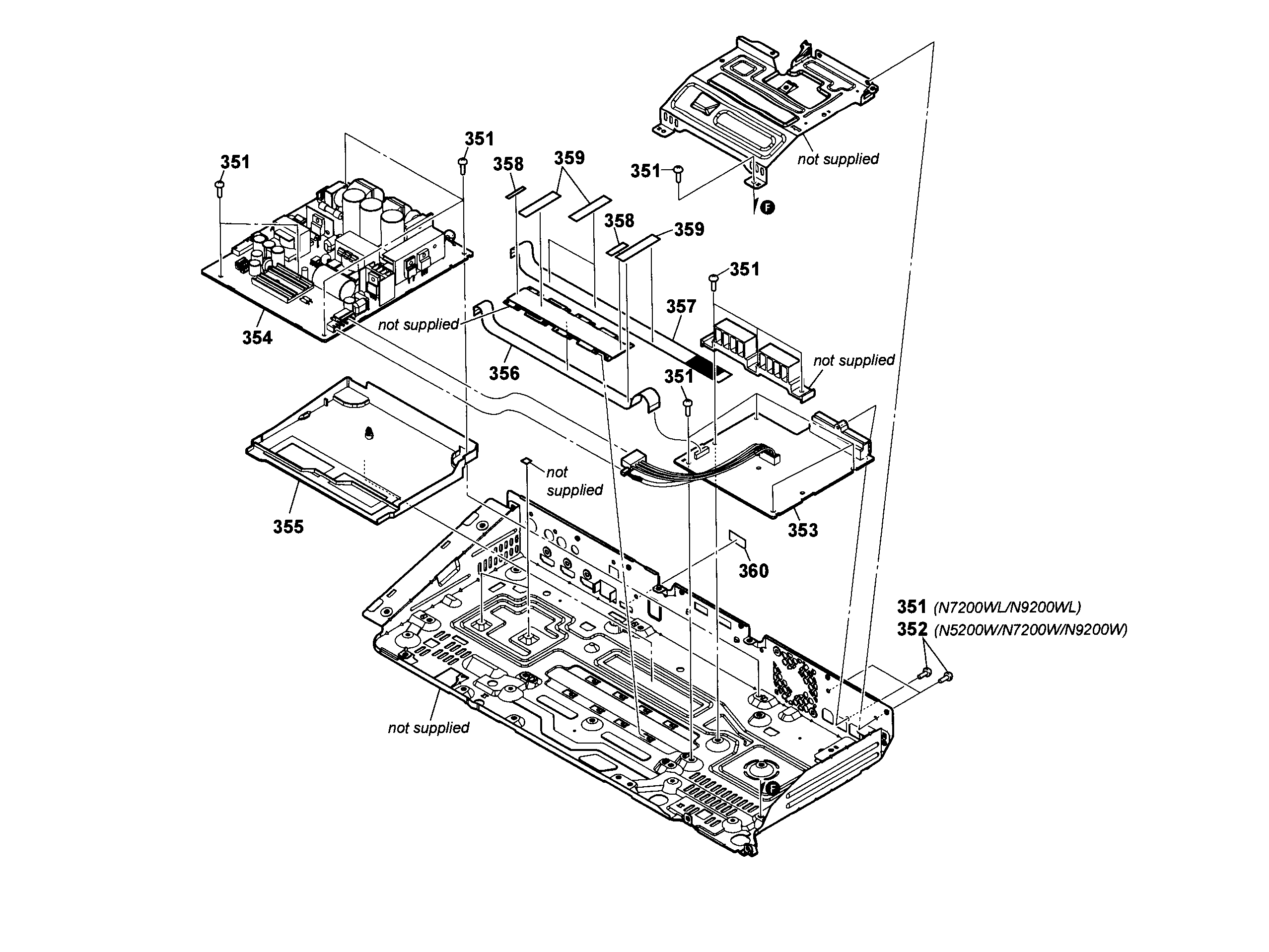

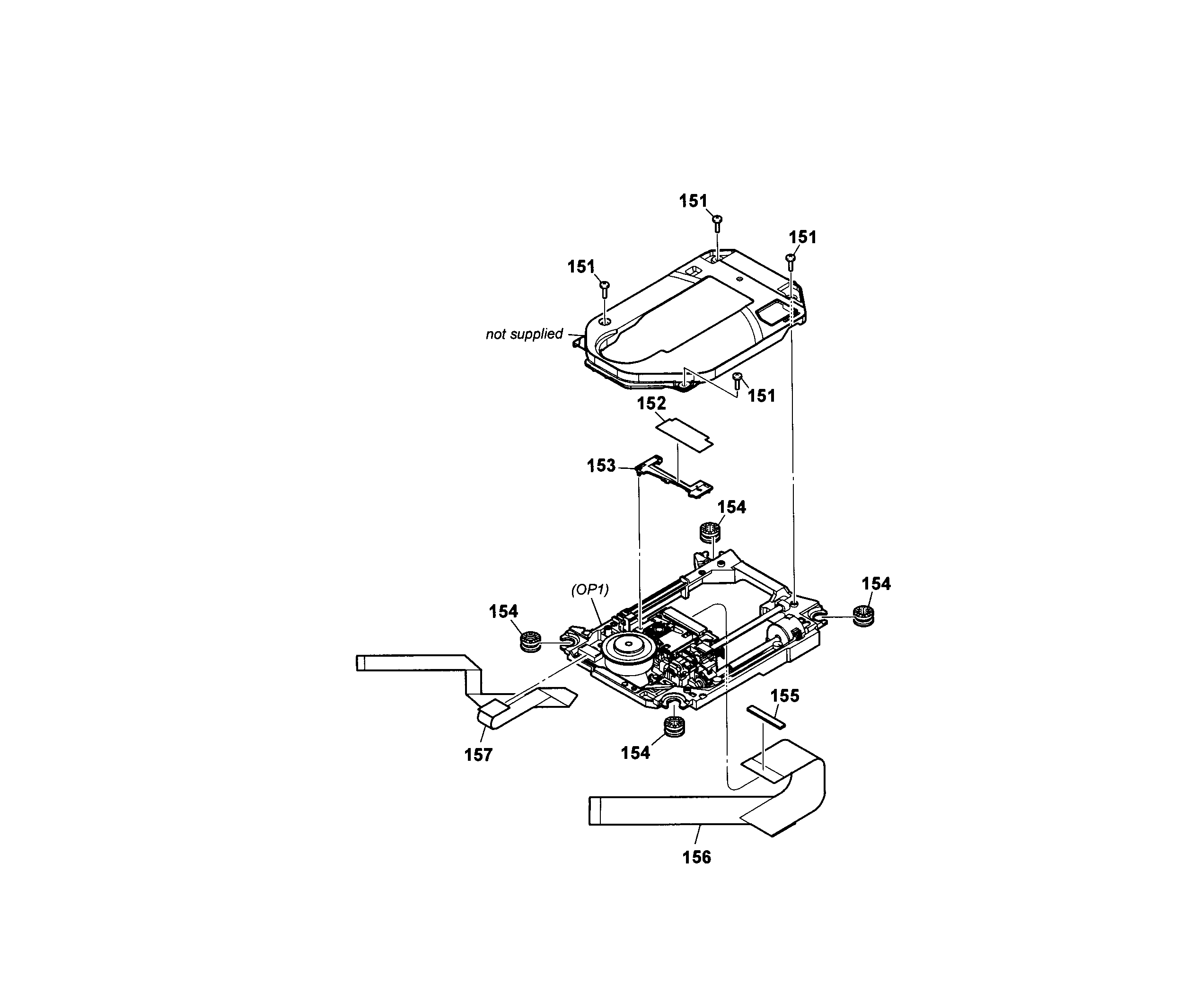

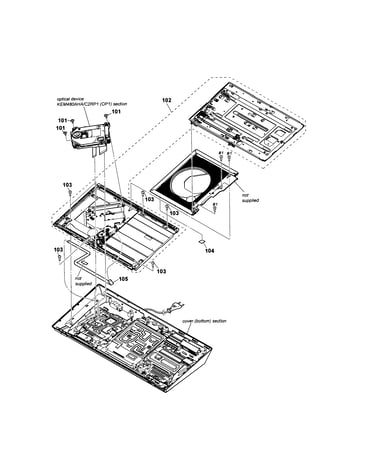

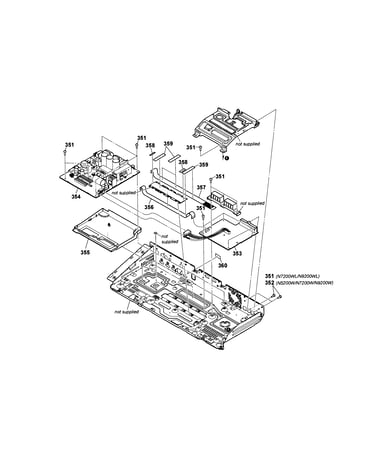

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Home Theater System Fm Antenna 179318441
#NI

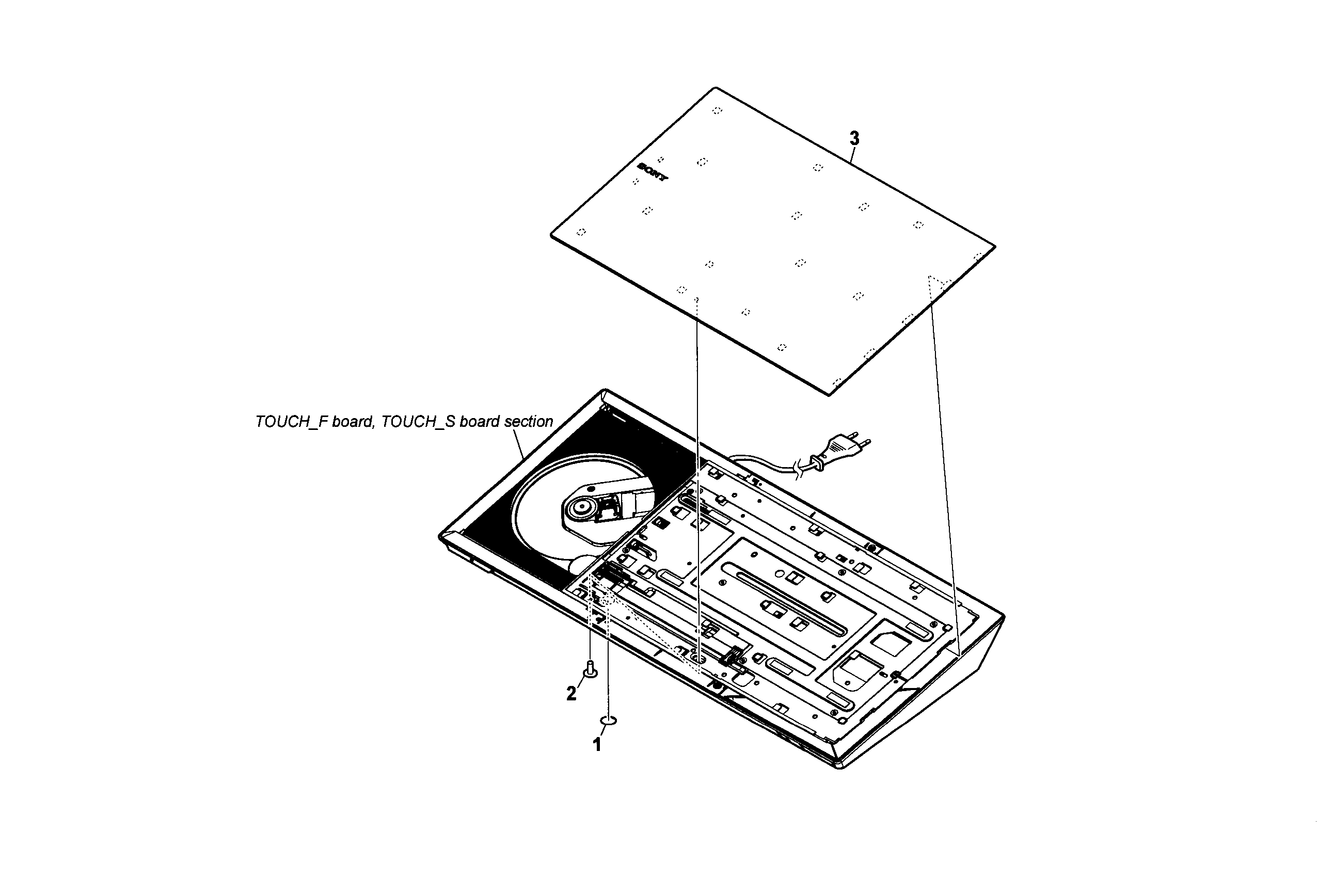

Top cover diagram

Home theater system fm antenna

Part #179318441

The manufacturer no longer makes this part, and there's no substitute part

Cover X25885951
#201

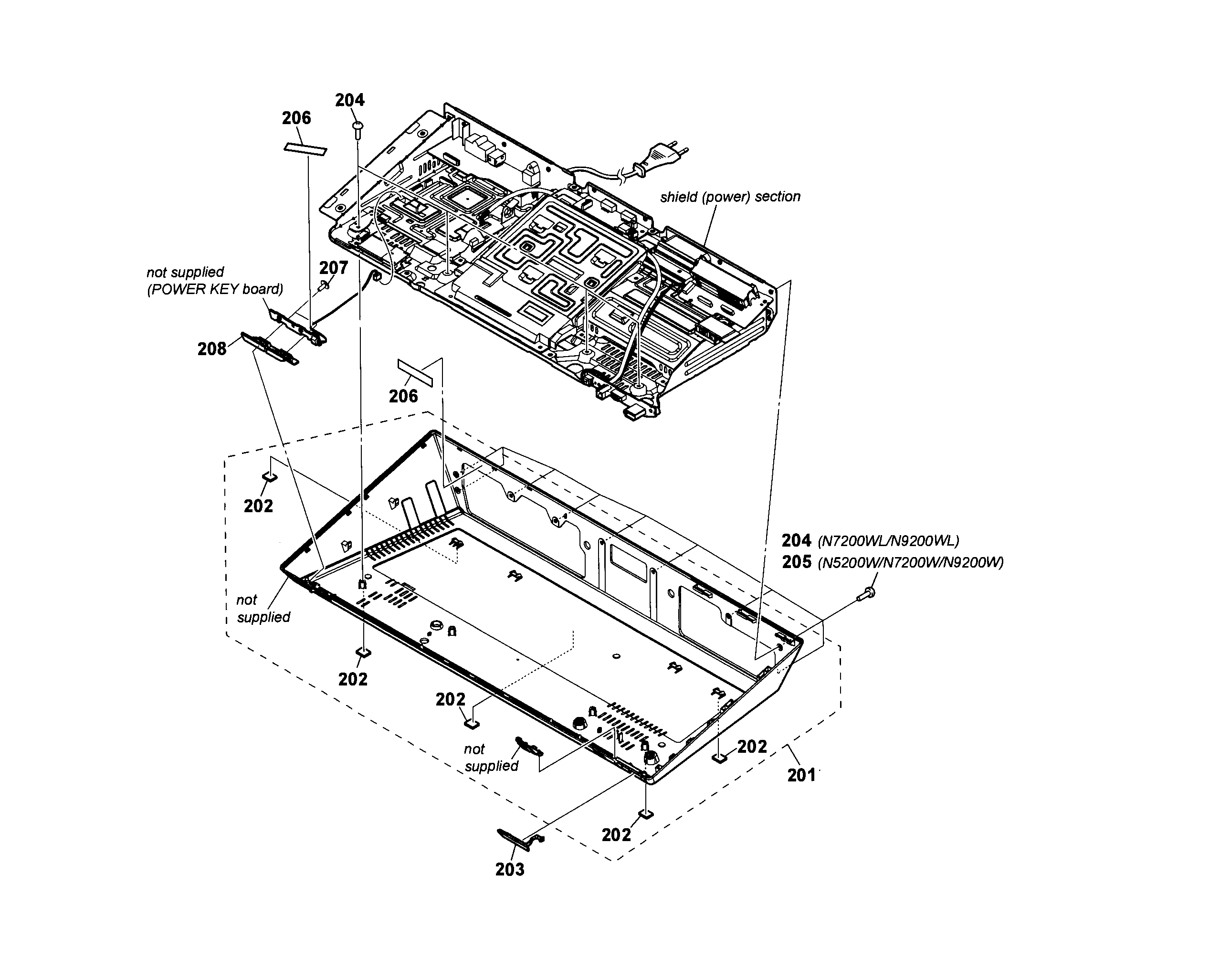

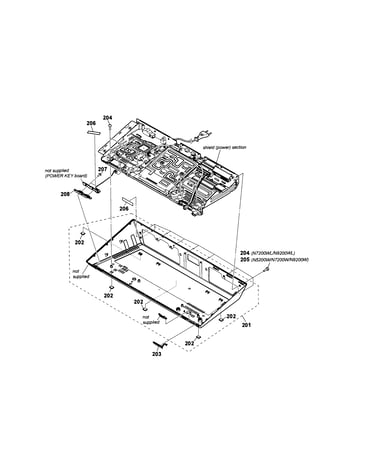

Bottom cover diagram

Cover

Part #X25885951

The manufacturer no longer makes this part, and there's no substitute part

Speaker A1976841A
#1

Center speaker diagram

Speaker

Part #A1976841A

The manufacturer no longer makes this part, and there's no substitute part

Dc Fan 185503211
#307

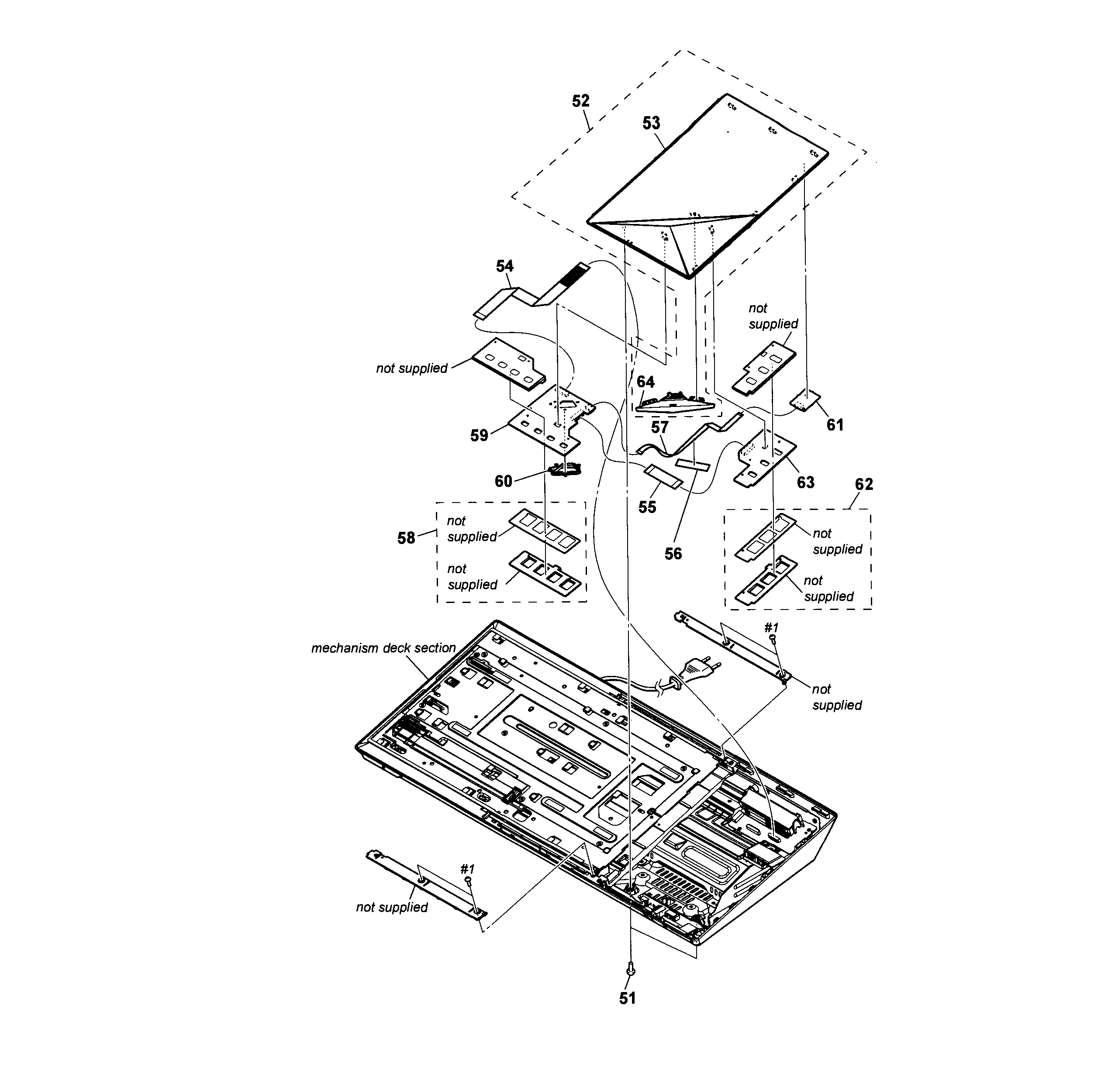

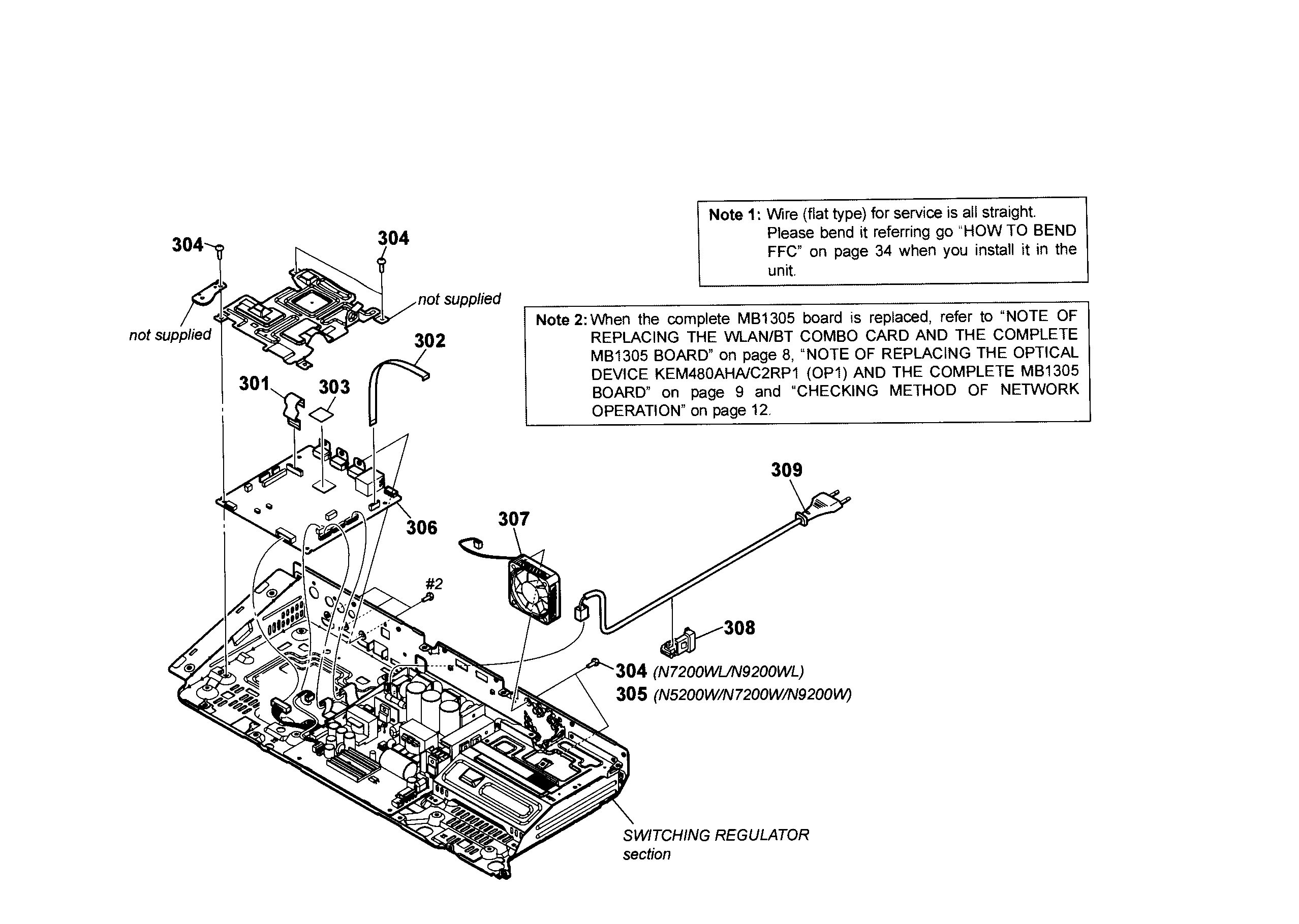

Board section diagram

Dc fan

Part #185503211

The manufacturer no longer makes this part, and there's no substitute part

Cover 447617201
#2

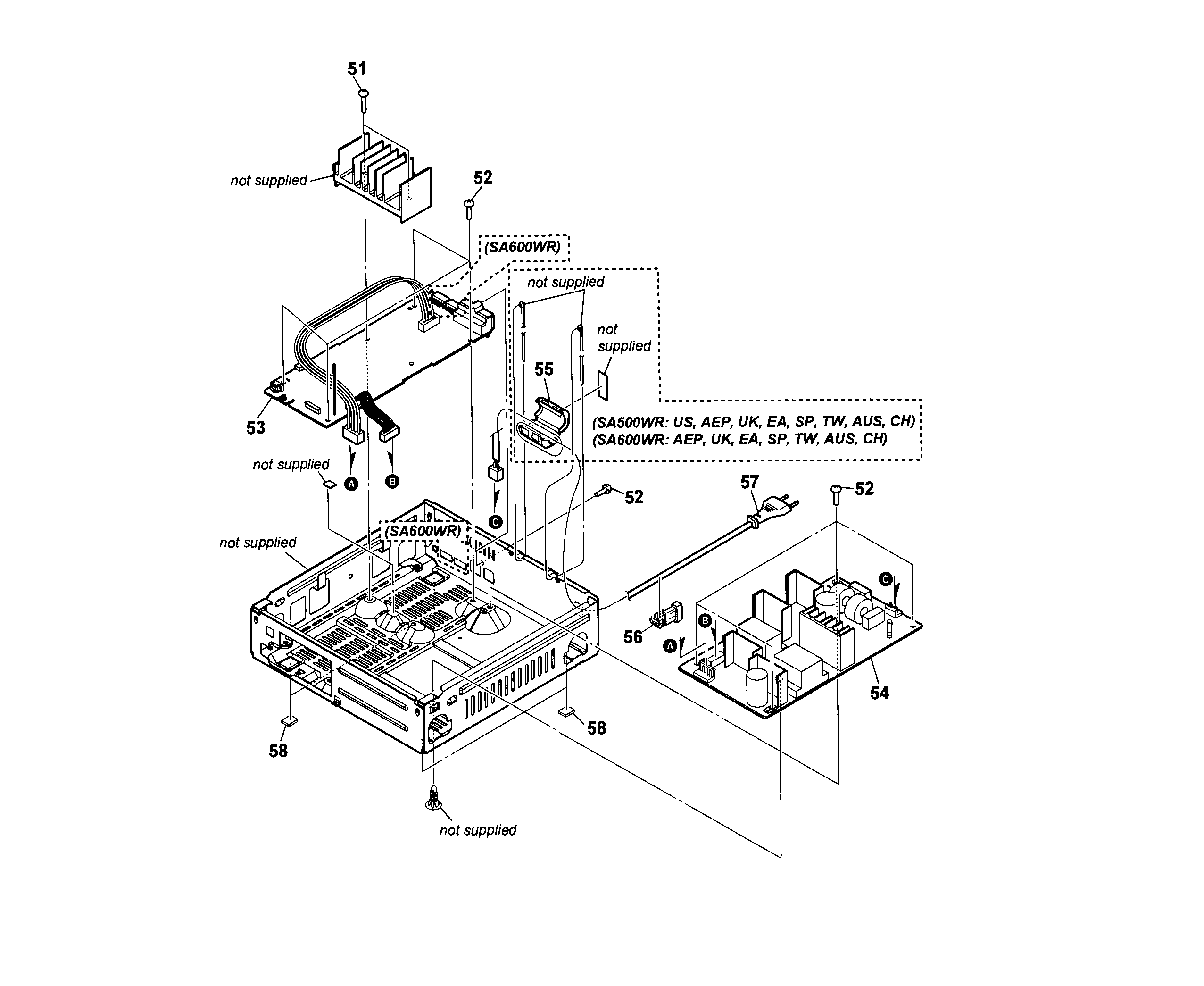

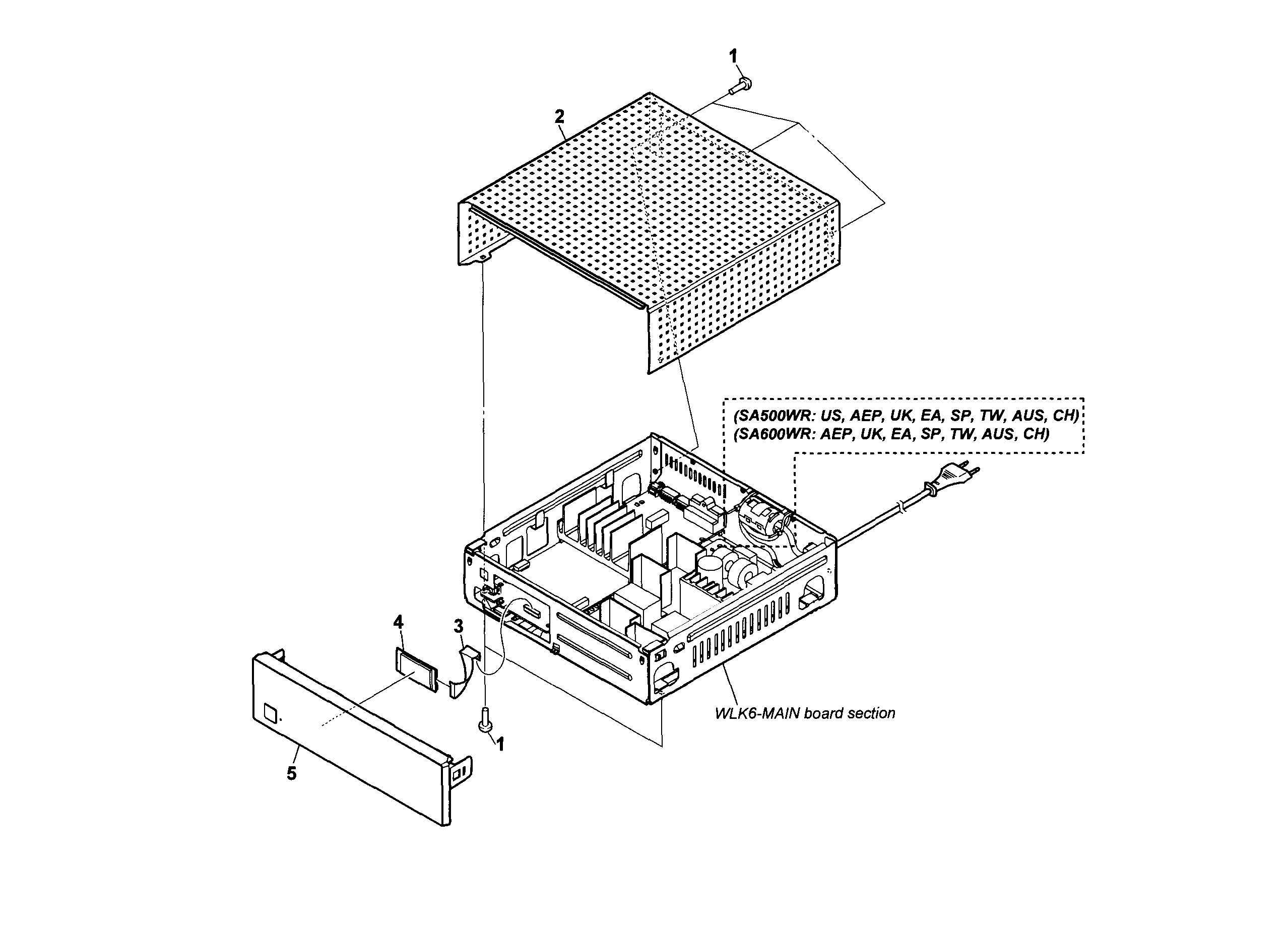

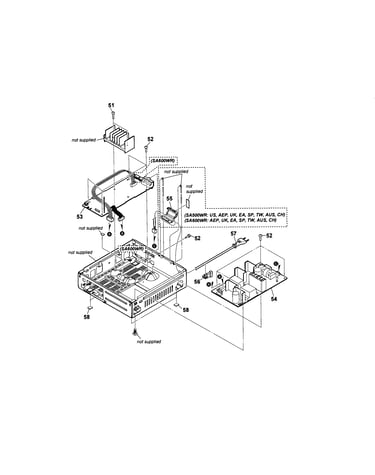

Amplifier cover diagram

Cover

Part #447617201

The manufacturer no longer makes this part, and there's no substitute part

Pcb Touch- A1978581A
#63

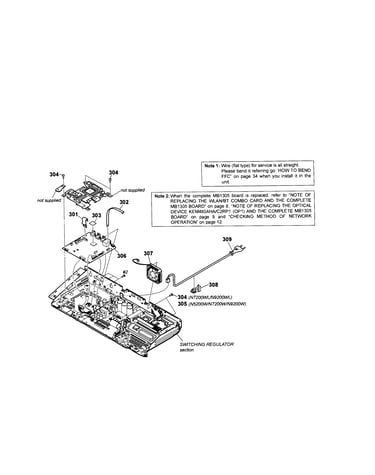

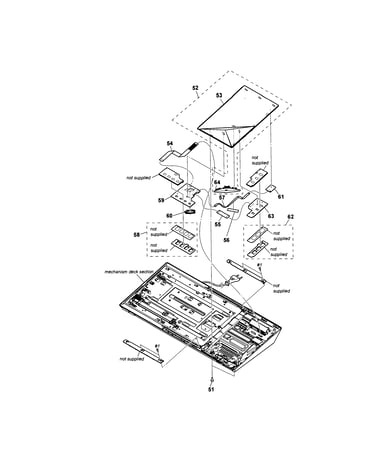

Board section diagram

Pcb touch-

Part #A1978581A

The manufacturer no longer makes this part, and there's no substitute part

Pcb Chukei A1978940A
#258

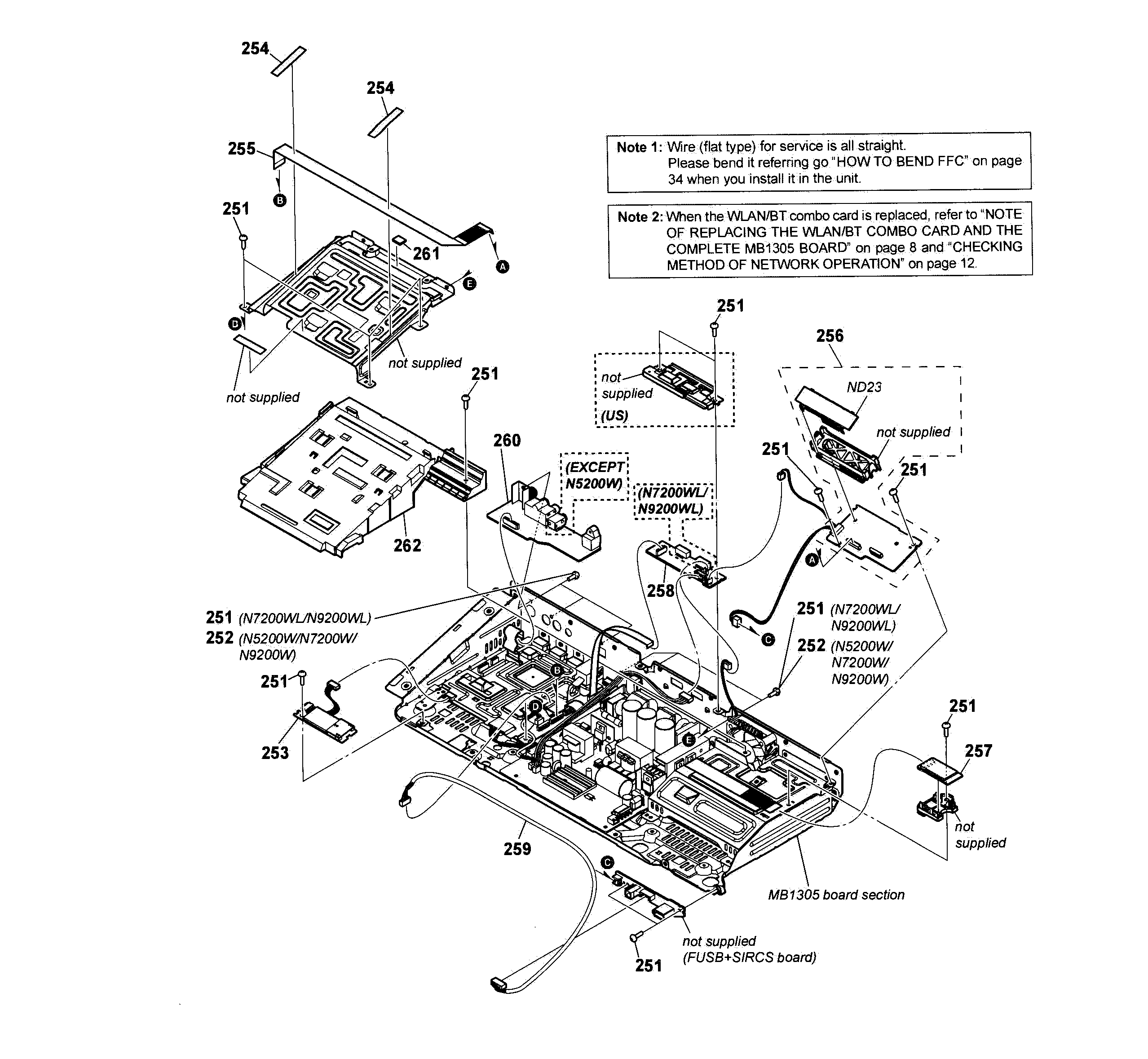

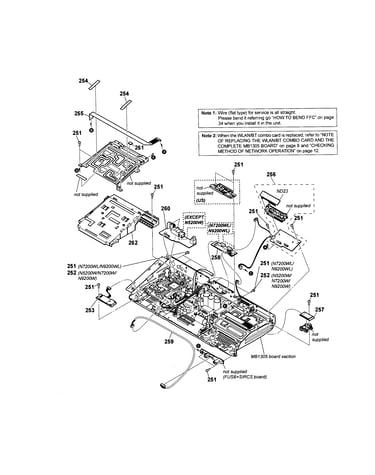

Pcb diagram

Pcb chukei

Part #A1978940A

The manufacturer no longer makes this part, and there's no substitute part

Pcb Audio I/o A1980255A
#260

Pcb diagram

Pcb audio i/o

Part #A1980255A

The manufacturer no longer makes this part, and there's no substitute part

Speaker, Left A1976839A
#201

Surround speaker diagram

Speaker, left

Part #A1976839A

The manufacturer no longer makes this part, and there's no substitute part

Subwoofer Speaker A1976842A
#51

Subwoofer diagram

Subwoofer speaker

Part #A1976842A

The manufacturer no longer makes this part, and there's no substitute part
