Model # 11329342 Official Craftsman 9" radial saw

Here are the diagrams and repair parts for Official Craftsman 11329342 9" radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

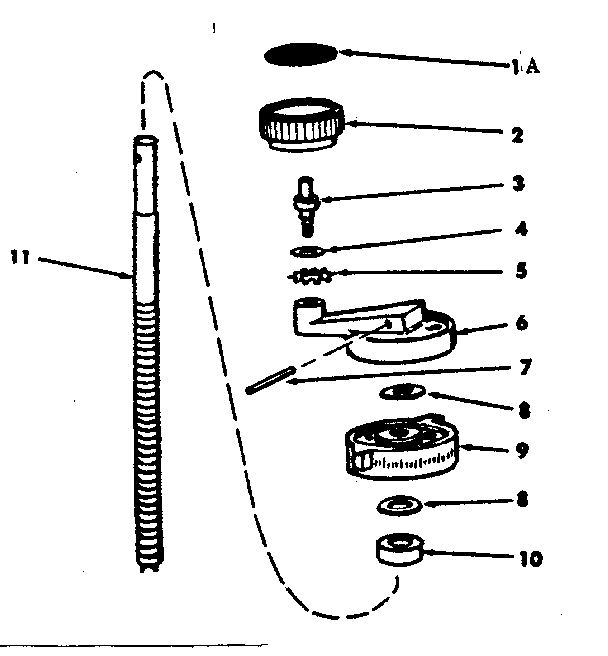

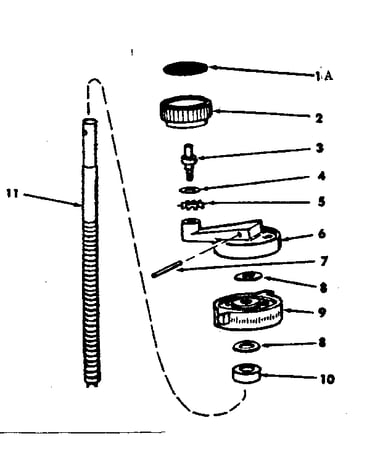

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |

Radial Arm Saw Arbor Nut 30495
#17

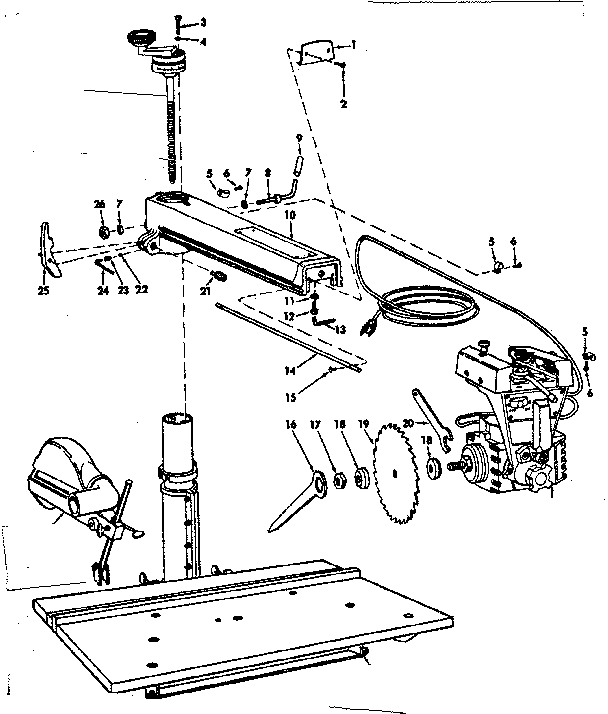

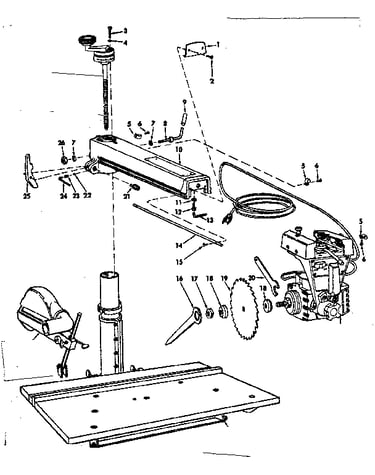

Unit diagram

Radial arm saw arbor nut

Part #30495

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Rip Fence 63522
#7

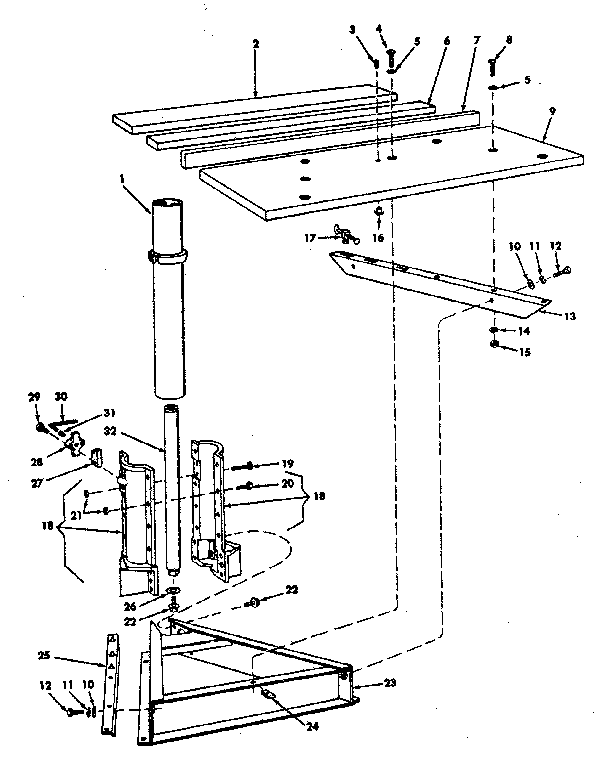

Rip fence and base assembly diagram

Radial arm saw rip fence

Part #63522

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Carriage Bearing 63350
#7

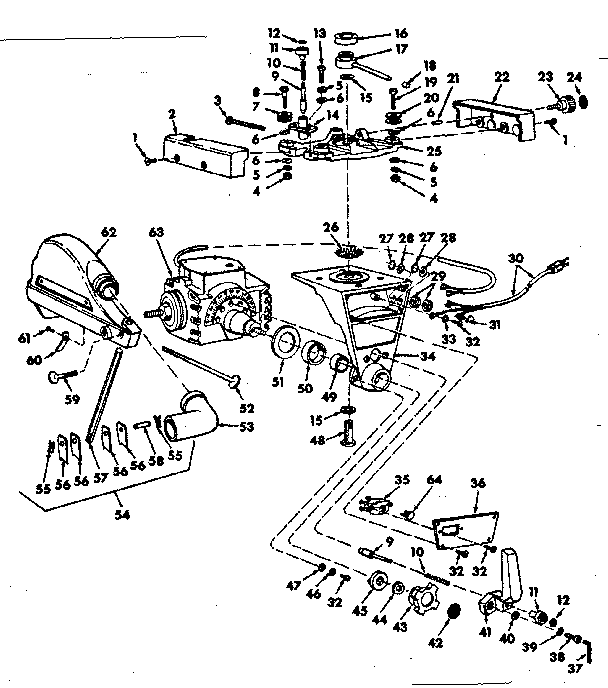

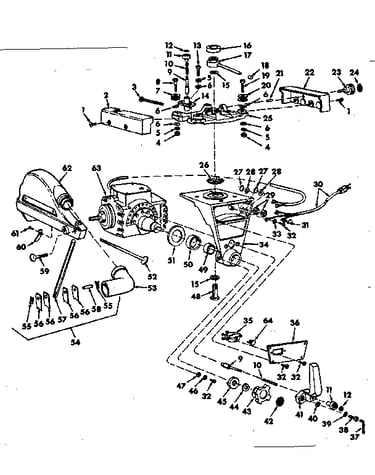

Yoke assembly diagram

Radial arm saw carriage bearing

Part #63350

The manufacturer no longer makes this part, and there's no substitute part

Wing Screw (silver) 37858
#59

Yoke assembly diagram

Wing screw (silver)

Part #37858

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 9421620
#12

Unit diagram

Cap screw

Part #9421620

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw T-nut 37384
#16

Rip fence and base assembly diagram

Radial arm saw t-nut

Part #37384

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Washer 30767
#12

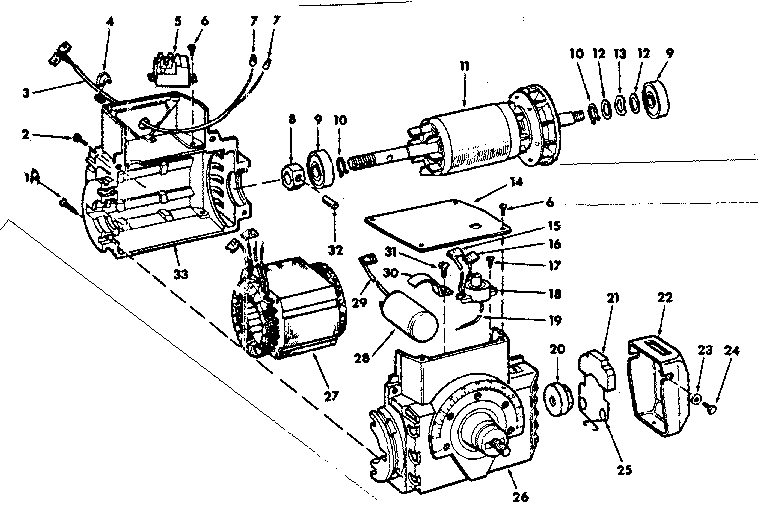

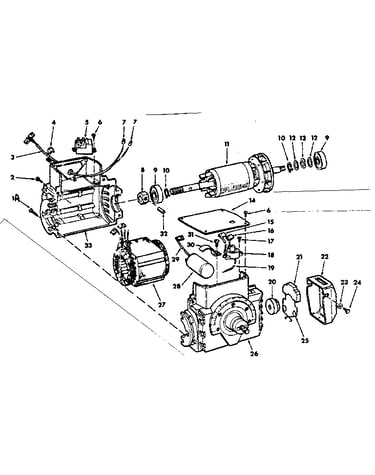

Motor asm. 63506 diagram

Power tool washer

Part #30767

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table Front 63519
#9

Rip fence and base assembly diagram

Radial arm saw table front

Part #63519

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Track 63034
#14

Unit diagram

Radial arm saw track

Part #63034

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Clip Nut 37530
#24

Rip fence and base assembly diagram

Power tool clip nut

Part #37530

The manufacturer no longer makes this part, and there's no substitute part
