Model # DW718 TYPE2 Official DeWalt miter saw

Here are the diagrams and repair parts for Official DeWalt DW718-TYPE2 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 203 parts  |
Lock Nut N044739
#101

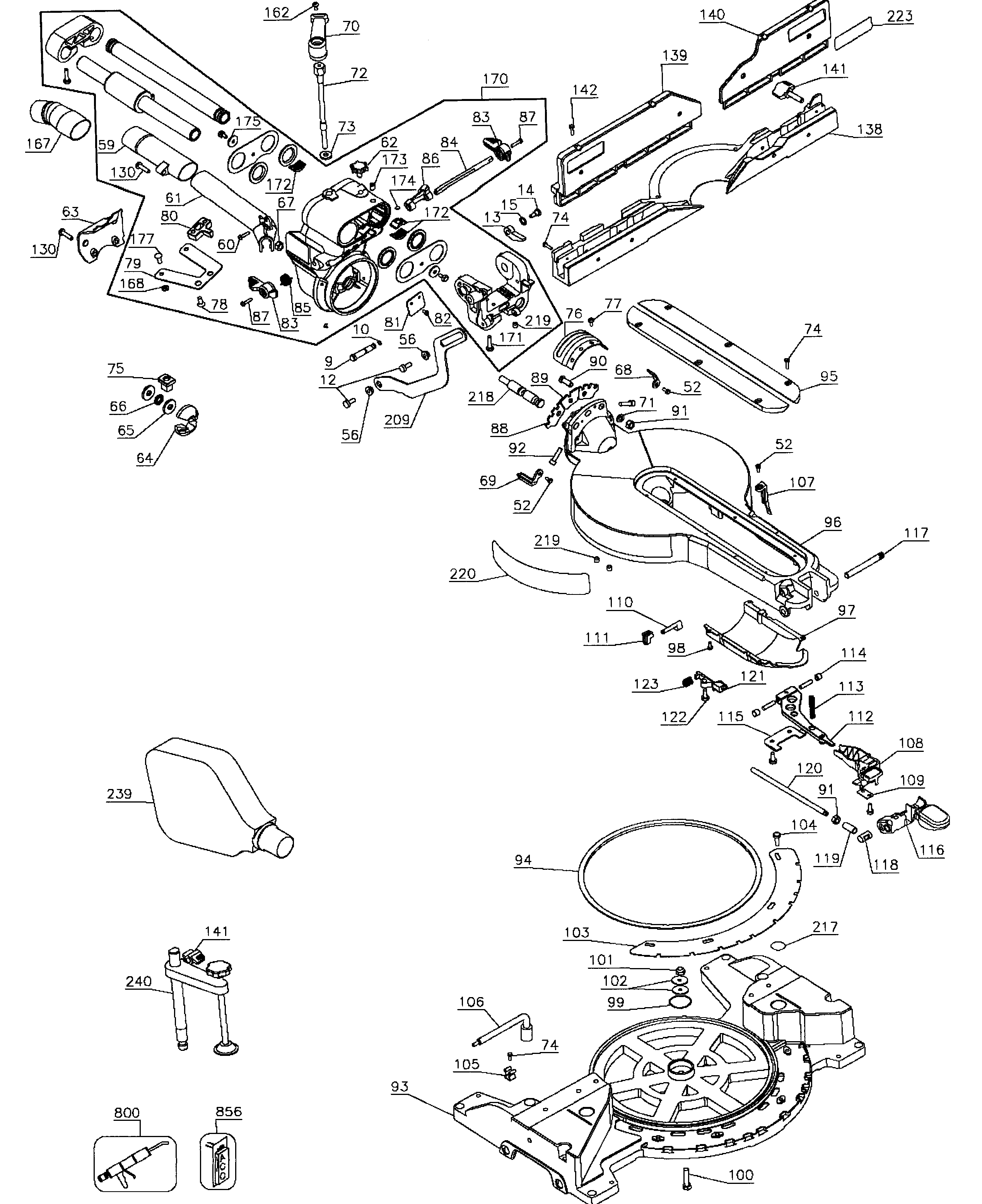

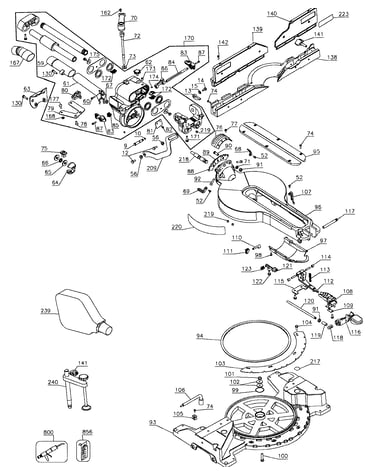

Base assy diagram

Lock nut

Part #N044739

The manufacturer no longer makes this part, and there's no substitute part

Jumper 618213-00
#136

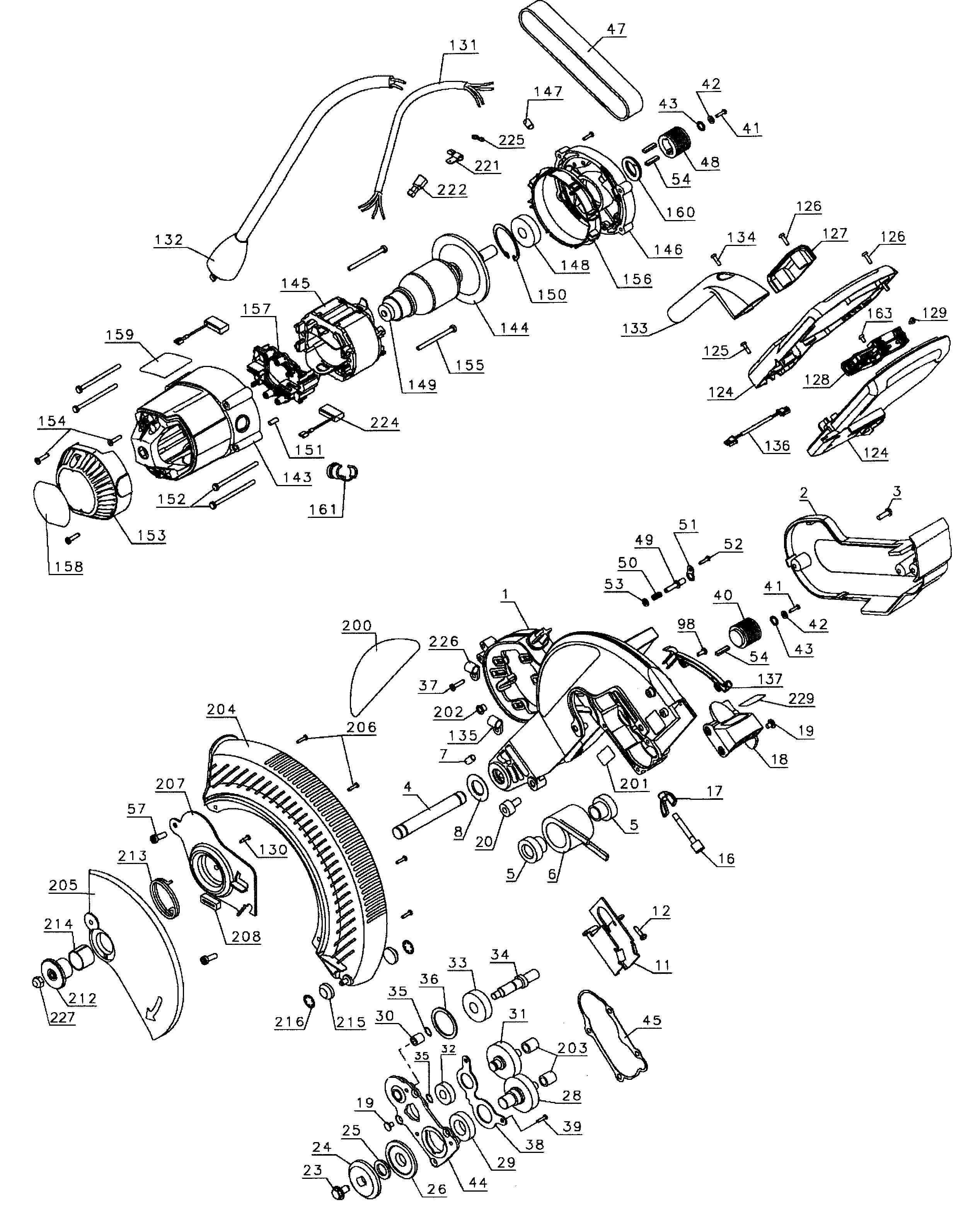

Arm assy diagram

Jumper

Part #618213-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 604410-00
#104

Base assy diagram

Screw

Part #604410-00

The manufacturer no longer makes this part, and there's no substitute part

Cover N026930
#18

Arm assy diagram

Cover

Part #N026930

The manufacturer no longer makes this part, and there's no substitute part

Washer 153559-00
#53

Arm assy diagram

Washer

Part #153559-00

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Screw 153778-00
#41

Arm assy diagram

Miter saw screw

Part #153778-00

The manufacturer no longer makes this part, and there's no substitute part

Clampplate 618243-00
#109

Base assy diagram

Clampplate

Part #618243-00

The manufacturer no longer makes this part, and there's no substitute part

Pulley 153796-00
#40

Arm assy diagram

Pulley

Part #153796-00

The manufacturer no longer makes this part, and there's no substitute part

O-ring 049787-00
#99

Base assy diagram

O-ring

Part #049787-00

The manufacturer no longer makes this part, and there's no substitute part

Slug 613497-00
#174

Base assy diagram

Slug

Part #613497-00

The manufacturer no longer makes this part, and there's no substitute part
