Model # 101340R Official Tractor Accessories transaxle

Here are the diagrams and repair parts for Official Tractor Accessories 101340R transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Hardened Race Thrust Bearing 6266H
#12

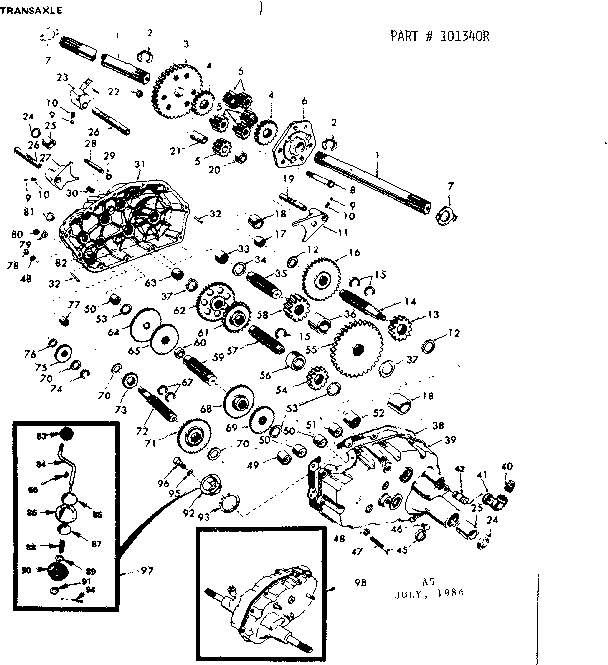

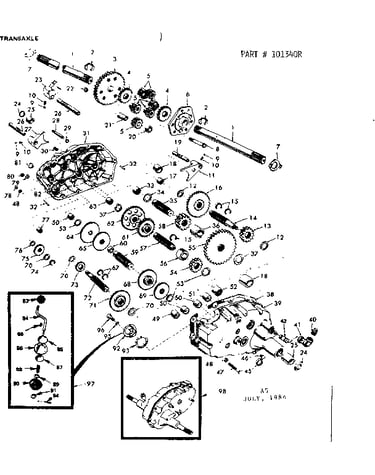

Transaxle diagram

Hardened race thrust bearing

Part #6266H

Replaced by #532006266

?
Manufacturer substitution
This part replaces 6266H. Substitute parts can look different from the original.
BEST SELLER
$10.99 |
15% OFF Phone Price : $12.99
In Stock
Oil Seal 7393R
#24

Transaxle diagram

Oil seal

Part #7393R

Replaced by #532007393

?
Manufacturer substitution
This part replaces 7393R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
In Stock
Pin 76020412
#94

Transaxle diagram

Pin

Part #76020412

Replaced by #596029501

?
Manufacturer substitution
This part replaces 76020412. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Shift Seal 8105R
#90

Transaxle diagram

Shift seal

Part #8105R

Replaced by #532110542

?
Manufacturer substitution
This part replaces 8105R. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Pinion 4208R
#61

Transaxle diagram

Pinion

Part #4208R

$13.99
In Stock
Lawn Tractor Transaxle Hi-lo Gear 633A63
#16

Transaxle diagram

Lawn tractor transaxle hi-lo gear

Part #633A63

$50.99
In Stock
Lock Washer 10140500
#48

Transaxle diagram

Lock washer

Part #10140500

The manufacturer no longer makes this part, and there's no substitute part

Ring 5845R
#2

Transaxle diagram

Ring

Part #5845R

Replaced by #812000029

?
Manufacturer substitution
This part replaces 5845R. Substitute parts can look different from the original.
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Washer 19151516
#89

Transaxle diagram

Washer

Part #19151516

Replaced by #594976501

?
Manufacturer substitution
This part replaces 19151516. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Needle Brg 4895H
#49

Transaxle diagram

Needle brg

Part #4895H

Replaced by #532004895

?
Manufacturer substitution
This part replaces 4895H. Substitute parts can look different from the original.
This item is not returnable
$12.79 |
14% OFF Phone Price : $14.79
In Stock
