Model # 113201891 Official Craftsman ac 230-amp dc 140-amp triple range arc welder

Here are the diagrams and repair parts for Official Craftsman 113201891 ac 230-amp dc 140-amp triple range arc welder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

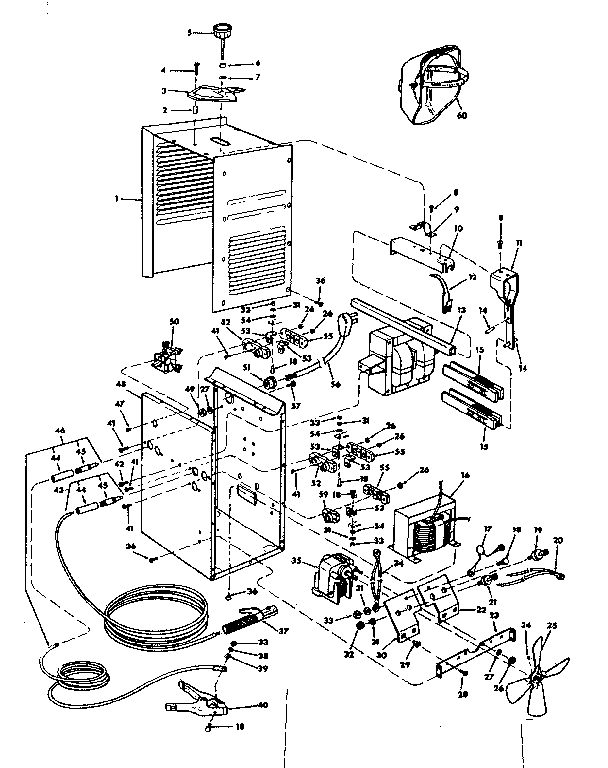

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Welder Cable Plug 61171
#45

Unit diagram

Welder cable plug

Part #61171

The manufacturer no longer makes this part, and there's no substitute part

Arc Welder Fan Motor 61314
#35

Unit diagram

Arc welder fan motor

Part #61314

The manufacturer no longer makes this part, and there's no substitute part

Welder Cable Insulator 30332
#44

Unit diagram

Welder cable insulator

Part #30332

The manufacturer no longer makes this part, and there's no substitute part

Ground Clamp 51439
#40

Unit diagram

Ground clamp

Part #51439

The manufacturer no longer makes this part, and there's no substitute part

Welder Cable Block 61115
Welder cable block

Part #61115

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551025
#54

Unit diagram

Washer

Part #STD551025

The manufacturer no longer makes this part, and there's no substitute part

Block No. 6 61117
#55

Unit diagram

Block no. 6

Part #61117

The manufacturer no longer makes this part, and there's no substitute part

Screw STD611005
#36

Unit diagram

Screw

Part #STD611005

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw STD522507
#18

Unit diagram

Machine screw

Part #STD522507

The manufacturer no longer makes this part, and there's no substitute part

Pin 61391
#14

Unit diagram

Pin

Part #61391

The manufacturer no longer makes this part, and there's no substitute part
