Model # XL1500 (5AEE) Official Smith Corona typewriter

Here are the diagrams and repair parts for Official Smith Corona XL1500-5AEE typewriter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

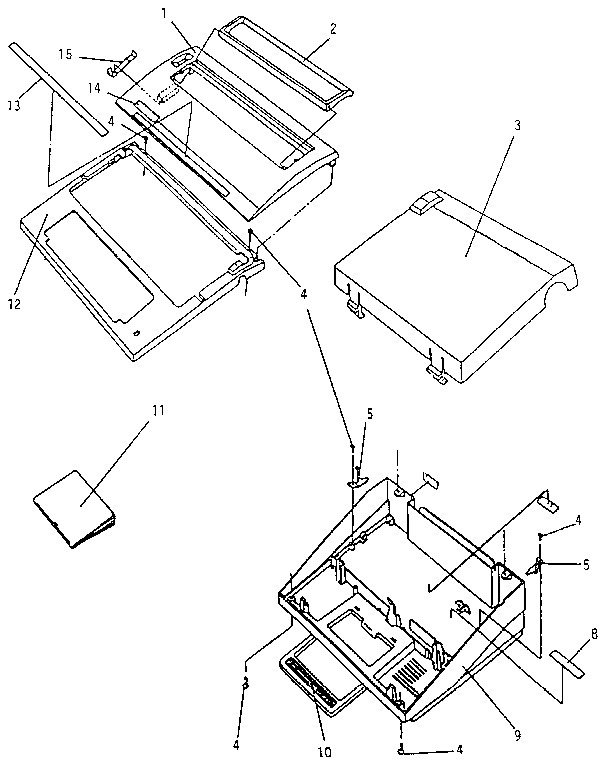

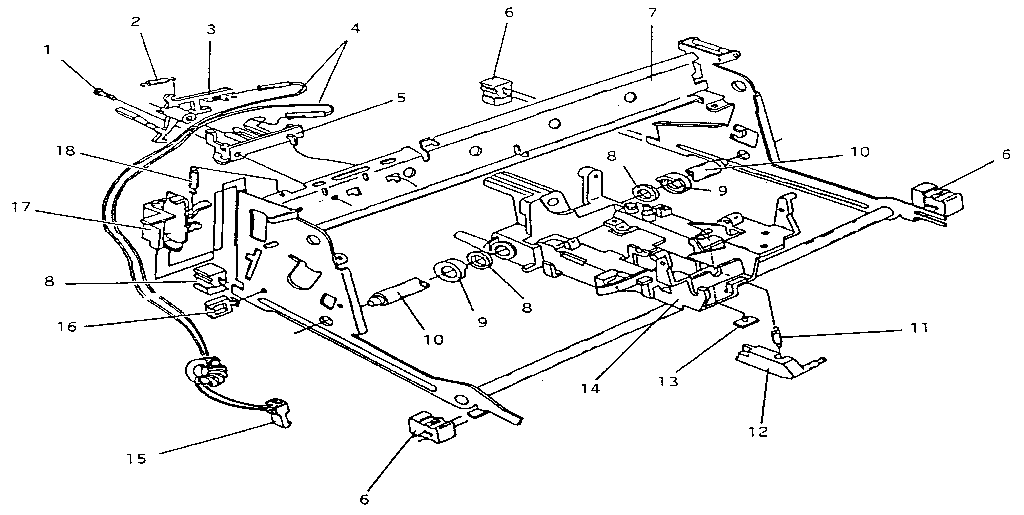

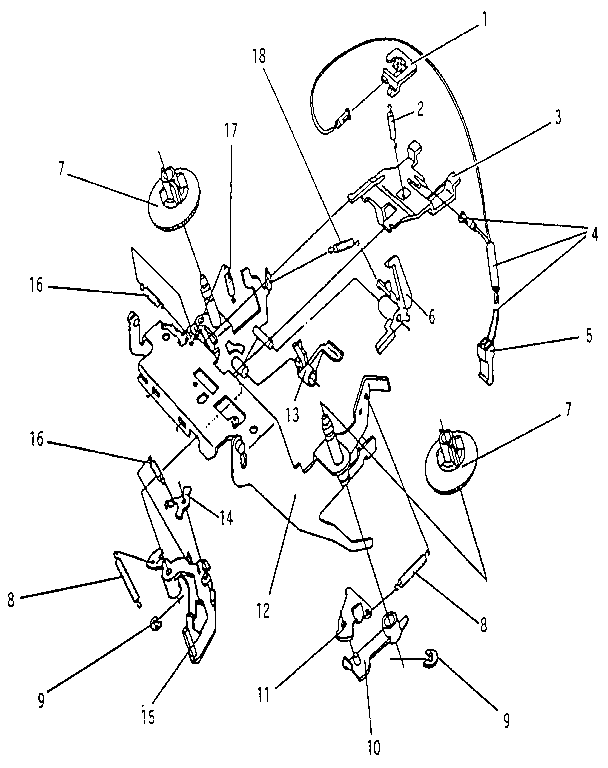

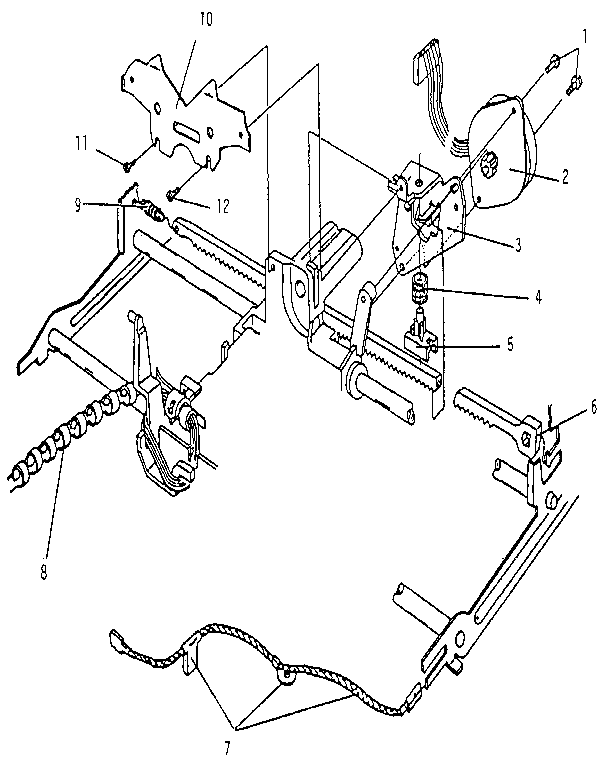

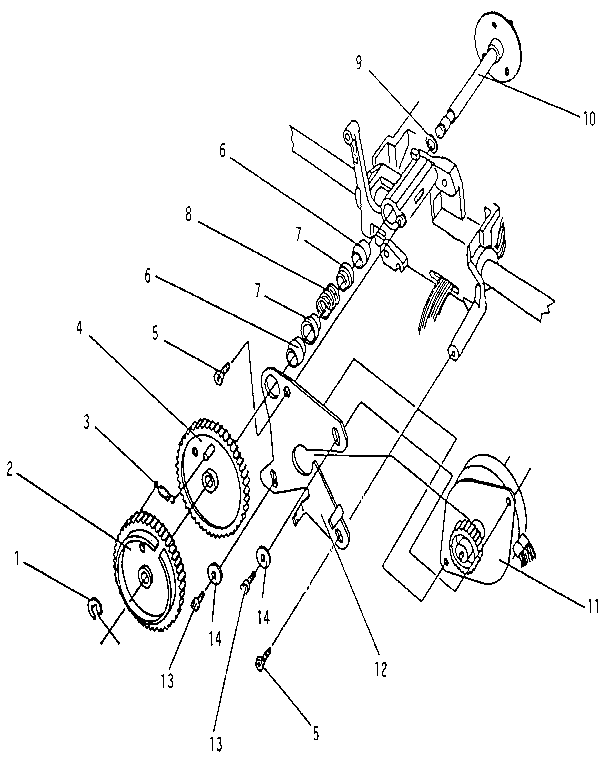

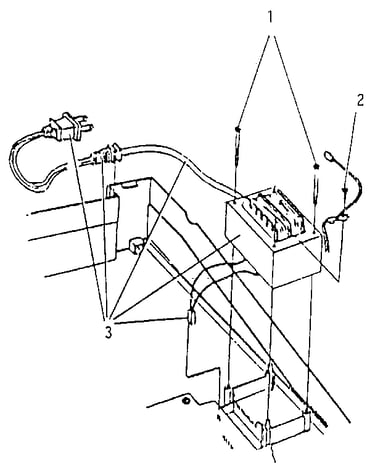

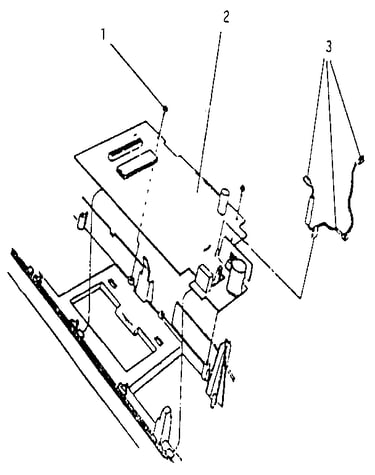

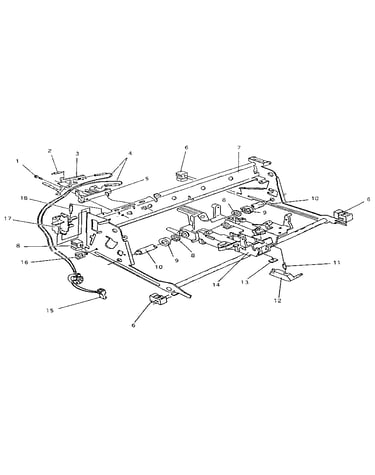

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Cvr Up Rbbn 59055

#NI

All parts diagram

Cvr up rbbn

Part #59055

The manufacturer no longer makes this part, and there's no substitute part

Screw 770297
Screw

Part #770297

The manufacturer no longer makes this part, and there's no substitute part

./. 778448
#49

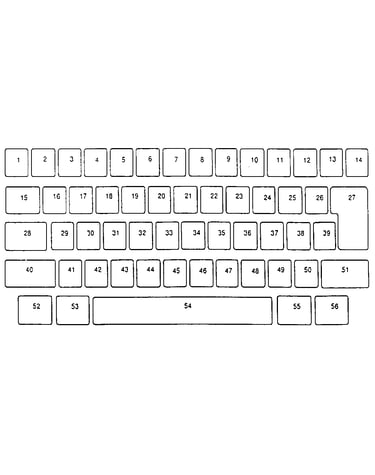

Keybutton reference chart diagram

./.

Part #778448

The manufacturer no longer makes this part, and there's no substitute part

Keybutton,8 778408
#9

Keybutton reference chart diagram

Keybutton,8

Part #778408

The manufacturer no longer makes this part, and there's no substitute part

Key, Q 778641
#16

Keybutton reference chart diagram

Key, q

Part #778641

The manufacturer no longer makes this part, and there's no substitute part

Latch 770285
#15

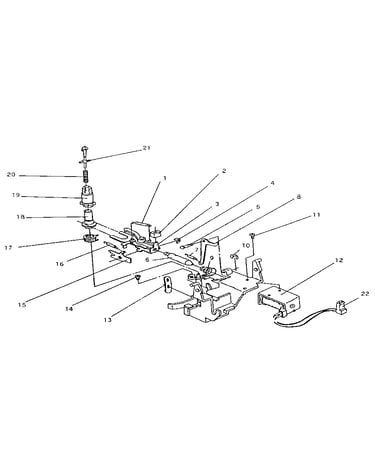

Ribbon drive diagram

Latch

Part #770285

The manufacturer no longer makes this part, and there's no substitute part

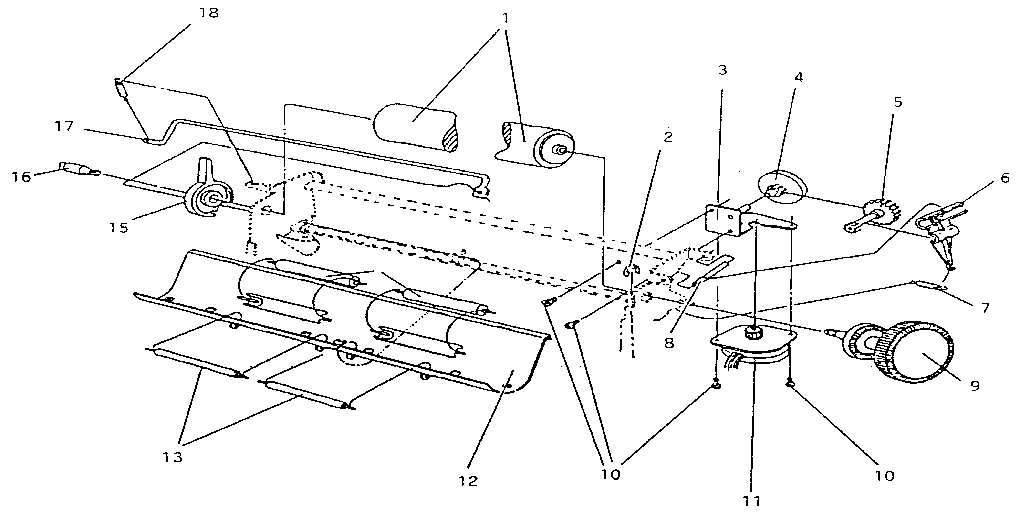

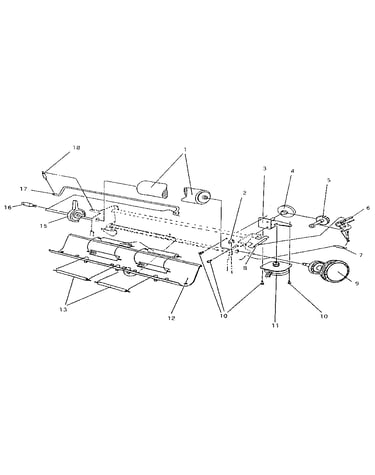

Platen Knob 771932
#9

Paper feed diagram

Platen knob

Part #771932

The manufacturer no longer makes this part, and there's no substitute part

Keyboard 778850
#1

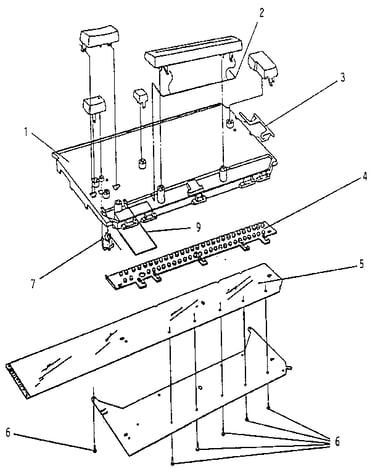

Keyboard diagram

Keyboard

Part #778850

The manufacturer no longer makes this part, and there's no substitute part

Pusher 749735
#21

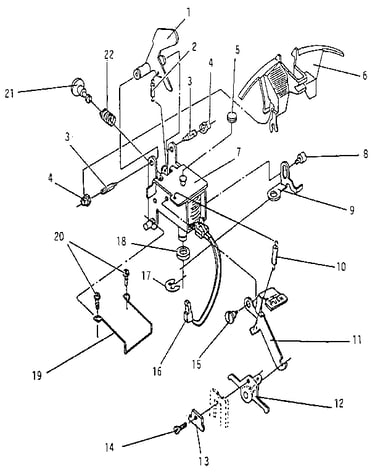

Hammer diagram

Pusher

Part #749735

The manufacturer no longer makes this part, and there's no substitute part

Key, E 778643
#18

Keybutton reference chart diagram

Key, e

Part #778643

The manufacturer no longer makes this part, and there's no substitute part
