Model # CC25-0113349N Official Amana top burner module assembly

Here are the diagrams and repair parts for Official Amana CC25-0113349N top burner module assembly, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Burner Bases & Heads

Screws

ALL PARTS

Showing 10 of 16 parts |

Module Pan 300756E

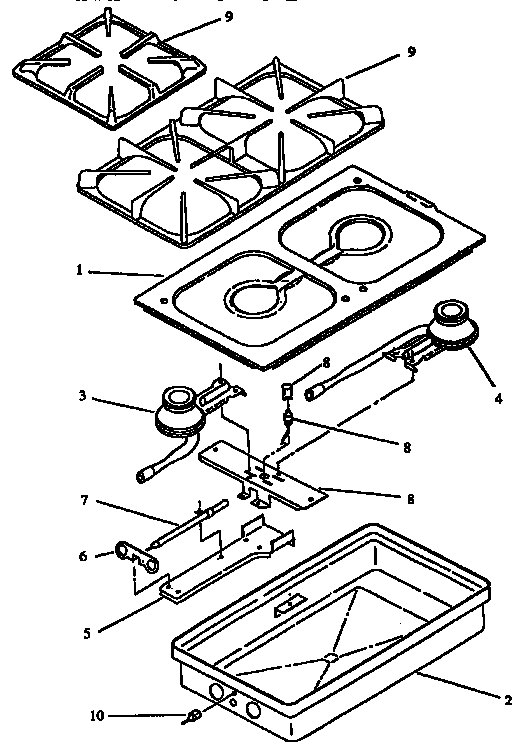

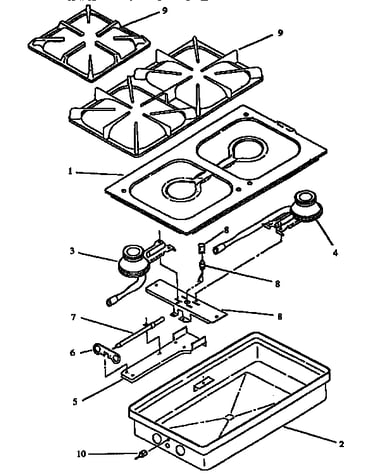

Replacement parts diagram

Module pan

Part #300756E

The manufacturer no longer makes this part, and there's no substitute part

Pin Bushing 0041898

Replacement parts diagram

Pin bushing

Part #0041898

The manufacturer no longer makes this part, and there's no substitute part

Venturi Support 0041004

Replacement parts diagram

Venturi support

Part #0041004

The manufacturer no longer makes this part, and there's no substitute part

Screw 0041825

#NI

All parts diagram

Screw

Part #0041825

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 0041768

#NI

All parts diagram

Machine screw

Part #0041768

The manufacturer no longer makes this part, and there's no substitute part

Connector 0042216

Connector

Part #0042216

The manufacturer no longer makes this part, and there's no substitute part

Module Clip 0307228

#NI

All parts diagram

Module clip

Part #0307228

The manufacturer no longer makes this part, and there's no substitute part

Rivet 0041915

#NI

All parts diagram

Rivet

Part #0041915

The manufacturer no longer makes this part, and there's no substitute part

Eletr/cap As 0041500

Eletr/cap as

Part #0041500

The manufacturer no longer makes this part, and there's no substitute part

Burner 0042375

Burner

Part #0042375

The manufacturer no longer makes this part, and there's no substitute part
