Model # DCR-DVD308 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-DVD308 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

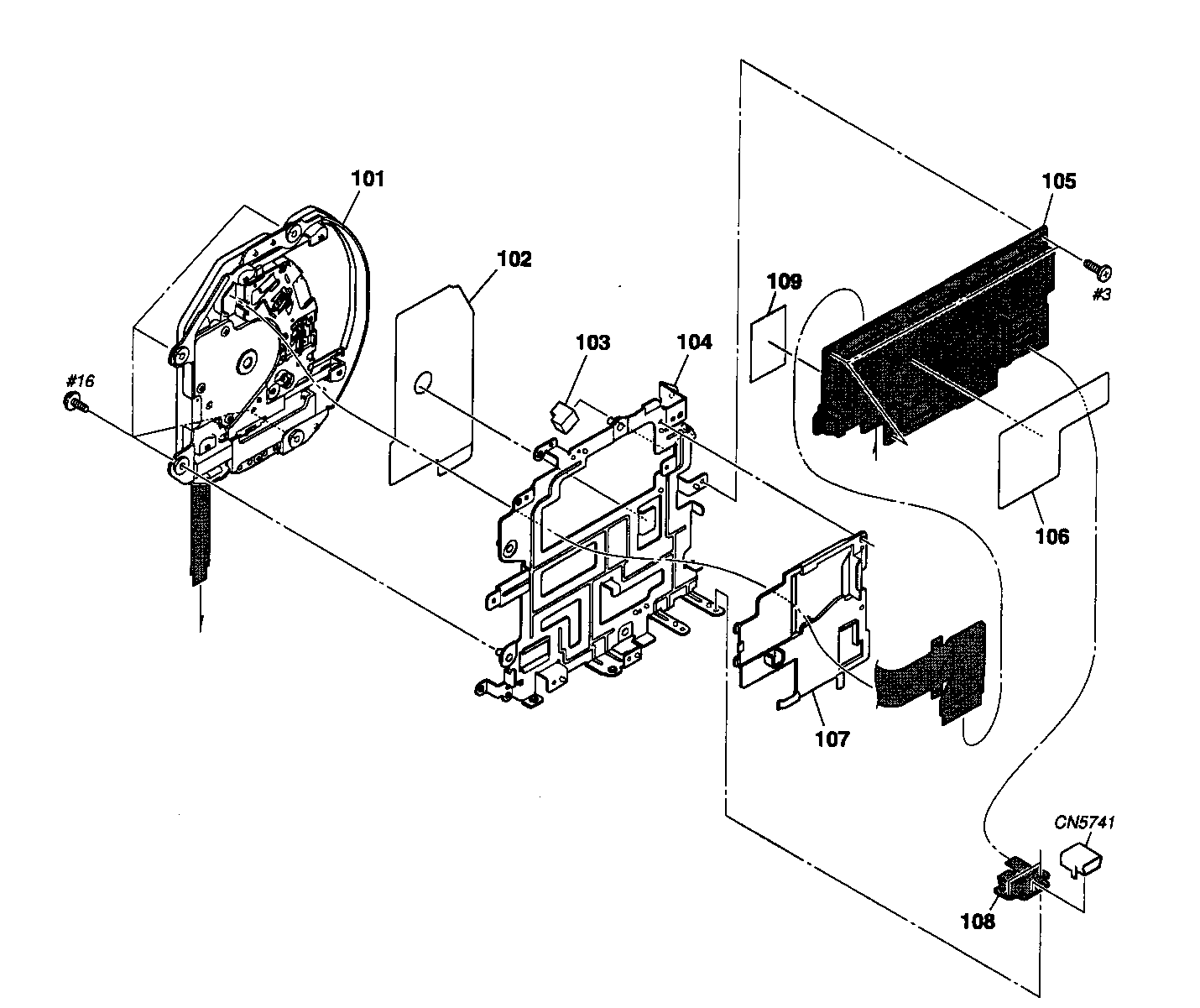

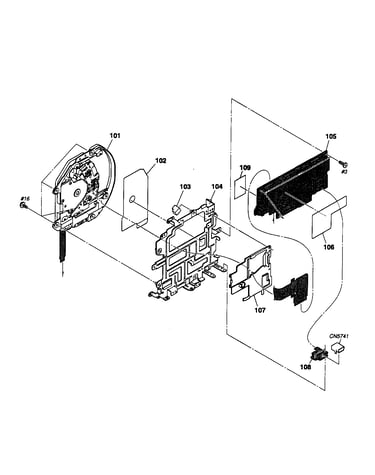

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Termnl Brd 178006421
#NI

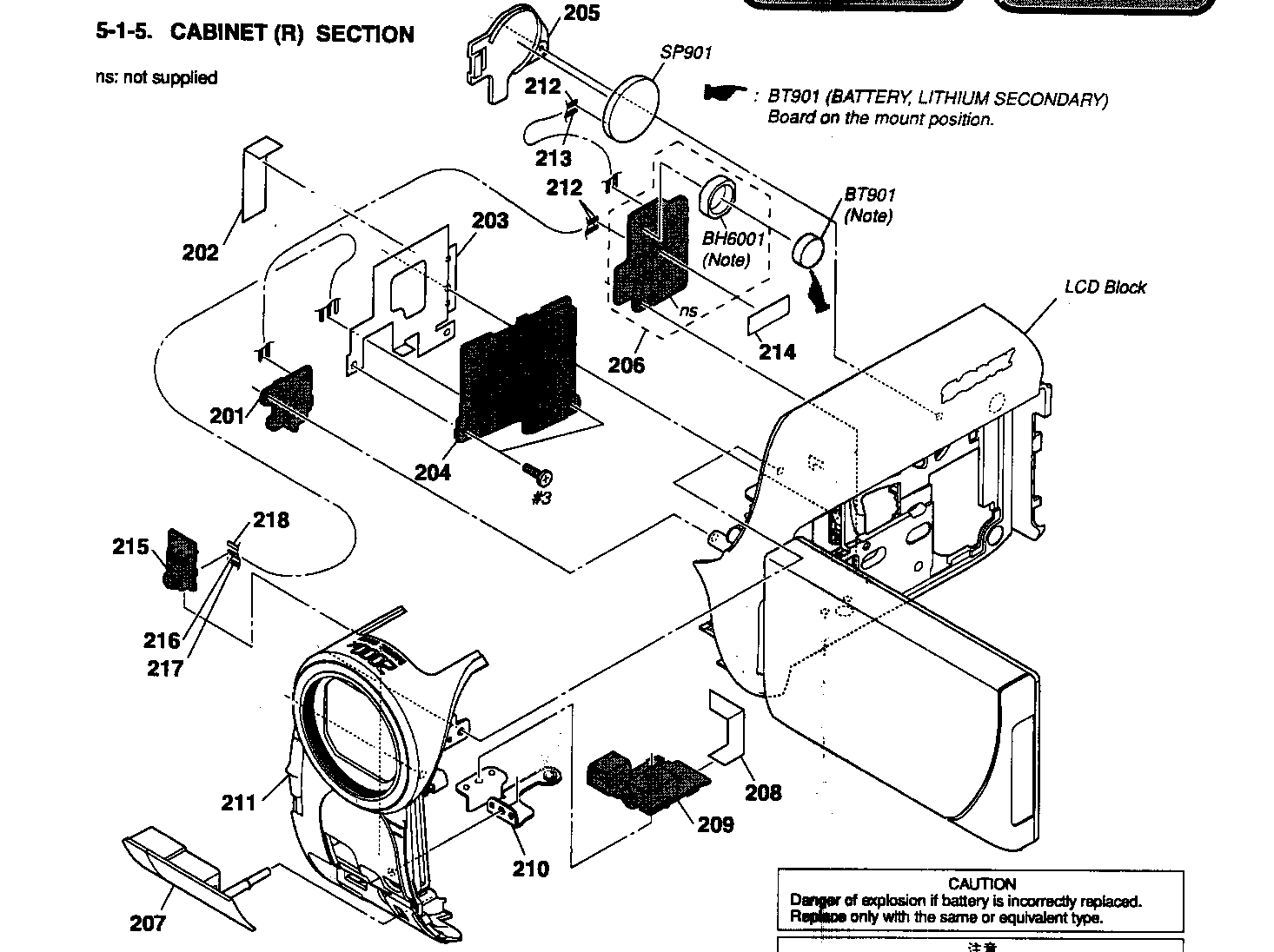

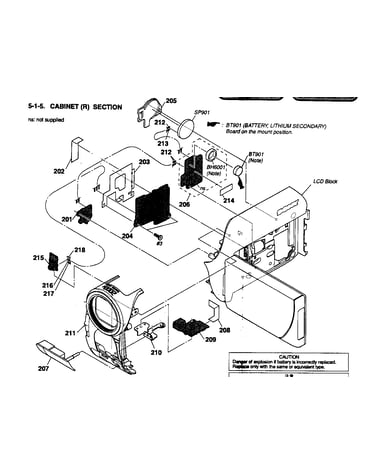

Cabinet parts 3 diagram

Termnl brd

Part #178006421

The manufacturer no longer makes this part, and there's no substitute part

Flexible Pcb A1228528A
#65

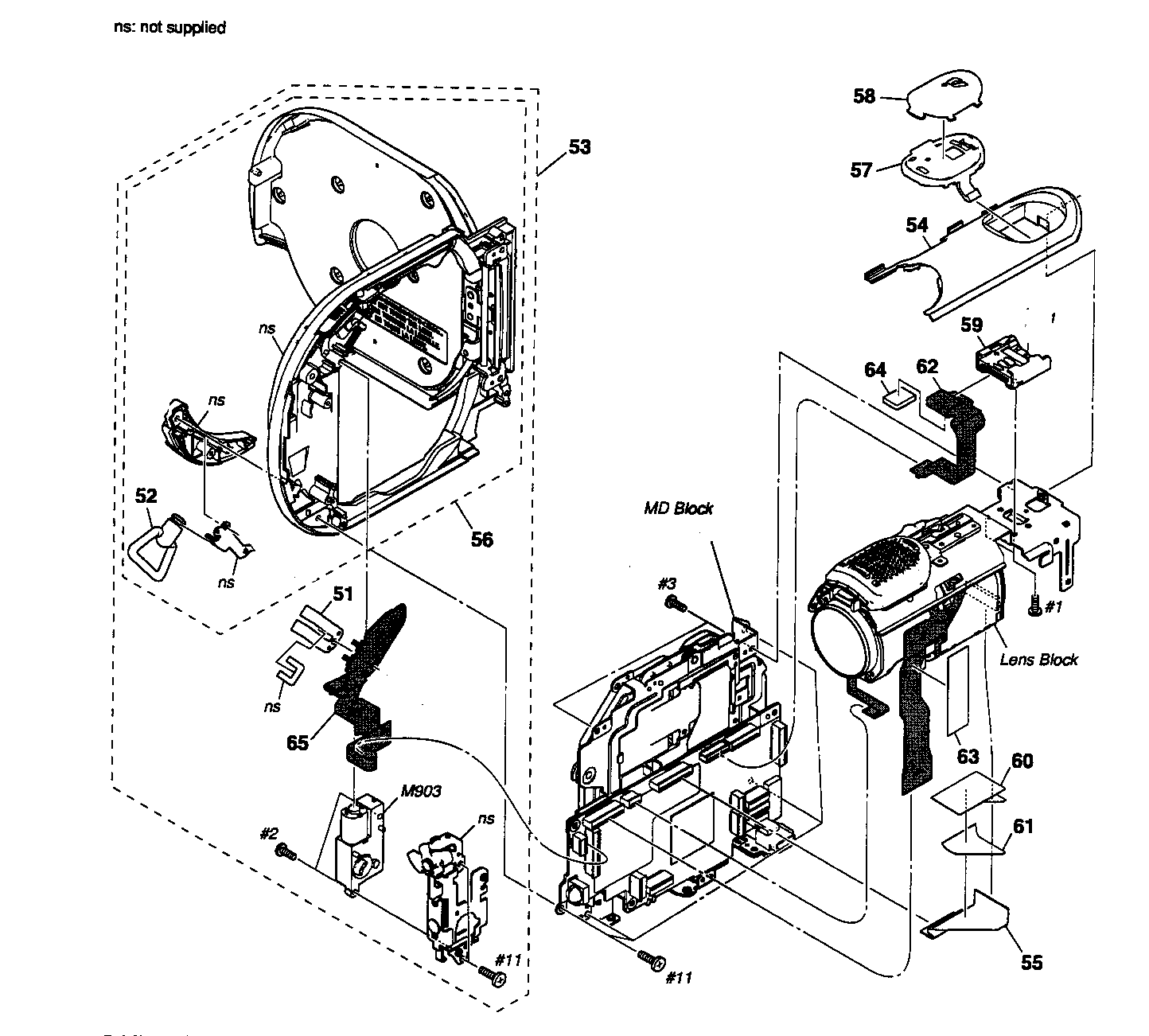

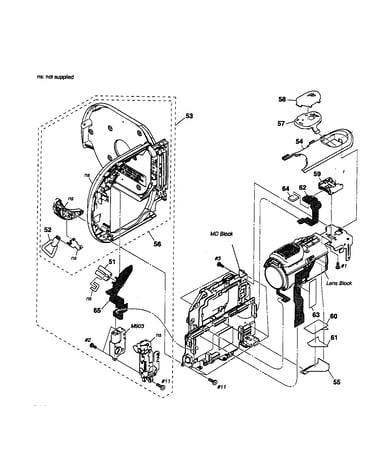

Cabinet parts 2 diagram

Flexible pcb

Part #A1228528A

The manufacturer no longer makes this part, and there's no substitute part

Block Assembly A1236643A
#NI

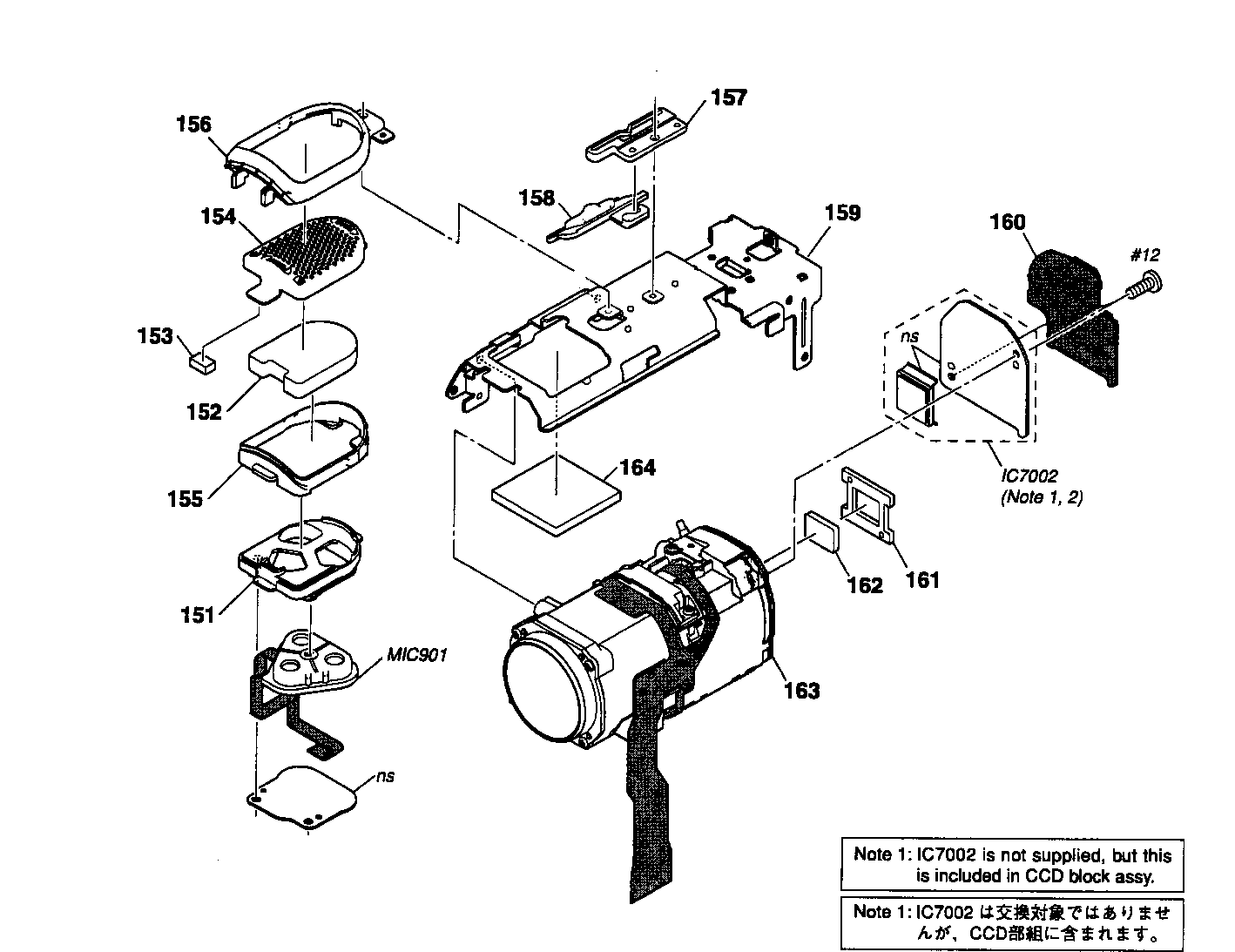

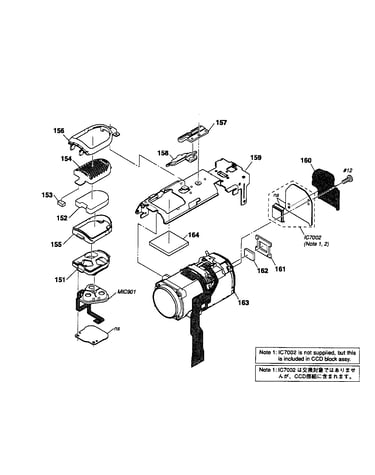

Lens block diagram

Block assembly

Part #A1236643A

The manufacturer no longer makes this part, and there's no substitute part

Panel Assembly A1246110A
#318

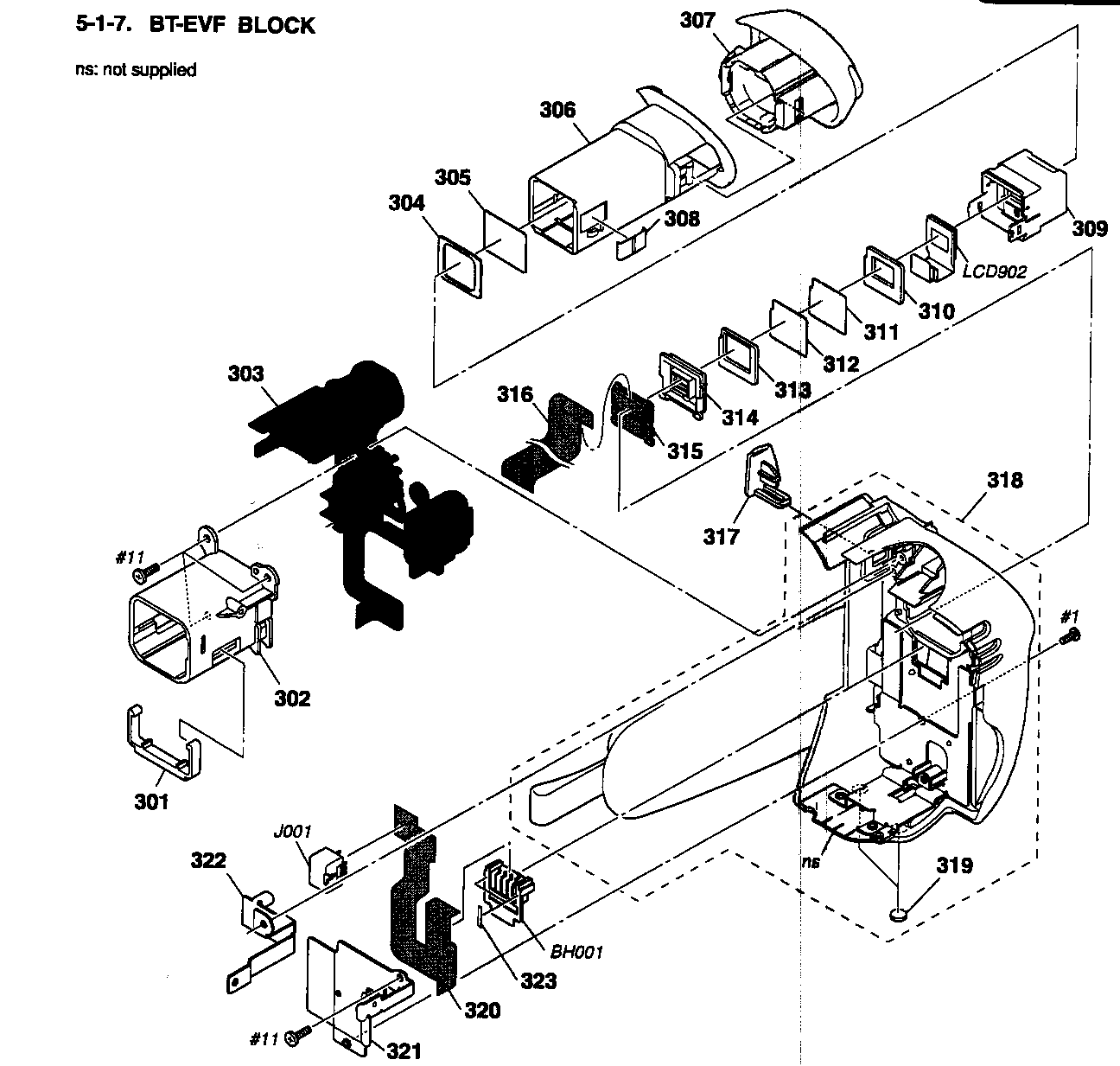

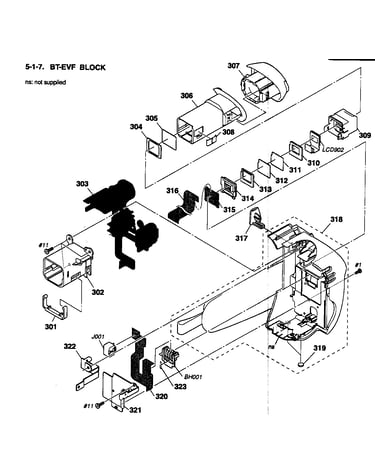

Bt-evf block diagram

Panel assembly

Part #A1246110A

The manufacturer no longer makes this part, and there's no substitute part

Cover 269943901
#58

Cabinet parts 2 diagram

Cover

Part #269943901

The manufacturer no longer makes this part, and there's no substitute part

Flexible Pcb 187128511
#316

Bt-evf block diagram

Flexible pcb

Part #187128511

The manufacturer no longer makes this part, and there's no substitute part

Flex Board 187128611
#62

Cabinet parts 2 diagram

Flex board

Part #187128611

The manufacturer no longer makes this part, and there's no substitute part

Rv-002 Pcb A1228515A
#254

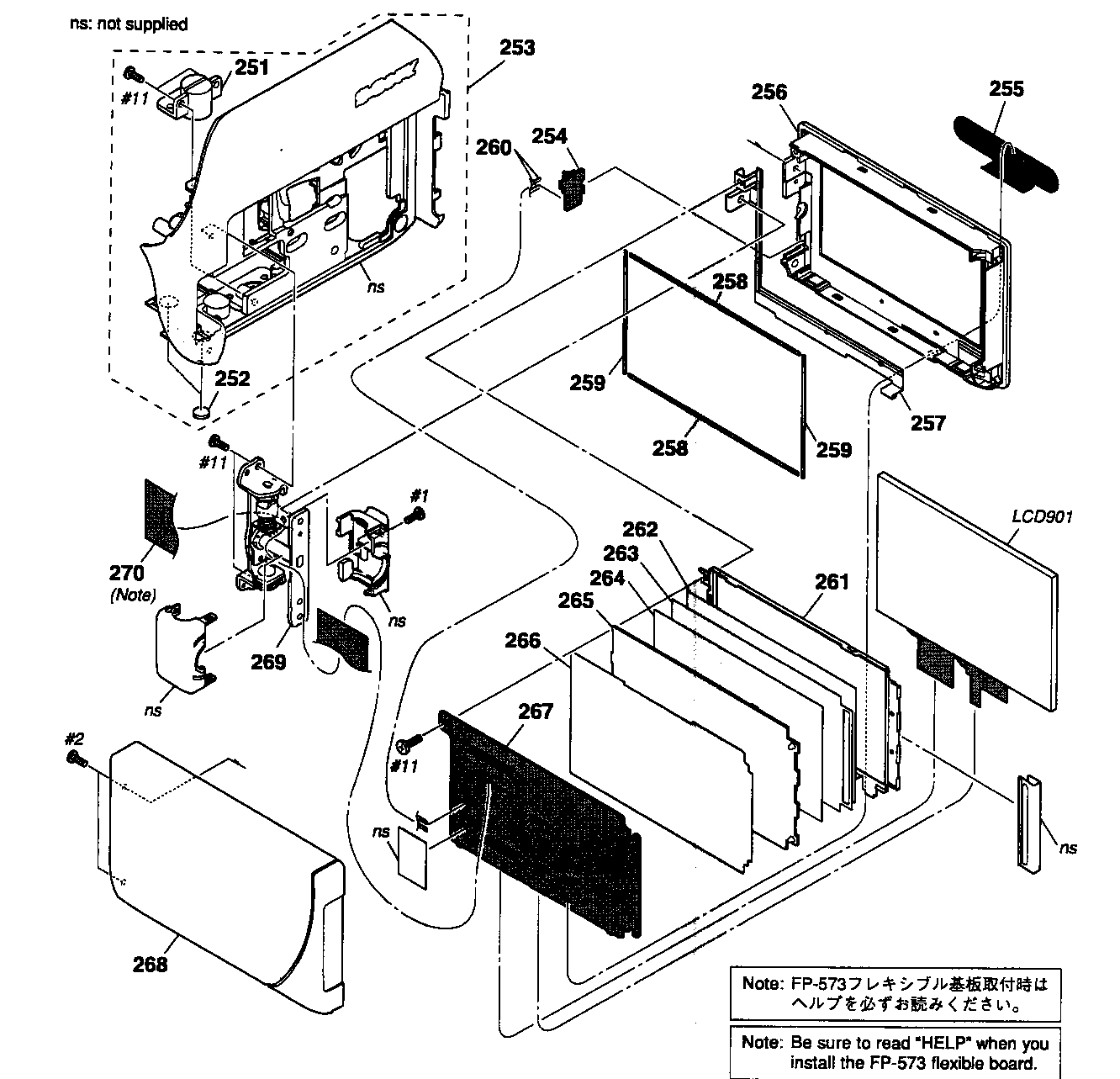

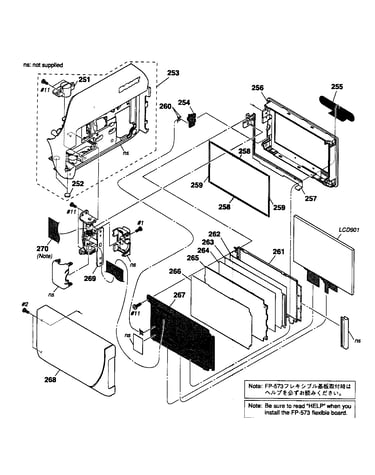

Lcd block diagram

Rv-002 pcb

Part #A1228515A

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Assembly A1246117A
#253

Lcd block diagram

Cabinet assembly

Part #A1246117A

The manufacturer no longer makes this part, and there's no substitute part

A/v Connec 183155311
#NI

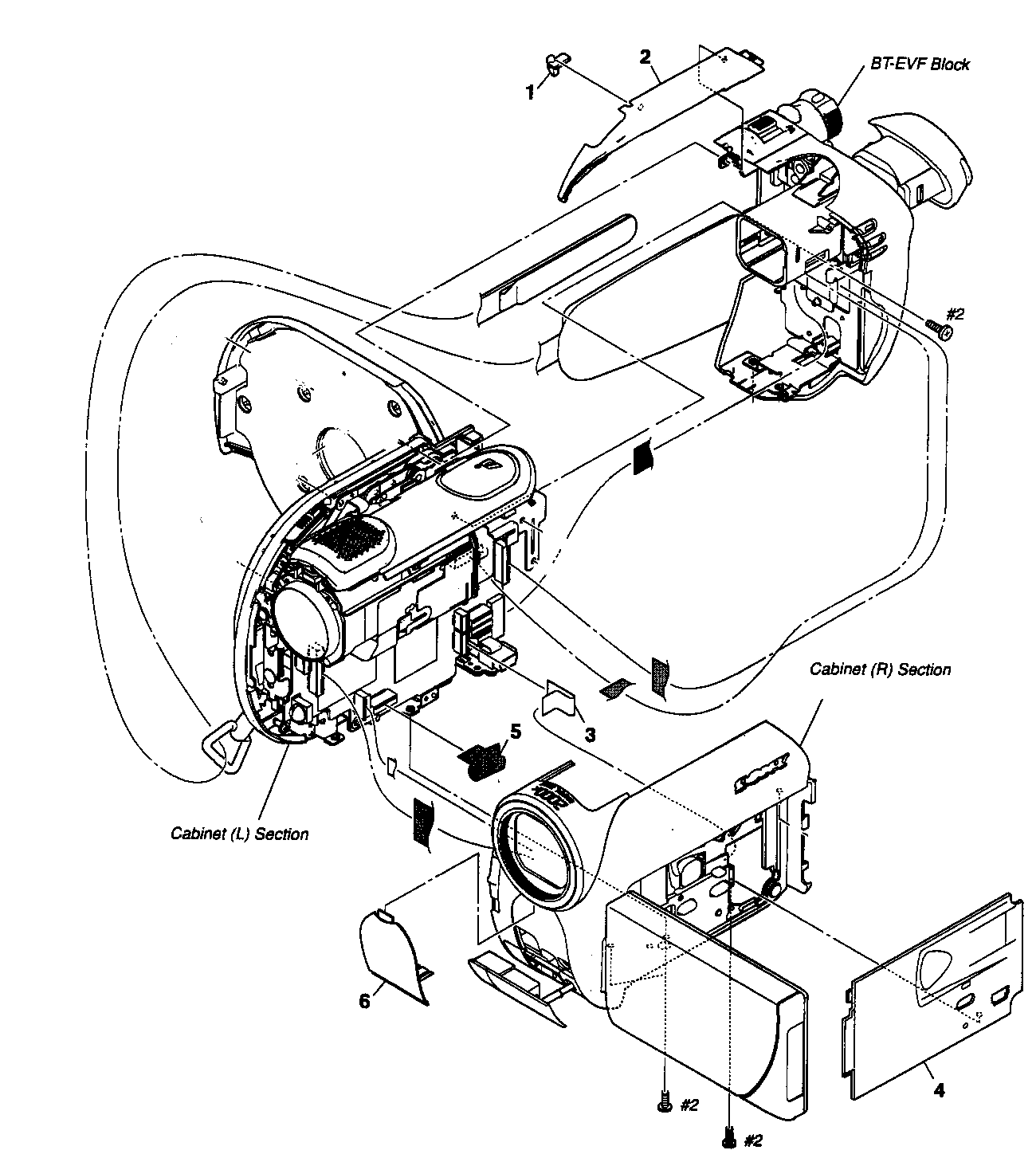

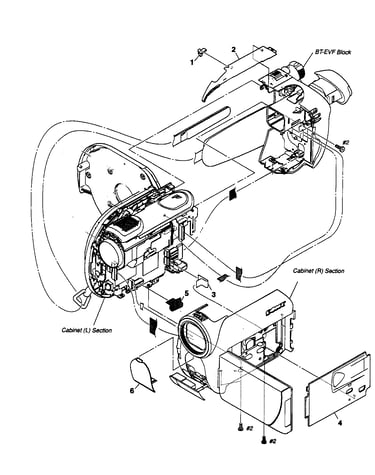

Cabinet parts 1 diagram

A/v connec

Part #183155311

The manufacturer no longer makes this part, and there's no substitute part
