GE
Wine & Beverage Cooler

Model # PCR06WATFSS Official GE beverage center

Here are the diagrams and repair parts for Official GE PCR06WATFSS beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
R600 Drier W/ Red Cap WR87X30875
#35

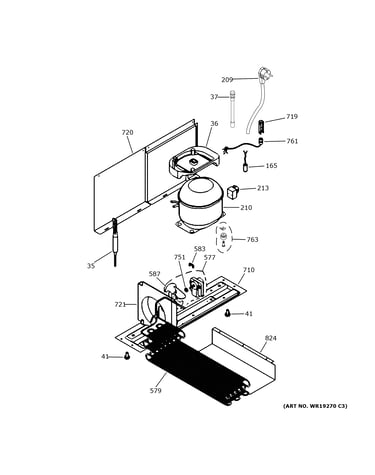

Machine compartment diagram

R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
$56.29
In Stock
R600 Process WR87X30876
#37

Machine compartment diagram

R600 process

Part #WR87X30876

BEST SELLER
$11.41 |
15% OFF Phone Price : $13.41
In Stock
Refrigerator Nameplate (replaces Wr04x10221) WR04X10181
#759

Door diagram

Refrigerator nameplate (replaces wr04x10221)

Part #WR04X10181

$8.46 |
11% OFF Phone Price : $9.46
In Stock
Magnetic Gas WR24X10123
#336

Door diagram

Magnetic gas

Part #WR24X10123

Replaced by #WR24X10161

?
Manufacturer substitution
This part replaces WR24X10123. Substitute parts can look different from the original.
$117.45 |
8% OFF Phone Price : $127.45
In Stock
Wine Cooler Toe Grille (stainless) WR79X10030
#711

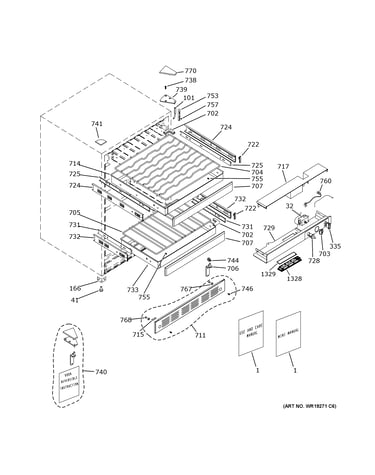

Cabinet & shelves diagram

Wine cooler toe grille (stainless)

Part #WR79X10030

$125.86 |
7% OFF Phone Price : $135.86
In Stock
Condenser Fan WR17X11675
#721

Machine compartment diagram

Condenser fan

Part #WR17X11675

$70.41 |
7% OFF Phone Price : $75.41
In Stock
Guide Frame WR72X10122
#725

Cabinet & shelves diagram

Guide frame

Part #WR72X10122

$64.64
In Stock
Complete Fan Blade WR60X10119
#587

Machine compartment diagram

Complete fan blade

Part #WR60X10119

$37.58
In Stock
Led Housing WR02X35309
#1328

Cabinet & shelves diagram

Led housing

Part #WR02X35309

$37.58
In Stock
Frame WR40X10048
#707

Cabinet & shelves diagram

Frame

Part #WR40X10048

$132.52
In Stock
