Model # PV-GS15P Official Panasonic digital camcorder

Here are the diagrams and repair parts for Official Panasonic PV-GS15P digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

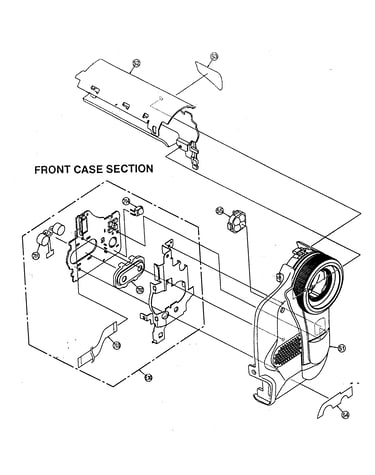

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Slide LSMD0799
#16

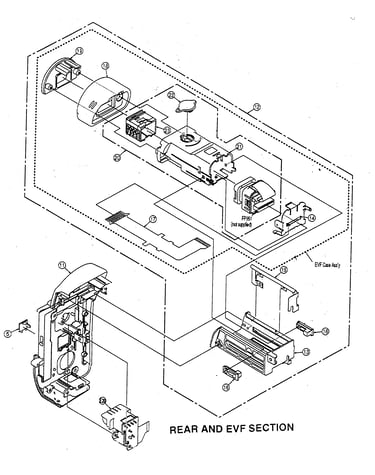

Rear/evf diagram

Slide

Part #LSMD0799

The manufacturer no longer makes this part, and there's no substitute part

Diffusion Sheet LSGL0404
#38

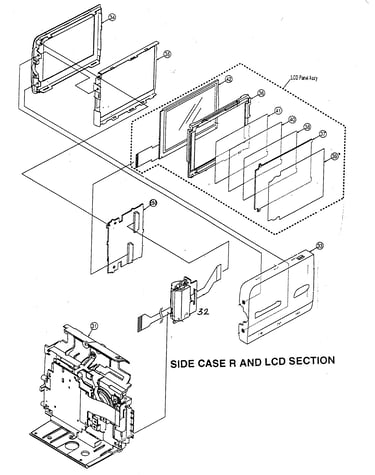

Side case r/lcd diagram

Diffusion sheet

Part #LSGL0404

The manufacturer no longer makes this part, and there's no substitute part

Bracket LSXA0555
#7

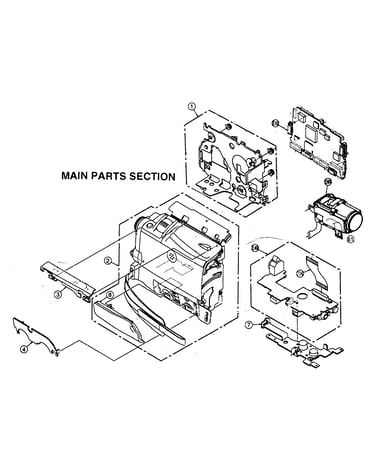

Main parts diagram

Bracket

Part #LSXA0555

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C3EBGG000013
#NI

Main parts diagram

Integrated circuit

Part #C3EBGG000013

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C3EBGG000016
#NI

Main parts diagram

Integrated circuit

Part #C3EBGG000016

The manufacturer no longer makes this part, and there's no substitute part

Chip Fuse ERBSE2R00U
#NI

Main parts diagram

Chip fuse

Part #ERBSE2R00U

The manufacturer no longer makes this part, and there's no substitute part

Bef Sheet LSGL0406
#40

Side case r/lcd diagram

Bef sheet

Part #LSGL0406

The manufacturer no longer makes this part, and there's no substitute part

Shield LSXY0573
#35

Side case r/lcd diagram

Shield

Part #LSXY0573

The manufacturer no longer makes this part, and there's no substitute part

Lever LSGT0068
#22

Rear/evf diagram

Lever

Part #LSGT0068

The manufacturer no longer makes this part, and there's no substitute part

Chip Fuse K5H2022A0008
#NI

Main parts diagram

Chip fuse

Part #K5H2022A0008

The manufacturer no longer makes this part, and there's no substitute part
