Model #32PFL3506/F7-DS2 Philips lcd television

Here are the diagrams and repair parts for Philips 32PFL3506-F7-DS2 lcd television, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 25 parts

LCD Panel

#LCD1

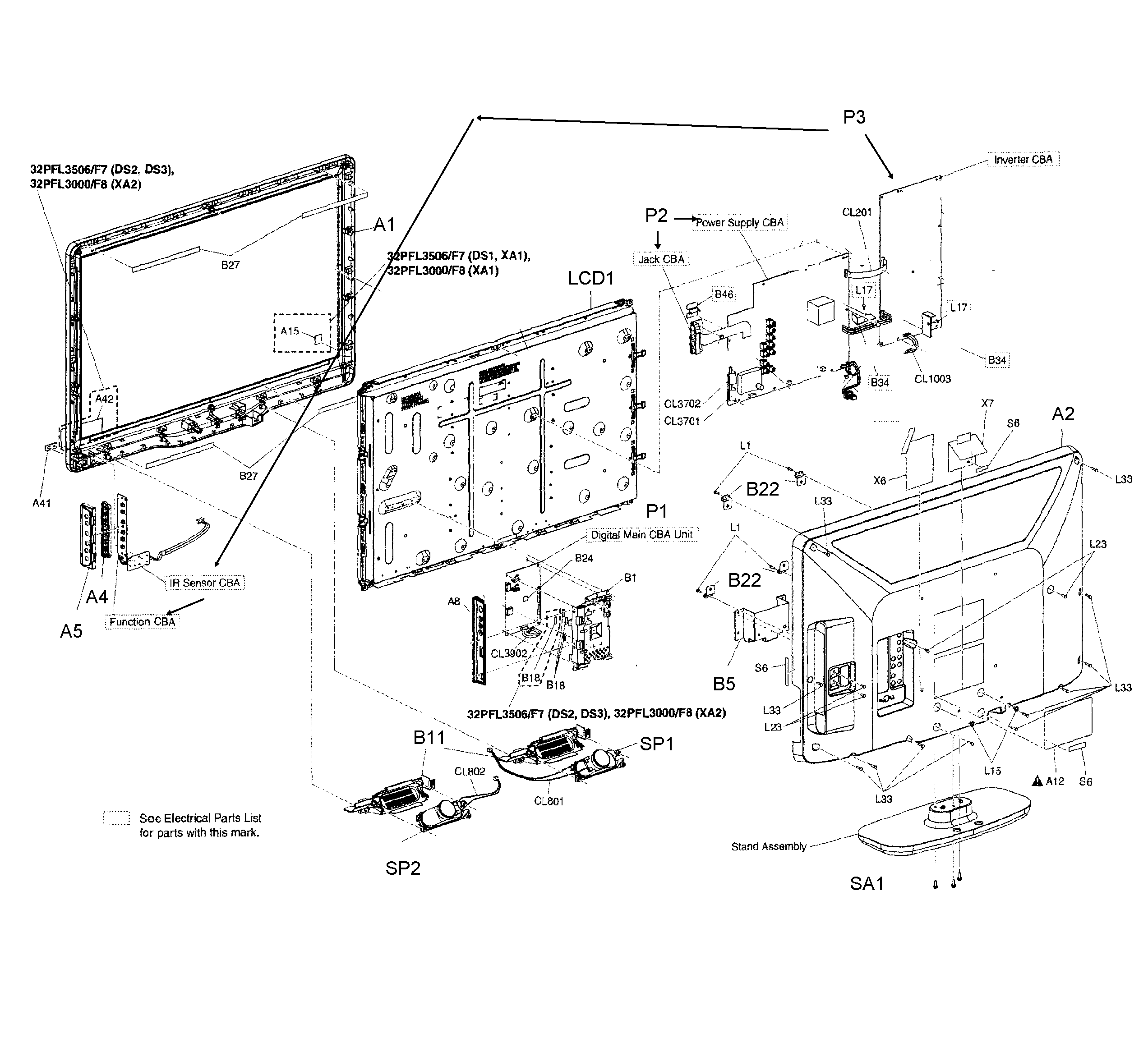

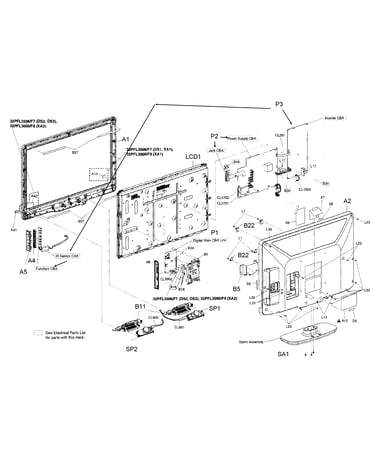

Cabinet parts Diagram

Lcd panel

Part #UK32AXB

The manufacturer no longer makes this part, and there's no substitute part

Bracket

#B22

Cabinet parts Diagram

Bracket

Part #1EM323797

The manufacturer no longer makes this part, and there's no substitute part

Remote

#NI

Cabinet parts Diagram

Remote

Part #URMT34JHG001

The manufacturer no longer makes this part, and there's no substitute part

Invert Pcb

#P3A

Cabinet parts Diagram

Invert pcb

Part #A17F6M1V-001-IV

The manufacturer no longer makes this part, and there's no substitute part

Television Stand Screw Set

#SA1A

Cabinet parts Diagram

Television stand screw set

Part #1ESA28477

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker

#SP1

Cabinet parts Diagram

Television speaker

Part #DS08130XQ002

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Front

#A1

Cabinet parts Diagram

Cabinet front

Part #1EM027428

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker

#SP2

Cabinet parts Diagram

Television speaker

Part #DS08130XQ003

The manufacturer no longer makes this part, and there's no substitute part

Wire Assembly

#NI

Cabinet parts Diagram

Wire assembly

Part #WX1A94F0-101

The manufacturer no longer makes this part, and there's no substitute part

Printed Circuit Board

#P3B

Cabinet parts Diagram

Printed circuit board

Part #A17F6M1V-001-FNIR

The manufacturer no longer makes this part, and there's no substitute part
