Amana
Countertop Microwave

Model # SA1430.002 Official Amana microwave

Here are the diagrams and repair parts for Official Amana SA1430002 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

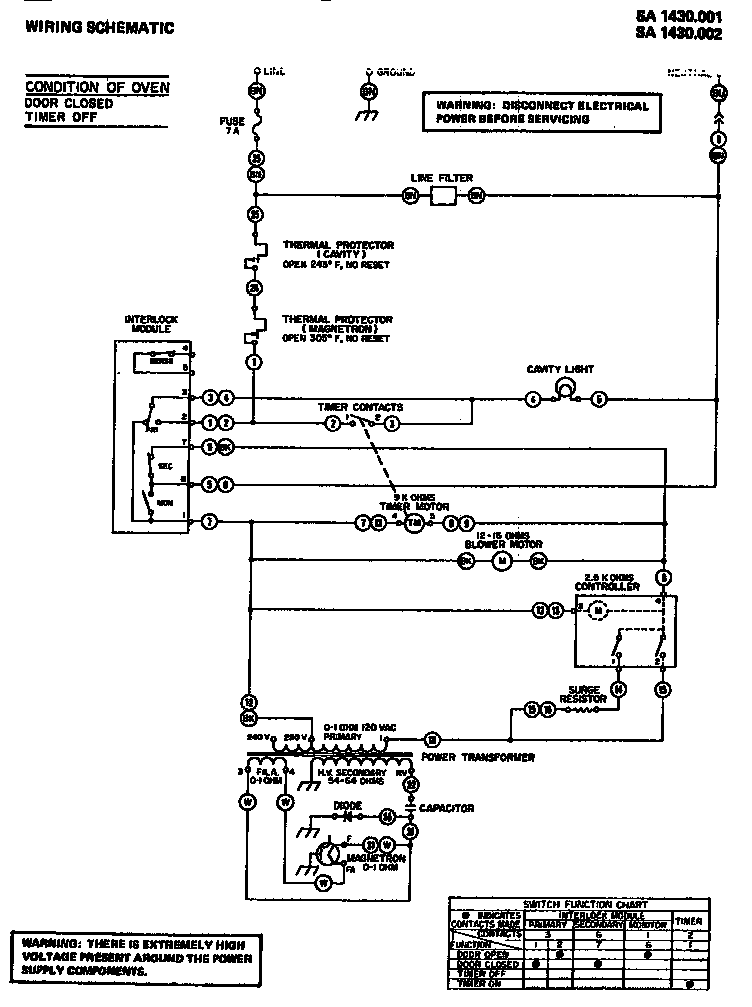

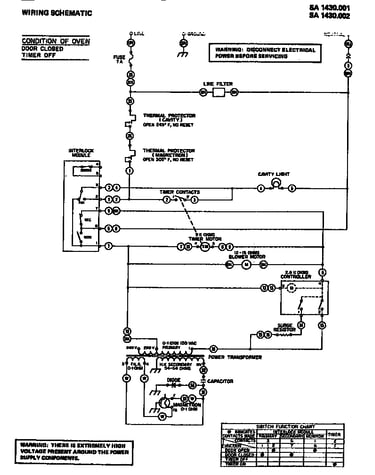

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Screw Holder Mtg. M1D329
#14B

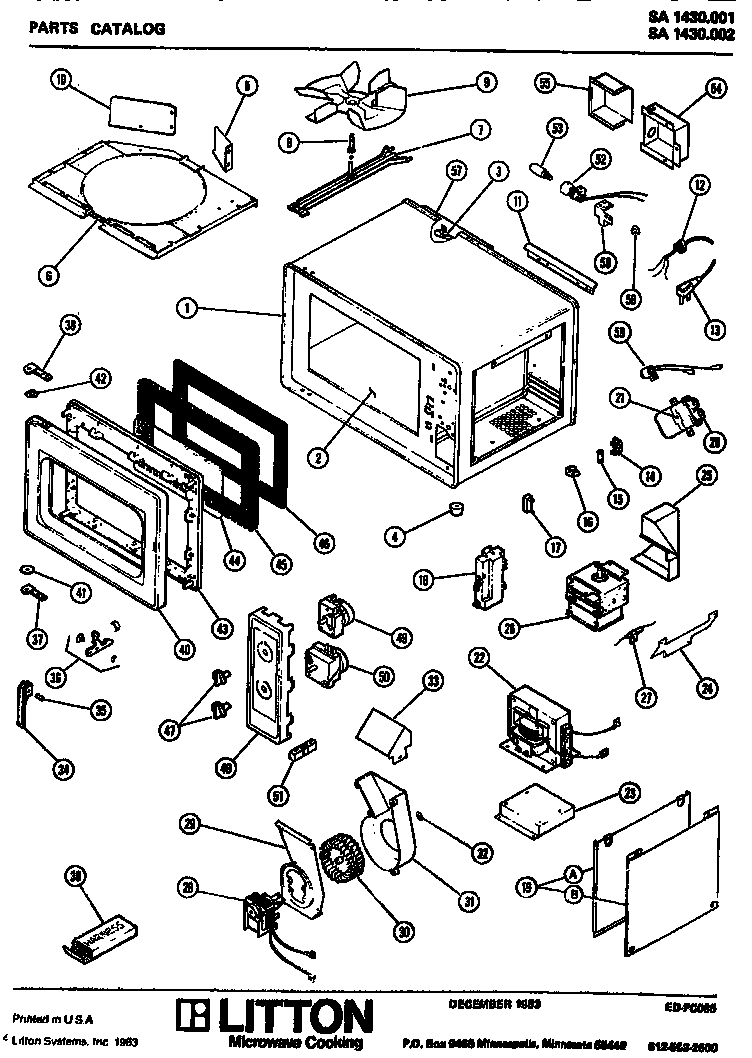

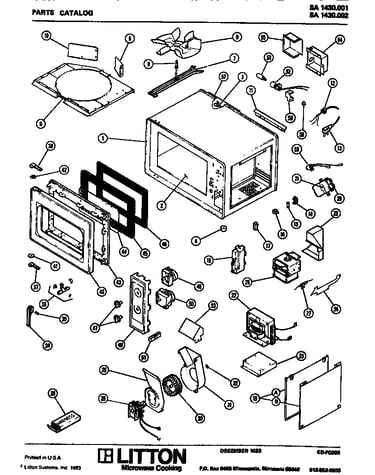

Replacement parts diagram

Screw holder mtg.

Part #M1D329

The manufacturer no longer makes this part, and there's no substitute part

Diode M3D71
#17A

Replacement parts diagram

Diode

Part #M3D71

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket M5D348
#52A

Replacement parts diagram

Lamp socket

Part #M5D348

The manufacturer no longer makes this part, and there's no substitute part

Harness Package M27D309
#39A

Replacement parts diagram

Harness package

Part #M27D309

The manufacturer no longer makes this part, and there's no substitute part

Access Panel M53D51
#19B

Replacement parts diagram

Access panel

Part #M53D51

The manufacturer no longer makes this part, and there's no substitute part

Wire Cover M20D213
#11A

Replacement parts diagram

Wire cover

Part #M20D213

The manufacturer no longer makes this part, and there's no substitute part

Crow's Foot Screwdriver M95D21

#NI

All parts diagram

Crow's foot screwdriver

Part #M95D21

The manufacturer no longer makes this part, and there's no substitute part

Fuse (7 Amp, Type Abc) M4D99
#15

Replacement parts diagram

Fuse (7 amp, type abc)

Part #M4D99

The manufacturer no longer makes this part, and there's no substitute part

Bolt, Transformer M1D889
#22C

Replacement parts diagram

Bolt, transformer

Part #M1D889

The manufacturer no longer makes this part, and there's no substitute part

Screw, Board Mounting M1D627
#24C

Replacement parts diagram

Screw, board mounting

Part #M1D627

The manufacturer no longer makes this part, and there's no substitute part
