Power Sander

Model # 315115031 Official Craftsman sander/polisher

Here are the diagrams and repair parts for Official Craftsman 315115031 sander/polisher, as well as links to manuals and error code tables, if available.

By Schematic

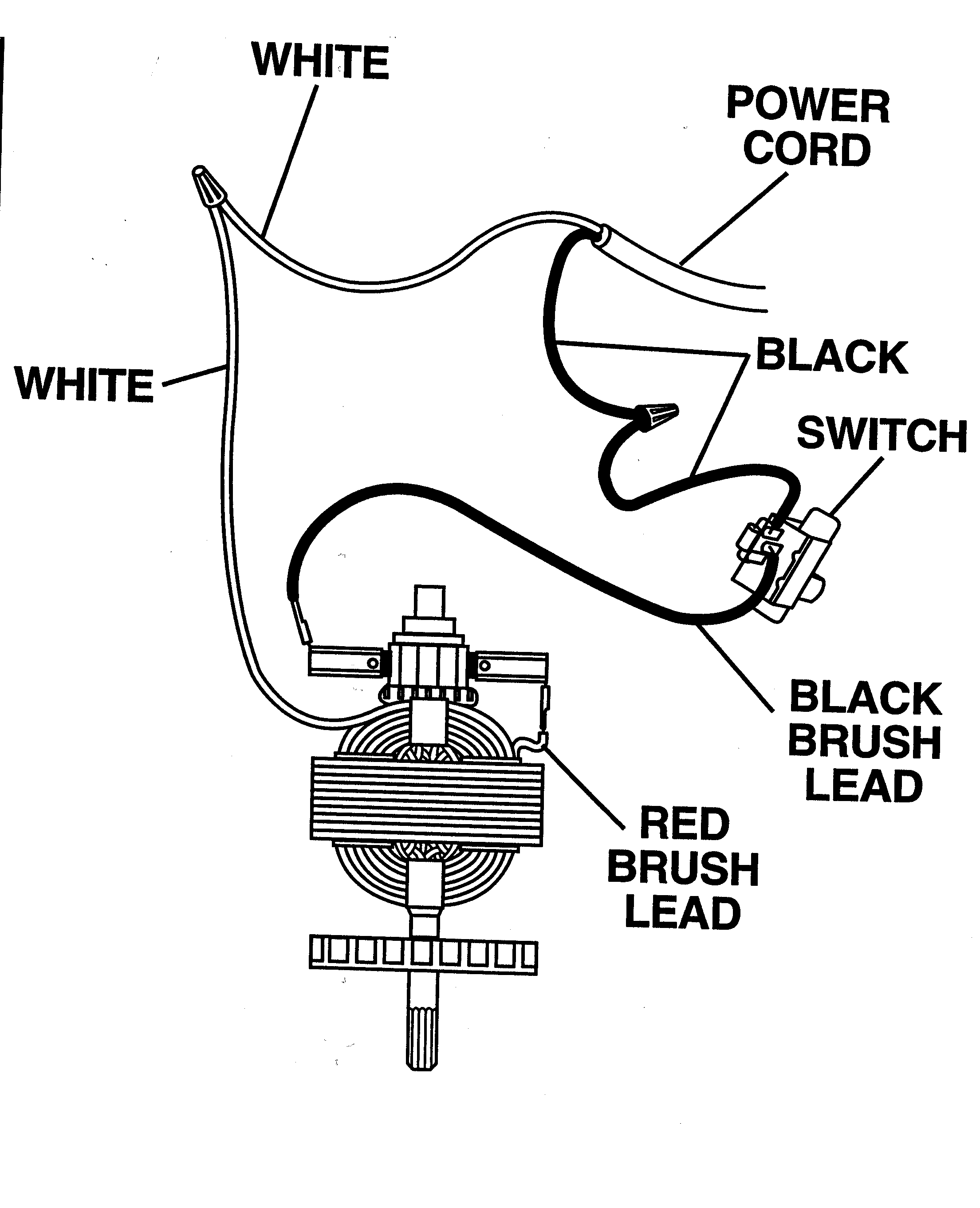

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
315115031 Power Tools
Polsh Bonnet 974892-001
#1

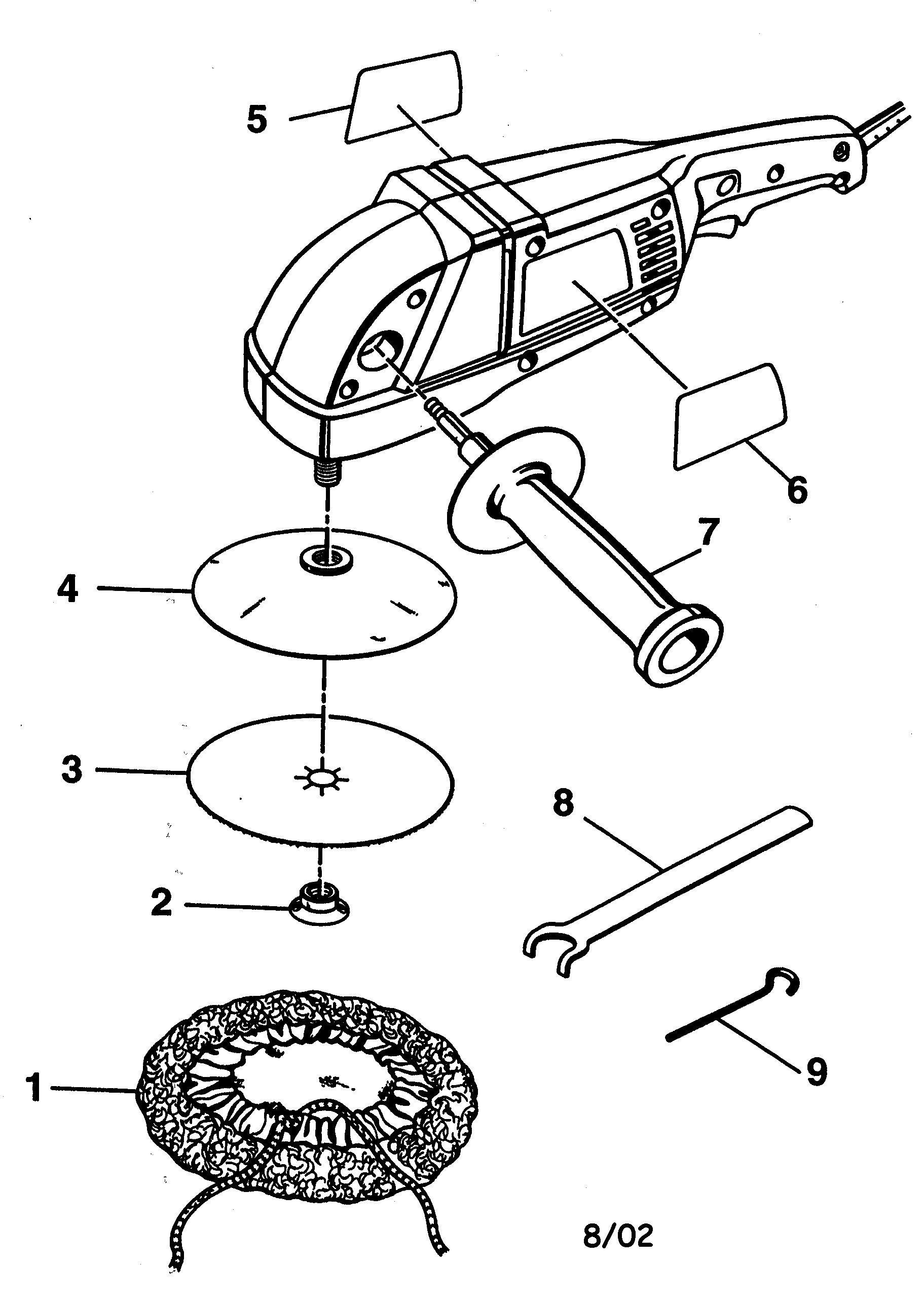

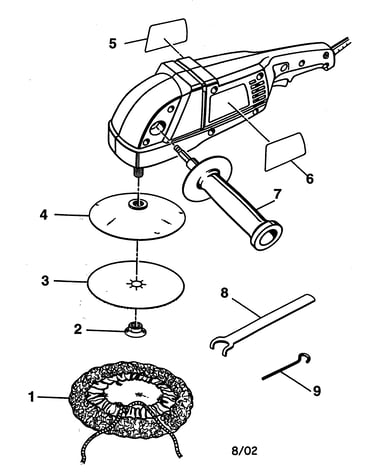

Housing assy diagram

Polsh bonnet

Part #974892-001

The manufacturer no longer makes this part, and there's no substitute part

Gear 610246-001
#3

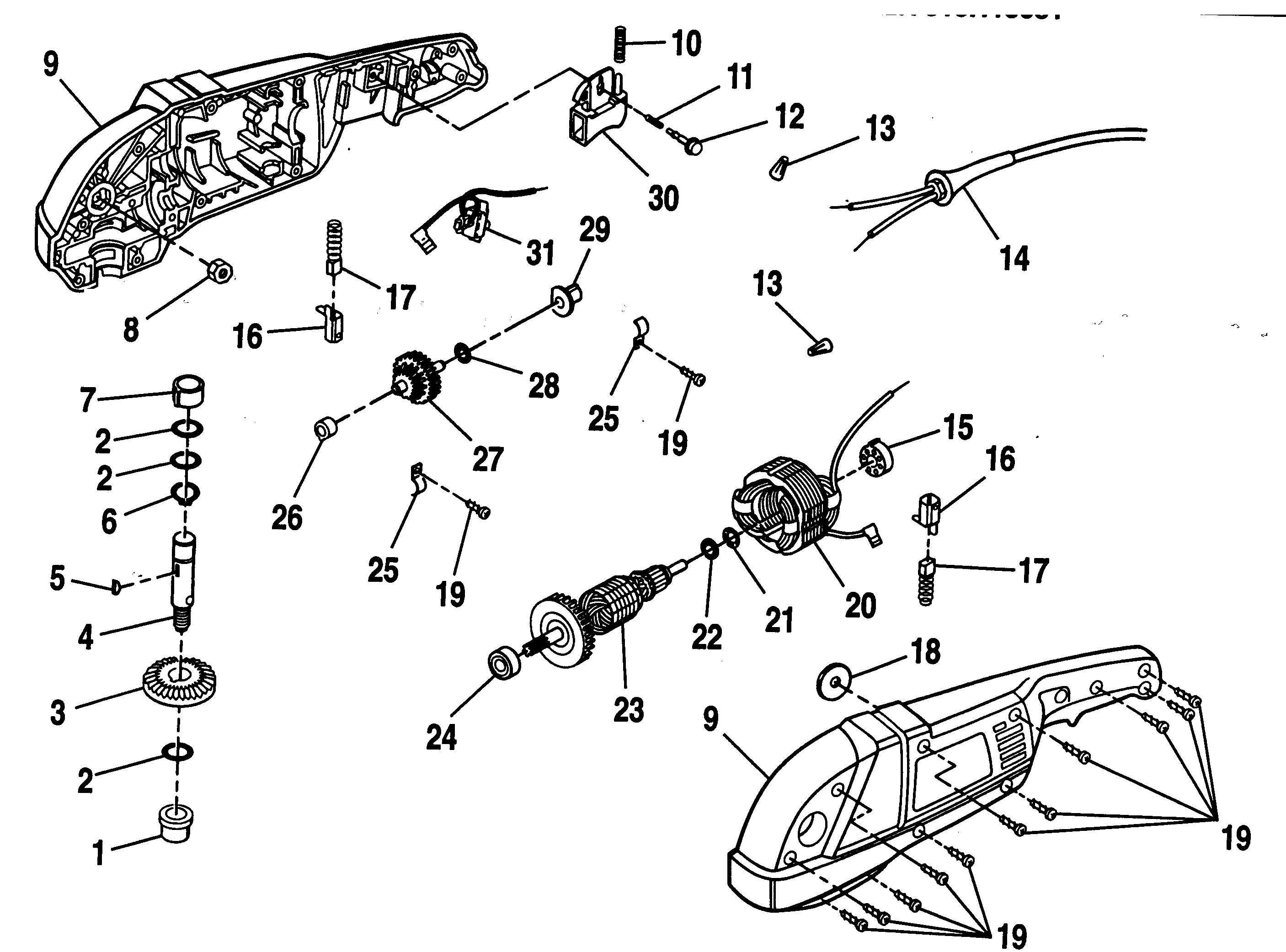

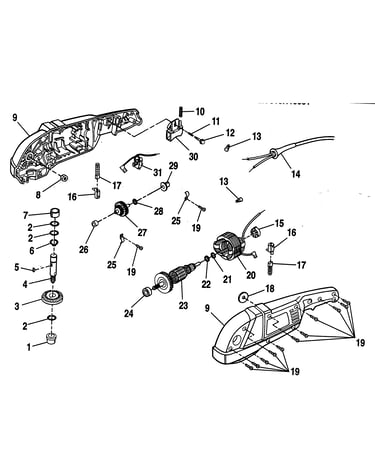

Motor assy diagram

Gear

Part #610246-001

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 623173-007
#13

Motor assy diagram

Twist-on wire connector

Part #623173-007

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 989053-001
#31

Motor assy diagram

Switch assembly

Part #989053-001

The manufacturer no longer makes this part, and there's no substitute part

Clamp 612760-001
#25

Motor assy diagram

Clamp

Part #612760-001

The manufacturer no longer makes this part, and there's no substitute part

Gear W/shf 972807-001
#27

Motor assy diagram

Gear w/shf

Part #972807-001

The manufacturer no longer makes this part, and there's no substitute part

Bearing 972817-001
#1

Motor assy diagram

Bearing

Part #972817-001

The manufacturer no longer makes this part, and there's no substitute part

Armature 999223-015
#23

Motor assy diagram

Armature

Part #999223-015

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 990494-016
#14

Motor assy diagram

Ac cord

Part #990494-016

The manufacturer no longer makes this part, and there's no substitute part

Sander On/off Switch Trigger 972811-001
#30

Motor assy diagram

Sander on/off switch trigger

Part #972811-001

The manufacturer no longer makes this part, and there's no substitute part
