Model # 489473580 Official Sears 26" bicycle

Here are the diagrams and repair parts for Official Sears 489473580 26" bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

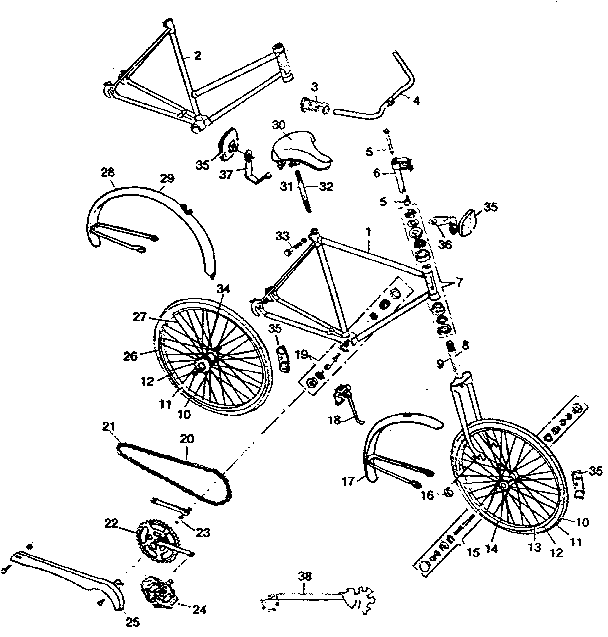

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |

Pedal 070002
#24

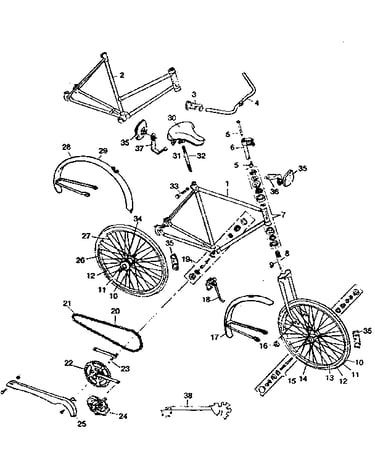

Unit parts diagram

Pedal

Part #070002

The manufacturer no longer makes this part, and there's no substitute part

Fender Assy 051003
#28

Unit parts diagram

Fender assy

Part #051003

The manufacturer no longer makes this part, and there's no substitute part

Tire 040002
#10

Unit parts diagram

Tire

Part #040002

The manufacturer no longer makes this part, and there's no substitute part

Spoke/nipple 049016
#27

Unit parts diagram

Spoke/nipple

Part #049016

The manufacturer no longer makes this part, and there's no substitute part

Rr Sprocket 106005
#34

Unit parts diagram

Rr sprocket

Part #106005

The manufacturer no longer makes this part, and there's no substitute part

Fender Assy 100002
#17

Unit parts diagram

Fender assy

Part #100002

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 076001
#18

Unit parts diagram

Kickstand

Part #076001

The manufacturer no longer makes this part, and there's no substitute part

Tool 103007
#38

Unit parts diagram

Tool

Part #103007

The manufacturer no longer makes this part, and there's no substitute part

Tube 041002
#11

Unit parts diagram

Tube

Part #041002

The manufacturer no longer makes this part, and there's no substitute part

Master Link 073001
#21

Unit parts diagram

Master link

Part #073001

The manufacturer no longer makes this part, and there's no substitute part
