Bosch HBL8750UC/02 built-in oven with microwave

Bosch HBL8750UC/02 built-in oven with microwave Parts

Here are the diagrams and repair parts for Bosch HBL8750UC/02 built-in oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic

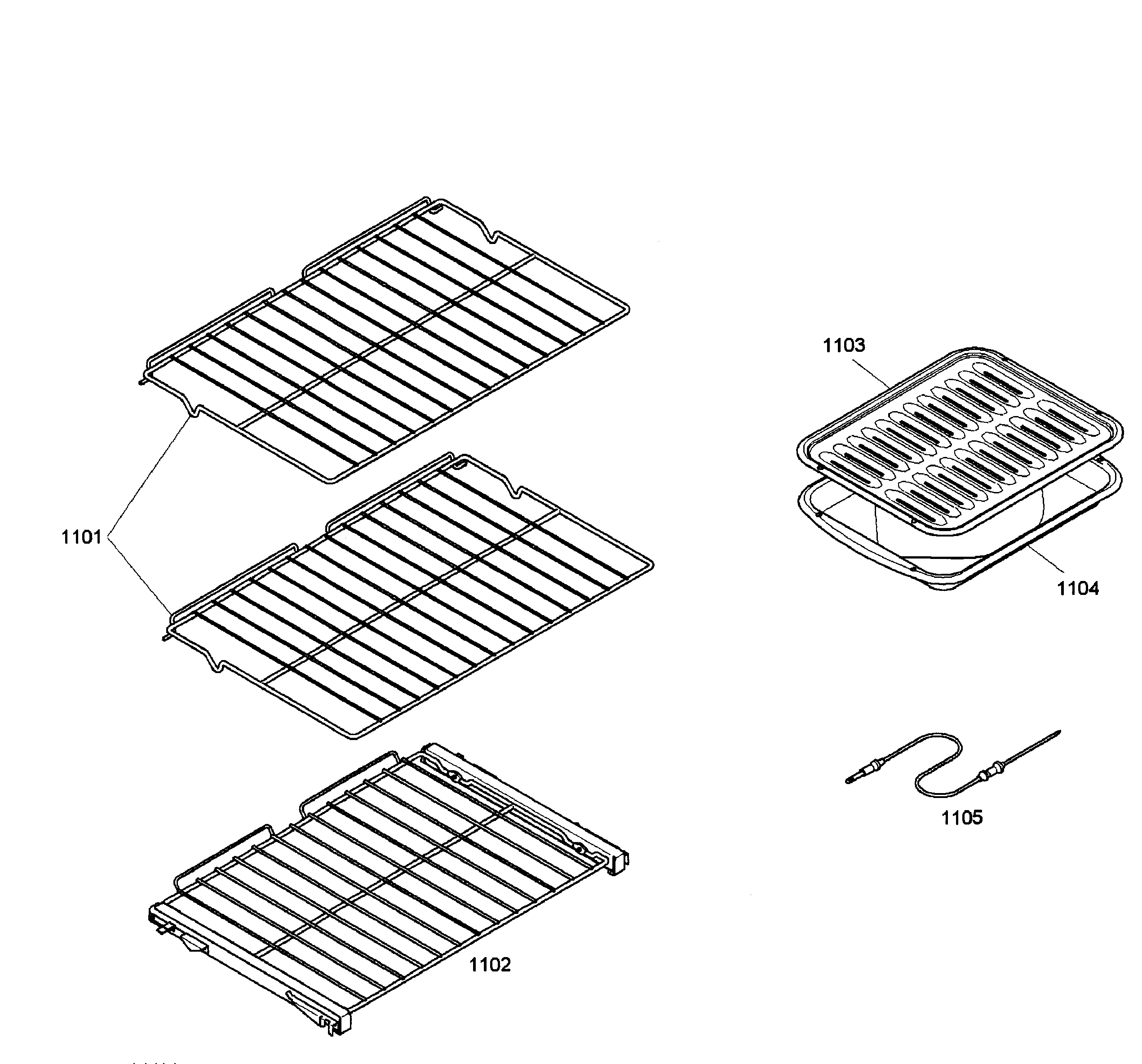

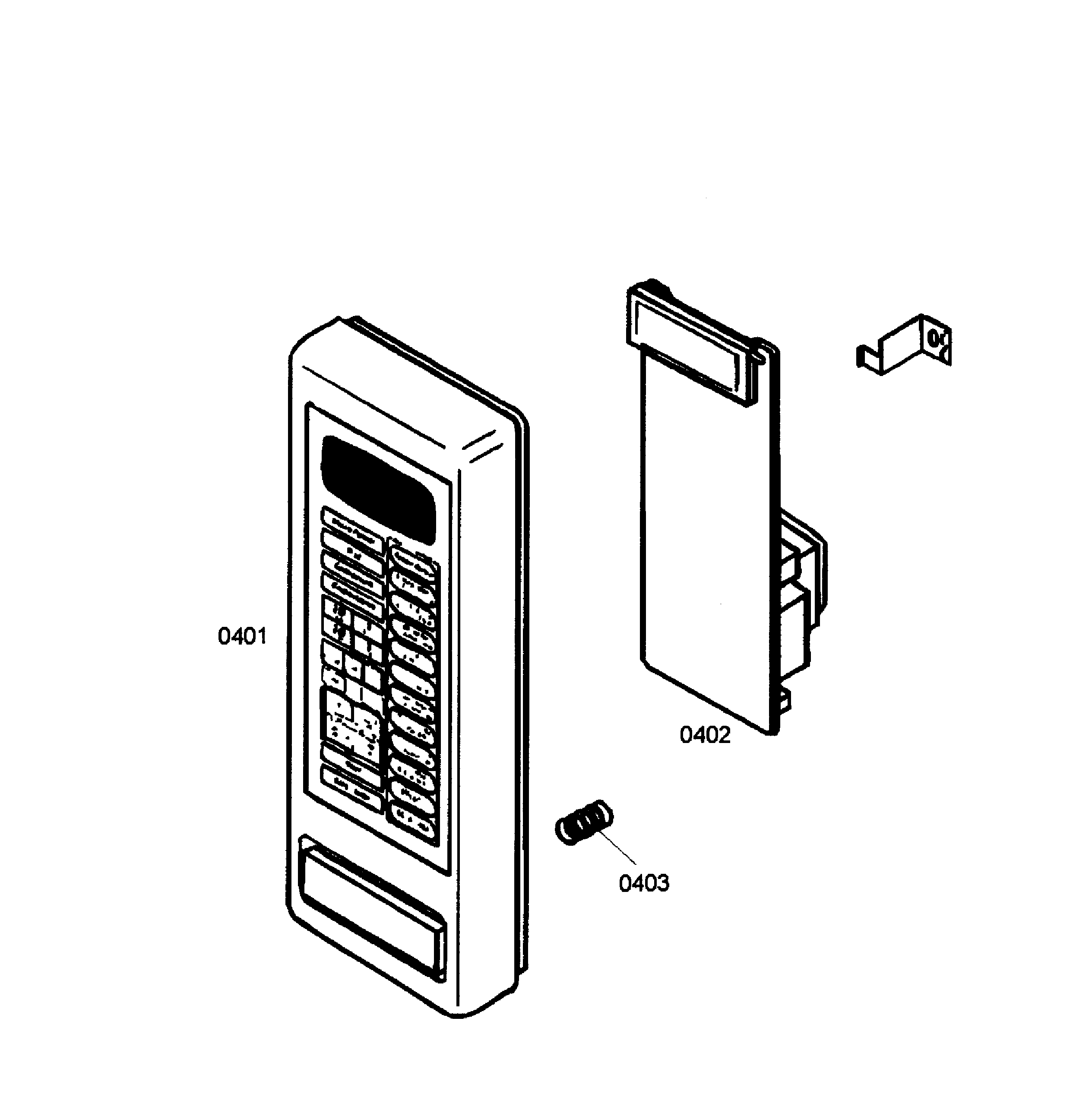

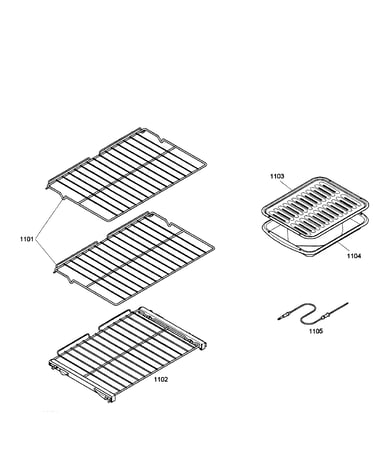

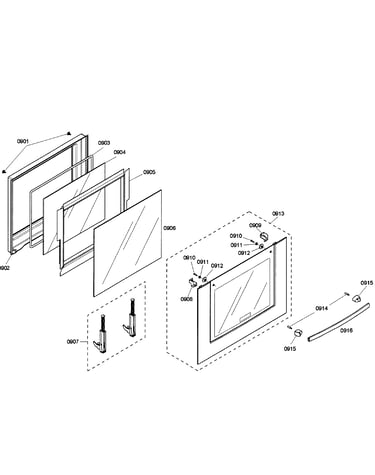

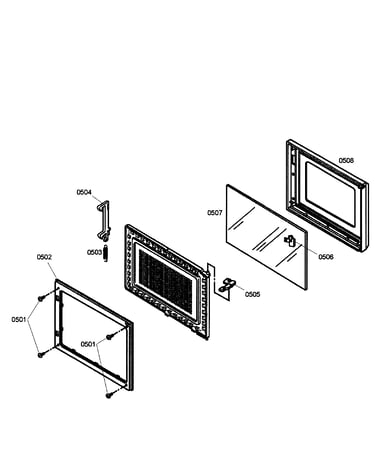

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for HBL8750UC/02 Built-In Oven with Microwave

  • Thermador Wall Oven Temperature Sensor for Bosch HBL8750UC/02 - Part 00642855

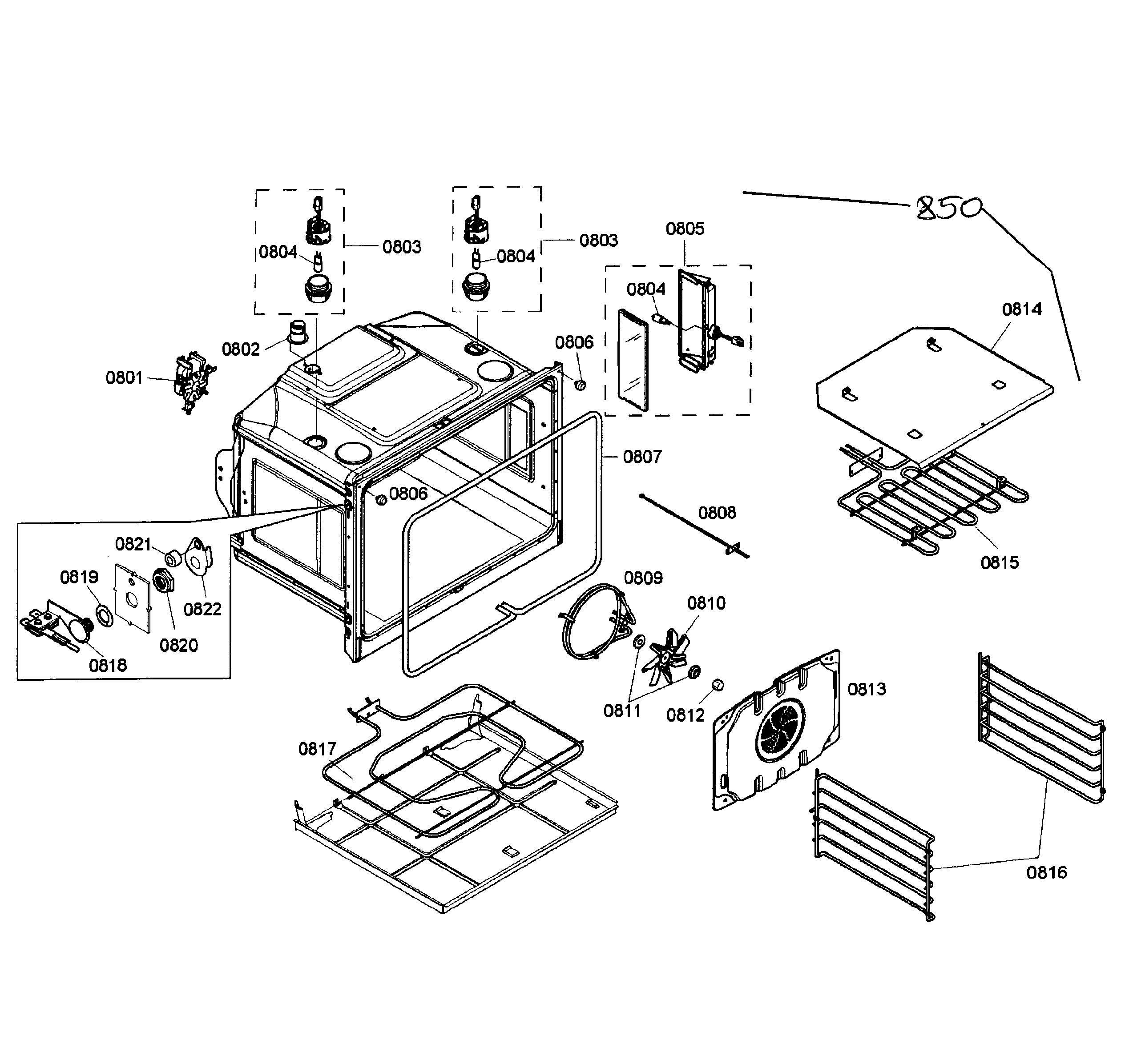

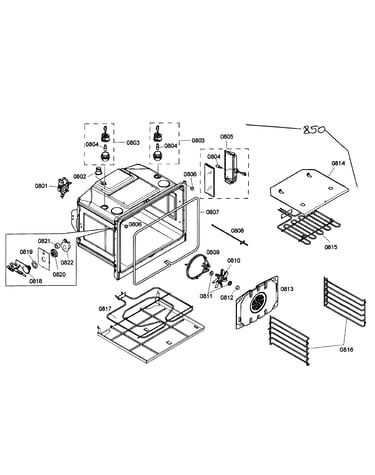

    Oven assy diagram

    Sensor

    Part #642855

    Replaced by #00642855

    Info Icon
    Manufacturer substitution
    This part replaces 642855. Substitute parts can look different from the original.
    In Stock
    $80.00
    7% OFF Phone Price : $86.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Bosch Microwave Fuse for Bosch HBL8750UC/02 - Part 00608377

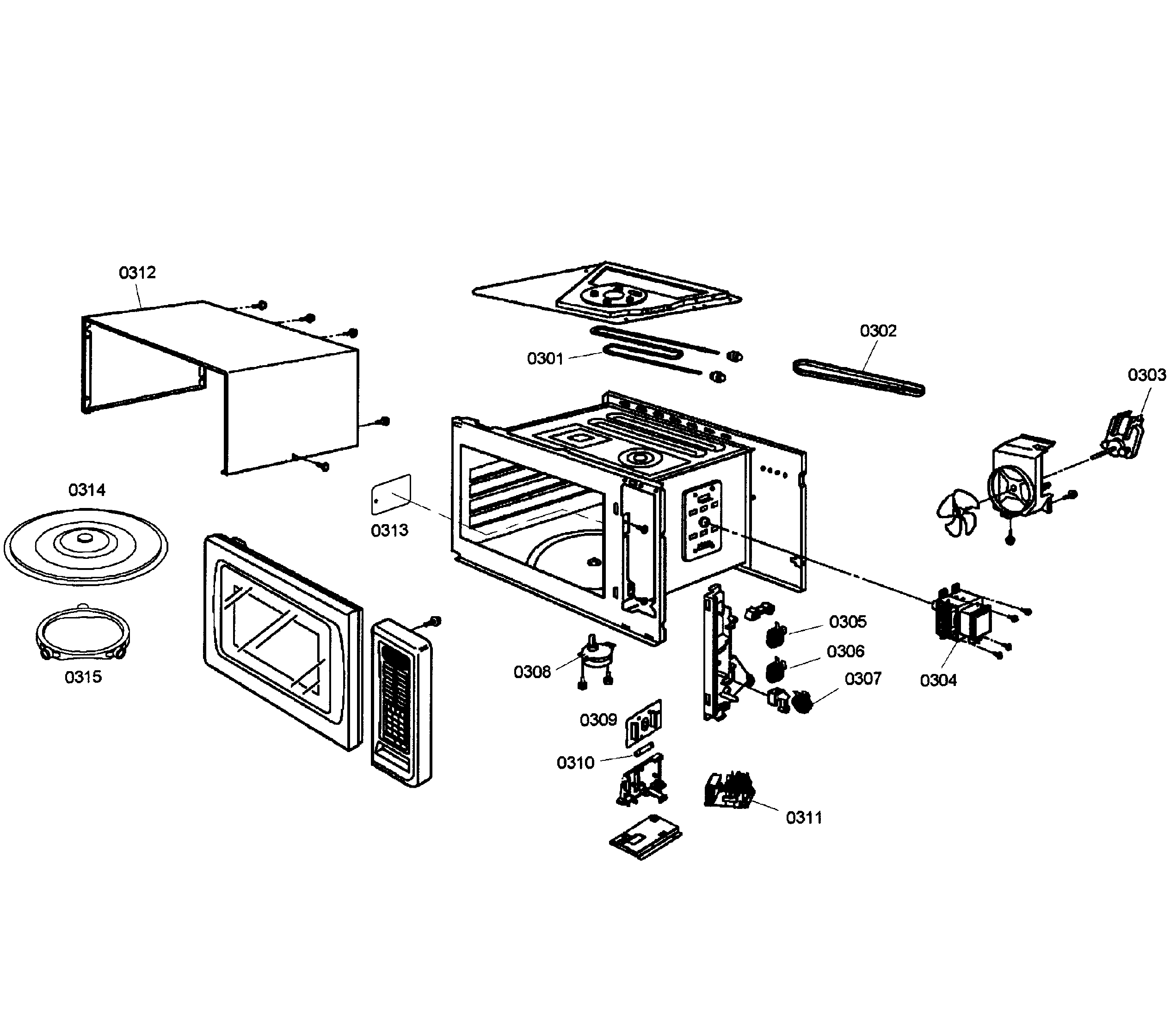

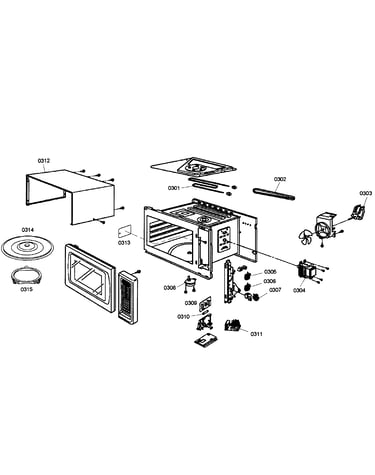

    Microwave diagram

    Fuse

    Part #608377

    Replaced by #00608377

    Info Icon
    Manufacturer substitution
    This part replaces 608377. Substitute parts can look different from the original.
    In Stock
    $106.30
    Minus Item
    Qty
    Plus Item
  • Cooking Appliance Halogen Light Bulb for Bosch HBL8750UC/02 - Part 00157311

    Oven assy diagram

    Halogen

    Part #150188

    Replaced by #00157311

    Info Icon
    Manufacturer substitution
    This part replaces 150188. Substitute parts can look different from the original.
    In Stock
    $53.82
    10% OFF Phone Price : $59.82Info Icon
    Minus Item
    Qty
    Plus Item

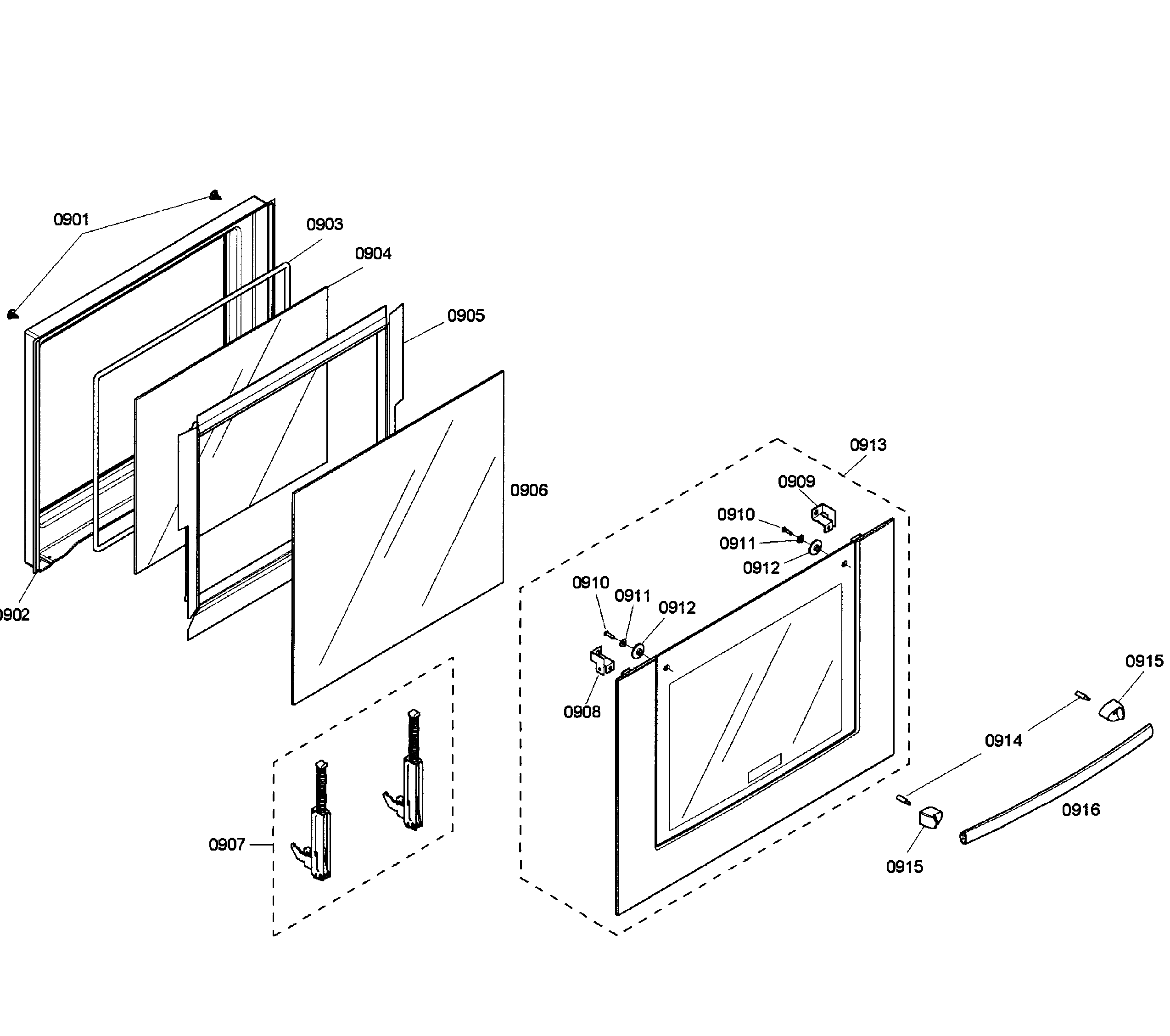

  • Thermador Range Oven Door Gasket for Bosch HBL8750UC/02 - Part 00491569

    Oven assy diagram

    Door Gasket

    Part #491569

    Replaced by #00491569

    Info Icon
    Manufacturer substitution
    This part replaces 491569. Substitute parts can look different from the original.
    In Stock
    $88.86
    6% OFF Phone Price : $94.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Lock Assembly for Bosch HBL8750UC/02 - Part 00751505

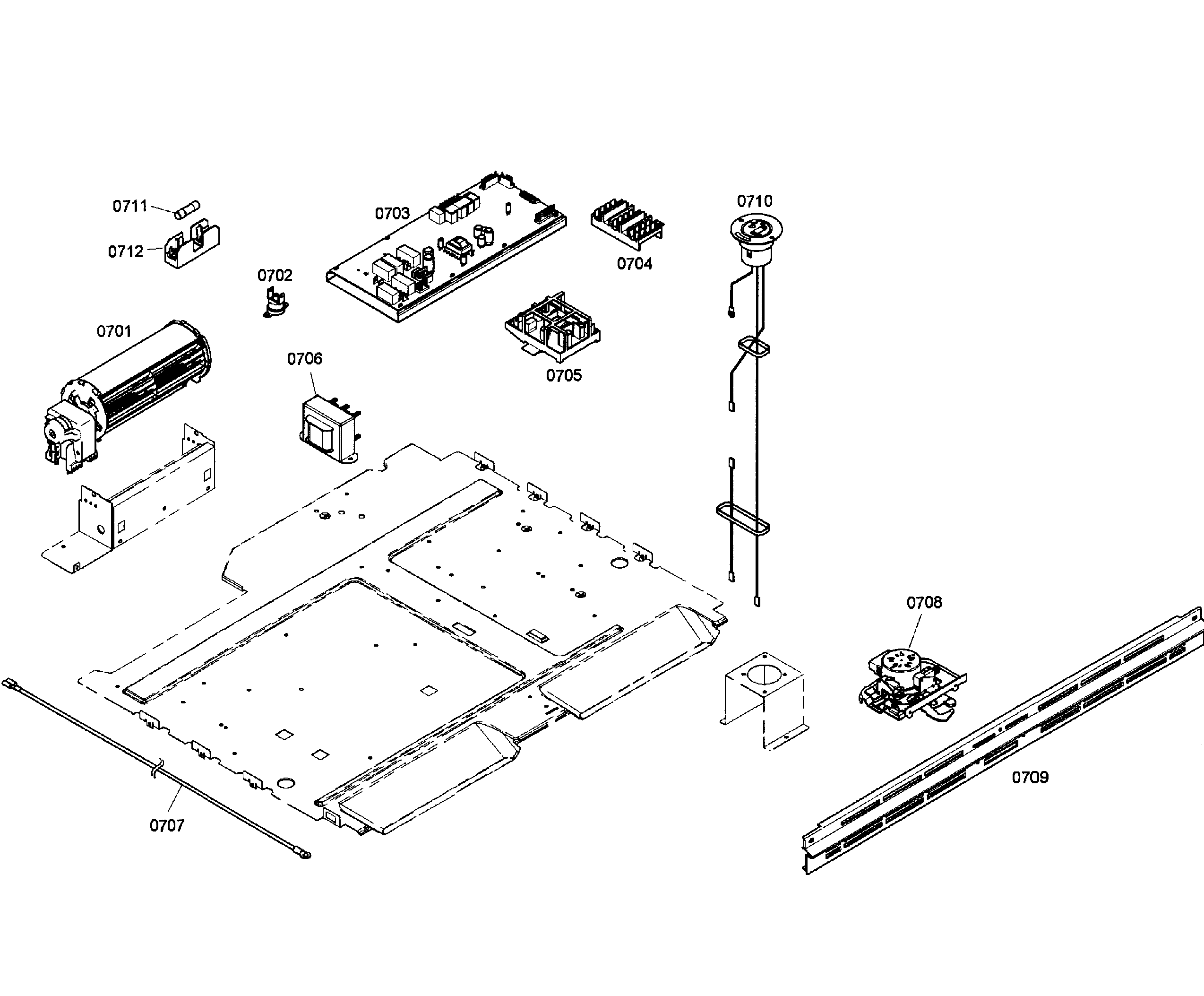

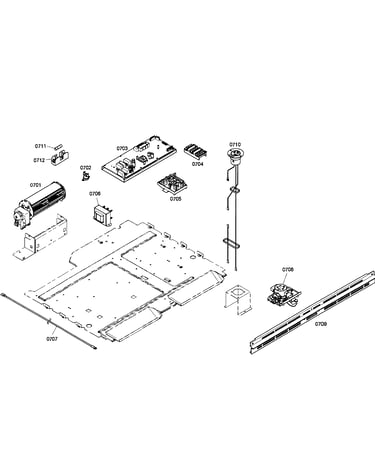

    Pcb's assy diagram

    Latch

    Part #644216

    Replaced by #00751505

    Info Icon
    Manufacturer substitution
    This part replaces 644216. Substitute parts can look different from the original.
    In Stock
    $171.34
    7% OFF Phone Price : $183.34Info Icon
    Minus Item
    Qty
    Plus Item

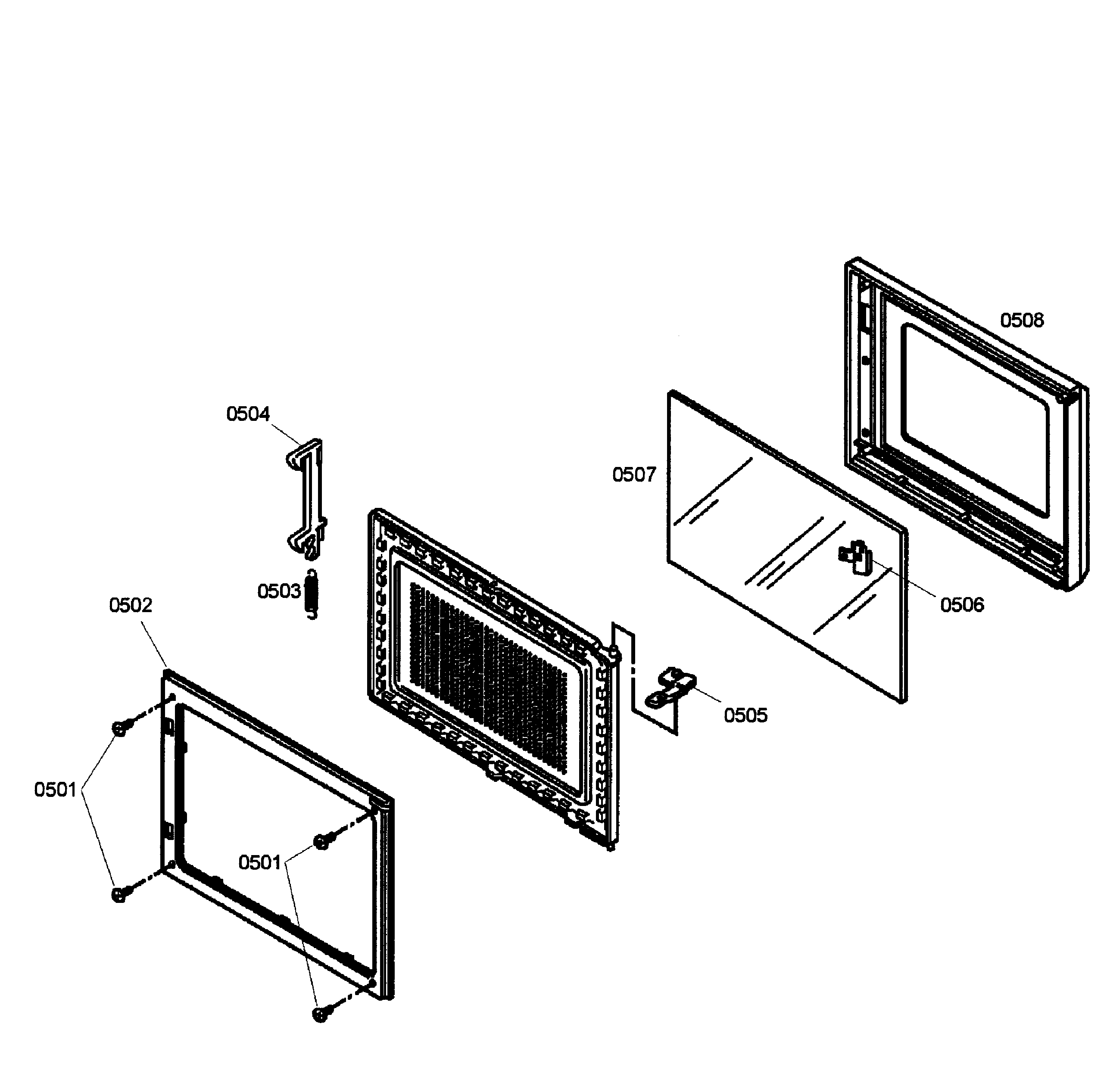

  • Bosch Microwave Door Interlock Switch for Bosch HBL8750UC/02 - Part 00617187

    Microwave diagram

    Switch

    Part #617187

    Replaced by #00617187

    Info Icon
    Manufacturer substitution
    This part replaces 617187. Substitute parts can look different from the original.
    In Stock
    $101.36
    Minus Item
    Qty
    Plus Item

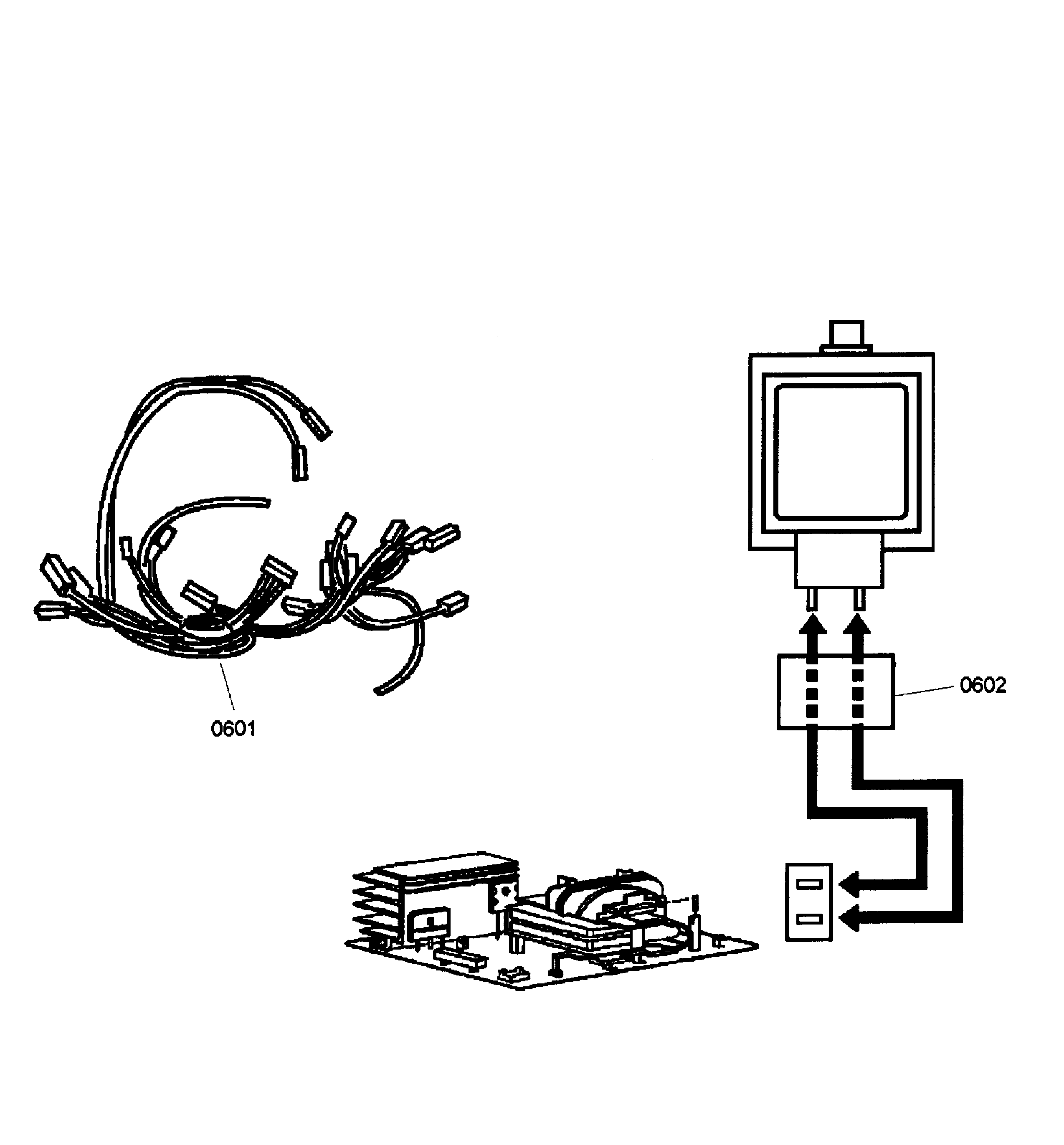

  • Harness, D-bus Ii Serv Port, Cvt1 for Bosch HBL8750UC/02 - Part 11033493

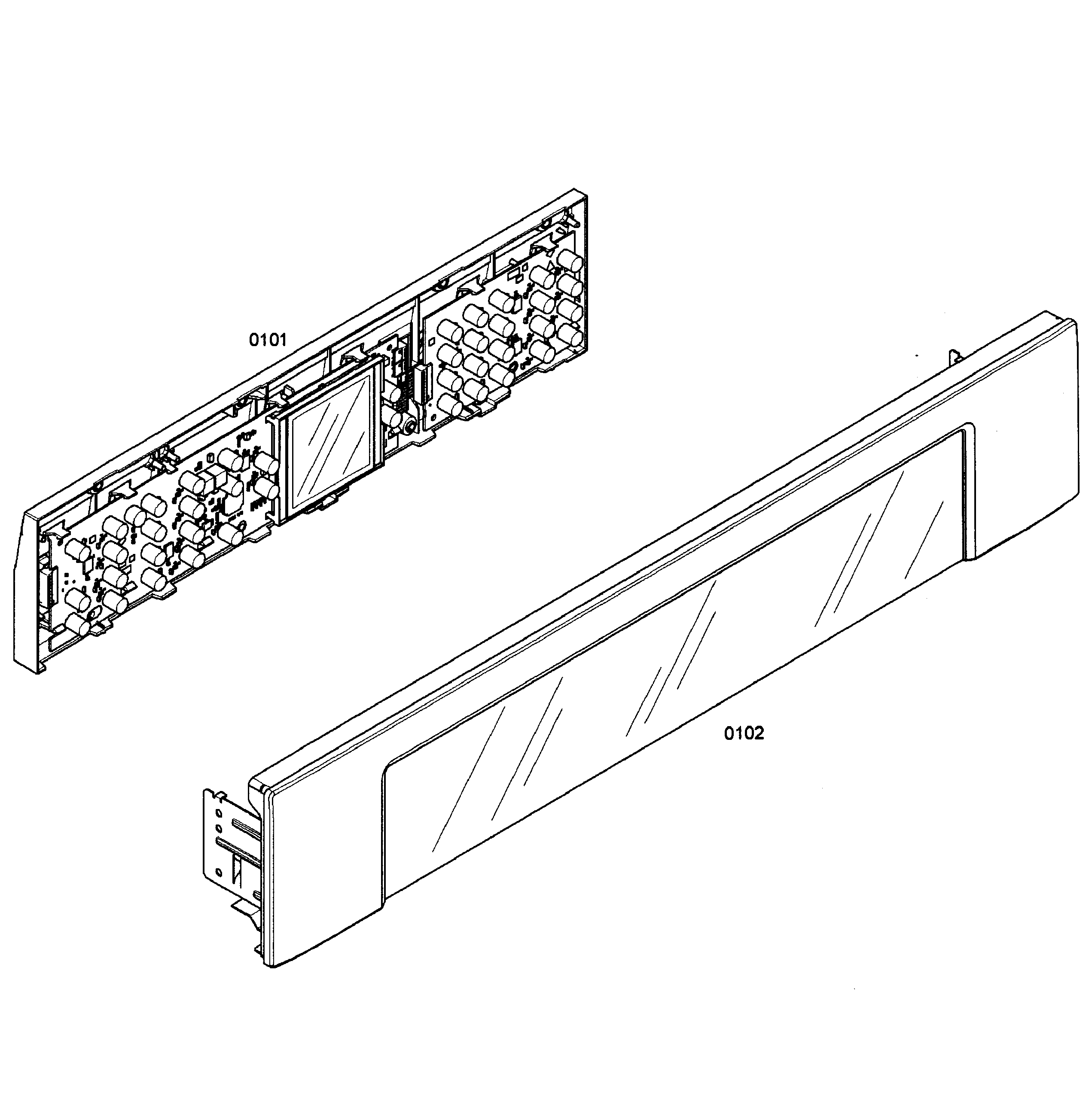

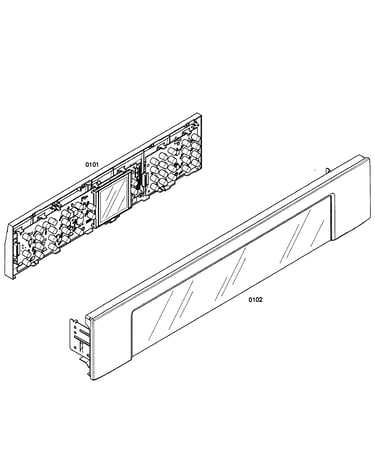

    Oven control panel diagram

    Harness

    Part #663794

    Replaced by #11033493

    Info Icon
    Manufacturer substitution
    This part replaces 663794. Substitute parts can look different from the original.
    In Stock
    $59.23
    Minus Item
    Qty
    Plus Item
  • Motor for Bosch HBL8750UC/02 - Part 643056

    Microwave diagram

    Motor

    Part #643056
    In Stock
    $195.10
    Minus Item
    Qty
    Plus Item

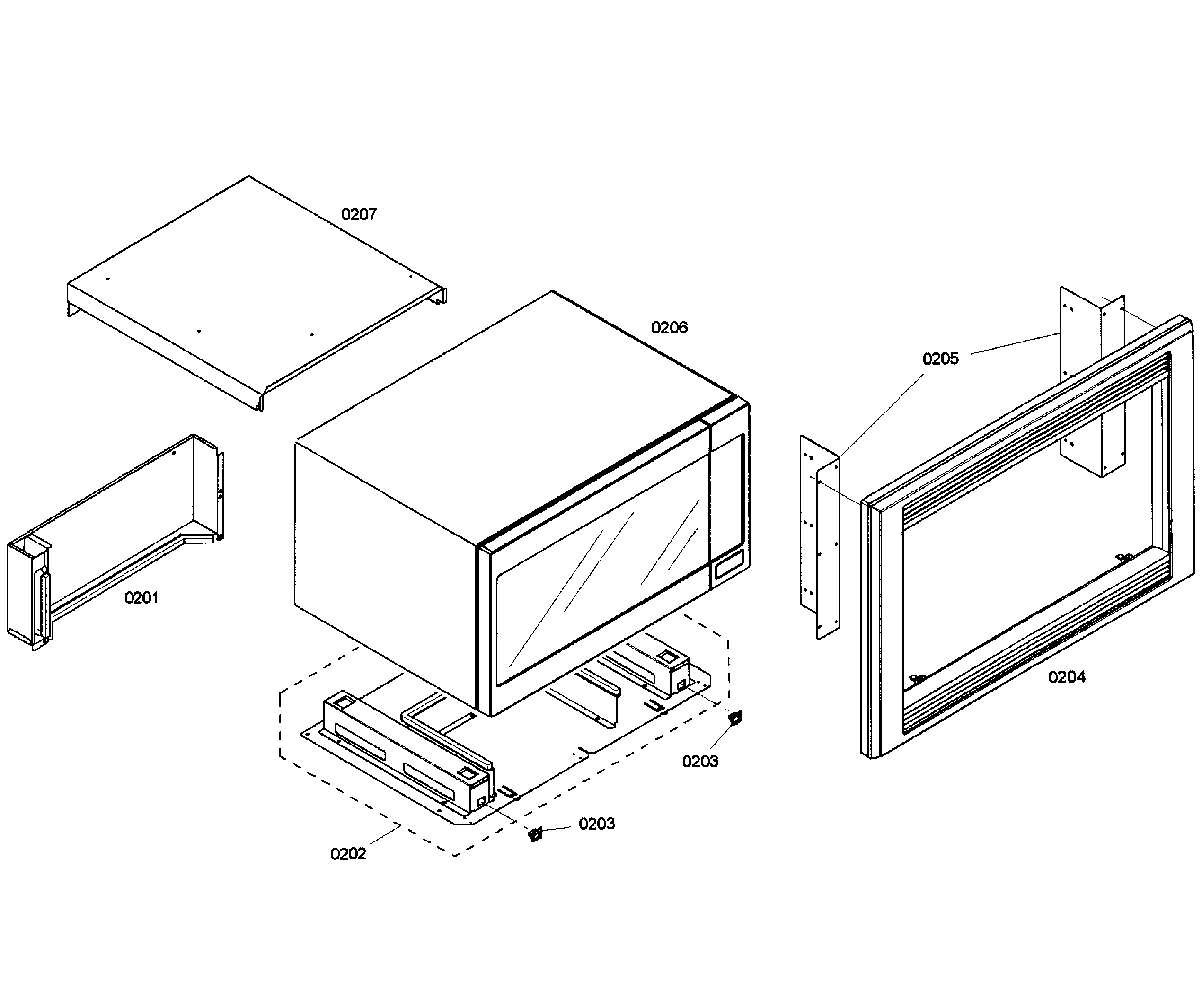

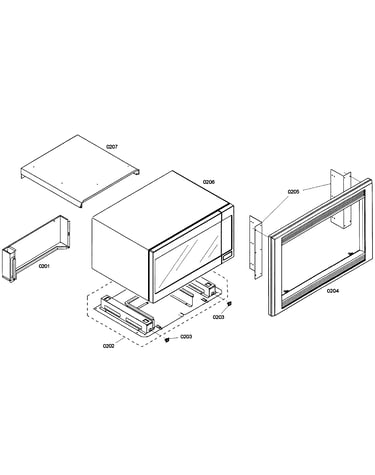

  • Bosch Trim Plate for Bosch HBL8750UC/02 - Part 00682495

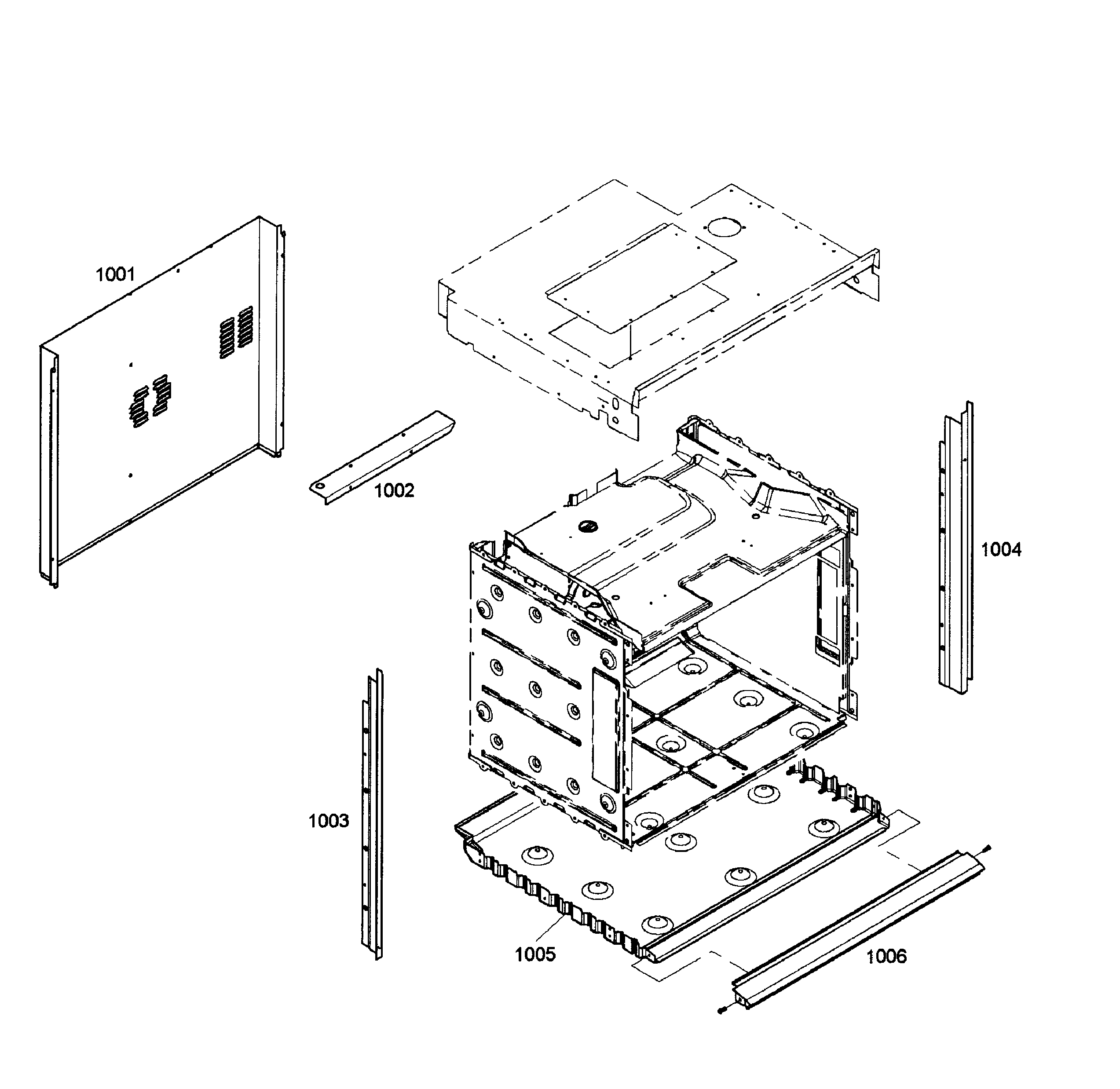

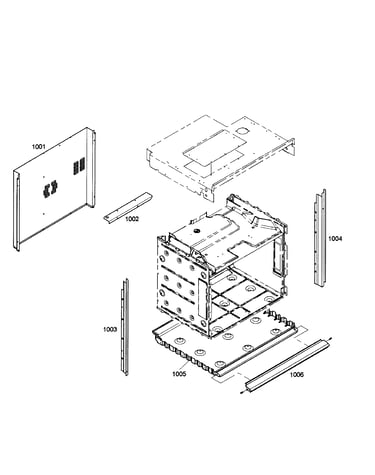

    Cabinet diagram

    Trim Plate

    Part #666486

    Replaced by #00682495

    Info Icon
    Manufacturer substitution
    This part replaces 666486. Substitute parts can look different from the original.
    In Stock
    $286.21
    Minus Item
    Qty
    Plus Item
  • Reflector for Bosch HBL8750UC/02 - Part 00687877

    Oven assy diagram

    Reflector

    Part #144651

    Replaced by #00687877

    Info Icon
    Manufacturer substitution
    This part replaces 144651. Substitute parts can look different from the original.
    In Stock
    $260.22
    Minus Item
    Qty
    Plus Item
