Gibson
Central Air Conditioner

Model # AG28E6RTBA Official Gibson air conditioner - lg34087030

Here are the diagrams and repair parts for Official Gibson AG28E6RTBA air conditioner - lg34087030, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

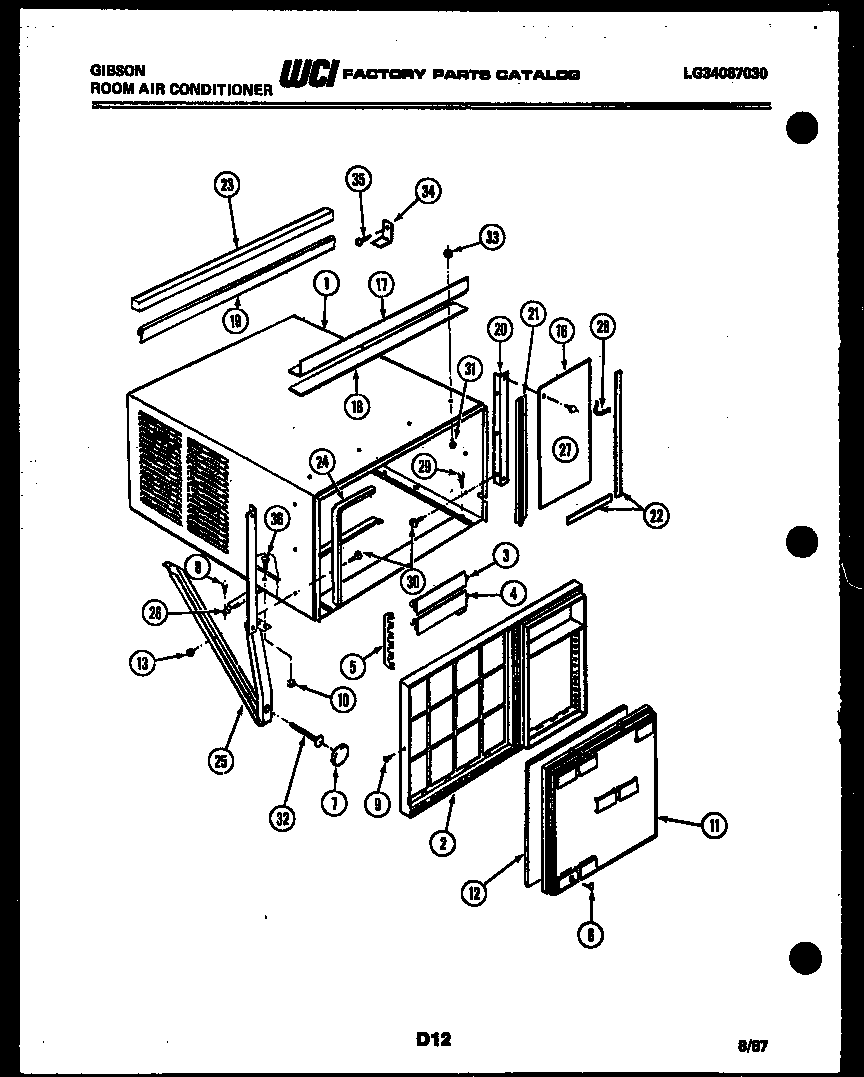

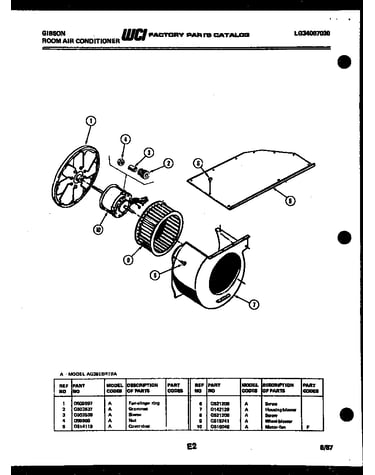

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Clip G520762
#23

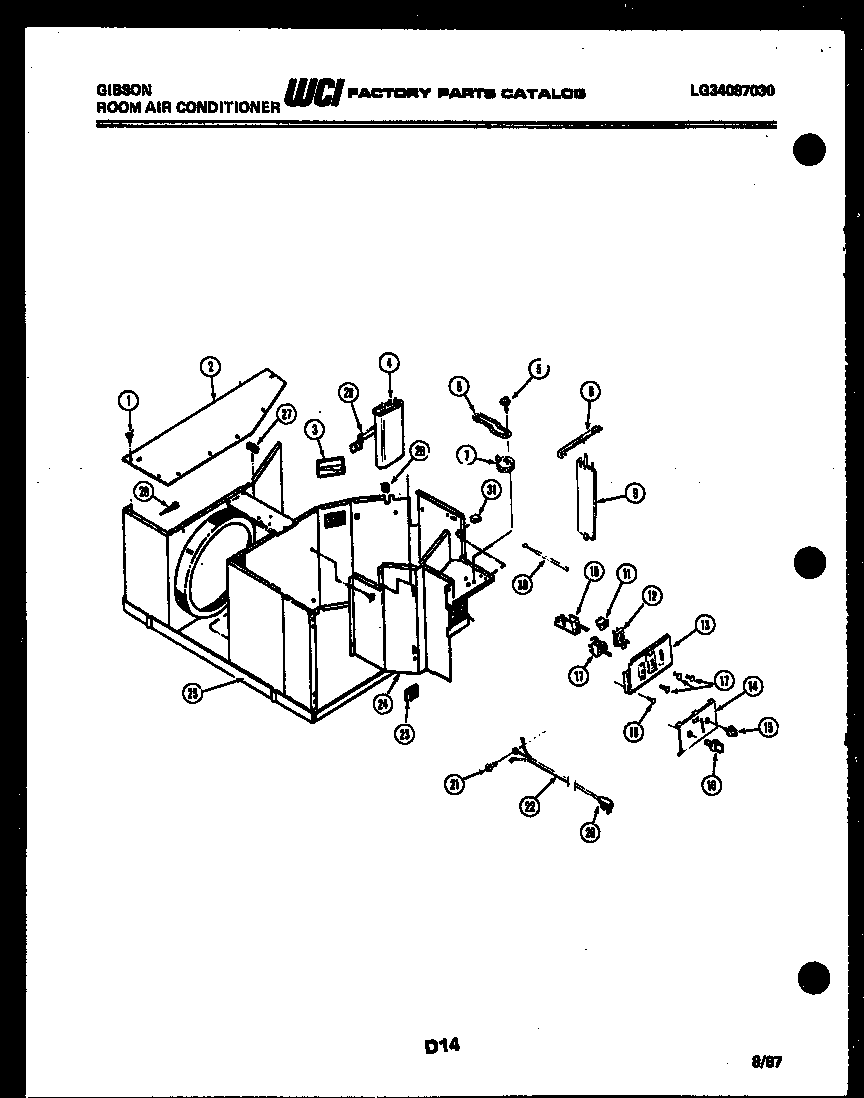

Electrical parts diagram

Clip

Part #G520762

Replaced by #5303211009

?
Manufacturer substitution
This part replaces G520762. Substitute parts can look different from the original.
This item is not returnable
$3.24
In Stock
Cord G506345-61
#20

Electrical parts diagram

Cord

Part #G506345-61

Replaced by #5303302611

?
Manufacturer substitution
This part replaces G506345-61. Substitute parts can look different from the original.
$56.24
In Stock
Screw G500739
#17

Electrical parts diagram

Screw

Part #G500739

Replaced by #5303007620

?
Manufacturer substitution
This part replaces G500739. Substitute parts can look different from the original.
$9.49
In Stock
Filter G84701
#28

Electrical parts diagram

Filter

Part #G84701

Replaced by #5300265301

?
Manufacturer substitution
This part replaces G84701. Substitute parts can look different from the original.
$110.08
In Stock
Capacitor G513068-10
#4

Electrical parts diagram

Capacitor

Part #G513068-10

The manufacturer no longer makes this part, and there's no substitute part

Nut G522598
#9

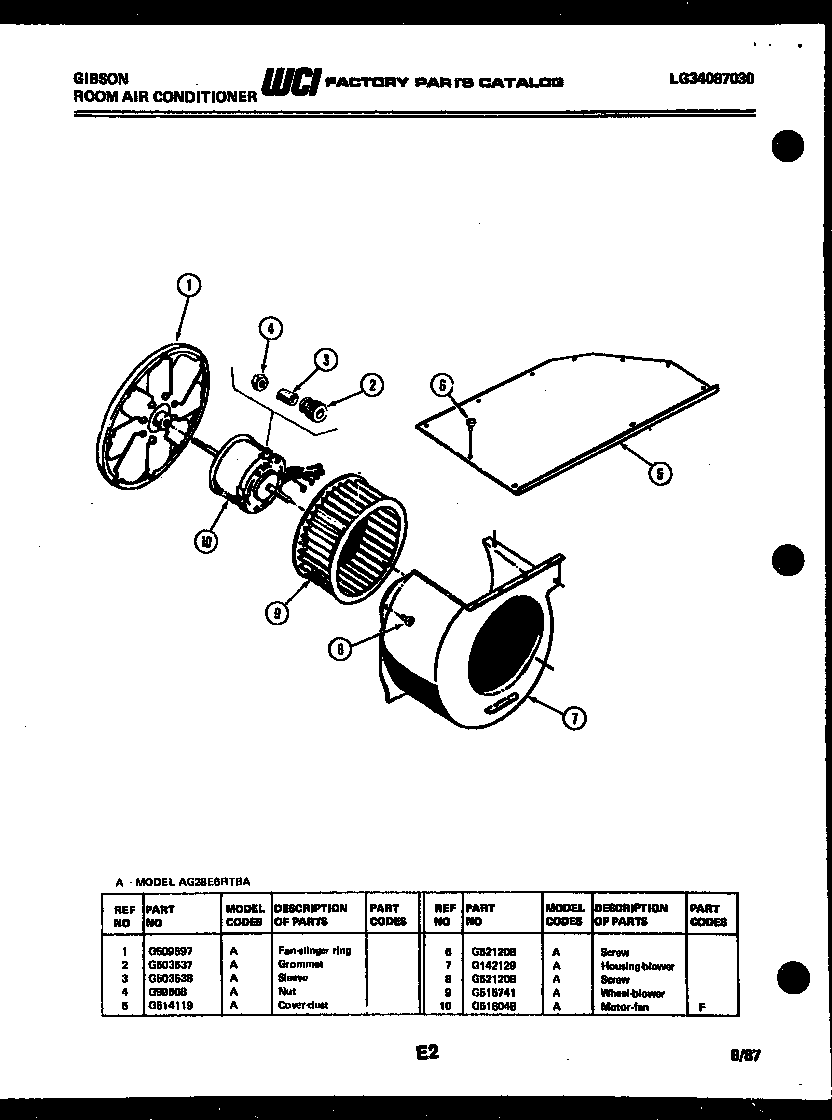

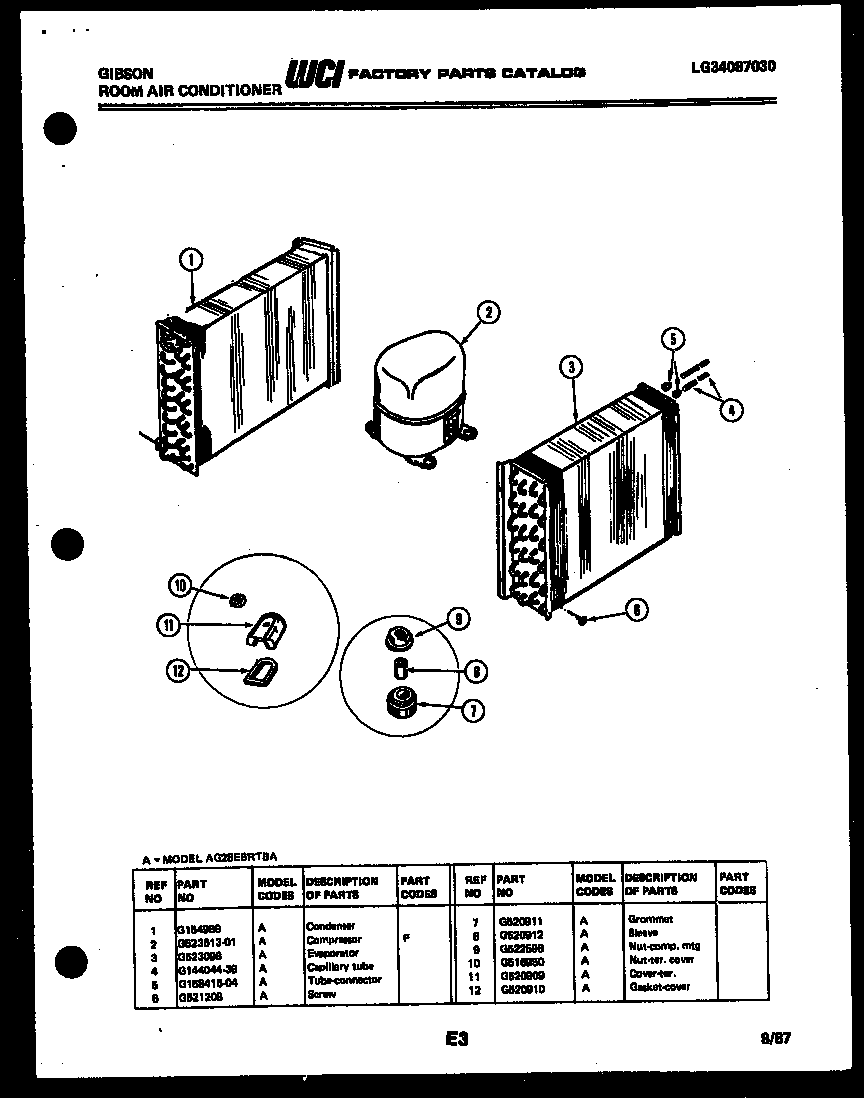

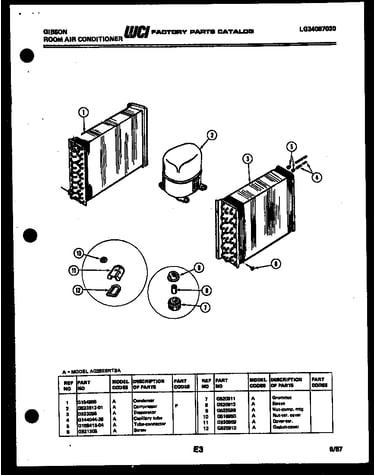

Unit parts diagram

Nut

Part #G522598

The manufacturer no longer makes this part, and there's no substitute part

Cover G520909
#11

Unit parts diagram

Cover

Part #G520909

The manufacturer no longer makes this part, and there's no substitute part

Mechanism G506420
#10

Electrical parts diagram

Mechanism

Part #G506420

The manufacturer no longer makes this part, and there's no substitute part

Screw G516355
#21

Electrical parts diagram

Screw

Part #G516355

The manufacturer no longer makes this part, and there's no substitute part

Sleeve G520912
#8

Unit parts diagram

Sleeve

Part #G520912

The manufacturer no longer makes this part, and there's no substitute part
