JVC HD-52G786 projection television

JVC HD-52G786 projection television Parts

Here are the diagrams and repair parts for JVC HD-52G786 projection television, as well as links to manuals and error code tables, if available.

By Schematic

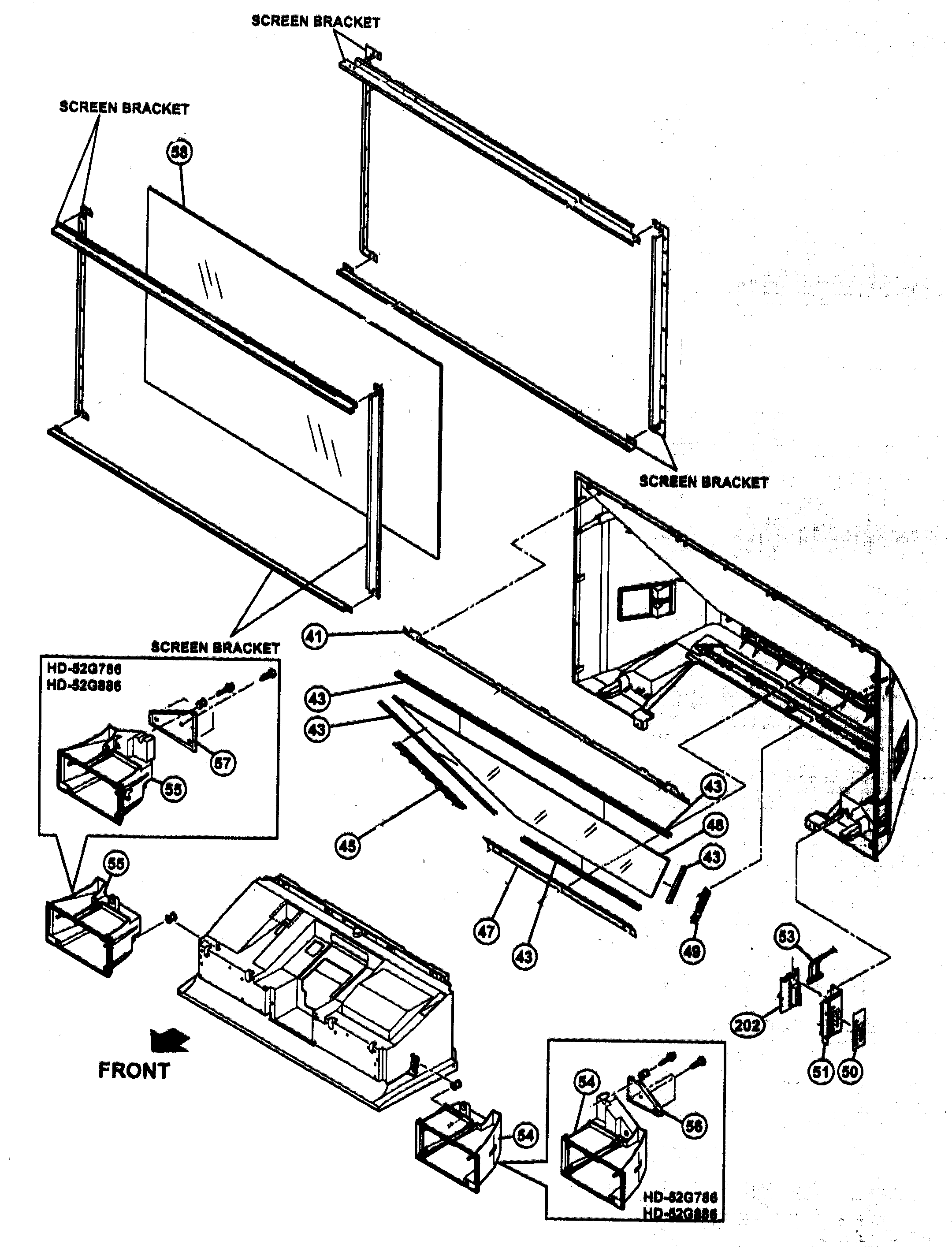

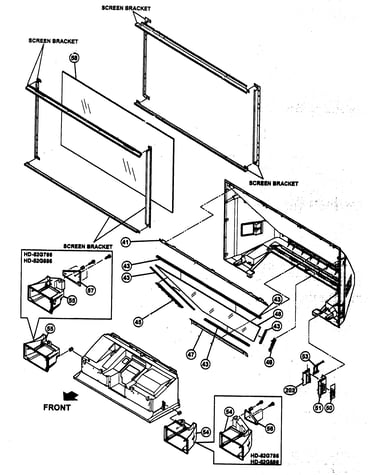

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for HD-52G786 Projection Television

  • Scan Drive Control Board for JVC HD-52G786 - Part SRP-8510A-M2

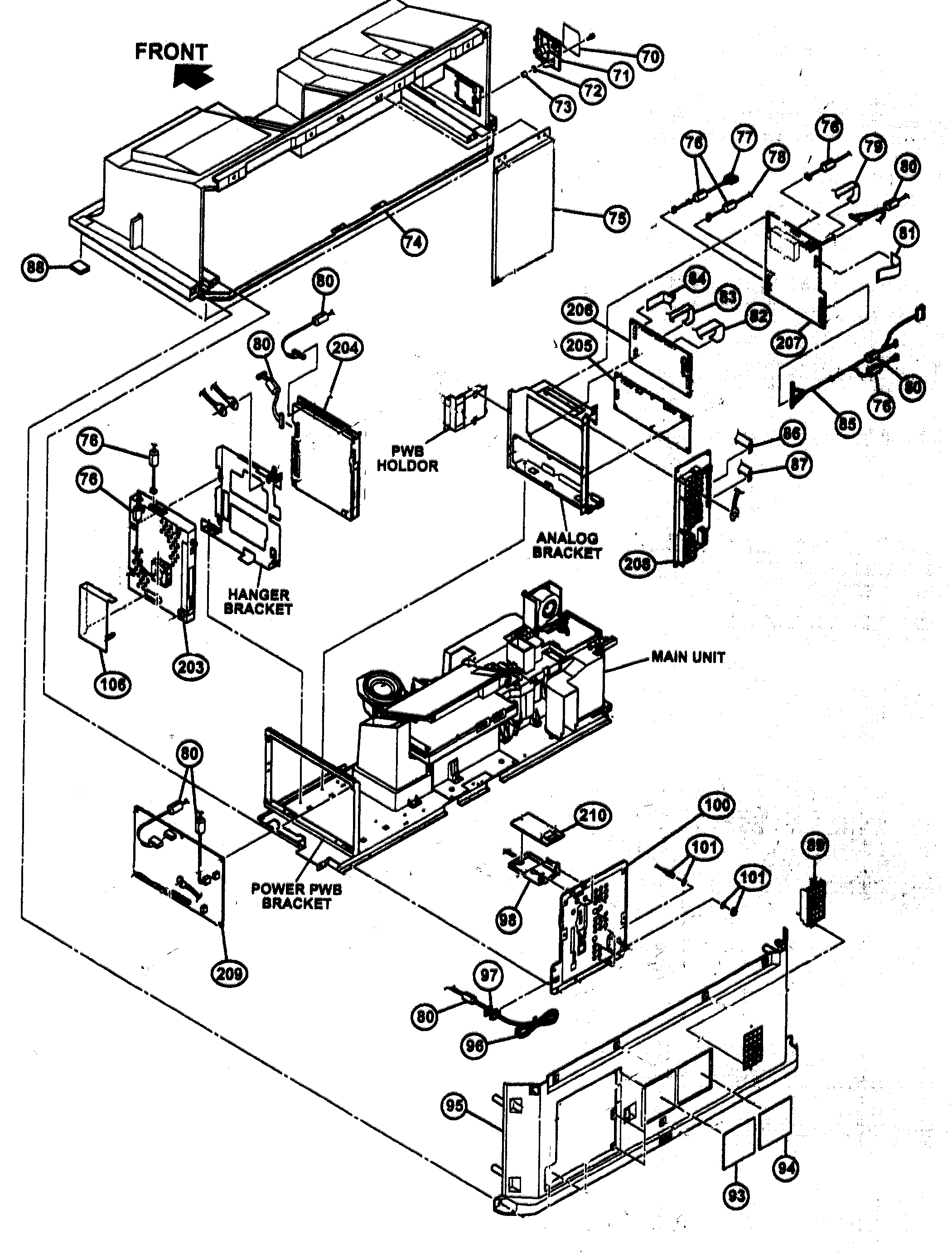

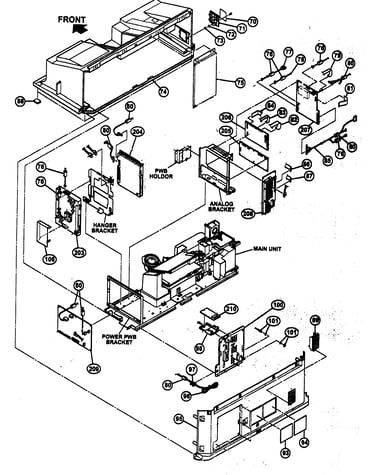

    Light engine 1 diagram

    Scan Drive Control Board

    Part #SRP-8510A-M2

    The manufacturer no longer makes this part, and there's no substitute part

  • Foot for JVC HD-52G786 - Part LC33206-001A-A

    Light engine 1 diagram

    Foot

    Part #LC33206-001A-A

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC HD-52G786 - Part MC33262D-X

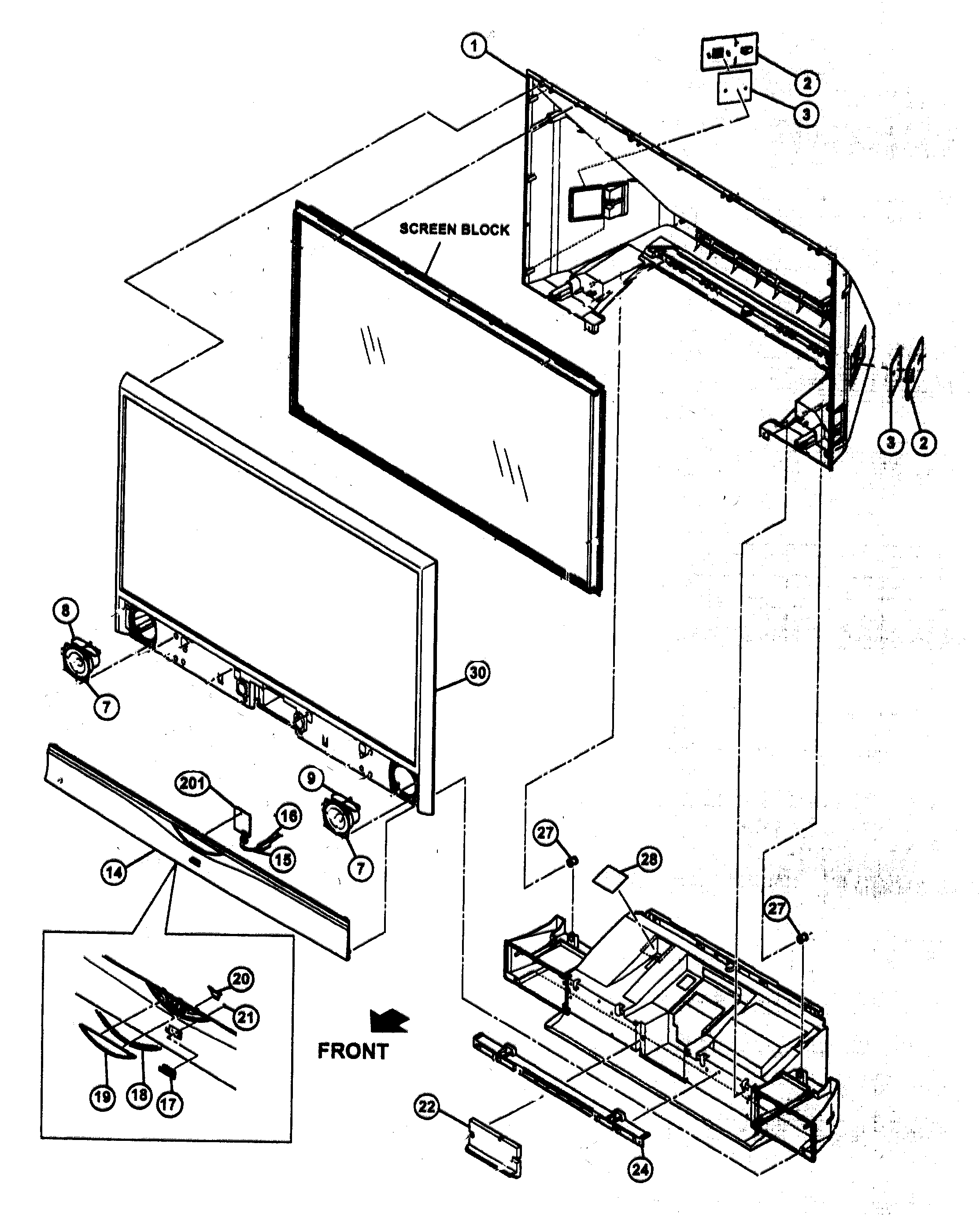

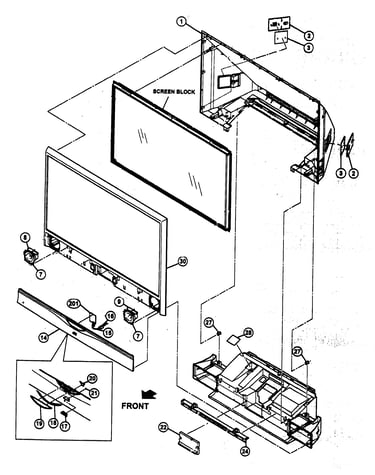

    Front cabinet parts diagram

    Integrated Circuit

    Part #MC33262D-X

    The manufacturer no longer makes this part, and there's no substitute part

  • Fan for JVC HD-52G786 - Part QAR0368-001

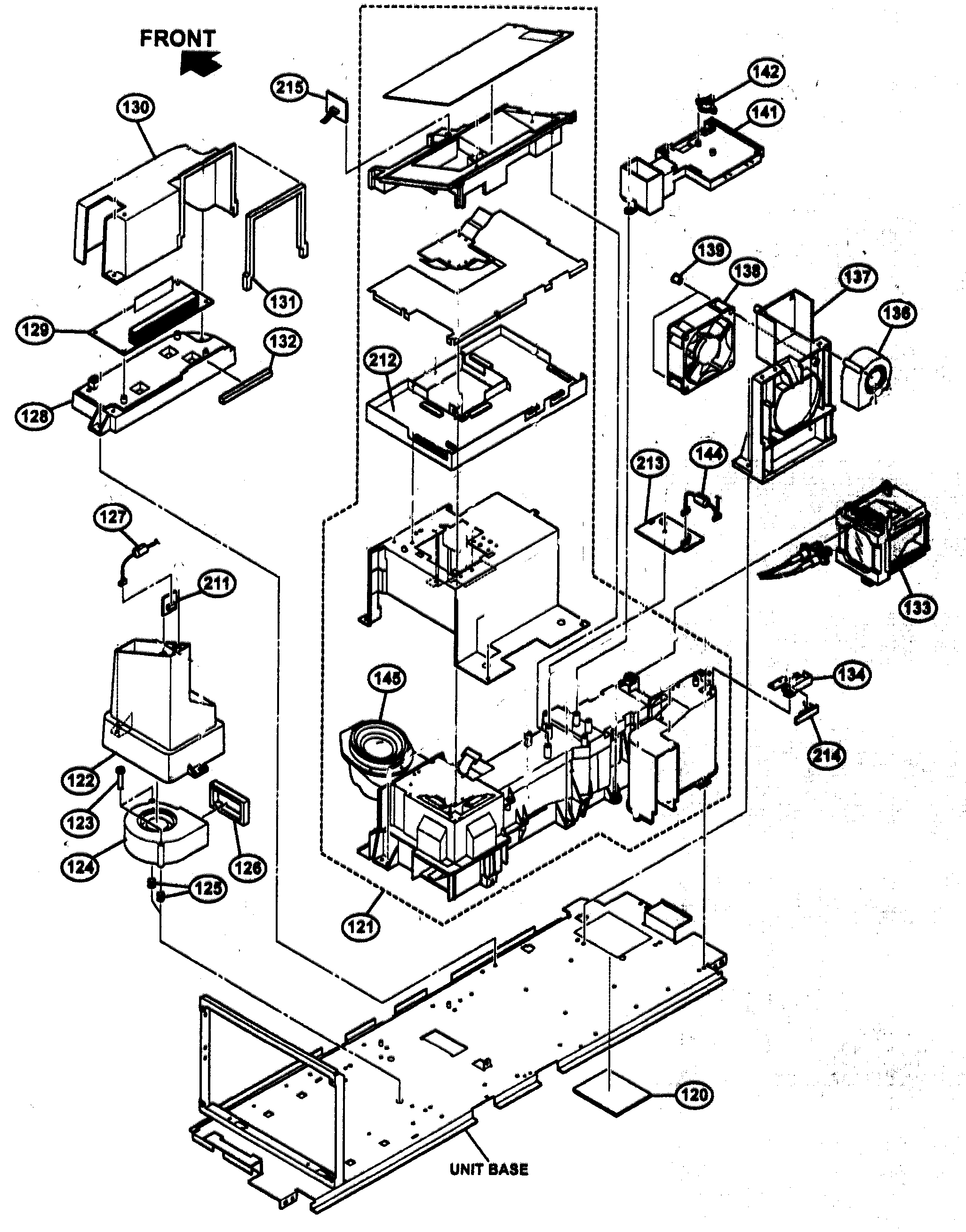

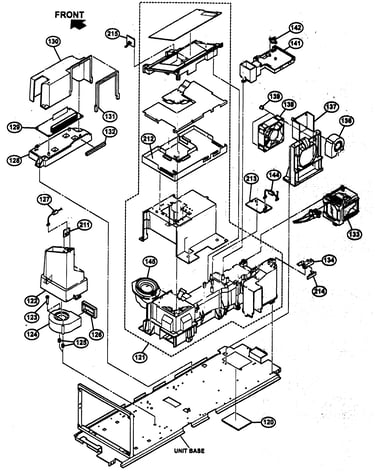

    Light engine 2 diagram

    Fan

    Part #QAR0368-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Transformer for JVC HD-52G786 - Part QAL0724-001

    Front cabinet parts diagram

    Transformer

    Part #QAL0724-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Fuse for JVC HD-52G786 - Part QMF51D2-6R3-J1

    Front cabinet parts diagram

    Fuse

    Part #QMF51D2-6R3-J1

    The manufacturer no longer makes this part, and there's no substitute part

  • Indicator Window for JVC HD-52G786 - Part LC21876-002A-A

    Front cabinet parts diagram

    Indicator Window

    Part #LC21876-002A-A

    The manufacturer no longer makes this part, and there's no substitute part

  • Television Speaker for JVC HD-52G786 - Part QAS0251-001

    Front cabinet parts diagram

    Television Speaker

    Part #QAS0251-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Coupler for JVC HD-52G786 - Part PS2581AL1/QW/

    Front cabinet parts diagram

    Coupler

    Part #PS2581AL1/QW/

    The manufacturer no longer makes this part, and there's no substitute part

  • Mark for JVC HD-52G786 - Part LC32707-001A-C

    Front cabinet parts diagram

    Mark

    Part #LC32707-001A-C

    The manufacturer no longer makes this part, and there's no substitute part
