Bosch
Wall Oven/Microwave Combo

Model # HBL8751UCC/03 Official Bosch built-in oven with microwave

Here are the diagrams and repair parts for Official Bosch HBL8751UCC-03 built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

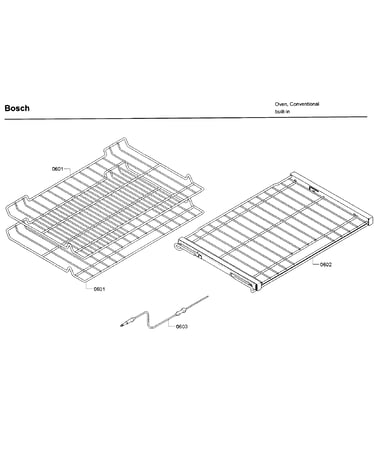

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Wall Oven Display Control Board 00758968
#102

Control panel diagram

Wall oven display control board

Part #00758968

Replaced by #12029207

?
Manufacturer substitution
This part replaces 00758968. Substitute parts can look different from the original.
$167.09 |
6% OFF Phone Price : $177.09
In Stock
Wall Oven Temperature Sensor (replaces 630873) 00630873
#309

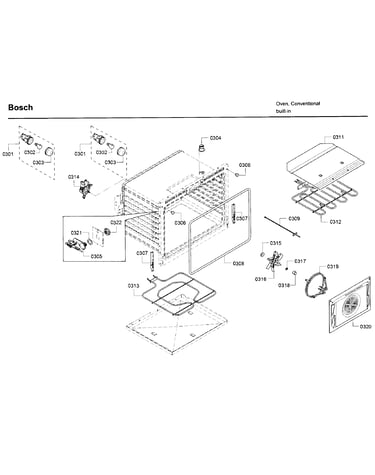

Cavity diagram

Wall oven temperature sensor (replaces 630873)

Part #00630873

$50.89 |
9% OFF Phone Price : $55.89
In Stock
Element 00791643
#312

Cavity diagram

Element

Part #00791643

Replaced by #11021971

?
Manufacturer substitution
This part replaces 00791643. Substitute parts can look different from the original.
$128.08 |
7% OFF Phone Price : $138.08
In Stock
Range Oven Control Board 12007637
#204

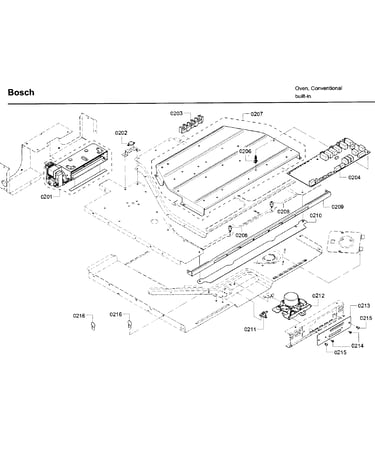

Latch diagram

Range oven control board

Part #12007637

Replaced by #11020741

?
Manufacturer substitution
This part replaces 12007637. Substitute parts can look different from the original.
$235.29 |
$10.00 OFF Phone Price : $245.29
In Stock
Wall Oven Door Inner Glass (replaces 791632) 00791632
#403

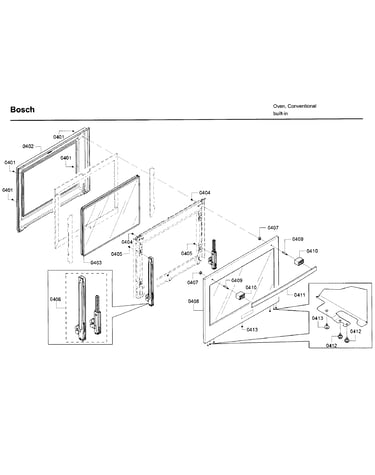

Door diagram

Wall oven door inner glass (replaces 791632)

Part #00791632

$174.69 |
5% OFF Phone Price : $184.69
In Stock
Screw 00617527
#554

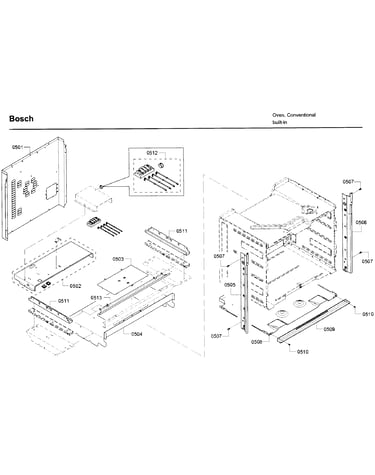

Frame diagram

Screw

Part #00617527

$15.20
In Stock
Wall Oven Convection Fan Motor 00642845
#314

Cavity diagram

Wall oven convection fan motor

Part #00642845

$165.59 |
6% OFF Phone Price : $175.59
In Stock
Wall Oven Light Lens 00414513
#303

Cavity diagram

Wall oven light lens

Part #00414513

$23.99 |
17% OFF Phone Price : $28.99
In Stock
Wall Oven Light Assembly 00415045
#301

Cavity diagram

Wall oven light assembly

Part #00415045

$69.99 |
7% OFF Phone Price : $74.99
In Stock
Wall Oven Door Outer Panel Assembly (replaces 771361) 00771361
#408

Door diagram

Wall oven door outer panel assembly (replaces 771361)

Part #00771361

$279.99 |
$10.00 OFF Phone Price : $289.99
In Stock
