DCS
Countertop Microwave

Model # CMO-24SS Official DCS microwave

Here are the diagrams and repair parts for Official DCS CMO-24SS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |

Fisher & Paykel Microwave Door Latch 213037
#6

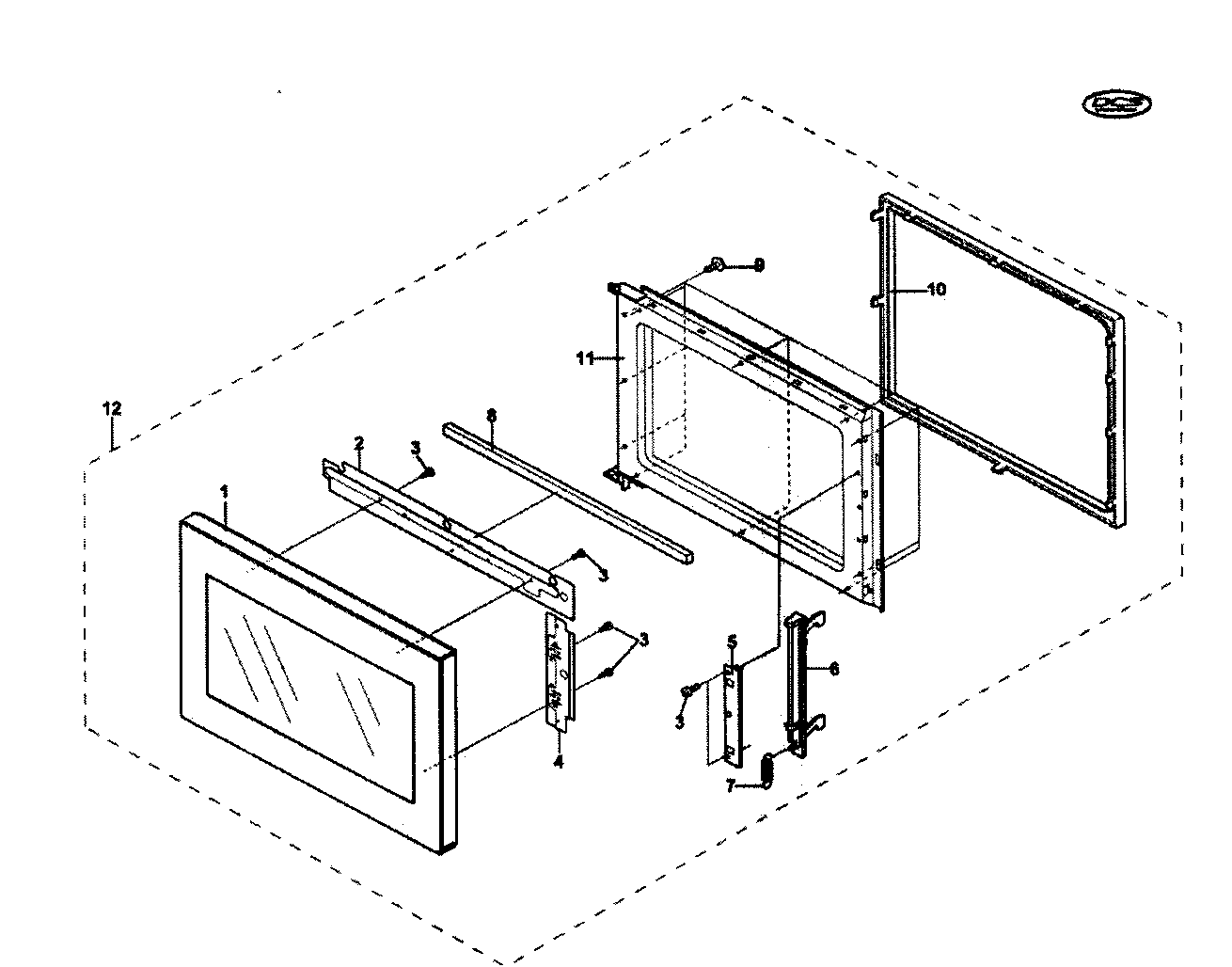

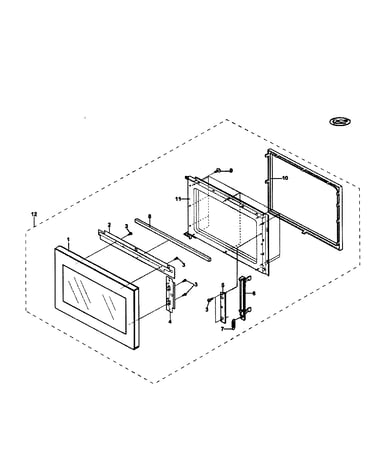

Door parts diagram

Fisher & paykel microwave door latch

Part #213037

In Stock
Fisher & Paykel Latch Hook 212974
#29

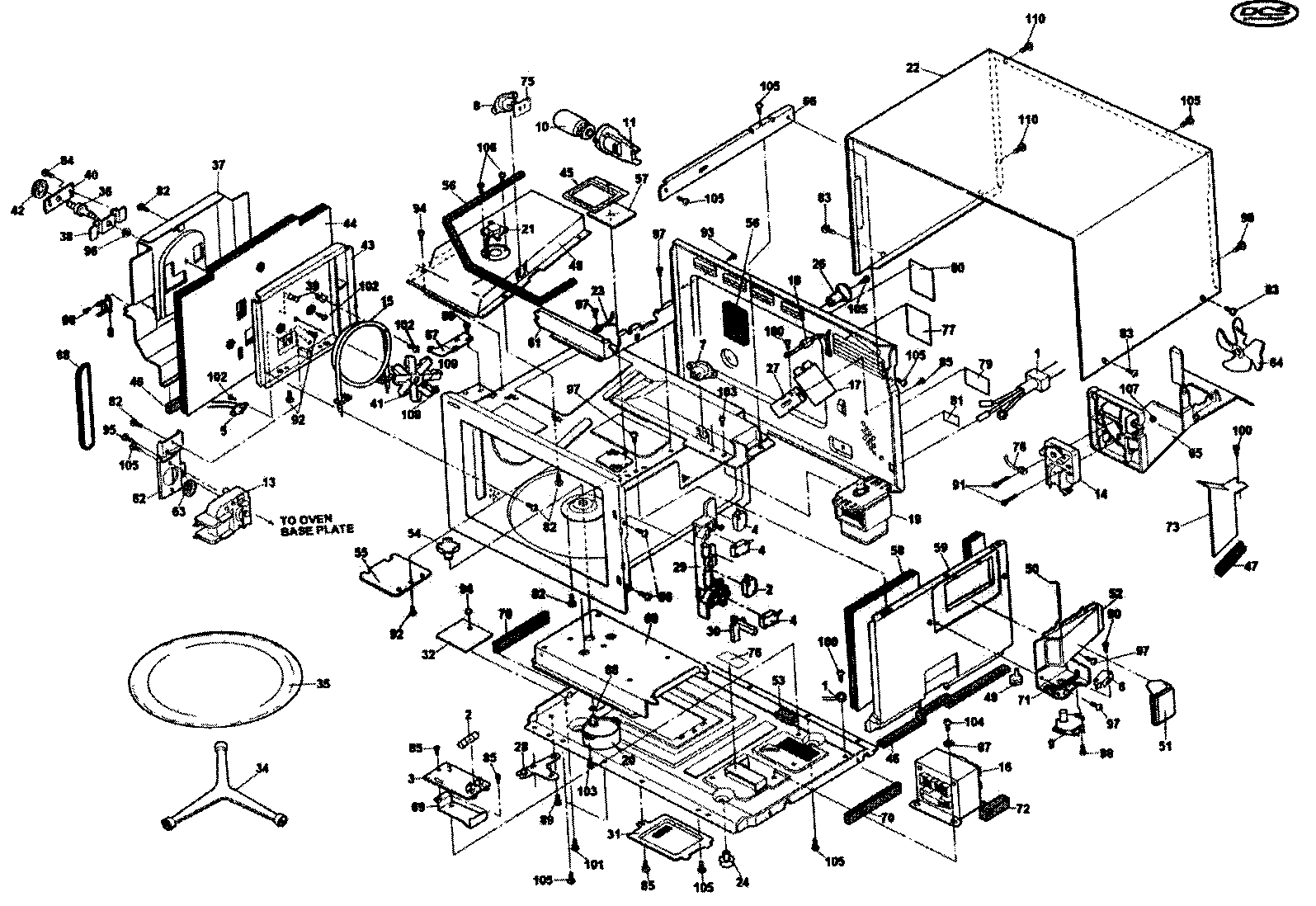

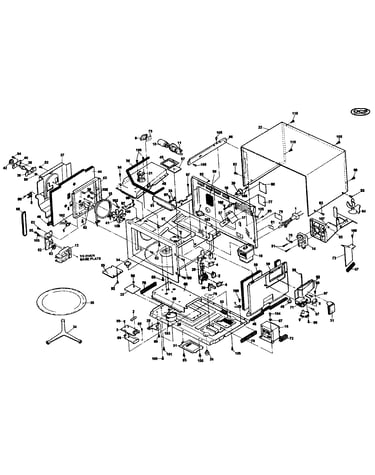

Cabinet parts diagram

Fisher & paykel latch hook

Part #212974

In Stock
Thermostat Cover 213031
#75

Cabinet parts diagram

Thermostat cover

Part #213031

This item is not returnable
In Stock
Air Guide 213017
#61

Cabinet parts diagram

Air guide

Part #213017

This item is not returnable
In Stock
Fisher & Paykel Microwave Noise Filter 212946
#3

Cabinet parts diagram

Fisher & paykel microwave noise filter

Part #212946

$64.31
7% OFF Phone Price : $69.31
In Stock
Fisher & Paykel Microwave Keypad 212980
#12

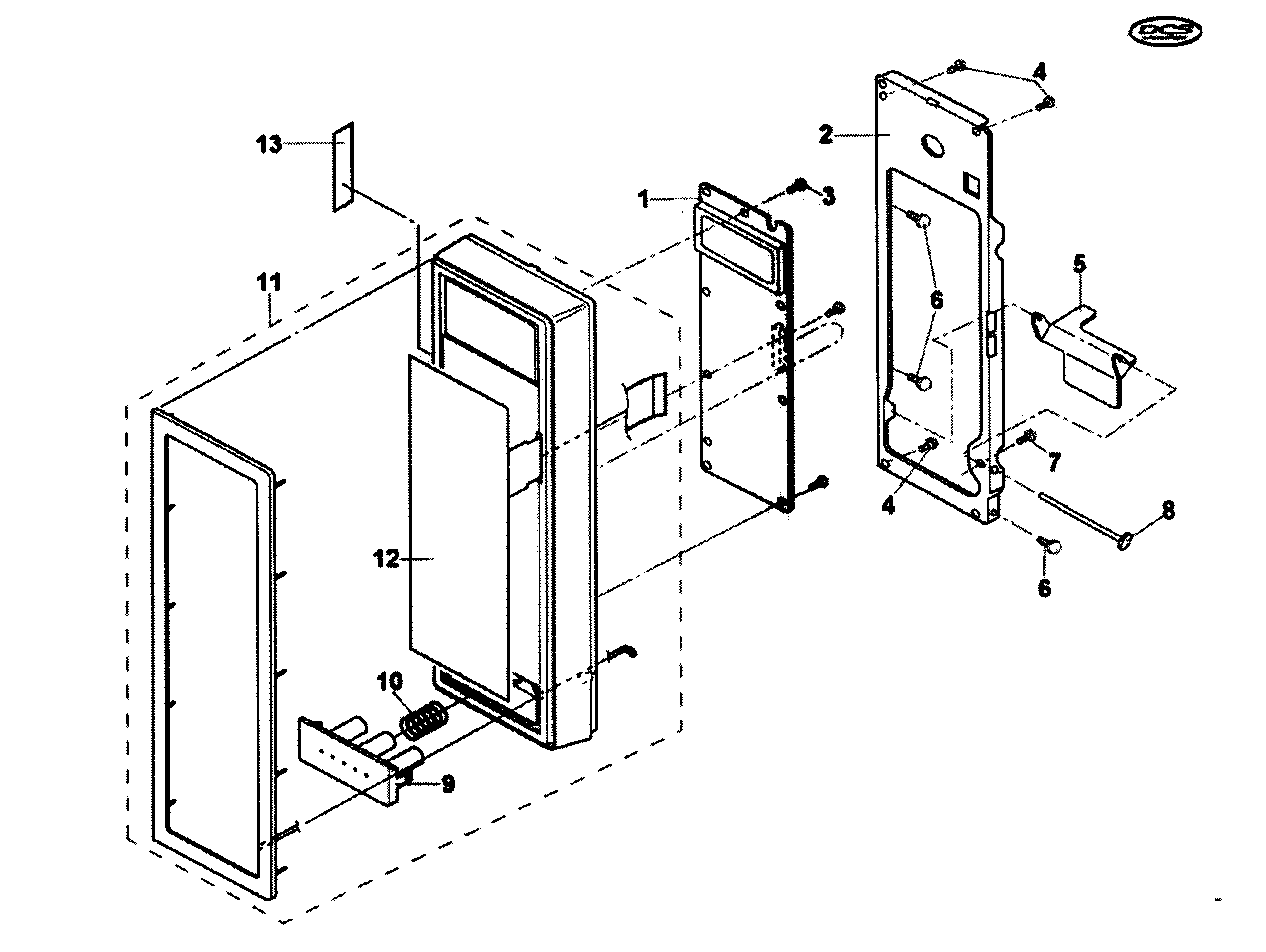

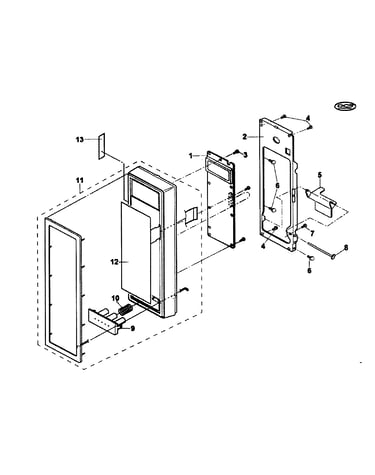

Control panel diagram

Fisher & paykel microwave keypad

Part #212980

$74.74
6% OFF Phone Price : $79.74
In Stock
Cap 213035
#10

Door parts diagram

Cap

Part #213035

In Stock
Screw 213065
#89

Cabinet parts diagram

Screw

Part #213065

This item is not returnable
In Stock
High Rack 213045
#2

Wiring harness diagram

High rack

Part #213045

In Stock
Screw 212986
#3

Control panel diagram

Screw

Part #212986

This item is not returnable
In Stock
