Whirlpool WMH31017FW2 microwave/hood combo Parts

Here are the diagrams and repair parts for Whirlpool WMH31017FW2 microwave/hood combo, as well as links to manuals and error code tables, if available.

Whirlpool WMH31017FW2 microwave/hood combo

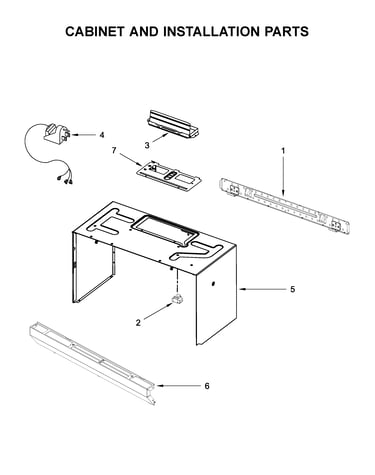

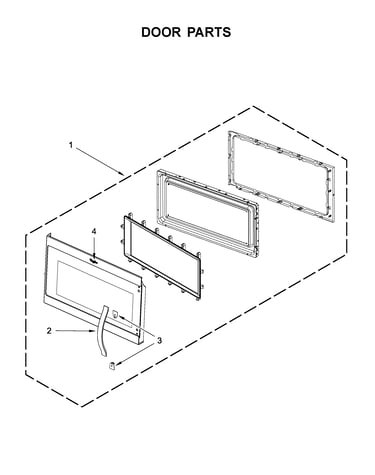

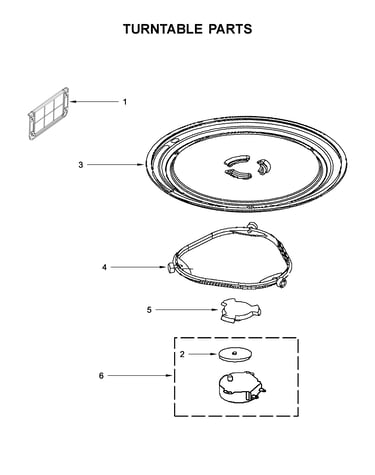

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WMH31017FW2 Microwave/Hood Combo

  • R Ceramic Fu for Whirlpool WMH31017FW2 - Part W11707984

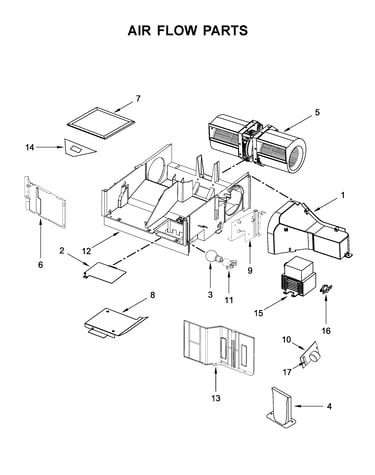

    Air flow parts diagram

    Microwave Fuse

    Part #W10138793

    Replaced by #W11707984

    Info Icon
    Manufacturer substitution
    This part replaces W10138793. Substitute parts can look different from the original.
    In Stock
    $73.63
    8% OFF Phone Price : $79.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Surface Light Bulb, 40-watt for Whirlpool WMH31017FW2 - Part 8206232A

    Air flow parts diagram

    Lamp Assembly

    Part #4393681

    Replaced by #8206232A

    Info Icon
    Manufacturer substitution
    This part replaces 4393681. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.73
    15% OFF Phone Price : $6.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Surface Light Bulb, 40-watt for Whirlpool WMH31017FW2 - Part 8206232A

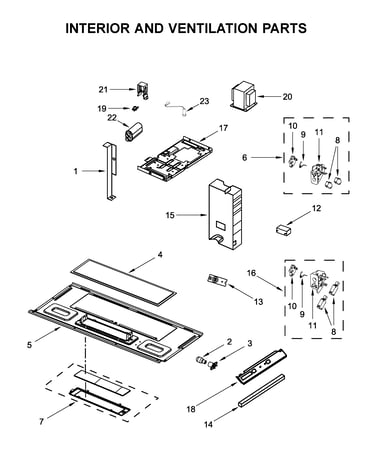

    Interior and ventilation parts diagram

    Microwave/hood Light Bulb

    Part #8206232

    Replaced by #8206232A

    Info Icon
    Manufacturer substitution
    This part replaces 8206232. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.73
    15% OFF Phone Price : $6.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Support, Upper for Whirlpool WMH31017FW2 - Part WP8206419

    Interior and ventilation parts diagram

    Microwave Door Interlock Support, Upper

    Part #8206419

    Replaced by #WP8206419

    Info Icon
    Manufacturer substitution
    This part replaces 8206419. Substitute parts can look different from the original.
    In Stock
    $13.31
    13% OFF Phone Price : $15.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Electronic Control Board for Whirlpool WMH31017FW2 - Part W11552018

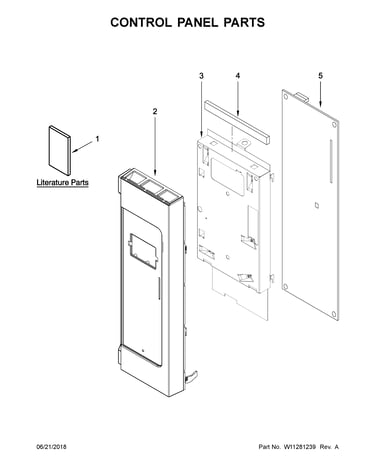

    Control panel parts diagram

    Electronic Control

    Part #W10849829

    Replaced by #W11552018

    Info Icon
    Manufacturer substitution
    This part replaces W10849829. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $85.85
    11% OFF Was : $96.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Light Socket for Whirlpool WMH31017FW2 - Part W10210871

    Interior and ventilation parts diagram

    Microwave Light Socket

    Part #W10210871
    In Stock
    $8.39
    11% OFF Phone Price : $9.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Magnetron for Whirlpool WMH31017FW2 - Part W10754299

    Air flow parts diagram

    Microwave Magnetron

    Part #W10754299
    In Stock
    $162.57
    18% OFF Was : $197.62Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Grease Filter for Whirlpool WMH31017FW2 - Part W10208631A

    Interior and ventilation parts diagram

    Filter

    Part #W10208631

    Replaced by #W10208631A

    Info Icon
    Manufacturer substitution
    This part replaces W10208631. Substitute parts can look different from the original.
    In Stock
    $26.62
    18% OFF Phone Price : $32.62Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Magnetron Thermostat for Whirlpool WMH31017FW2 - Part W10832024

    Air flow parts diagram

    Microwave Magnetron Thermostat

    Part #W10832024
    In Stock
    $45.30
    12% OFF Phone Price : $51.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Vent Fan Motor Assembly for Whirlpool WMH31017FW2 - Part W11441128

    Air flow parts diagram

    Hood Motor A

    Part #W11109693

    Replaced by #W11441128

    Info Icon
    Manufacturer substitution
    This part replaces W11109693. Substitute parts can look different from the original.
    In Stock
    $128.10
    9% OFF Phone Price : $140.10Info Icon
    Minus Item
    Qty
    Plus Item
