Heating & Cooling Combined Unit

Model #VEA18K34SPE Friedrich single-package vertical air conditioner

Here are the diagrams and repair parts for Friedrich VEA18K34SPE single-package vertical air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 33 parts

    Fan Blade

    #11

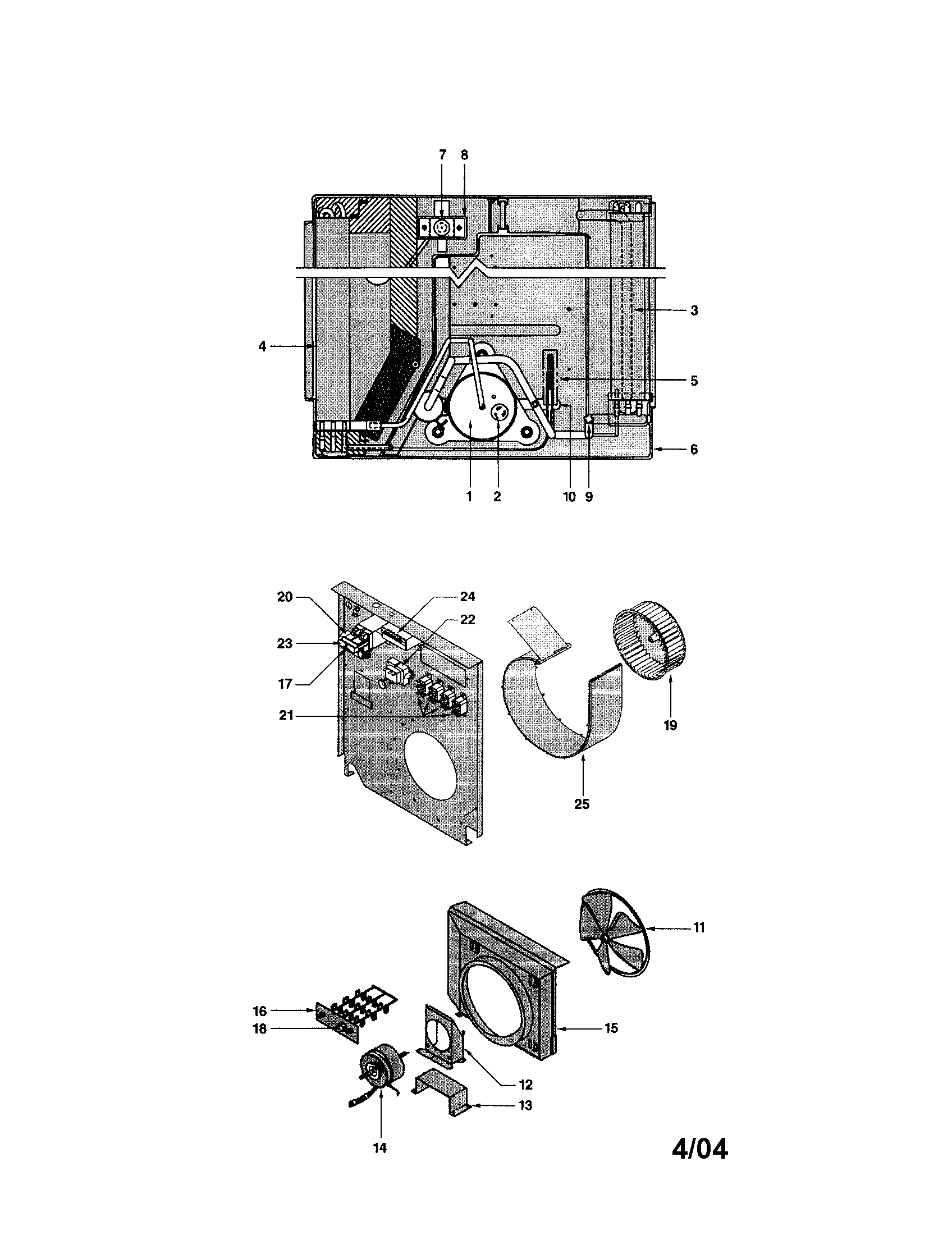

    Unit assembly Diagram

    Fan blade

    Part #605-420-04

    The manufacturer no longer makes this part, and there's no substitute part

    Thermostat

    #9

    Unit assembly Diagram

    Thermostat

    Part #210-590-23

    The manufacturer no longer makes this part, and there's no substitute part

    MOTOR 1/4 1 6P CCW

    #14

    Unit assembly Diagram

    Motor 1/4 1 6p ccw

    Part #800-068-01

    The manufacturer no longer makes this part, and there's no substitute part

    Evaporator Coil Assembly

    #3

    Unit assembly Diagram

    Evaporator coil assembly

    Part #618-501-05

    The manufacturer no longer makes this part, and there's no substitute part

    RELAY 24V SPST (HEAT PUMP)

    #21

    Unit assembly Diagram

    Relay 24v spst (heat pump)

    Part #600-840-33

    The manufacturer no longer makes this part, and there's no substitute part

    Overload

    #2

    Unit assembly Diagram

    Overload

    Part #617-645-22

    The manufacturer no longer makes this part, and there's no substitute part

    Reversing Valve

    #NI02

    All parts Diagram

    Reversing valve

    Part #250-187-00

    The manufacturer no longer makes this part, and there's no substitute part

    Pan Base

    #6

    Unit assembly Diagram

    Pan base

    Part #800-237-00

    The manufacturer no longer makes this part, and there's no substitute part

    OUTDOOR COIL ASSEMBLY

    #4

    Unit assembly Diagram

    Outdoor coil assembly

    Part #618-502-18

    The manufacturer no longer makes this part, and there's no substitute part

    Transformer

    #22

    Unit assembly Diagram

    Transformer

    Part #210-568-99

    The manufacturer no longer makes this part, and there's no substitute part
