Model #HCD-C450 Official Sony compact av system

Here are the diagrams and repair parts for Sony HCD-C450 compact av system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 99 parts

Mode Belt#NI

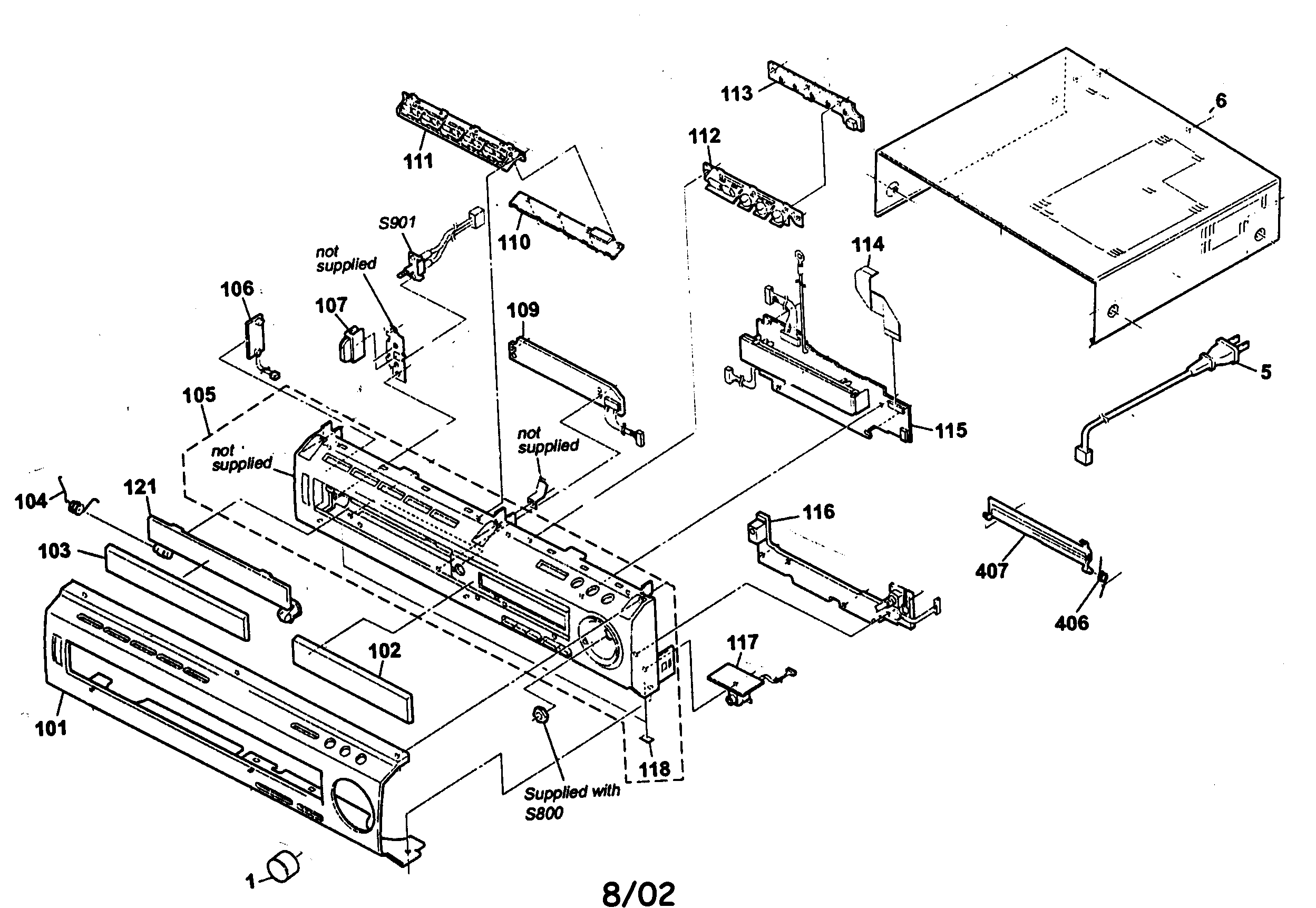

Cabinet parts Diagram

Mode belt

Part #421123701

The manufacturer no longer makes this part, and there's no substitute part

Coil,line#NI

Cabinet parts Diagram

Coil,line

Part #142493011

The manufacturer no longer makes this part, and there's no substitute part

Carbon Res#NI

Cabinet parts Diagram

Carbon res

Part #124942411

The manufacturer no longer makes this part, and there's no substitute part

Panel Fr#101

Cabinet parts Diagram

Panel fr

Part #423493421

The manufacturer no longer makes this part, and there's no substitute part

Lid#407

Cabinet parts Diagram

Lid

Part #421267411

The manufacturer no longer makes this part, and there's no substitute part

Gear#NI

Cabinet parts Diagram

Gear

Part #421123001

The manufacturer no longer makes this part, and there's no substitute part

M5f7805l#NI

Cabinet parts Diagram

M5f7805l

Part #875923153

The manufacturer no longer makes this part, and there's no substitute part

Resistor#NI

Cabinet parts Diagram

Resistor

Part #124788100

The manufacturer no longer makes this part, and there's no substitute part

Encoder#NI

Cabinet parts Diagram

Encoder

Part #141804501

The manufacturer no longer makes this part, and there's no substitute part

Capacitor#NI

Cabinet parts Diagram

Capacitor

Part #113799431

The manufacturer no longer makes this part, and there's no substitute part
