Kenmore
Charcoal Grill

Model # 2581066182 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2581066182 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Screw STD511005
#142

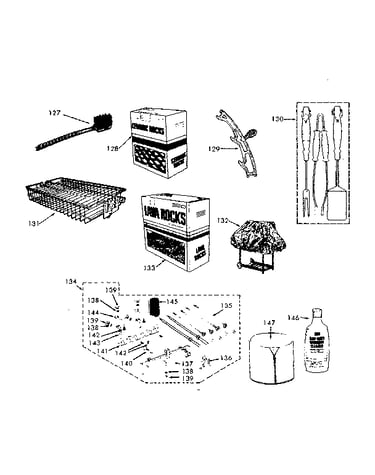

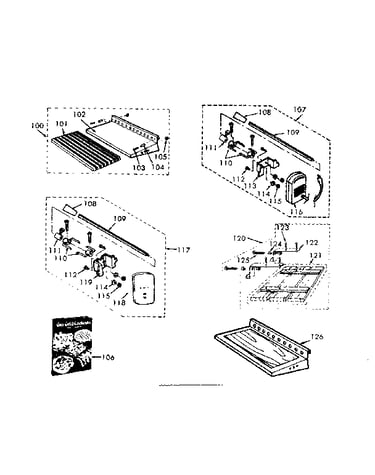

Optional accessories diagram

Screw

Part #STD511005

The manufacturer no longer makes this part, and there's no substitute part

Briq Grate 10222-20
#11

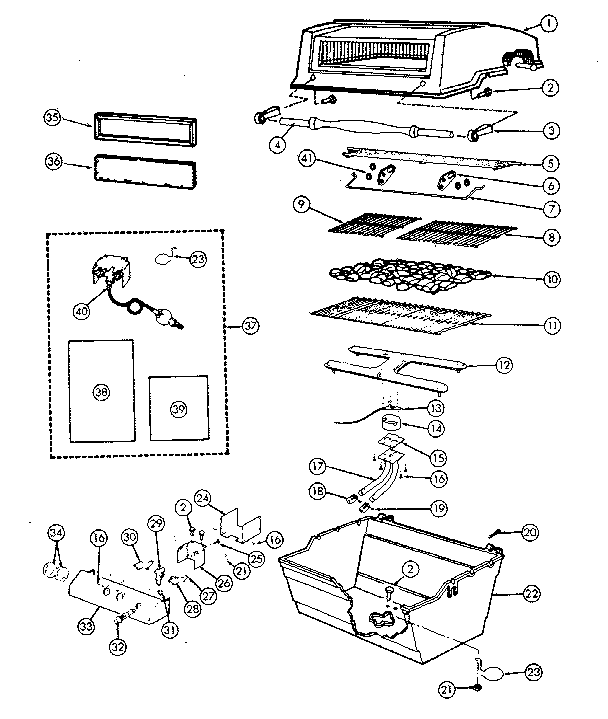

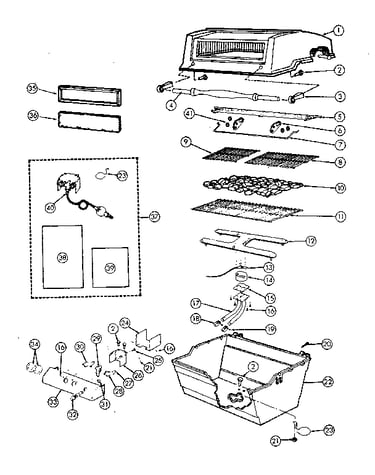

Grill and burner diagram

Briq grate

Part #10222-20

Replaced by #04170107

?
Manufacturer substitution
This part replaces 10222-20. Substitute parts can look different from the original.
$44.39 |
10% OFF Phone Price : $49.39
In Stock
Screw Y-12648
#16

Grill and burner diagram

Screw

Part #Y-12648

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10724-37
#121

Optional accessories diagram

Shelf

Part #10724-37

The manufacturer no longer makes this part, and there's no substitute part

Support 10184-46
#104

Optional accessories diagram

Support

Part #10184-46

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 10691-75
#28

Grill and burner diagram

Gas valve

Part #10691-75

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut STD541610
#139

Optional accessories diagram

Wing nut

Part #STD541610

The manufacturer no longer makes this part, and there's no substitute part

Lp Tank 10930-53
#73

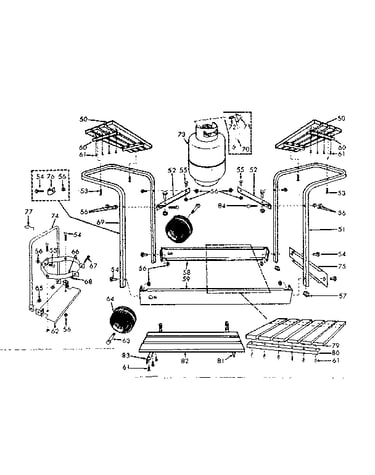

Main frame diagram

Lp tank

Part #10930-53

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut, 3/8-16, 8-pack STD541237
#65

Main frame diagram

Hex nut, 3/8-16, 8-pack

Part #STD541237

The manufacturer no longer makes this part, and there's no substitute part

Brush 10004-595
#127

Optional accessories diagram

Brush

Part #10004-595

The manufacturer no longer makes this part, and there's no substitute part
