Model # 13191525 Official Craftsman 18" electric rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 13191525 18" electric rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

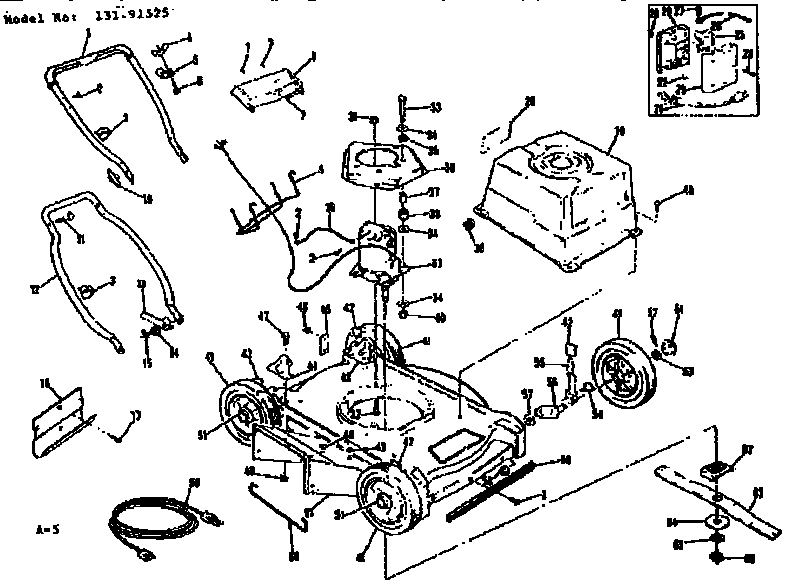

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Nut 60249
#58

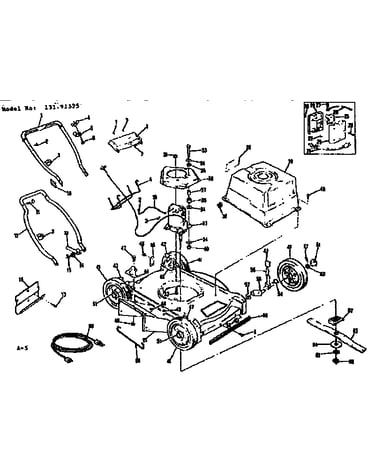

Replacement parts diagram

Nut

Part #60249

Replaced by #73680800

?
Manufacturer substitution
This part replaces 60249. Substitute parts can look different from the original.
This item is not returnable
$3.00 |
25% OFF Phone Price : $4.00
In Stock
Keps Nut 271184
#31

Replacement parts diagram

Keps nut

Part #271184

The manufacturer no longer makes this part, and there's no substitute part

Nylok Nut 274205
#40

Replacement parts diagram

Nylok nut

Part #274205

The manufacturer no longer makes this part, and there's no substitute part

Wheel 62446
#41

Replacement parts diagram

Wheel

Part #62446

The manufacturer no longer makes this part, and there's no substitute part

Washer 52160
#53

Replacement parts diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lock Nut 271172
#48

Replacement parts diagram

Lock nut

Part #271172

The manufacturer no longer makes this part, and there's no substitute part

Bolt 26936
#6

Replacement parts diagram

Bolt

Part #26936

The manufacturer no longer makes this part, and there's no substitute part

Bolt 423562
#32

Replacement parts diagram

Bolt

Part #423562

The manufacturer no longer makes this part, and there's no substitute part

Bolt 54395
#47

Replacement parts diagram

Bolt

Part #54395

The manufacturer no longer makes this part, and there's no substitute part

Handle 62592
#12

Replacement parts diagram

Handle

Part #62592

The manufacturer no longer makes this part, and there's no substitute part
