How to tell what year a Craftsman mower is?
For many Craftsman riding mowers, we identify the build year by decoding the serial number on the tractor’s ID tag; the last two digits of the common 6-digit date code represent the year (for example, 071294 indicates 1994). For model 917248940 equipment details and safe handling, use the owner's manual.
Where to find the serial number tag
On most Craftsman riding mowers, the ID tag is typically located in one of these spots:
- Under the seat pan (lift the seat and look on the frame)
- On the rear frame plate near the hitch area
- Along the left or right frame rail
- Near the engine compartment on the chassis
How to decode common Craftsman date formats
Craftsman serial/date coding varies by product line, but these are the most common patterns we see.
6-digit date code (common on many riding mowers)
- Format: MMDDYY
- Example: 071294 = July 12, 1994
Alternate walk-behind style codes (varies)
Some walk-behind mowers use a longer serial where one digit indicates the year. If your code does not cleanly match MMDDYY, use the manual’s identification section and compare the tag format.
Quick checks to confirm you have the right year
Use these cross-checks so you do not order the wrong parts (like chute hardware or latches):
- Match the model number exactly (for this page: 917248940)
- Confirm the serial number from the tractor tag, not the grass catcher decal
- Compare the bagger style (upper chute, lower chute, container) to your attachment
- Verify fasteners and small hardware sizes before ordering (screws, washers, lock nuts)
Why it matters
The manufacturing year helps narrow down the correct parts and revisions. Even small changes can affect fitment for bagger components such as the chute, container cover, and latch hardware.
| What you’re identifying | Where to look | Why it helps |
|---|---|---|
| Tractor build year | Tractor ID/serial tag | Confirms mower generation and compatible attachments |
| Grass catcher model | Attachment label/manual | Confirms bagger configuration and parts list |
Last updated: February 2026
Is there a universal grass catcher?
A truly universal grass catcher is uncommon because baggers must match the tractor’s deck size, discharge style (side or rear), and mounting points. For Craftsman model 917248940, we recommend using the correct bagger components and setup shown in the owner's manual so airflow, fit, and bagging performance stay consistent.
What “universal” usually means (and what it does not)
Most “universal fit” grass catchers only cover a limited range of mower and tractor designs. They typically still require the right chute routing and secure latching to prevent clogs and blowouts.
- Fits only certain deck widths and discharge locations
- Requires compatible mounting hardware and frame geometry
- Depends on proper airflow through the chute and cover screen
- May not seal well at the cover or chute connections
- Can reduce bagging performance if the chute path is too long or kinked
How to decide if another catcher will work on your tractor
Use these checks before buying any non-original bagger or “universal” kit:
- Deck discharge location: side discharge vs rear discharge
- Deck size: the catcher must match the deck width range
- Chute connection style: upper and lower chute geometry must align
- Container capacity and venting: screen and cover design affect airflow
- Latch and seal points: loose latches or gaps cause clogging and dusting
Quick compatibility checklist
| What to match | Why it matters | What to look for |
|---|---|---|
| Discharge type | Determines chute routing | Side discharge alignment to chute |
| Mounting points | Prevents shifting and leaks | Frame and bracket fit |
| Airflow/venting | Prevents clogging | Cover screen and clear passages |
| Latching/sealing | Keeps suction and containment | Secure latches and intact gasket |
Why it matters
Your bagger works best when the tractor runs at full throttle while bagging and the chute stays clear. The manual notes that reduced pickup usually means the containers are full or the chutes are clogged; a mismatched “universal” setup makes those problems much more likely.
Parts that commonly affect fit and bagging performance
If you are troubleshooting poor pickup or frequent clogging on model 917248940, these model-matched parts are often involved:
- Full bag indicator 532130933 (helps you empty before the chute clogs)
- Lawn tractor bagger attachment upper chute 532187299 (airflow path from deck)
- Lawn tractor bagger attachment lower chute 532187300 (deck to upper chute connection)
- Lawn tractor bagger attachment container cover gasket 532192550 (helps seal the cover)
- Hood latch 532109808 (helps keep the cover secured)
Last updated: February 2026
Where is Craftsman's model number?

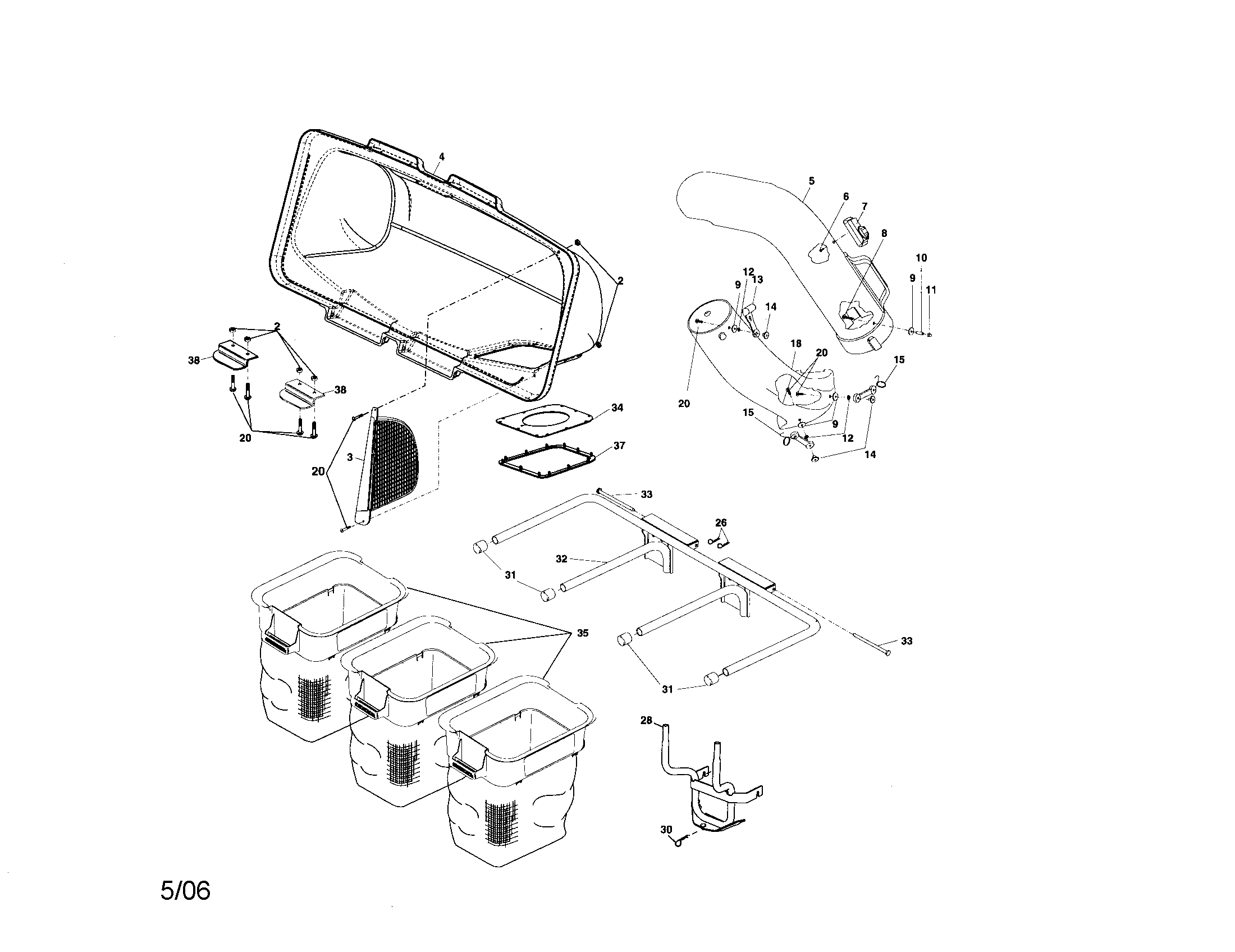

For the Craftsman grass catcher attachment model 917248940, the model number is printed on the grass catcher documentation and is also shown on the parts breakdown pages for the catcher assembly. Use the model number to match the correct chute, container, latches, and hardware for your setup; see the 917248940 owner's manual.
Where to look on the grass catcher attachment
On this Craftsman bagger-style attachment, the model number is typically easiest to confirm from the paperwork and parts diagram rather than a small label on the plastic.
- Check the front cover of the owner’s manual; it lists the model number for the 54-inch mower grass catcher.
- Check the parts list pages in the manual; the header shows the grass catcher model number.
- If you have a printed parts diagram sheet, look at the top of the diagram pages.
- When ordering replacement parts, match the model number first, then match the part name and part ID.
Why the model number matters for parts
Grass catcher components wear over time, and the correct model number keeps you from ordering a chute or latch that does not fit your frame or container.
Common parts that depend on the correct model match include:
- Upper and lower chute sections
- Container and container cover sealing parts
- Latches and hood/chute hardware
- Small fasteners (screws, washers, lock nuts)
Quick examples of model-matched parts
| What you are replacing | Example part on this model | What it affects |
|---|---|---|
| Chute latch/retainer | Hood latch 532109808 | Helps keep the chute/hood connection secured |
| Full bag indicator | Indicator 532130933 | Signals when the container is filling |
| Lower discharge chute | Lawn tractor bagger attachment lower chute 532187300 | Routes grass clippings into the container |
Why it matters
Using the correct model number (917248940) helps ensure the grass catcher fits safely and routes clippings correctly; mismatched parts can loosen, leak clippings, or interfere with airflow and bagging performance.
Last updated: February 2026
How to attach grass bag to Craftsman mower?
To attach the grass catcher (bagger) on Craftsman model 917248940, lower the mower deck, raise and hold the deflector shield, latch the lower chute in place, then connect and latch the upper chute to the cover so clippings flow into the containers. See the owner's manual for the exact latch points and chute alignment.
Quick attach steps (917248940 bagger)
- Park on a flat surface; set the parking brake.
- Lower the mower deck to its lowest cutting position.
- Raise and hold the deflector shield; do not remove it.
- Position the lower chute under the deflector shield and secure it at the mounting tab and latches.
- Insert the curved end of the upper chute into the hole in the back of the cover; handle the full-bagger indicator carefully.
- Push in and turn the upper chute until it lines up with the lower chute; slide the pieces together and secure the rubber latch over the latch pin.
What to check if the bagger will not stay on
- Deflector shield not resting on the chute: the shield should sit on the chute during operation.
- Chute joints not fully seated: bosses on the lower chute must align with the slots on the upper chute.
- Latch hardware worn or missing: replace damaged latches so the cover and chute stay secured.
- Deck not level: a poorly leveled deck reduces airflow and bagging performance.
Common latch and indicator parts for this model
| Symptom | Likely area | Example part on this model |
|---|---|---|
| Cover will not stay closed | Cover latch/handle | Latch 532130895 |
| Chute or cover will not latch securely | Chute latch | Hood latch 532109808 |
| Indicator does not move as bags fill | Indicator assembly | Indicator 532130933 |
Why it matters
Correct chute alignment and secure latching keep airflow strong from the mower deck to the containers. That airflow is what lifts clippings through the upper and lower chute, reduces clogging, and helps the full-bagger indicator work properly.
Last updated: February 2026
