Model # 486242411 Official Craftsman hitch

Here are the diagrams and repair parts for Official Craftsman 486242411 hitch, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Lawn Tractor Attachment Cotter Pin, 3/32-in 43055
#20

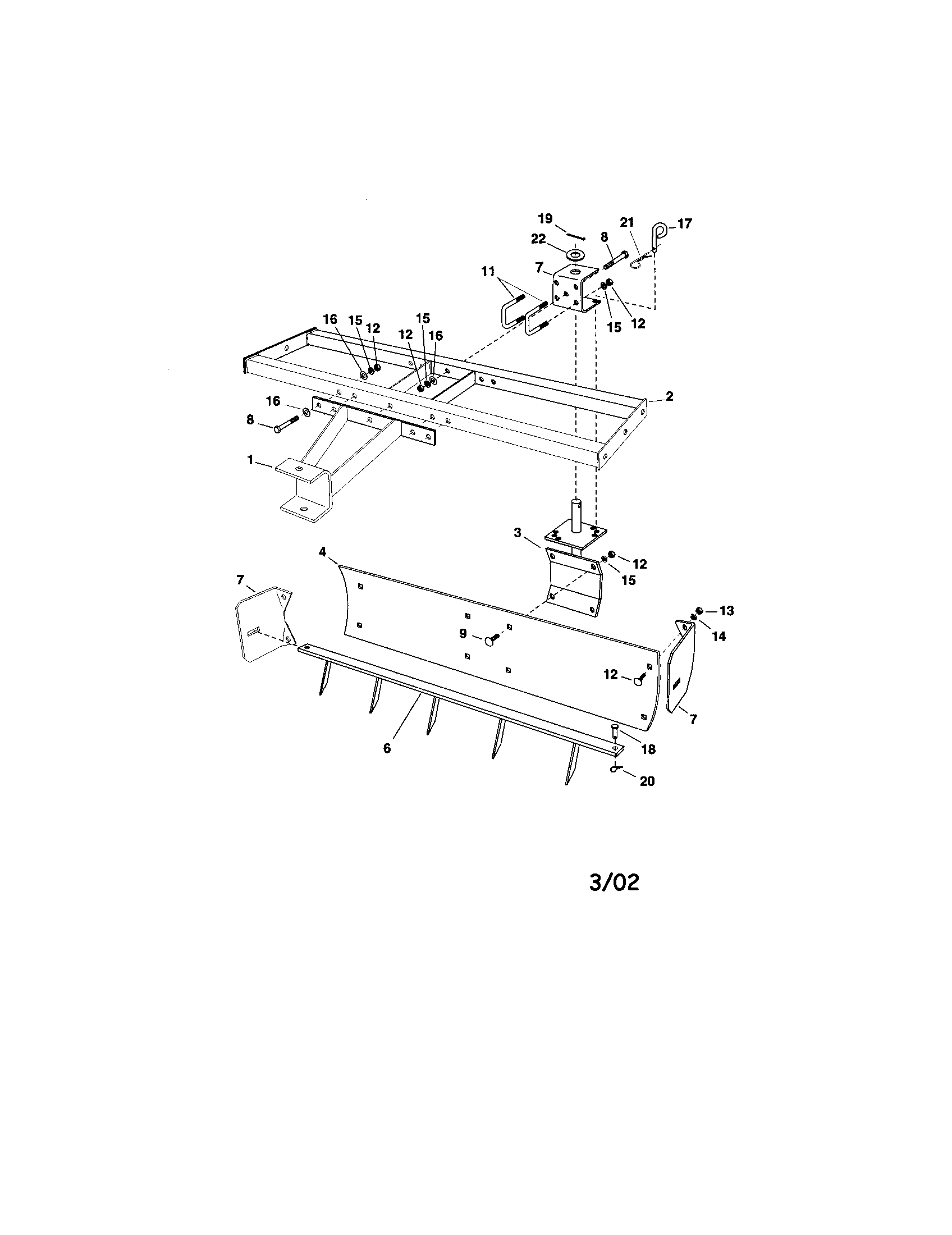

Hitch diagram

Lawn tractor attachment cotter pin, 3/32-in

Part #43055

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Hitch Pin (replaces Af-43343) 43343
#21

Hitch diagram

Lawn tractor attachment hitch pin (replaces af-43343)

Part #43343

BEST SELLER
This item is not returnable
In Stock
Lawn Tractor Attachment Washer, 3/8-in (replaces Af-43070) 43070
#16

Hitch diagram

Lawn tractor attachment washer, 3/8-in (replaces af-43070)

Part #43070

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Carriage Bolt, 3/8-16 X 1-in 43350
#9

Hitch diagram

Lawn tractor attachment carriage bolt, 3/8-16 x 1-in

Part #43350

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Hex Nut, 5/16-in 43083
#13

Hitch diagram

Lawn tractor attachment hex nut, 5/16-in

Part #43083

This item is not returnable
In Stock
Lawn & Garden Equipment Hex Nut, 3/8-16 43015
#12

Hitch diagram

Lawn & garden equipment hex nut, 3/8-16

Part #43015

This item is not returnable
In Stock
Lawn & Garden Equipment Hex Bolt 43432
#8

Hitch diagram

Lawn & garden equipment hex bolt

Part #43432

This item is not returnable
In Stock
Lawn Tractor Box Scraper Attachment Hitch Assembly 63656
#1

Hitch diagram

Lawn tractor box scraper attachment hitch assembly

Part #63656

Replaced by #63656BL1

?
Manufacturer substitution
This part replaces 63656. Substitute parts can look different from the original.
In Stock
Lawn Tractor Box Scraper Attachment Scarifier Assembly 63507
#6

Hitch diagram

Lawn tractor box scraper attachment scarifier assembly

Part #63507

Replaced by #63507BL3

?
Manufacturer substitution
This part replaces 63507. Substitute parts can look different from the original.
$62.12
7% OFF Phone Price : $67.12
In Stock
Lawn & Garden Equipment Special Washer 23336
#22

Hitch diagram

Lawn & garden equipment special washer

Part #23336

This item is not returnable
