Model # 3638350 Official Kenmore refrigerator panel kit (black)

Here are the diagrams and repair parts for Official Kenmore 3638350 refrigerator panel kit (black), as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |
Refrigerator Parts List SR3534
#1A

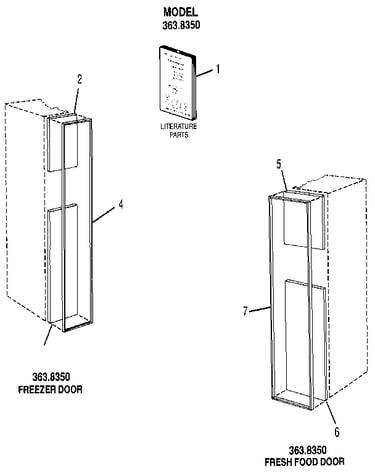

Panel kit diagram

Refrigerator parts list

Part #SR3534

$11.39 |
15% OFF Phone Price : $13.39
In Stock
Pn Bl Ff Top WR99X0168
#5

Panel kit diagram

Pn bl ff top

Part #WR99X0168

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Installation SR1200
#1

Panel kit diagram

Refrigerator installation

Part #SR1200

The manufacturer no longer makes this part, and there's no substitute part

Pn Bl Fz Top WR99X0166
#2

Panel kit diagram

Pn bl fz top

Part #WR99X0166

The manufacturer no longer makes this part, and there's no substitute part

Pn Bl Ff Btm WR99X0169
#6

Panel kit diagram

Pn bl ff btm

Part #WR99X0169

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Trim WR99X0132
#4

Panel kit diagram

Refrigerator trim

Part #WR99X0132

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Trim WR99X0133
#7

Panel kit diagram

Refrigerator trim

Part #WR99X0133

The manufacturer no longer makes this part, and there's no substitute part

Pn Bl Fz Btm WR99X0167
#3

Panel kit diagram

Pn bl fz btm

Part #WR99X0167

The manufacturer no longer makes this part, and there's no substitute part
