Model # TSL3295HF Official Samsung television

Here are the diagrams and repair parts for Official Samsung TSL3295HF television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |

Diode 0402-000231
#NI

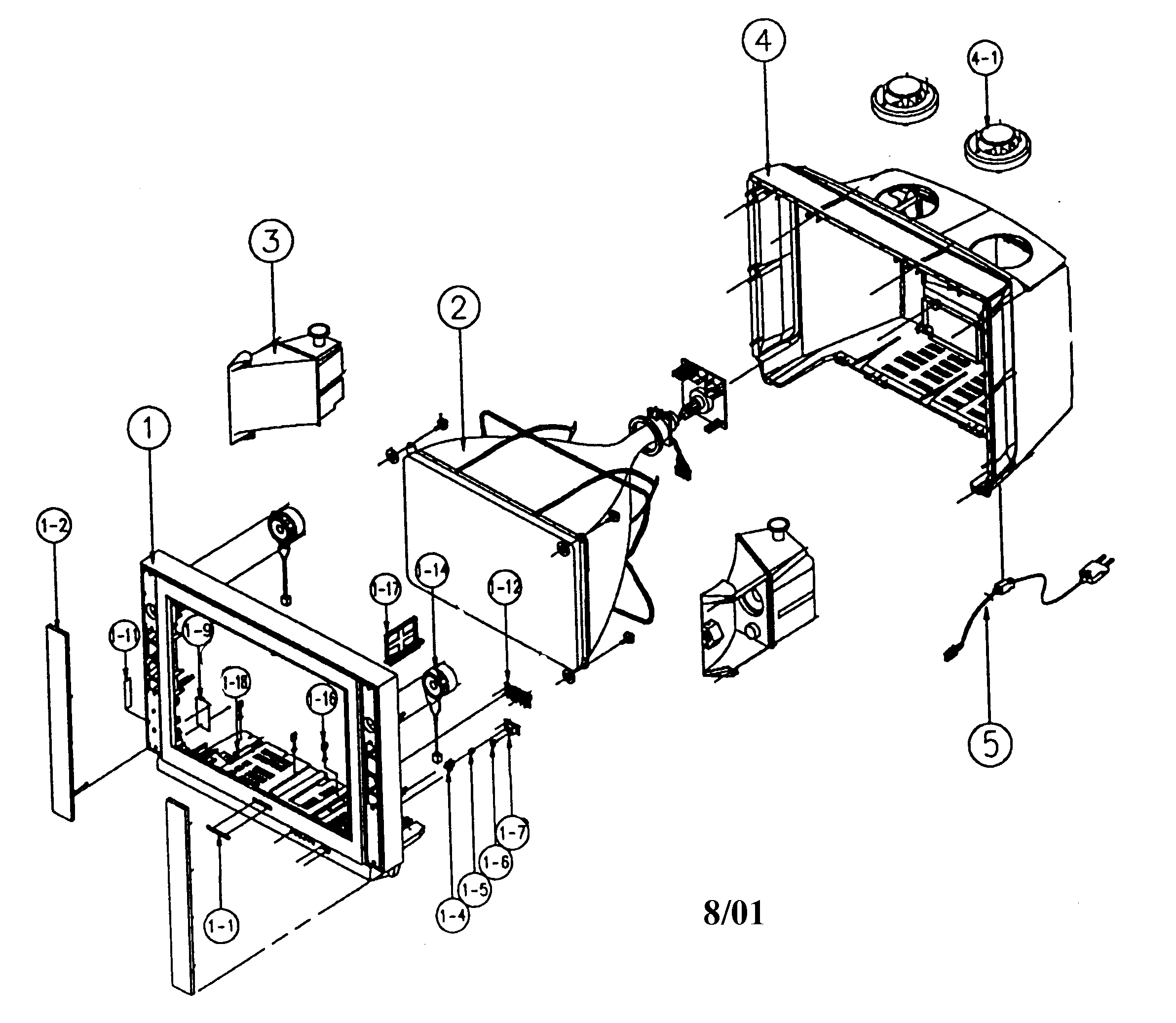

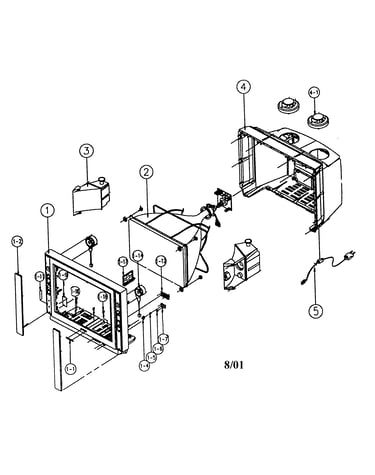

Cabinet parts diagram

Diode

Part #0402-000231

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly AA95-00979A
#NI

Cabinet parts diagram

Pcb assembly

Part #AA95-00979A

The manufacturer no longer makes this part, and there's no substitute part

Badge AA64-70124C
#1-1

Cabinet parts diagram

Badge

Part #AA64-70124C

The manufacturer no longer makes this part, and there's no substitute part

Ph.coupler 0604-001038
#NI

Cabinet parts diagram

Ph.coupler

Part #0604-001038

The manufacturer no longer makes this part, and there's no substitute part

Res .47 1w 2008-000282
#NI

Cabinet parts diagram

Res .47 1w

Part #2008-000282

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Back AA64-00759D
#4

Cabinet parts diagram

Cabinet back

Part #AA64-00759D

The manufacturer no longer makes this part, and there's no substitute part

Tuner AA40-00020A
#NI

Cabinet parts diagram

Tuner

Part #AA40-00020A

The manufacturer no longer makes this part, and there's no substitute part

Holder AA91-00335A
#1-14

Cabinet parts diagram

Holder

Part #AA91-00335A

The manufacturer no longer makes this part, and there's no substitute part

L104,inductor 2701-000116
#NI

Cabinet parts diagram

L104,inductor

Part #2701-000116

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 2201-000539
#NI

Cabinet parts diagram

Capacitor

Part #2201-000539

The manufacturer no longer makes this part, and there's no substitute part
