Craftsman
Radial Arm Saw

Model # 113290110 Official Craftsman radial saw blade guard

Here are the diagrams and repair parts for Official Craftsman 113290110 radial saw blade guard, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Radial Arm Saw Anti-kickback Bar Bearing And Retainer 816341
#22

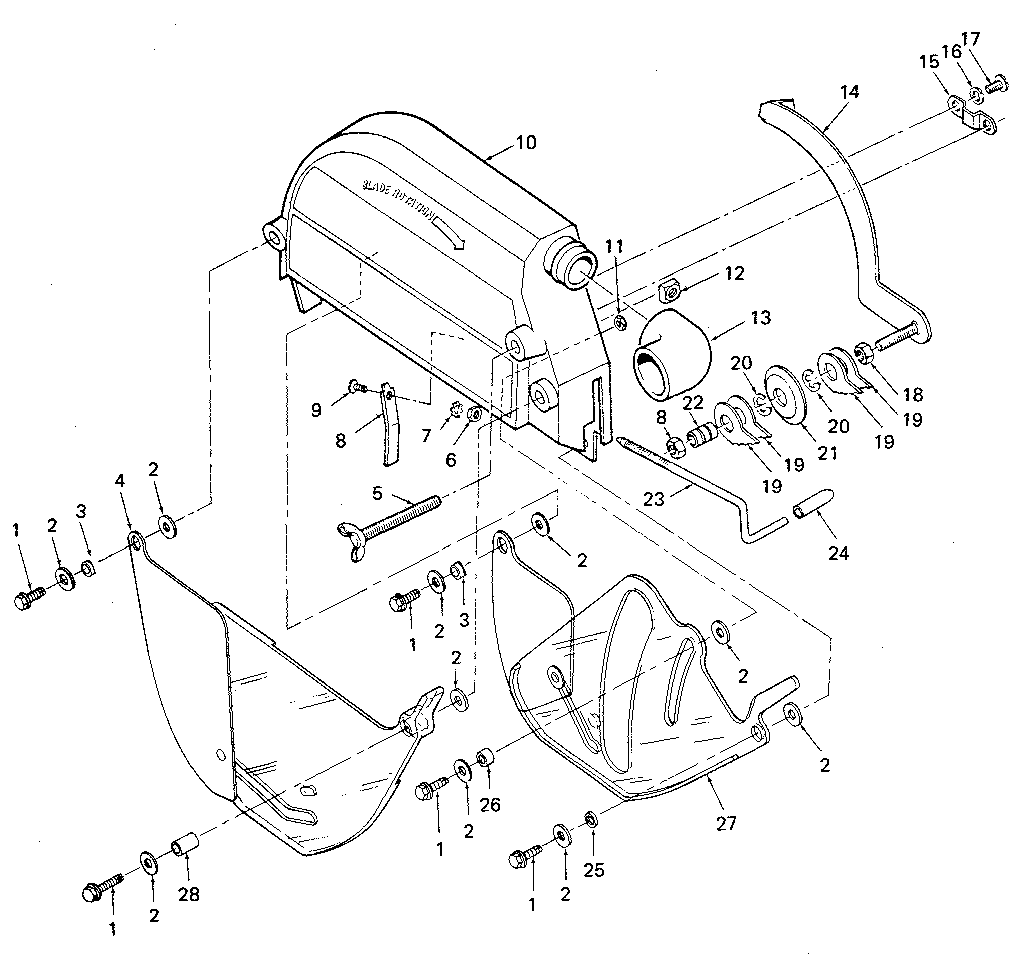

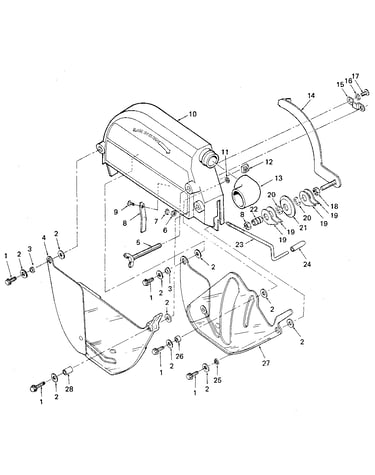

Unit diagram

Radial arm saw anti-kickback bar bearing and retainer

Part #816341

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Blade Guard Screw 9420417
#1

Unit diagram

Radial arm saw blade guard screw

Part #9420417

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Hex Nut 120399
#12

Unit diagram

Radial arm saw hex nut

Part #120399

The manufacturer no longer makes this part, and there's no substitute part

Washer 9414920
#2

Unit diagram

Washer

Part #9414920

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut STD541425
#11

Unit diagram

Lock nut

Part #STD541425

The manufacturer no longer makes this part, and there's no substitute part

Bushing 63266
#25

Unit diagram

Bushing

Part #63266

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut STD541231
#18

Unit diagram

Hex nut

Part #STD541231

The manufacturer no longer makes this part, and there's no substitute part

Bushing 802279-5
#28

Unit diagram

Bushing

Part #802279-5

The manufacturer no longer makes this part, and there's no substitute part

Guard Assembly 810975
#4

Unit diagram

Guard assembly

Part #810975

The manufacturer no longer makes this part, and there's no substitute part

Pan Head Machine Screw, #8-32 X 1/2-in STD510805
#9

Unit diagram

Pan head machine screw, #8-32 x 1/2-in

Part #STD510805

The manufacturer no longer makes this part, and there's no substitute part
