Model #MRFT-630B Official Norcold refrigerator

Here are the diagrams and repair parts for Norcold MRFT-630B refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 61 parts

Refrigerator Power Supply#58

Electrical connections Diagram

Refrigerator power supply

Part #163005800

The manufacturer no longer makes this part, and there's no substitute part

Washer

See All Related Diagrams

Washer

Part #8340040001

The manufacturer no longer makes this part, and there's no substitute part

Dc Cord#73

Electrical connections Diagram

Dc cord

Part #191215010

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Tapping Screw#26

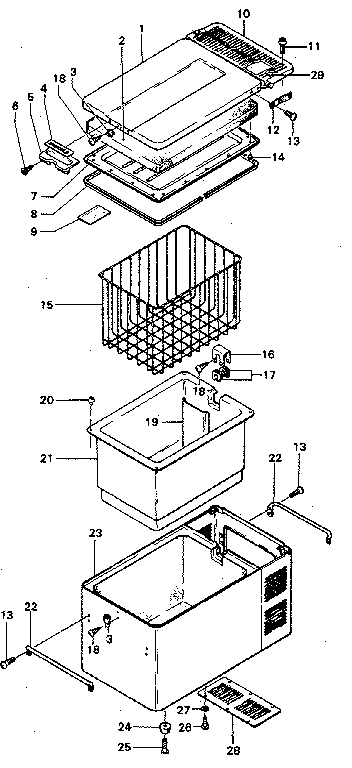

Unit Diagram

Refrigerator tapping screw

Part #5008000000

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Cabinet#23

Unit Diagram

Refrigerator cabinet

Part #160902101

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Tapping Screw#103

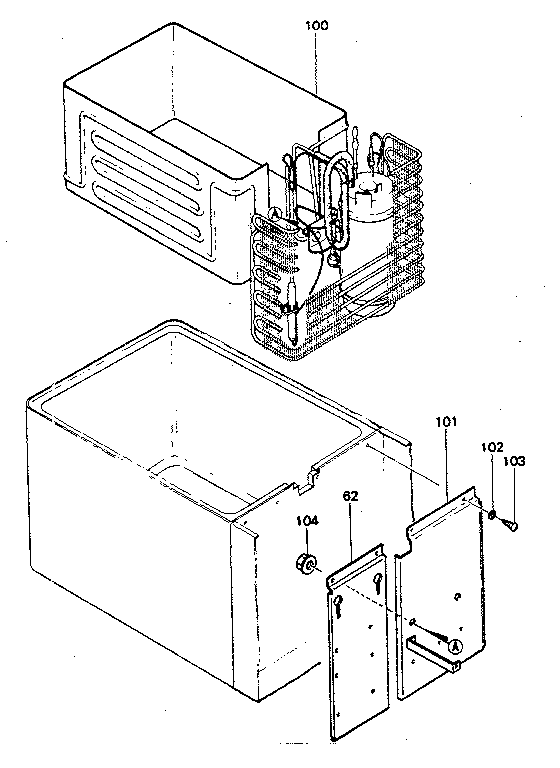

Cooling unit Diagram

Refrigerator tapping screw

Part #9500802000

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Cabinet#3

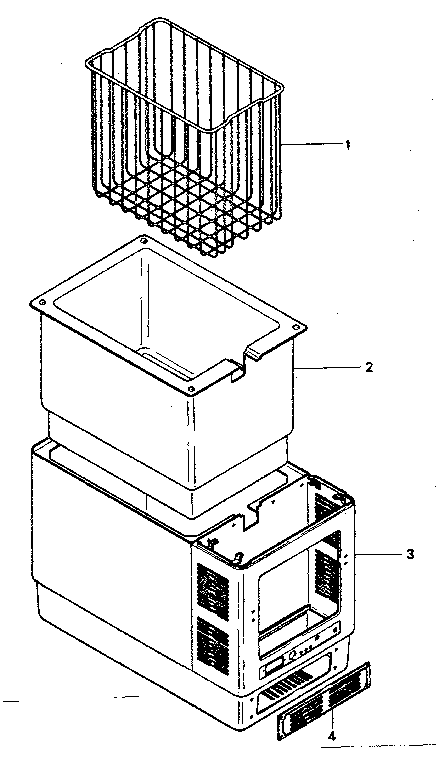

Individual parts (mrpt-640b) Diagram

Refrigerator cabinet

Part #160907800

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Cushion#24

Unit Diagram

Refrigerator cushion

Part #412000500

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Breaker#69

Electrical connections Diagram

Refrigerator breaker

Part #603604000

The manufacturer no longer makes this part, and there's no substitute part

Dr Cs Bg#1

Unit Diagram

Dr cs bg

Part #346700710

The manufacturer no longer makes this part, and there's no substitute part
