Model # 638505320 Official LXI stereo cassette tape player with am/fm stereo radio

Here are the diagrams and repair parts for Official LXI 638505320 stereo cassette tape player with am/fm stereo radio, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

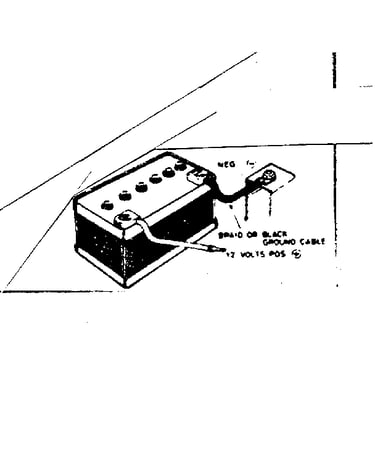

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |

Ic Rubber 4-20375
#28

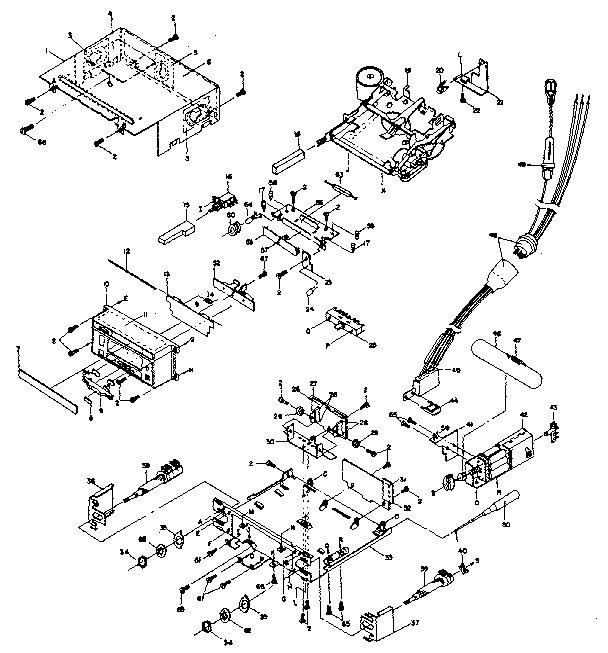

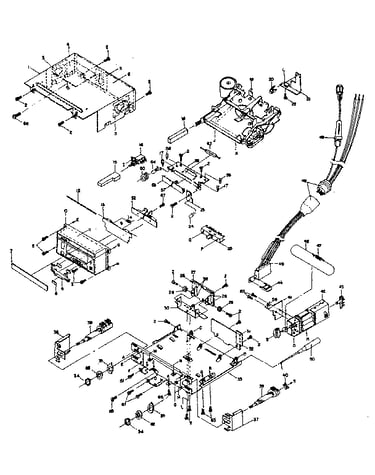

Cabinet & chassis diagram

Ic rubber

Part #4-20375

The manufacturer no longer makes this part, and there's no substitute part

Bracket Trimmer 4-20370
#21

Cabinet & chassis diagram

Bracket trimmer

Part #4-20370

The manufacturer no longer makes this part, and there's no substitute part

Semsing Arm Semi-ass'y 4-20413
#17

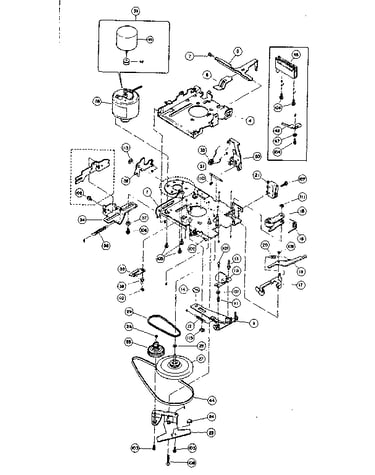

Mechanism chassis diagram

Semsing arm semi-ass'y

Part #4-20413

The manufacturer no longer makes this part, and there's no substitute part

Cord Hldr 4-20110
#37

Cabinet & chassis diagram

Cord hldr

Part #4-20110

The manufacturer no longer makes this part, and there's no substitute part

Bind Screw 4-20446
#107

Mechanism chassis diagram

Bind screw

Part #4-20446

The manufacturer no longer makes this part, and there's no substitute part

Function Lever Spring 4-20432
#38

Mechanism chassis diagram

Function lever spring

Part #4-20432

The manufacturer no longer makes this part, and there's no substitute part

Door Shaft 4-20362
#12

Cabinet & chassis diagram

Door shaft

Part #4-20362

The manufacturer no longer makes this part, and there's no substitute part

Knobs Tune 4-20130
#11

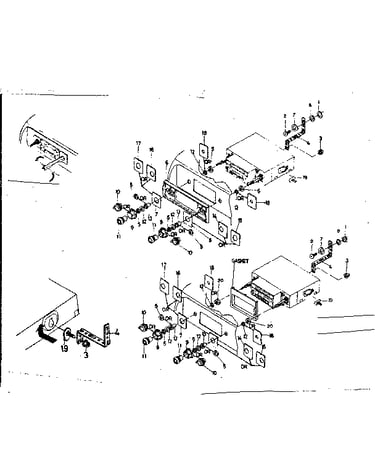

Unit diagram

Knobs tune

Part #4-20130

The manufacturer no longer makes this part, and there's no substitute part

Dial Pointer 4-20392
#57

Cabinet & chassis diagram

Dial pointer

Part #4-20392

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 4-20147
#4

Unit diagram

Mounting bracket

Part #4-20147

The manufacturer no longer makes this part, and there's no substitute part
