GE
Electric Cooktop

Model # JP989TK1WW Official GE electric cooktop

Here are the diagrams and repair parts for Official GE JP989TK1WW electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |

Switch WB24T10057
#19

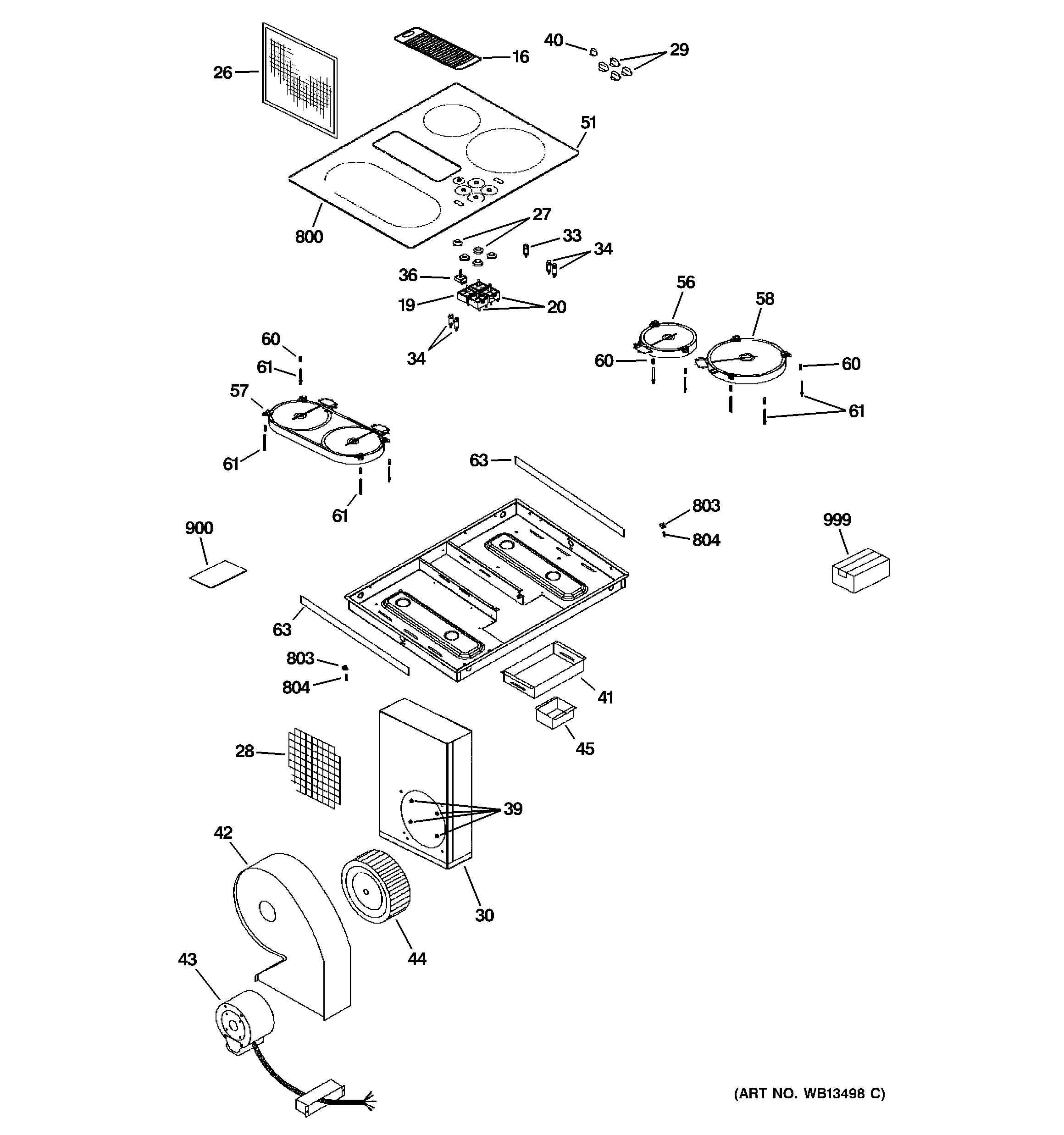

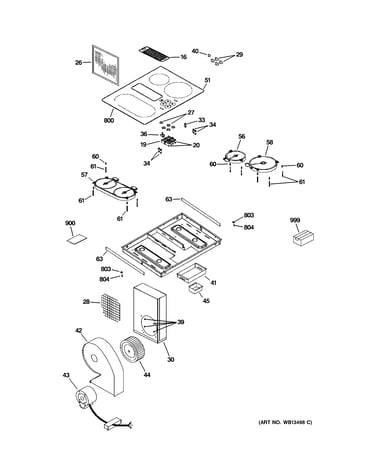

Cooktop diagram

Switch

Part #WB24T10057

Replaced by #WB24T10119

?
Manufacturer substitution
This part replaces WB24T10057. Substitute parts can look different from the original.
BEST SELLER
$68.42
8% OFF Phone Price : $74.42
In Stock
Range Oven Selector Switch Knob (replaces Wb03x10322, Wb3t10035) WB03T10035
#40

Cooktop diagram

Range oven selector switch knob (replaces wb03x10322, wb3t10035)

Part #WB03T10035

BEST SELLER
This item is not returnable
$7.69
12% OFF Phone Price : $8.69
In Stock
Range Surface Element Control Switch (replaces Wb24t10015, Wb24t10056) WB24T10063
#20

Cooktop diagram

Range surface element control switch (replaces wb24t10015, wb24t10056)

Part #WB24T10063

BEST SELLER
$70.83
8% OFF Phone Price : $76.83
In Stock
Foam Tape WB02X10573
#800

Cooktop diagram

Foam tape

Part #WB02X10573

Replaced by #WB02X26088

?
Manufacturer substitution
This part replaces WB02X10573. Substitute parts can look different from the original.
$51.24
10% OFF Phone Price : $57.24
In Stock
Foam Tape WB02X11192
#800

Cooktop diagram

Foam tape

Part #WB02X11192

Replaced by #WB02X26088

?
Manufacturer substitution
This part replaces WB02X11192. Substitute parts can look different from the original.
$51.24
10% OFF Phone Price : $57.24
In Stock
Cooktop Dual Radiant Element WB30T10092
#58

Cooktop diagram

Cooktop dual radiant element

Part #WB30T10092

Replaced by #WB30X43559

?
Manufacturer substitution
This part replaces WB30T10092. Substitute parts can look different from the original.
In Stock
Cooktop Halogen Element WB30T10093
#57

Cooktop diagram

Cooktop halogen element

Part #WB30T10093

Replaced by #WB30X43560

?
Manufacturer substitution
This part replaces WB30T10093. Substitute parts can look different from the original.
In Stock
Cooktop Scraper (replaces Wx10x0302) WX10X302
#999

Cooktop diagram

Cooktop scraper (replaces wx10x0302)

Part #WX10X302

This item is not returnable

Get free shipping with Automatic Reorder

$18.63
10% OFF Phone Price : $20.63
In Stock
Cooktop Element Control Knob WB03X10136
#29

Cooktop diagram

Cooktop element control knob

Part #WB03X10136

This item is not returnable
$64.89
8% OFF Phone Price : $70.89
In Stock
Switch Knob WB03X10138
#29

Cooktop diagram

Switch knob

Part #WB03X10138

In Stock
