Model # 14391251 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 14391251 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

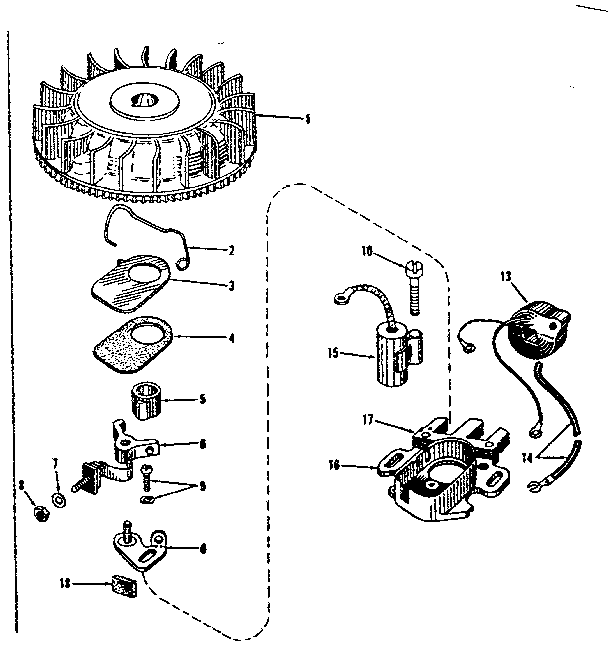

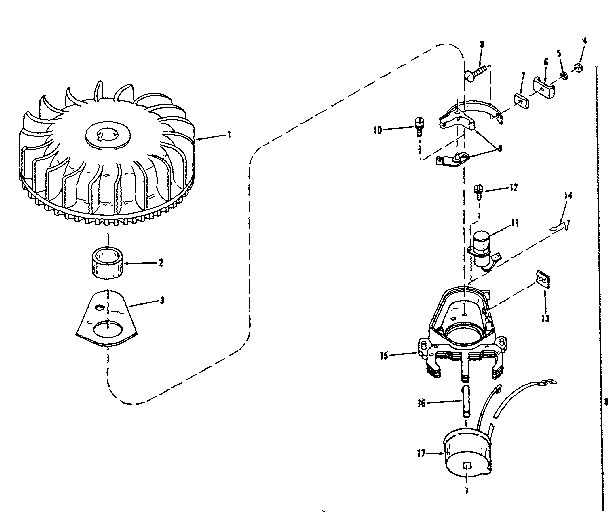

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |

Fuel Line 29774
#118

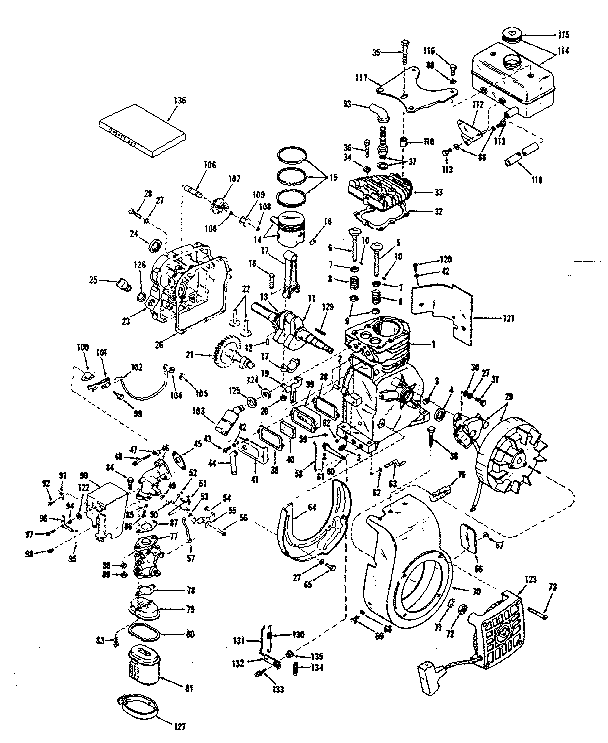

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Plug 27625
#25

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#25

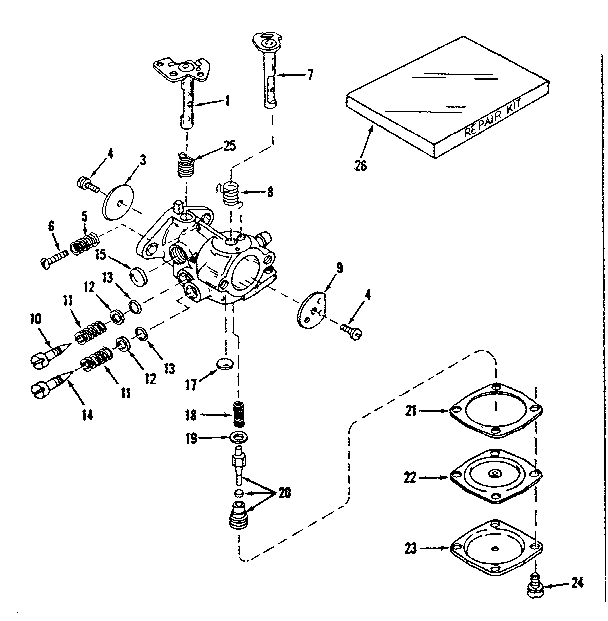

Carburetor no. 29780 diagram

Spring retainer

Part #630731

The manufacturer no longer makes this part, and there's no substitute part

Screw 28403
Screw

Part #28403

The manufacturer no longer makes this part, and there's no substitute part

Diaphragm 630749
#22

Carburetor no. 29780 diagram

Diaphragm

Part #630749

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#83

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Washer 630739
#12

Carburetor no. 29780 diagram

Washer

Part #630739

The manufacturer no longer makes this part, and there's no substitute part

Cover 630751
#23

Carburetor no. 29780 diagram

Cover

Part #630751

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#16

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

Handle 27263
#2

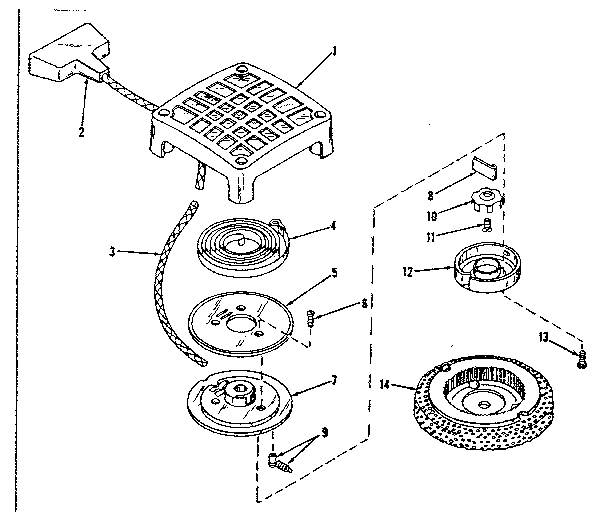

Rewind starter no. 29415 diagram

Handle

Part #27263

The manufacturer no longer makes this part, and there's no substitute part
