Tappan
Countertop Microwave

Model # TMS062U1S0 Official Tappan microwave

Here are the diagrams and repair parts for Official Tappan TMS062U1S0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Cap 5303305391
#53

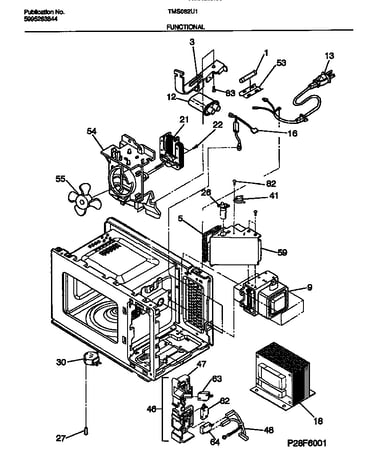

Functional diagram

Cap

Part #5303305391

Replaced by #5303305391

?
Manufacturer substitution
This part replaces 5303305391. Substitute parts can look different from the original.
This item is not returnable
In Stock
Cable 5303305383
#16

Functional diagram

Cable

Part #5303305383

Replaced by #5303305383

?
Manufacturer substitution
This part replaces 5303305383. Substitute parts can look different from the original.
In Stock
Ring 5303305367
#41

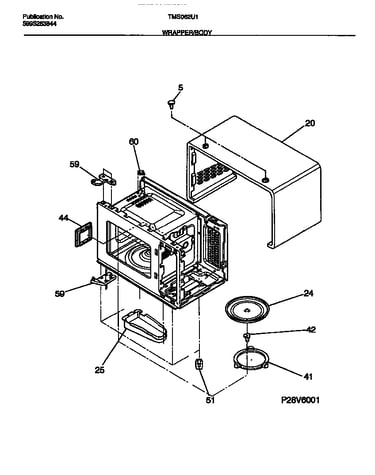

Wrapper/body diagram

Ring

Part #5303305367

Replaced by #5303305367

?
Manufacturer substitution
This part replaces 5303305367. Substitute parts can look different from the original.
In Stock
Magnetron-tu 5303305417
#9

Functional diagram

Magnetron-tu

Part #5303305417

The manufacturer no longer makes this part, and there's no substitute part

Tray 5303209064
#24

Wrapper/body diagram

Tray

Part #5303209064

Replaced by #5303209064

?
Manufacturer substitution
This part replaces 5303209064. Substitute parts can look different from the original.
In Stock
Spring 5303305355
#11

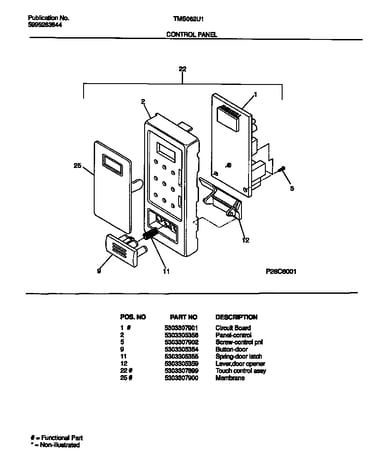

Control panel diagram

Spring

Part #5303305355

Replaced by #5303305355

?
Manufacturer substitution
This part replaces 5303305355. Substitute parts can look different from the original.
This item is not returnable
In Stock
Touch Control 5303307899
#22

Control panel diagram

Touch control

Part #5303307899

Replaced by #5303307899

?
Manufacturer substitution
This part replaces 5303307899. Substitute parts can look different from the original.
In Stock
Control Panel 5303305356
#2

Control panel diagram

Control panel

Part #5303305356

Replaced by #5303305356

?
Manufacturer substitution
This part replaces 5303305356. Substitute parts can look different from the original.
In Stock
Tape 5303271373
#21

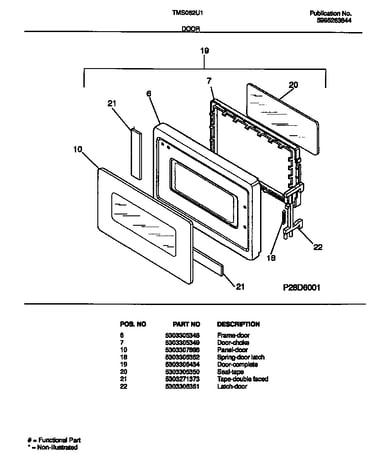

Door diagram

Tape

Part #5303271373

Replaced by #5303307946

?
Manufacturer substitution
This part replaces 5303271373. Substitute parts can look different from the original.
This item is not returnable
In Stock
Cabinet Foot 5303305368
#51

Wrapper/body diagram

Cabinet foot

Part #5303305368

Replaced by #5303305368

?
Manufacturer substitution
This part replaces 5303305368. Substitute parts can look different from the original.
In Stock
