Model # NTN6050FBG1 Official ICP furnace

Here are the diagrams and repair parts for Official ICP NTN6050FBG1 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

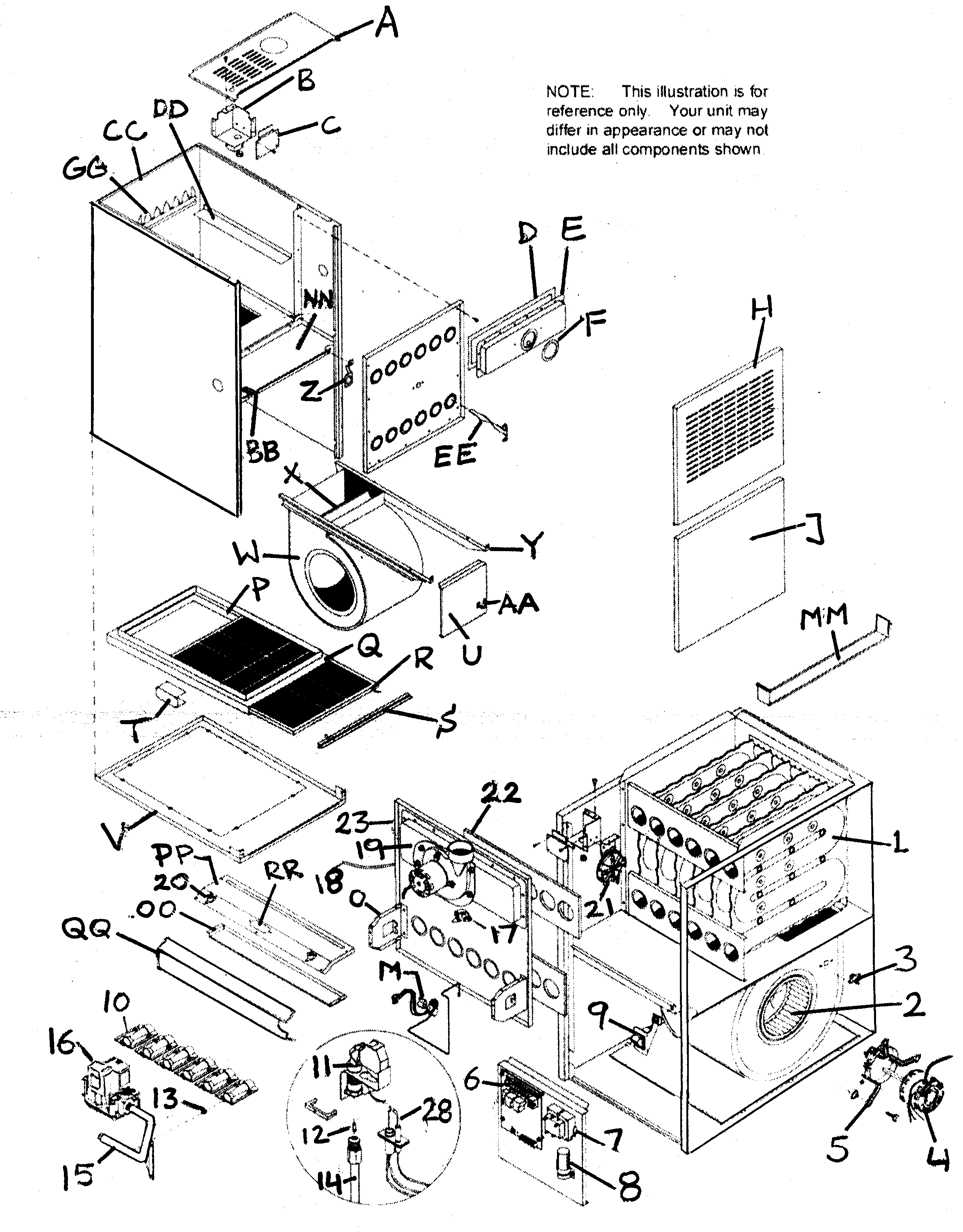

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#28

Furnace diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
6% OFF Phone Price : $176.19
In Stock
Limit Switch 1000735
#3

Furnace diagram

Limit switch

Part #1000735

Replaced by #1013105

?
Manufacturer substitution
This part replaces 1000735. Substitute parts can look different from the original.
This item is not returnable
$15.14
In Stock
Furnace Pilot Burner Bracket 1010901
#M

Furnace diagram

Furnace pilot burner bracket

Part #1010901

$86.73
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#2

Furnace diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock
Sw Lmtt L 1320365
#17

Furnace diagram

Sw lmtt l

Part #1320365

$37.82
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#5

Furnace diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Conv Kit 1009510
#NI

Furnace diagram

Conv kit

Part #1009510

$113.20
In Stock
Rail Galv Bl 57059
#BB

Furnace diagram

Rail galv bl

Part #57059

$952.55
In Stock
Conv Kit 1160992
#NI

Furnace diagram

Conv kit

Part #1160992

$103.50
In Stock
Furnace Blower Fan Motor (replaces 1009054, 1172493, 604006) 1012514
#4

Furnace diagram

Furnace blower fan motor (replaces 1009054, 1172493, 604006)

Part #1012514

$345.23 |
$10.00 OFF Phone Price : $355.23
In Stock
