Craftsman 247770120 yard vacuum Parts

Here are the diagrams and repair parts for Craftsman 247770120 yard vacuum, as well as links to manuals and error code tables, if available.

Craftsman 247770120 yard vacuum
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 247770120 Yard Vacuum

  • Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18 for Craftsman 247770120 - Part 712-04063

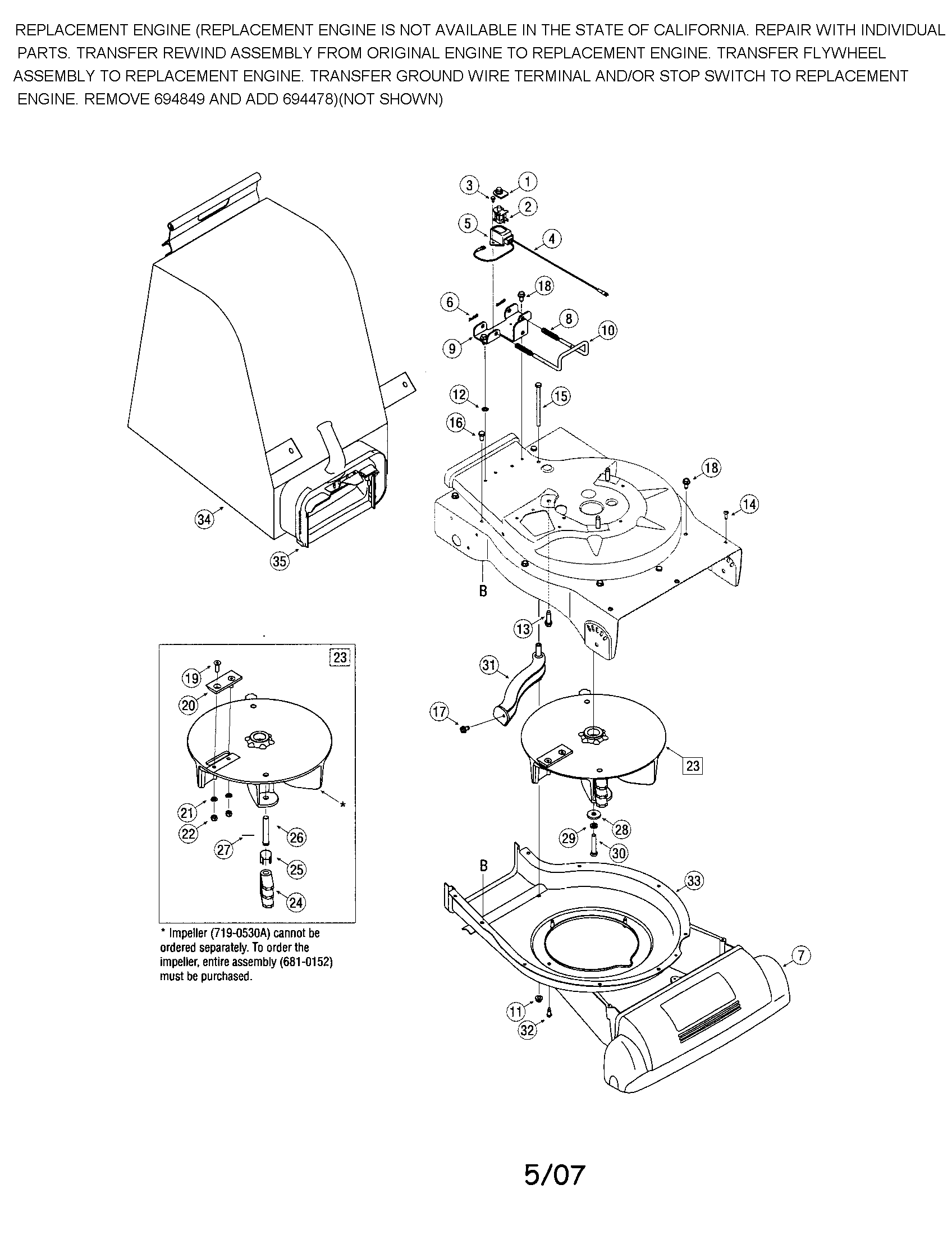

    Bag/impeller/housing diagram

    Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18

    Part #712-04063
    This item is not returnable
    In Stock
    $4.98
    17% OFF Phone Price : $5.98Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn Vacuum Bag Assembly (664p0094b) for Craftsman 247770120 - Part 664P0094B

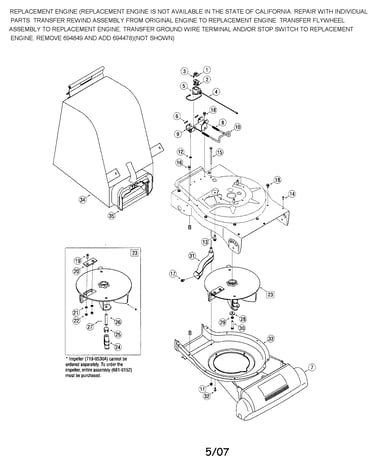

    Bag/impeller/housing diagram

    Lawn Vacuum Bag Assembly

    Part #664-0094

    Replaced by #664P0094B

    Info Icon
    Manufacturer substitution
    This part replaces 664-0094. Substitute parts can look different from the original.
    In Stock
    $365.86
    $12.00 OFF Phone Price : $377.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Yard Machines Lawn Mower Handle Knob for Craftsman 247770120 - Part 720-04072A

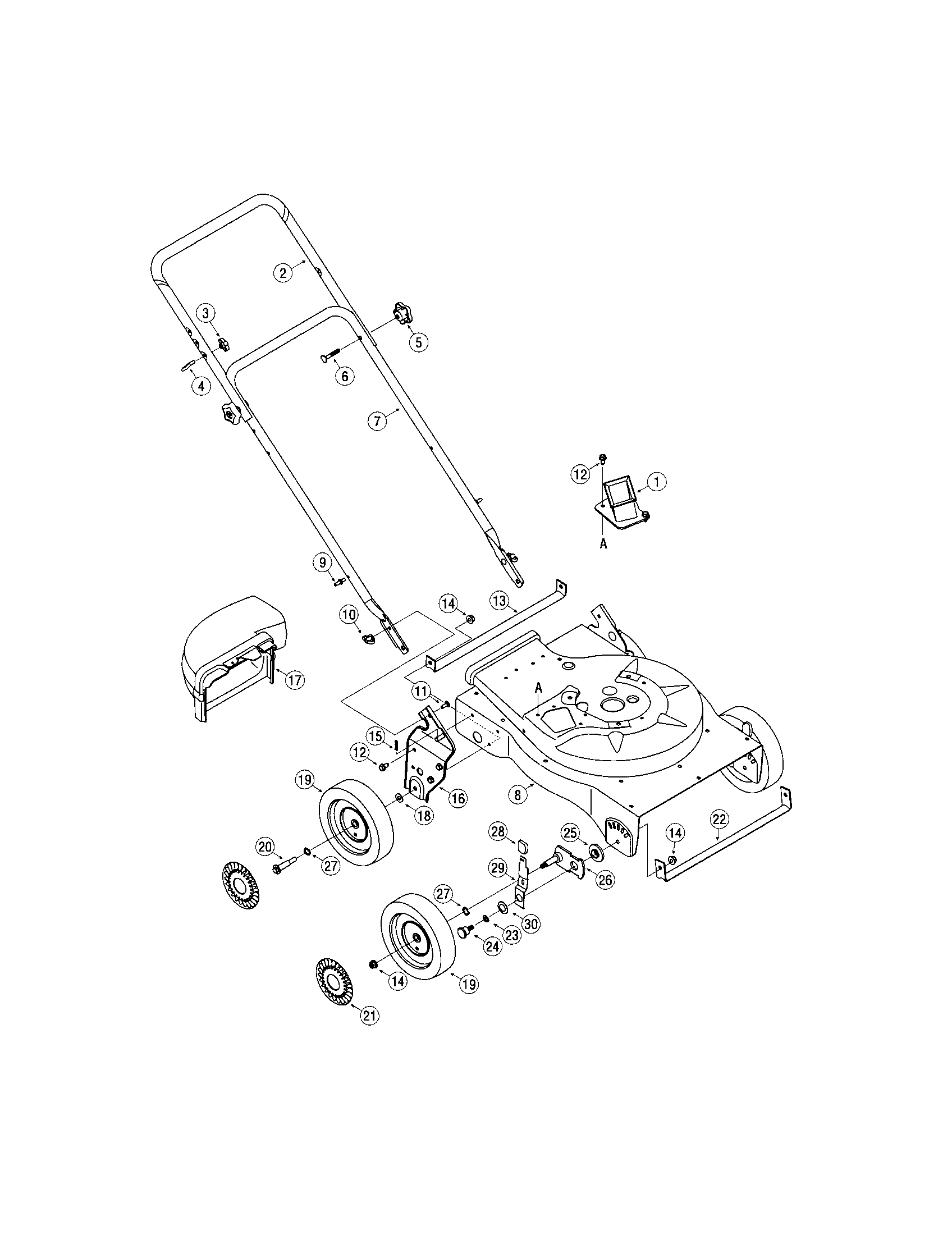

    Housing/handles/wheels diagram

    Knob

    Part #720-04072

    Replaced by #720-04072A

    Info Icon
    Manufacturer substitution
    This part replaces 720-04072. Substitute parts can look different from the original.
    In Stock
    $11.23
    15% OFF Phone Price : $13.23Info Icon
    Minus Item
    Qty
    Plus Item
  • Craftsman Yard-man Lawn Vacuum Chipper/shredder Blower Chute for Craftsman 247770120 - Part OEM-290-012

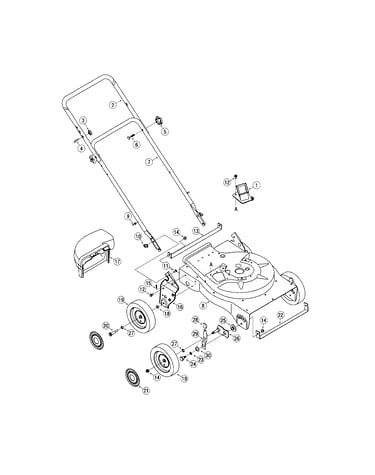

    Housing/handles/wheels diagram

    Chute Assembly

    Part #631-0090

    Replaced by #OEM-290-012

    Info Icon
    Manufacturer substitution
    This part replaces 631-0090. Substitute parts can look different from the original.
    In Stock
    $121.74
    9% OFF Phone Price : $133.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Mtd Lawn Vacuum Chipper/shredder Retainer Clip for Craftsman 247770120 - Part 781-0735

    Bag/impeller/housing diagram

    Mtd Lawn Vacuum Chipper/shredder Retainer Clip

    Part #781-0735
    This item is not returnable
    In Stock
    $7.72
    11% OFF Phone Price : $8.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Screw for Craftsman 247770120 - Part 710-1054

    Bag/impeller/housing diagram

    Lawn & Garden Equipment Screw

    Part #710-1054

    Replaced by #710-1054

    Info Icon
    Manufacturer substitution
    This part replaces 710-1054. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $2.82
    26% OFF Phone Price : $3.82Info Icon
    Minus Item
    Qty
    Plus Item
  • Mtd Lawn & Garden Equipment Lock Washer for Craftsman 247770120 - Part 936-0119

    Bag/impeller/housing diagram

    Lock Washer

    Part #736-0119

    Replaced by #936-0119

    Info Icon
    Manufacturer substitution
    This part replaces 736-0119. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.16
    12% OFF Phone Price : $8.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Mtd Lawn & Garden Equipment Carriage Bolt for Craftsman 247770120 - Part 710-0703

    Housing/handles/wheels diagram

    Mtd Lawn & Garden Equipment Carriage Bolt

    Part #710-0703
    In Stock
    $7.85
    11% OFF Phone Price : $8.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn Mower Height Adjuster Lever for Craftsman 247770120 - Part 732-1026

    Housing/handles/wheels diagram

    Lawn Mower Height Adjuster Lever

    Part #732-1026
    This item is not returnable
    In Stock
    $12.01
    14% OFF Phone Price : $14.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Agri-fab Lawn Tractor Vacuum Attachment Switch Cover for Craftsman 247770120 - Part 725-1700

    Bag/impeller/housing diagram

    Switch Cover

    Part #725-1700

    Replaced by #725-1700

    Info Icon
    Manufacturer substitution
    This part replaces 725-1700. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $2.16
    Minus Item
    Qty
    Plus Item
