Model # 1162517081 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162517081 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Spring 722109
#81

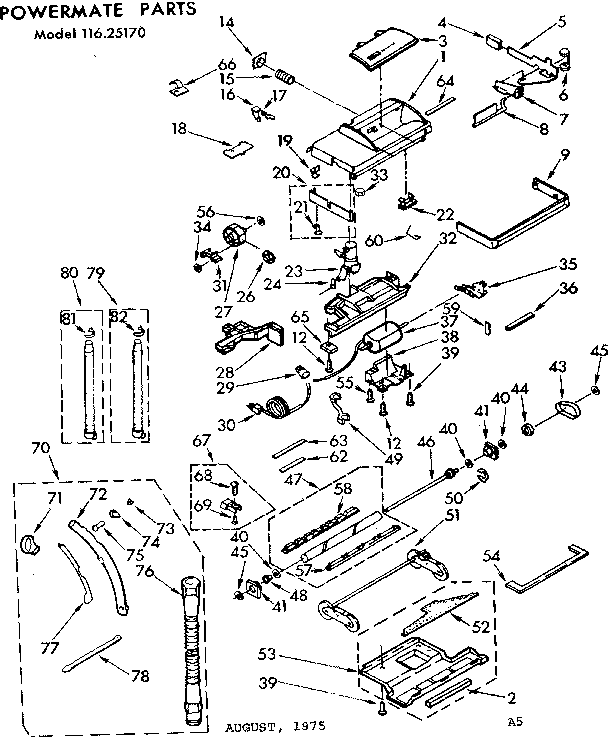

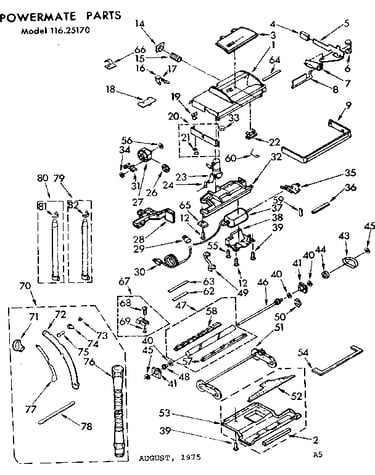

Power mate diagram

Spring

Part #722109

The manufacturer no longer makes this part, and there's no substitute part

Lever 722948
#17

Power mate diagram

Lever

Part #722948

The manufacturer no longer makes this part, and there's no substitute part

Screw 595294
#75

Power mate diagram

Screw

Part #595294

The manufacturer no longer makes this part, and there's no substitute part

Washer, 12 X 5 681424
#40

Power mate diagram

Washer, 12 x 5

Part #681424

The manufacturer no longer makes this part, and there's no substitute part

Yoke 725293
#80

Power mate diagram

Yoke

Part #725293

The manufacturer no longer makes this part, and there's no substitute part

Washer 681425
#45

Power mate diagram

Washer

Part #681425

The manufacturer no longer makes this part, and there's no substitute part

Washer 722909
#34

Power mate diagram

Washer

Part #722909

The manufacturer no longer makes this part, and there's no substitute part

Hose 725207
#76

Power mate diagram

Hose

Part #725207

The manufacturer no longer makes this part, and there's no substitute part

Yoke 725296
#79

Power mate diagram

Yoke

Part #725296

The manufacturer no longer makes this part, and there's no substitute part

Brush-rtry 722888
#47

Power mate diagram

Brush-rtry

Part #722888

The manufacturer no longer makes this part, and there's no substitute part
