Gaggenau
Built-In Microwave

Model #BM281710/01 Gaggenau built-in microwave

Here are the diagrams and repair parts for Gaggenau BM281710-01 built-in microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 55 parts

    Microwave Waveguide Cover

    #332

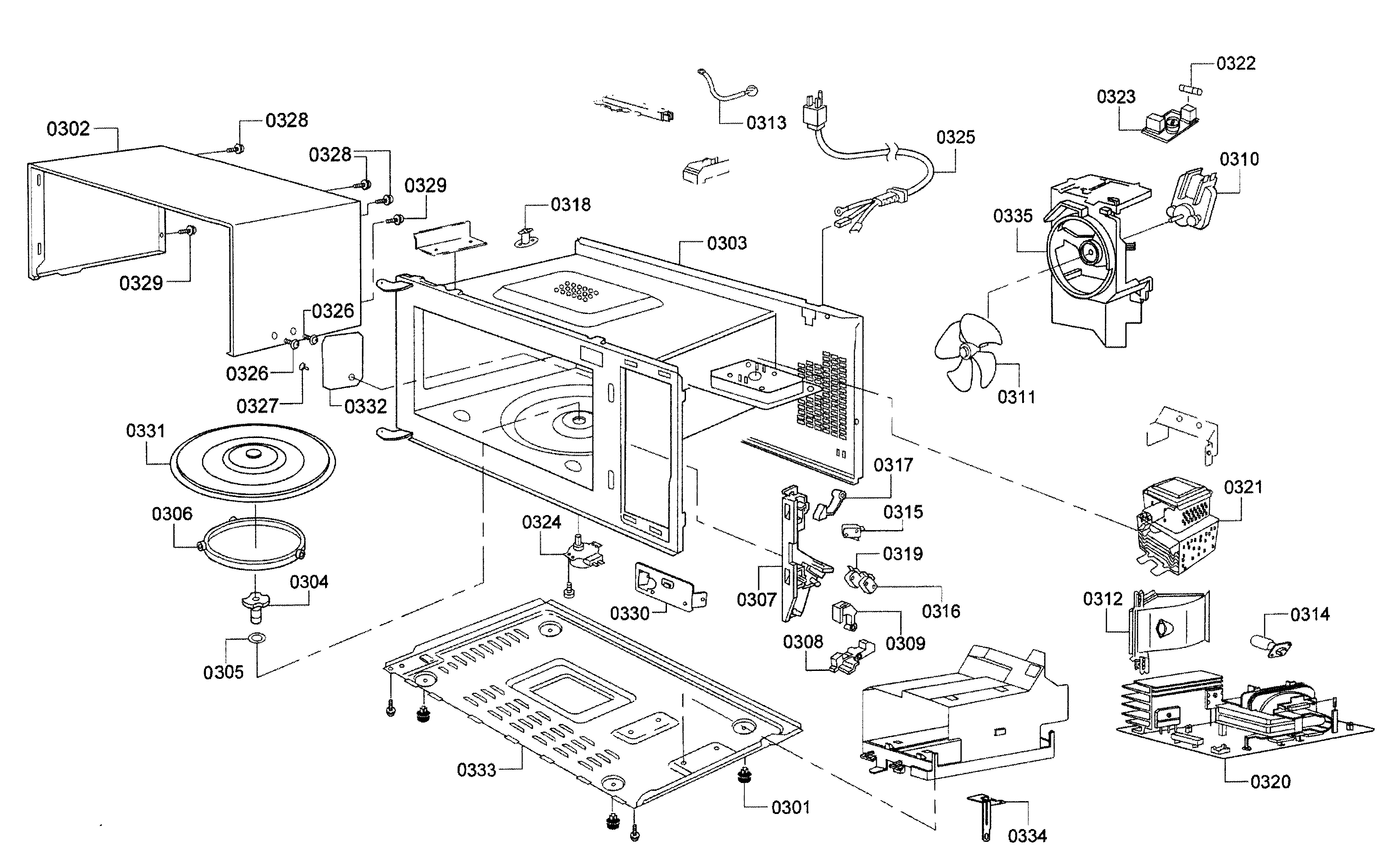

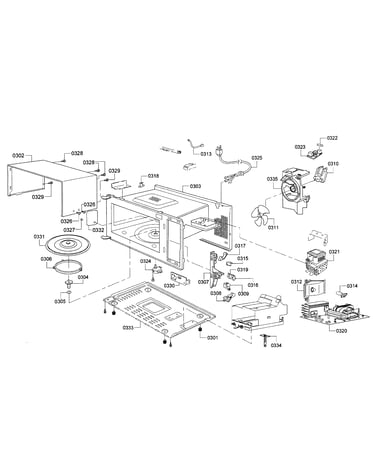

    Cavity Diagram

    $36.15

    In Stock

    Wall Oven Microwave Door Interlock Switch

    #319

    Cavity Diagram

    $26.17

    In Stock

    Microwave Door Interlock Switch

    #315

    Cavity Diagram

    $37.40

    In Stock

    Microwave Turntable Motor

    #324

    Cavity Diagram

    $64.83

    In Stock

    Bracket

    #207

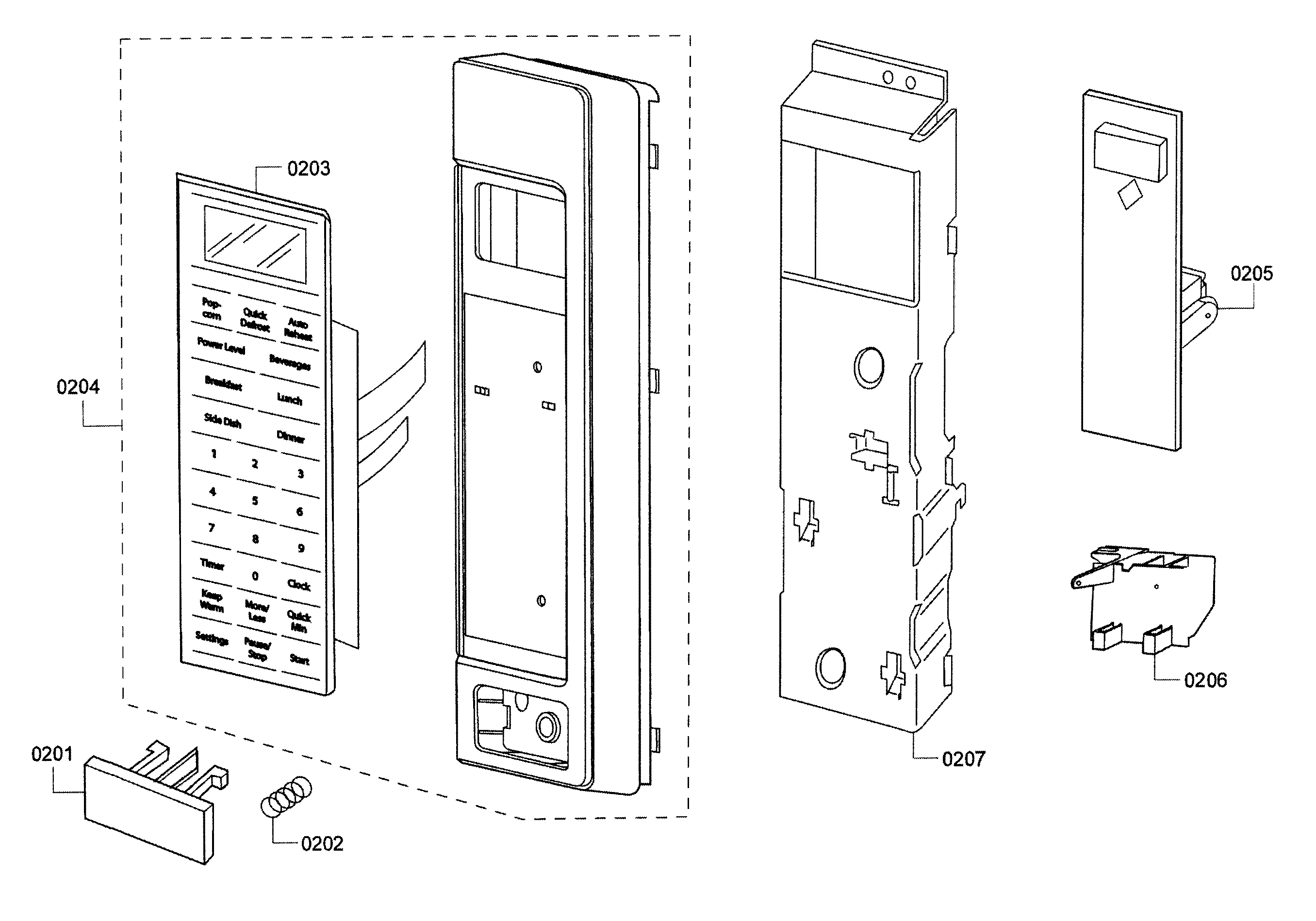

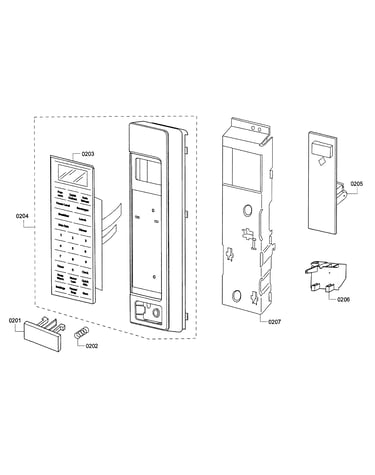

    Control panel Diagram

    Bracket

    Part #00650194
    $30.27

    In Stock

    Screw

    #328

    Cavity Diagram

    Screw

    Part #00606699
    $13.87

    In Stock

    Plate

    #334

    Cavity Diagram

    Plate

    Part #00618773
    This item is not returnable
    $6.90

    In Stock

    Harness

    #401

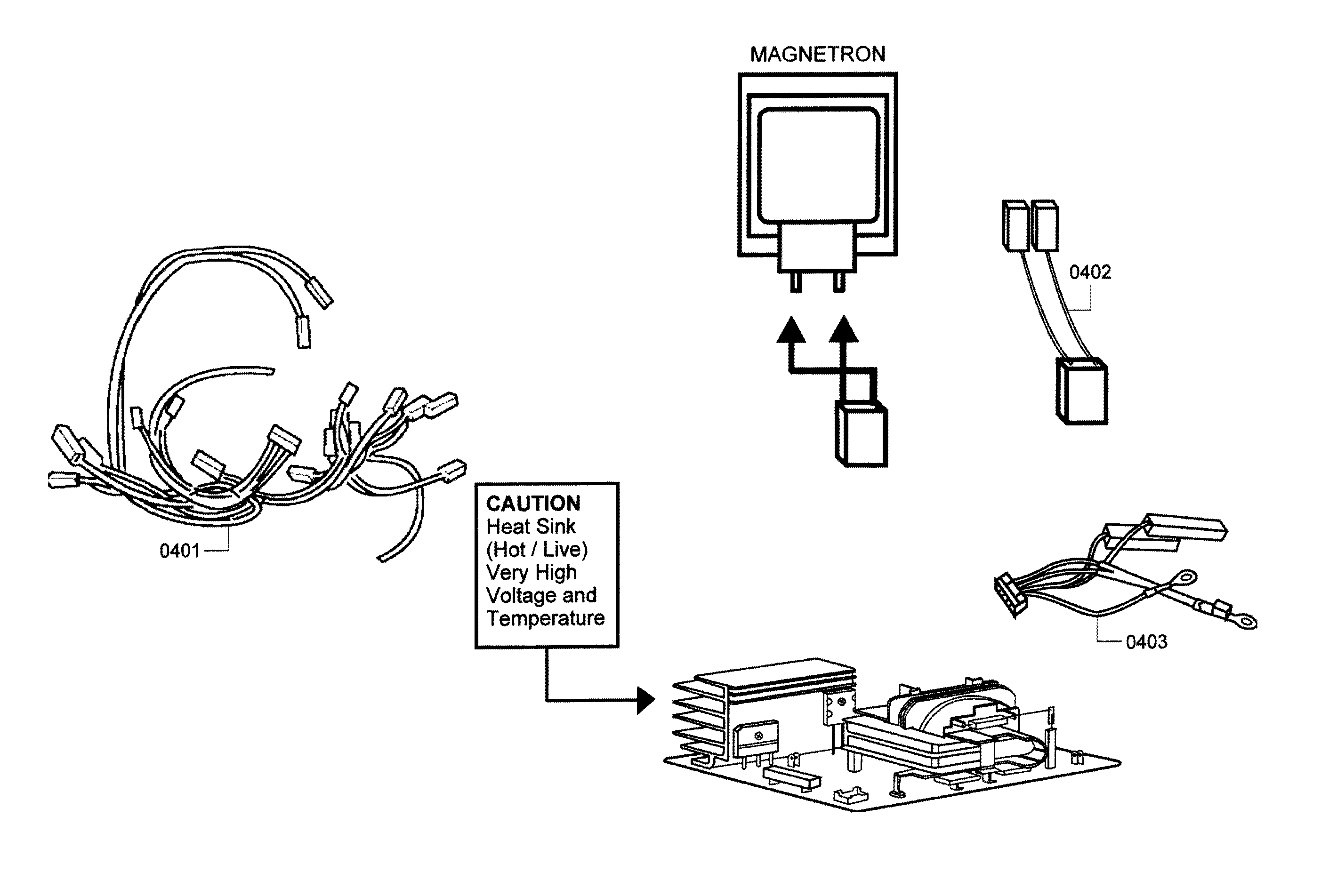

    Wiring Diagram

    Harness

    Part #00641869
    $83.75

    In Stock

    Washer

    #305

    Cavity Diagram

    Washer

    Part #00417994
    $7.54

    In Stock

    Fan Blade

    #NI

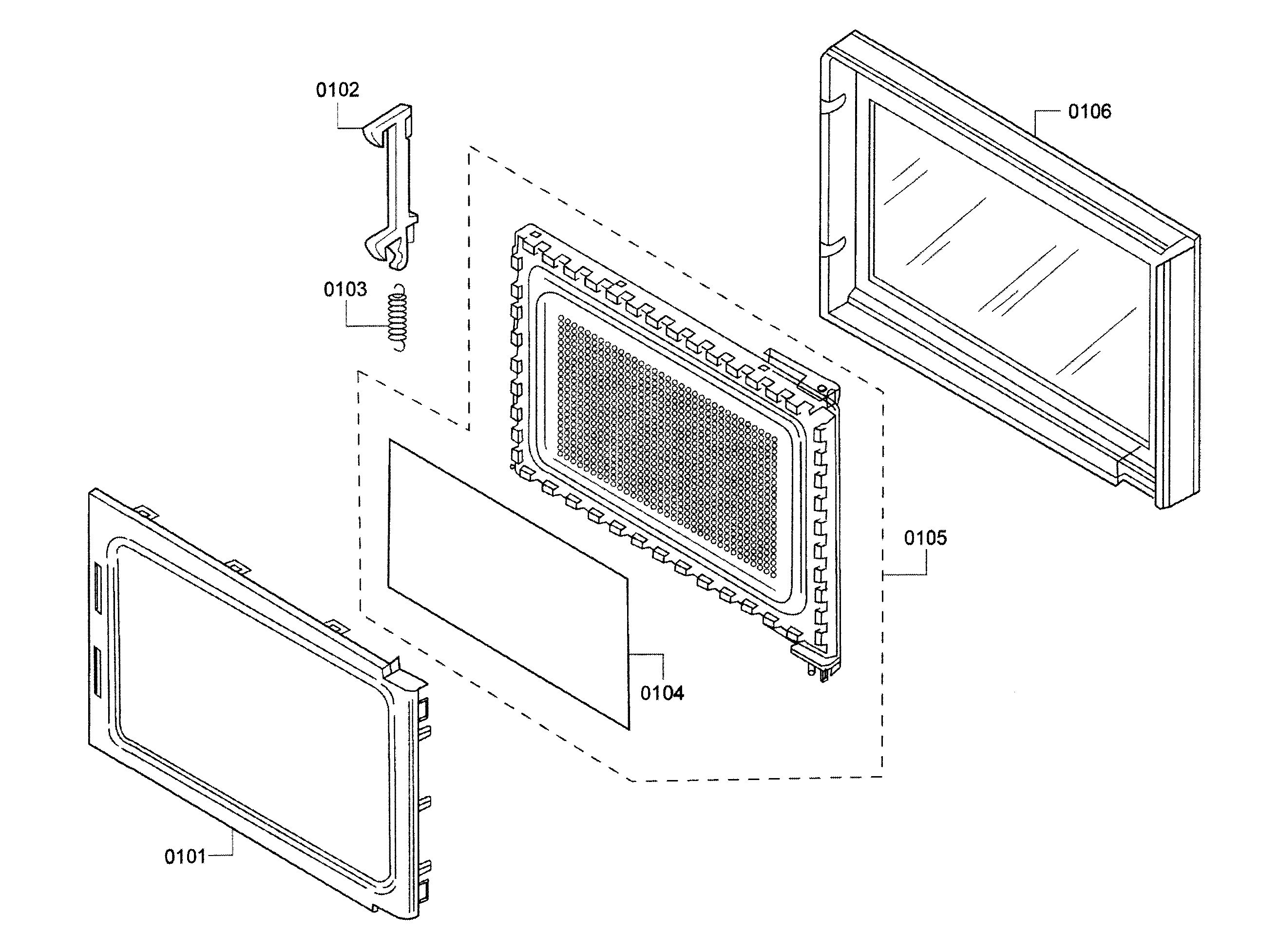

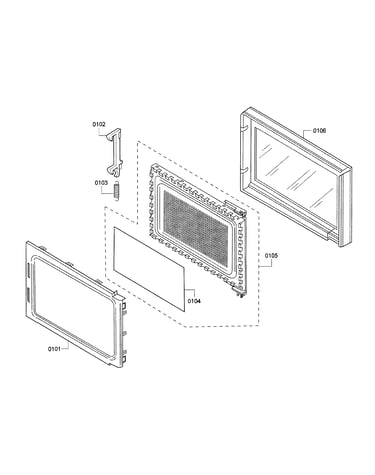

    Door Diagram

    Fan blade

    Part #00417996
    $35.27

    In Stock
