KitchenAid
Microwave/Hood Combo

Model #YKMHC319EB0 KitchenAid microwave

Here are the diagrams and repair parts for KitchenAid YKMHC319EB0 microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 150 parts

    Microwave Turntable Motor Coupler

    #6

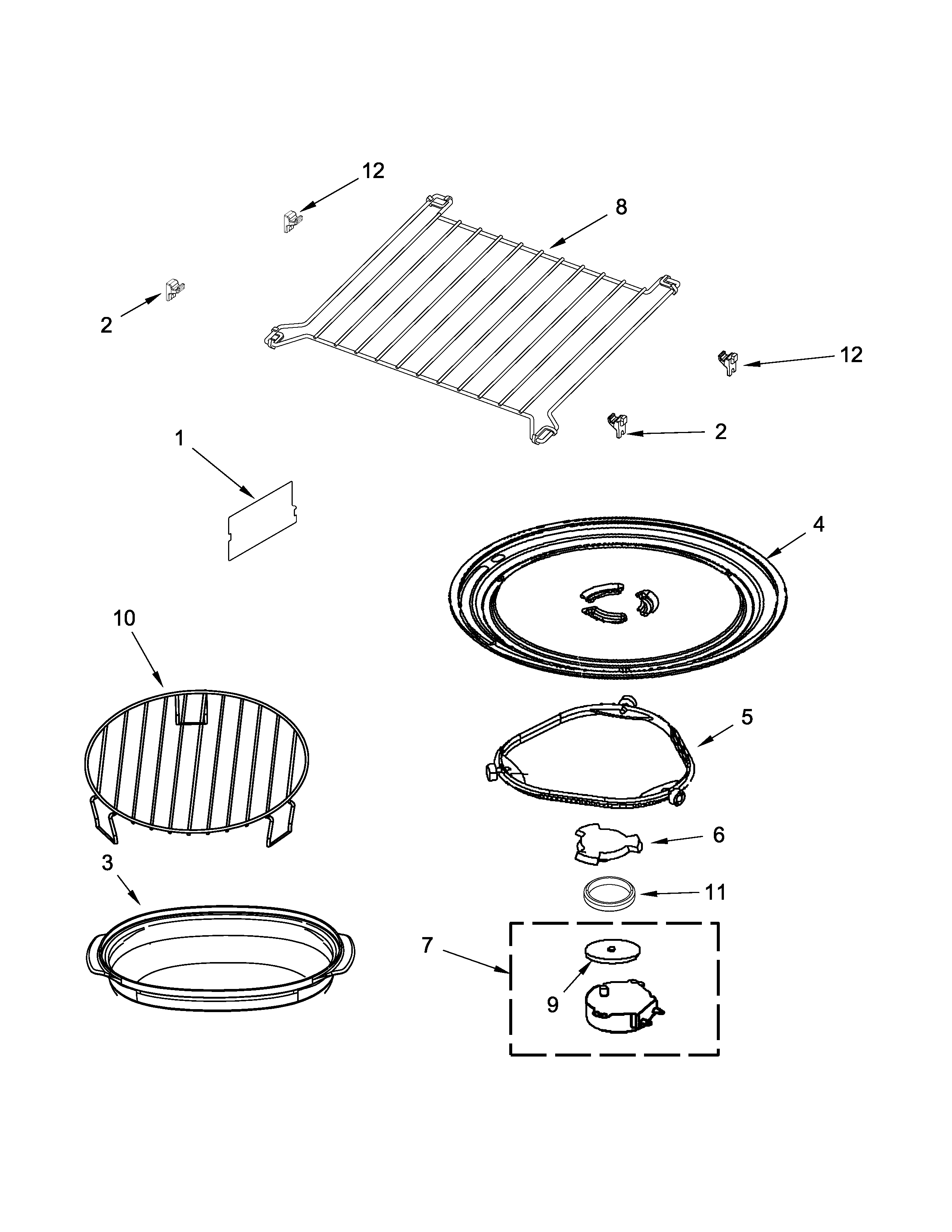

    Turntable parts Diagram

    Microwave turntable motor coupler

    Part #W10337248
    This item is not returnable
    $5.54

    In Stock

    Microwave Mounting Nut

    #11

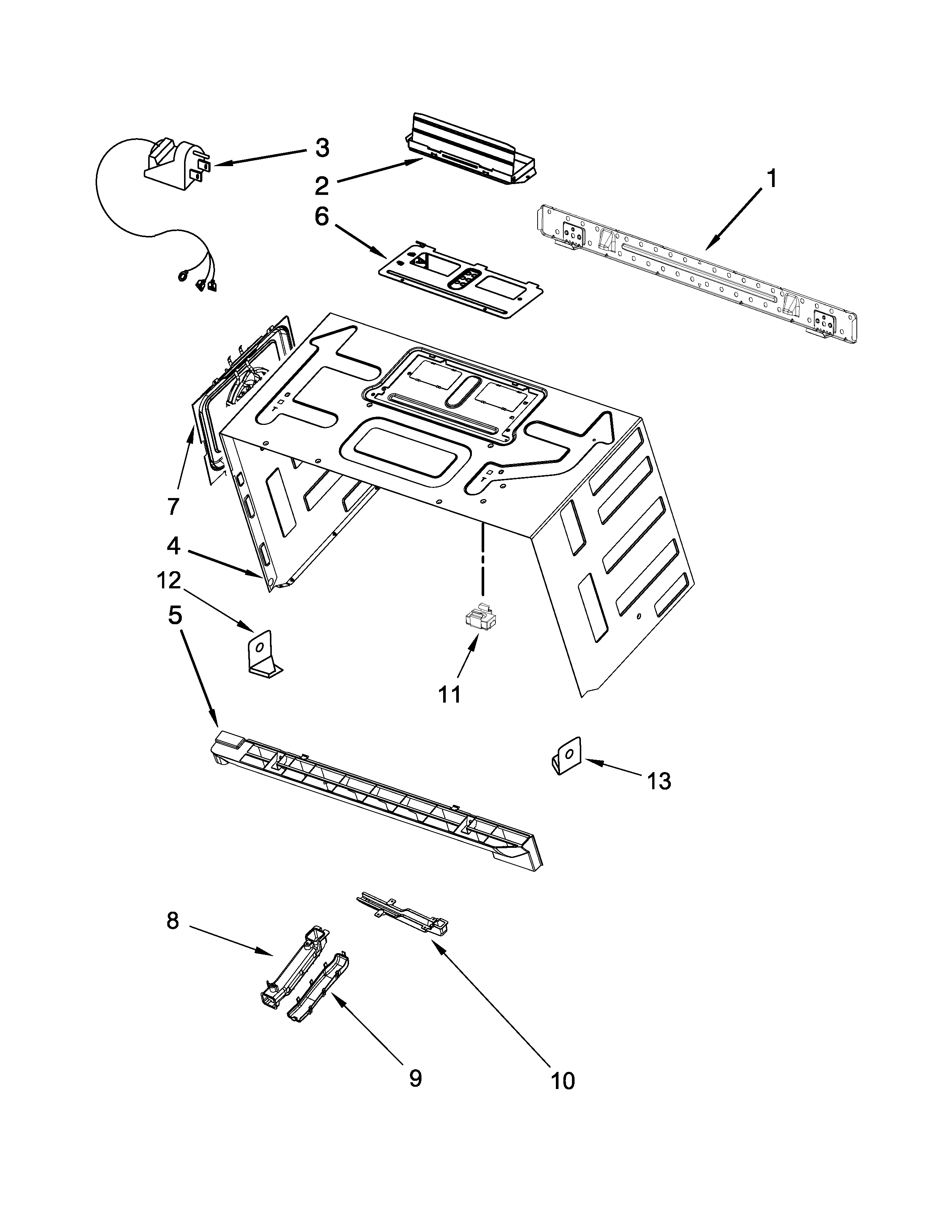

    Cabinet and installation parts Diagram

    Microwave mounting nut

    Part #W10596040
    This item is not returnable
    $5.55

    In Stock

    Microwave Surface Light Lens

    #6

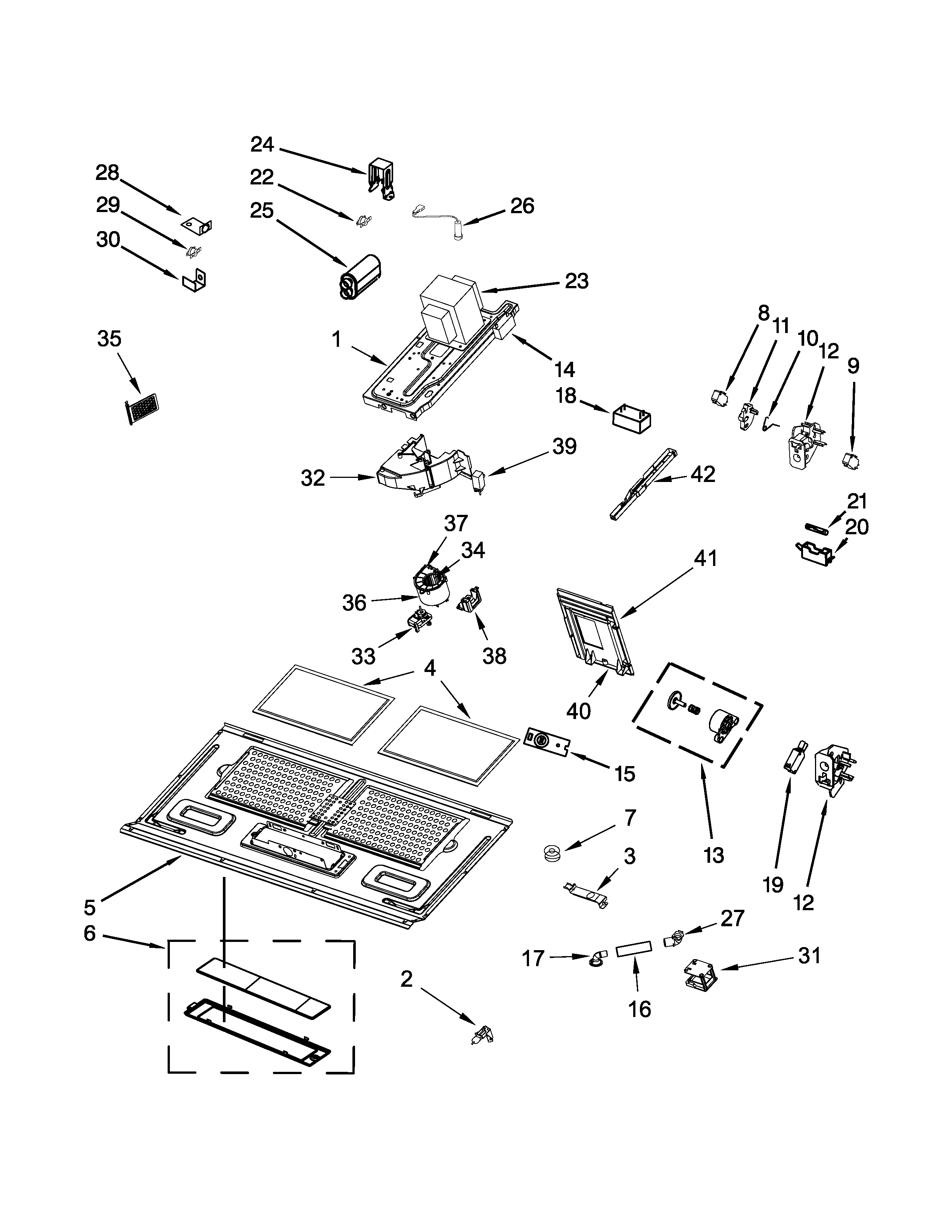

    Interior and ventilation parts Diagram

    Microwave surface light lens

    Part #W10240330
    This item is not returnable
    $4.72

    In Stock

    Meat Rack

    #8

    Turntable parts Diagram

    Meat rack

    Part #W10249618
    $19.43

    In Stock

    Bracket Support

    #10A

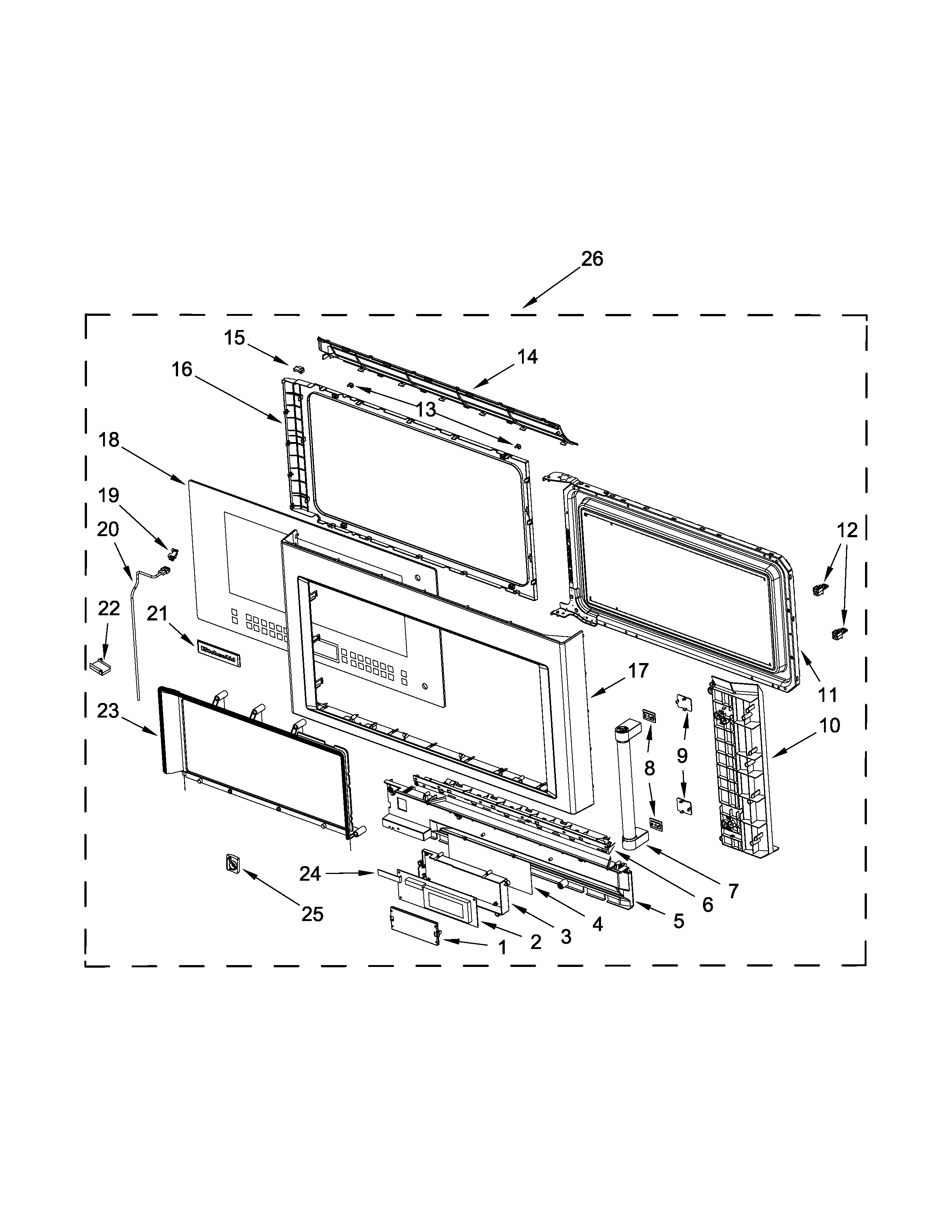

    Door parts Diagram

    Bracket support

    Part #W10734943
    $30.36

    In Stock

    Fuse Block

    #20

    Interior and ventilation parts Diagram

    Fuse block

    Part #W10245194
    $24.80 |
    27% OFF MSRP:$34.00

    In Stock

    Microwave Door Interlock Switch Actuator

    #13

    Interior and ventilation parts Diagram

    $33.41 |
    10% OFF MSRP:$37.00

    In Stock

    Panel

    #2A

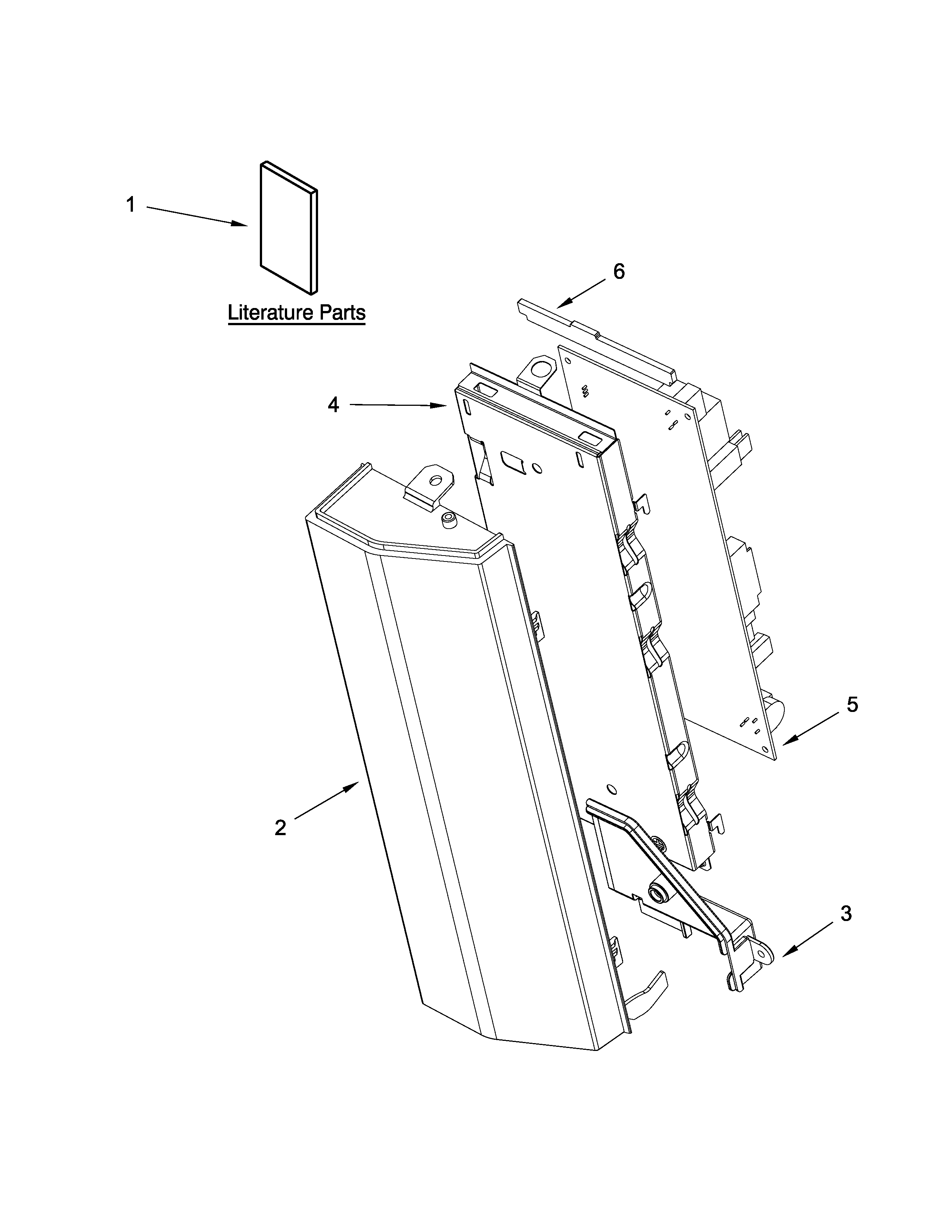

    Control panel parts Diagram

    Panel

    Part #W10478239
    $39.38

    In Stock

    Microwave Door Handle (Stainless)

    #7

    Door parts Diagram

    $107.86

    In Stock

    Shield

    #16

    Interior and ventilation parts Diagram

    Shield

    Part #W10510235
    $11.19

    In Stock
