GE
Room Air Conditioner

Model # AEM06LTQ1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AEM06LTQ1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Connection WJ66X10084
#18

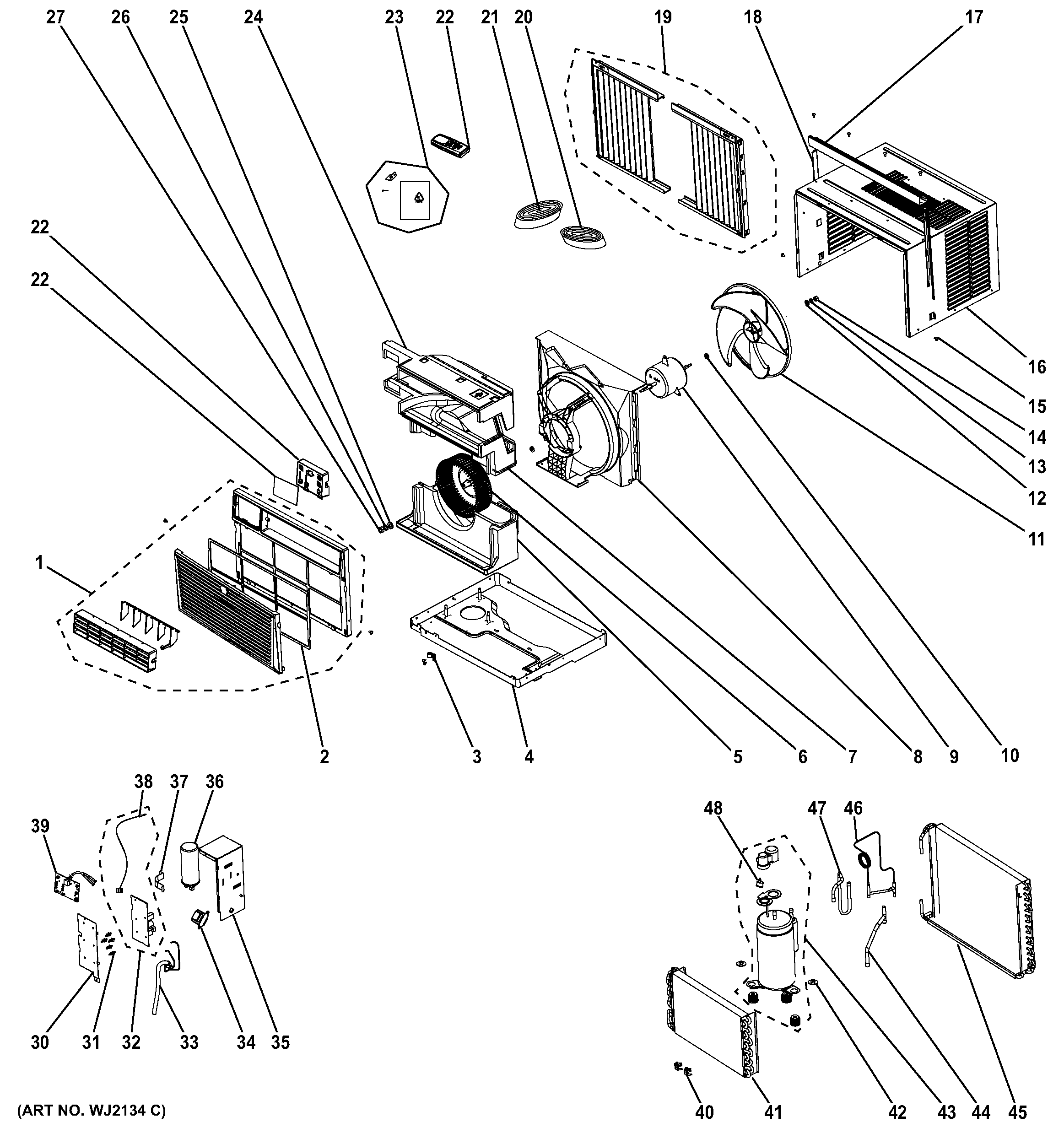

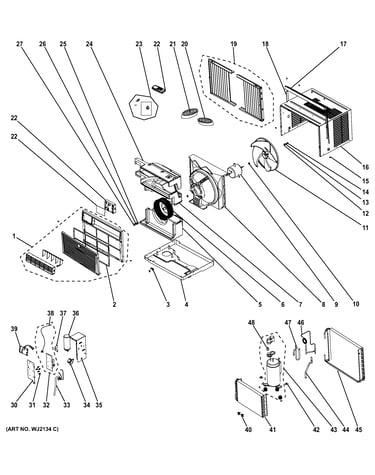

Room air conditioner diagram

Connection

Part #WJ66X10084

This item is not returnable
$6.21 |
14% OFF Phone Price : $7.21
In Stock
Condenser Assembly WJ87X10274
#45

Room air conditioner diagram

Condenser assembly

Part #WJ87X10274

$120.49
In Stock
Axial Flow Fan WJ73X10218
#11

Room air conditioner diagram

Axial flow fan

Part #WJ73X10218

$32.49
In Stock
Centrifugal WJ73X10186
#6

Room air conditioner diagram

Centrifugal

Part #WJ73X10186

$27.34
In Stock
Suction Tube WJ57X10043
#44

Room air conditioner diagram

Suction tube

Part #WJ57X10043

$31.93
In Stock
Cover WJ79X10252
#24

Room air conditioner diagram

Cover

Part #WJ79X10252

$12.17
In Stock
Housing, Pro WJ76X10315
#7

Room air conditioner diagram

Housing, pro

Part #WJ76X10315

$15.36
In Stock
Spring Washer WJ03X10074
#26

Room air conditioner diagram

Spring washer

Part #WJ03X10074

$7.51
In Stock
Room Air Conditioner Air Filter WJ71X10657
#2

Room air conditioner diagram

Room air conditioner air filter

Part #WJ71X10657

$22.39 |
18% OFF Phone Price : $27.39
In Stock
Washer WJ01X10313
#13

Room air conditioner diagram

Washer

Part #WJ01X10313

$7.69 |
12% OFF Phone Price : $8.69
In Stock
