Whirlpool GMC275PDB5 electric wall oven Parts

Name: Whirlpool GMC275PDB5 Parts | Diagrams, Manuals, Installation guides | Sears PartsDirect
Brand: Whirlpool
SKU: GMC275PDB5
Availability: InStock

Here are the diagrams and repair parts for Whirlpool GMC275PDB5 electric wall oven, as well as links to manuals and error code tables, if available.

Installation guide

Owner’s manual

By Schematic

By Part

SELECT DIAGRAM

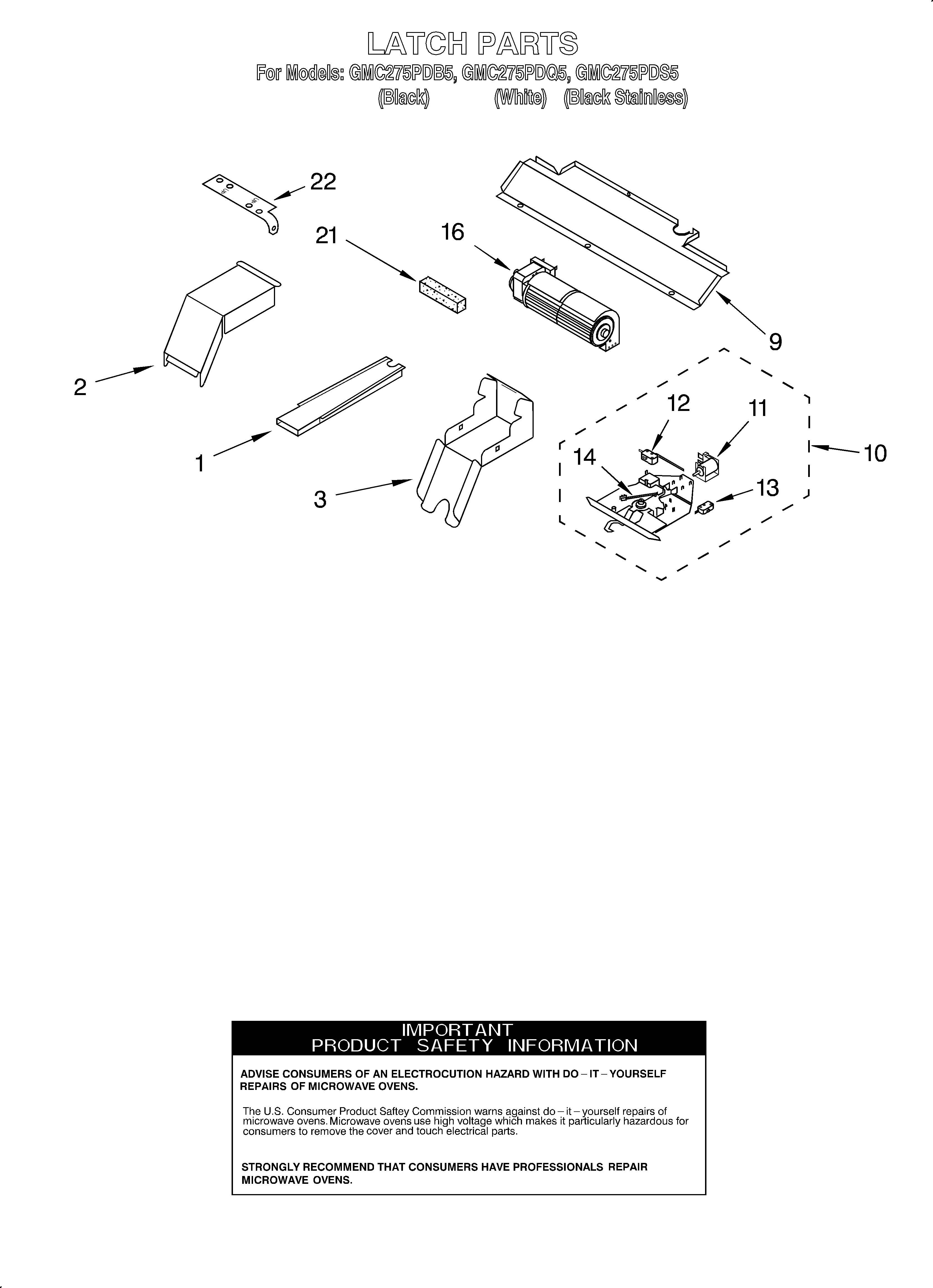

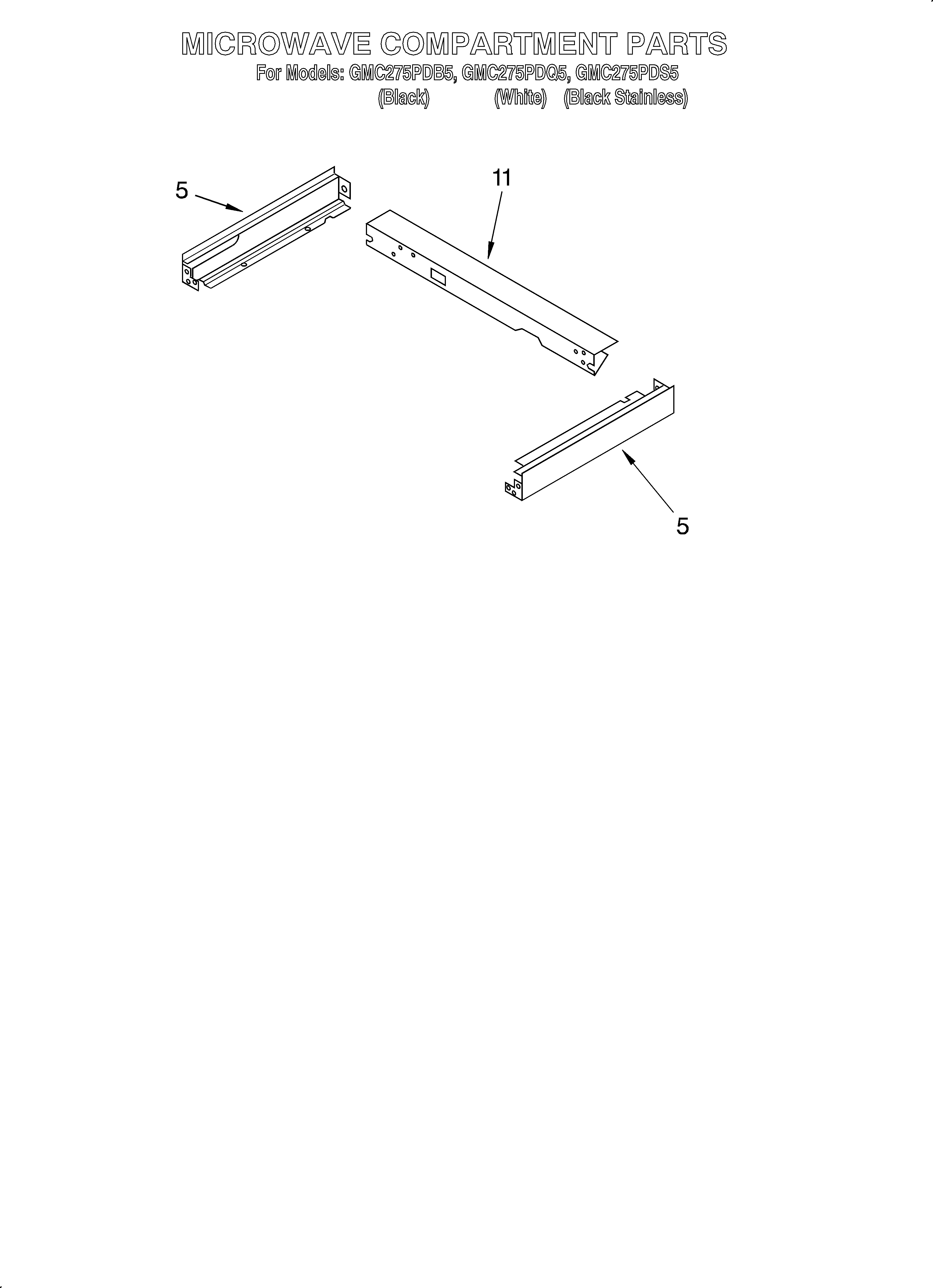

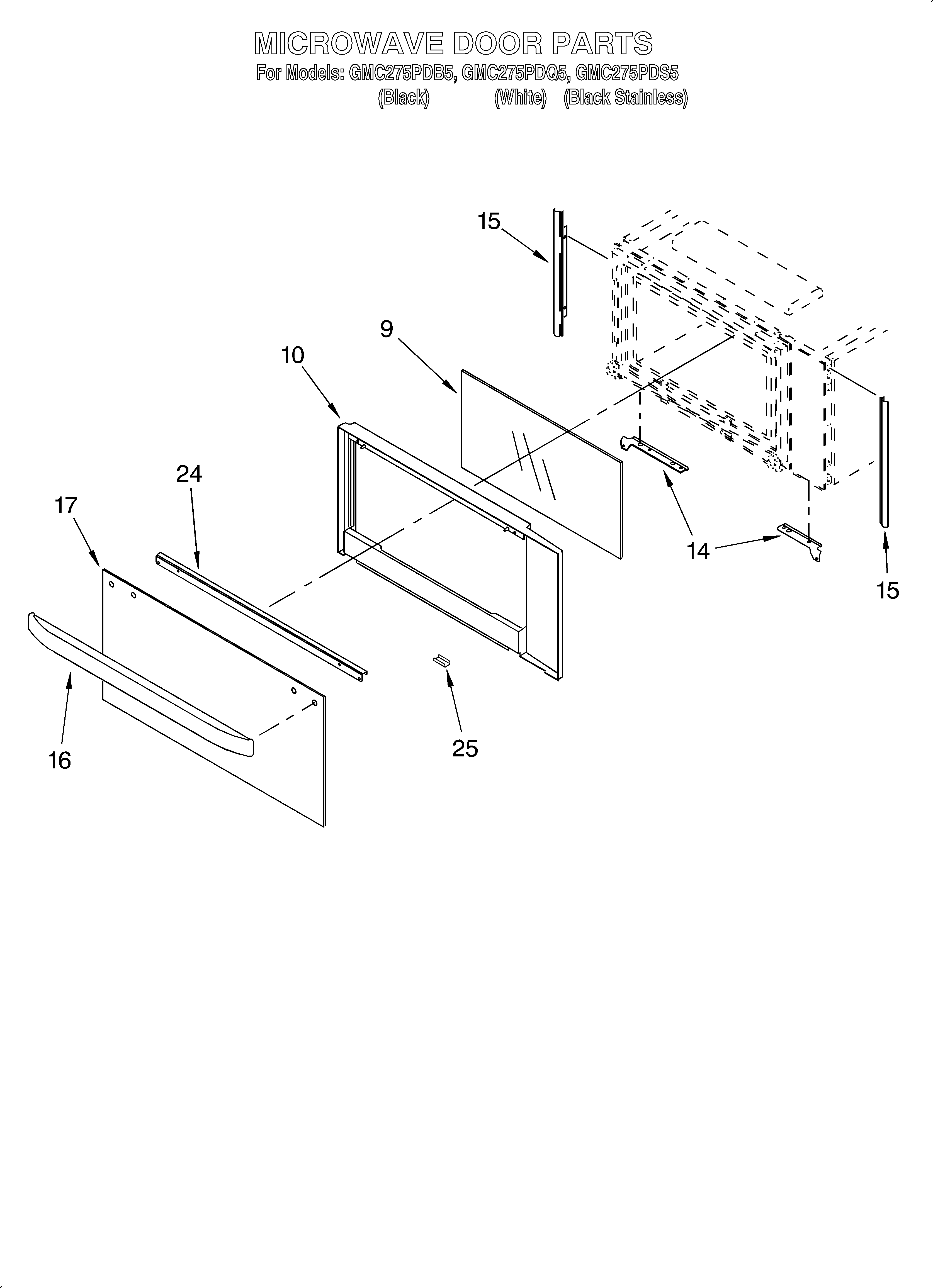

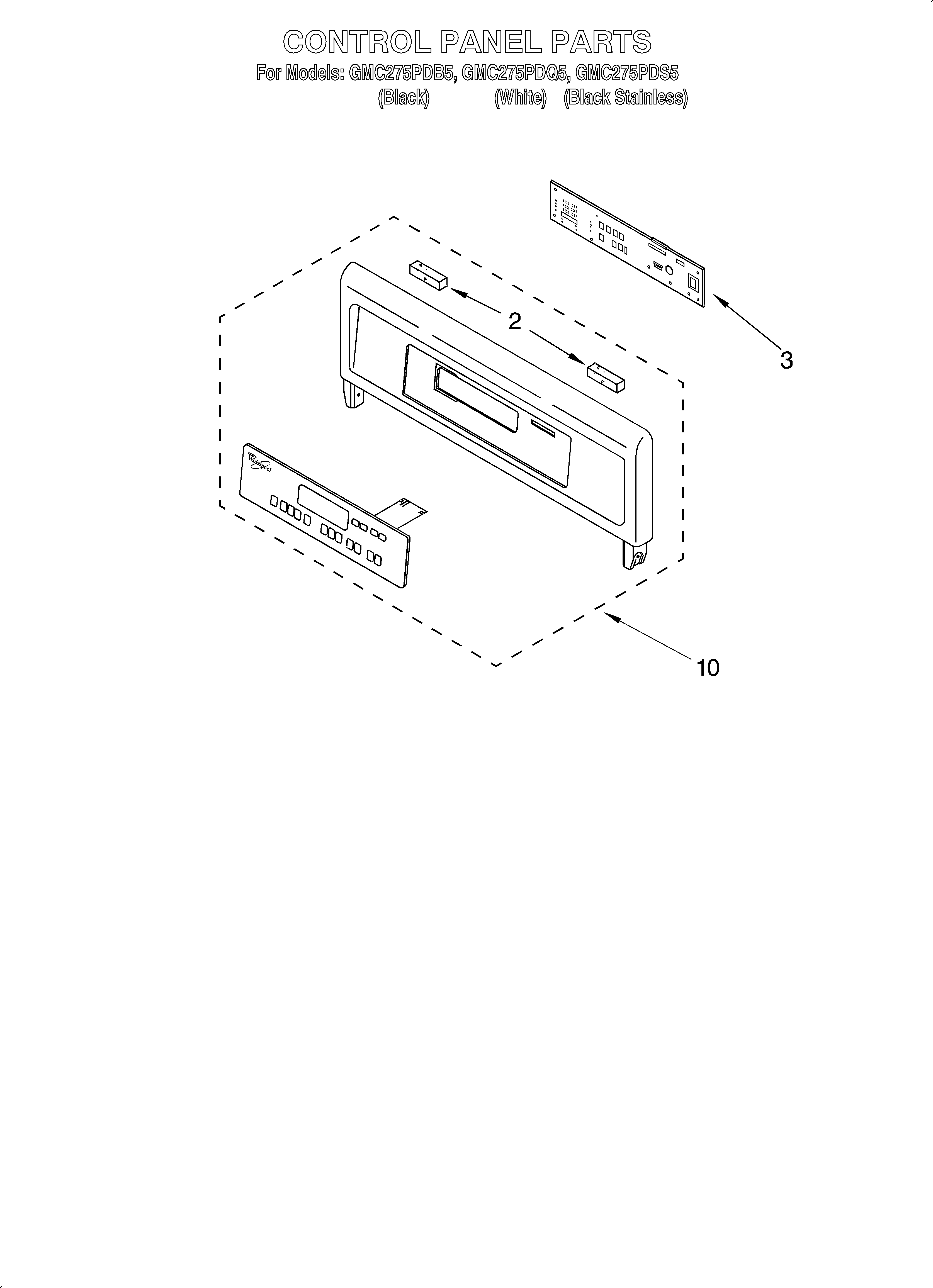

Browse Parts for GMC275PDB5 Electric Wall Oven

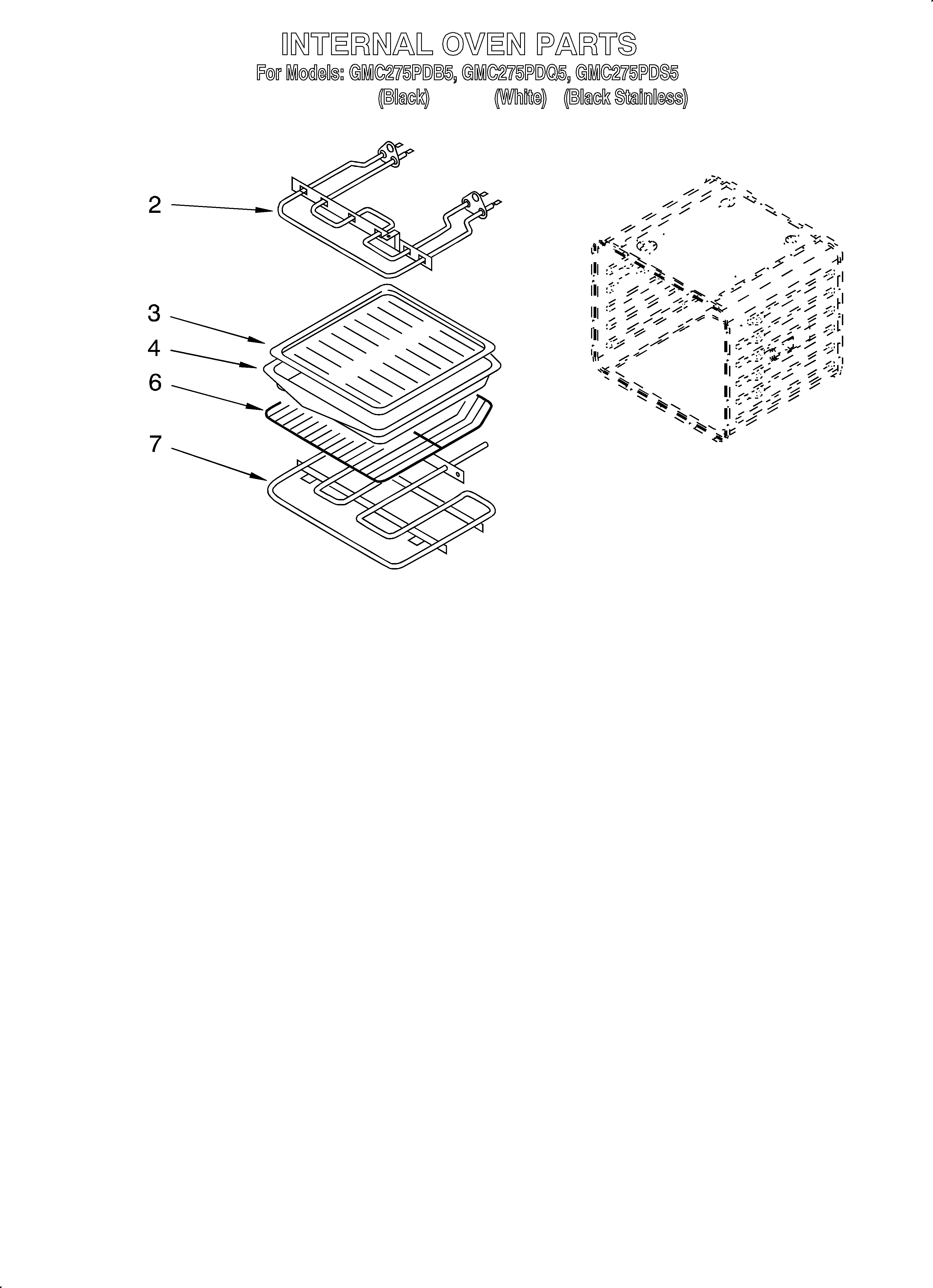

Internal oven diagram
Bake Element
Part #4452153
Replaced by #WPW10207397
Manufacturer substitution
This part replaces 4452153. Substitute parts can look different from the original.
In Stock
$56.36
10% OFF Phone Price : $62.36
Qty

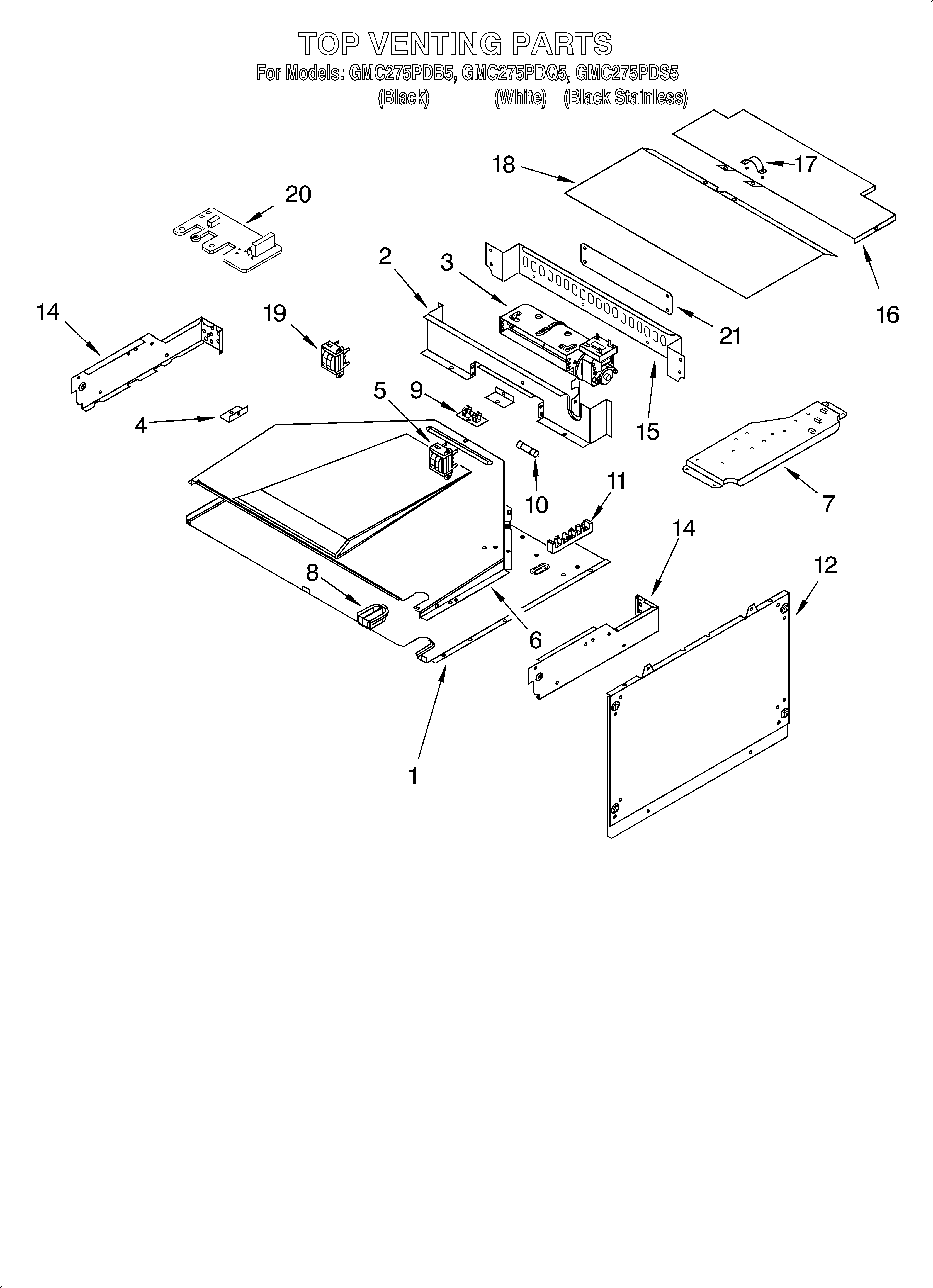

Top venting/optional diagram
Adhesive
Part #482338
Replaced by #WP482338
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
In Stock
$24.46
27% OFF Was : $33.32
Qty

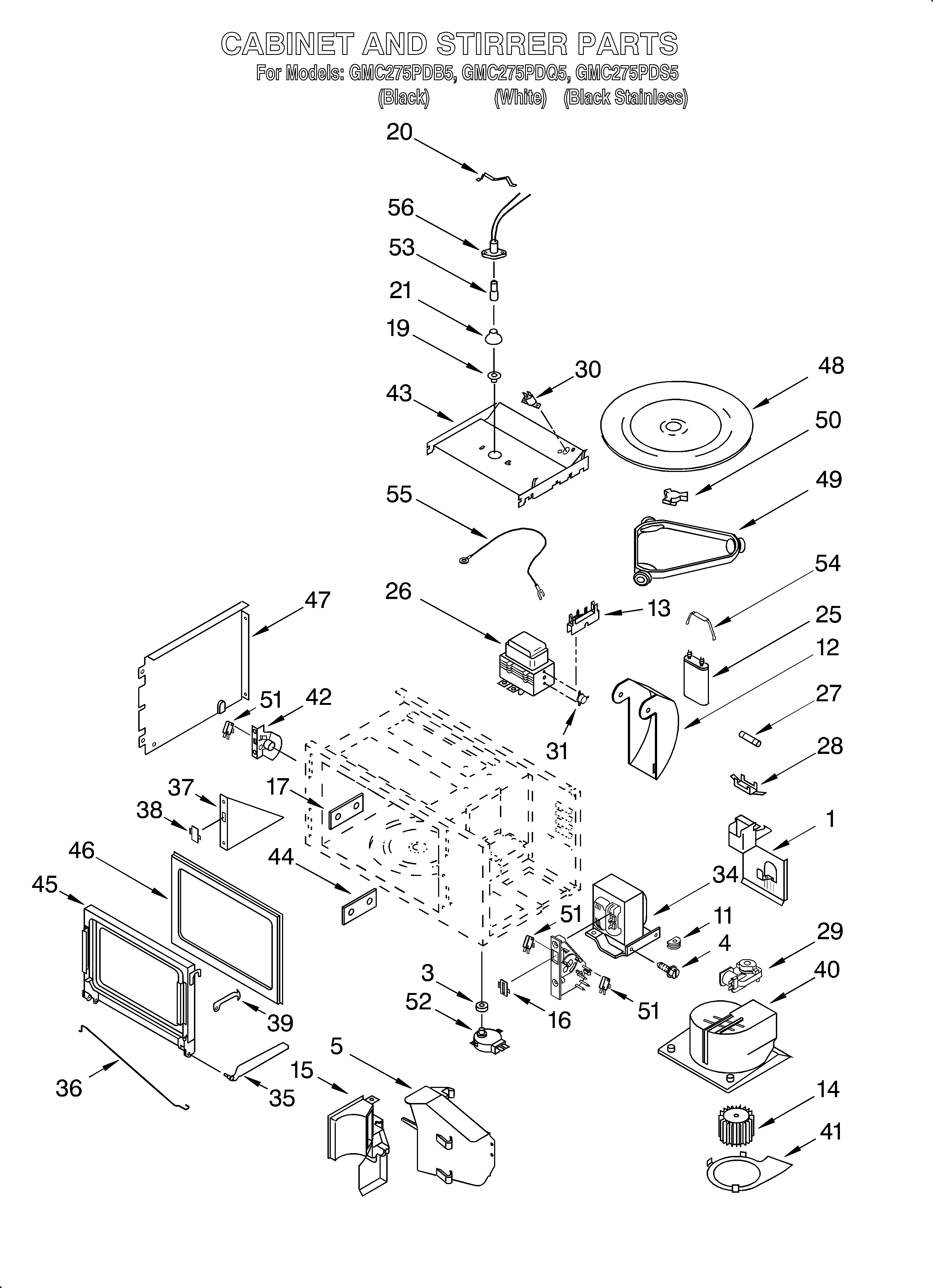

Cabinet and stirrer diagram
Fuse (black)
Part #4375321
Replaced by #WP4375321
Manufacturer substitution
This part replaces 4375321. Substitute parts can look different from the original.
In Stock
$17.12
10% OFF Phone Price : $19.12
Qty
Cabinet and stirrer diagram
Microwave Door Torsion Spring
Part #4452395
Replaced by #WP4452395
Manufacturer substitution
This part replaces 4452395. Substitute parts can look different from the original.
In Stock
$86.13
7% OFF Phone Price : $92.13
Qty

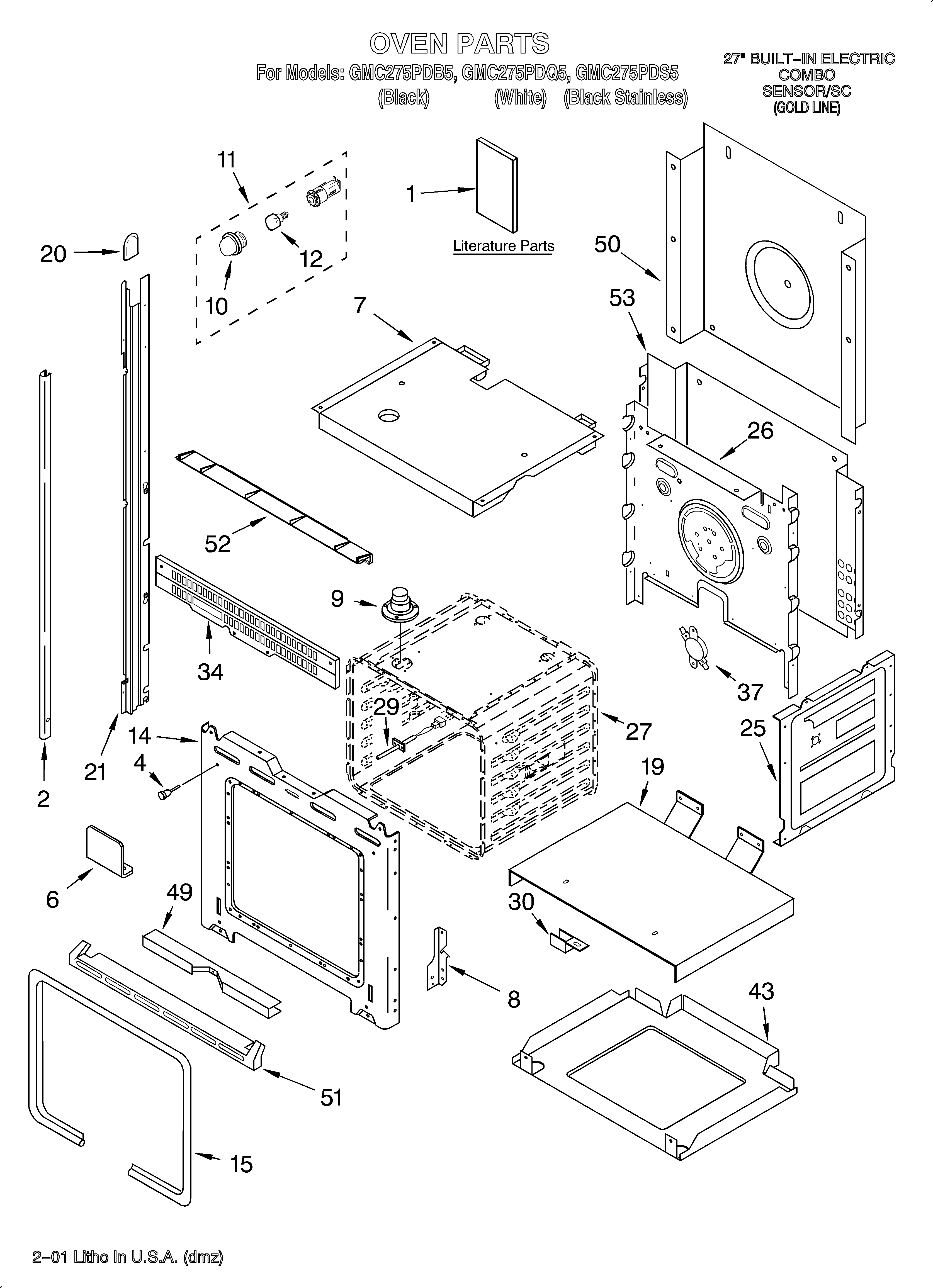

Oven/literature diagram
Range High-limit Thermostat
Part #4451442
Replaced by #WP9759243
Manufacturer substitution
This part replaces 4451442. Substitute parts can look different from the original.
In Stock
$48.90
11% OFF Phone Price : $54.90
Qty
Cabinet and stirrer diagram
Oven Baseless Lamp
Part #4375348
Replaced by #WPW10440740
Manufacturer substitution
This part replaces 4375348. Substitute parts can look different from the original.
In Stock
$26.09
19% OFF Phone Price : $32.09
Qty
Cabinet and stirrer diagram
Magnetron
Part #4375072
The manufacturer no longer makes this part, and there's no substitute part
Cabinet and stirrer diagram
Microwave High-voltage Transformer
Part #4375286
Replaced by #WP4375286
Manufacturer substitution
This part replaces 4375286. Substitute parts can look different from the original.
In Stock
$285.86
$12.00 OFF Phone Price : $297.86
Qty

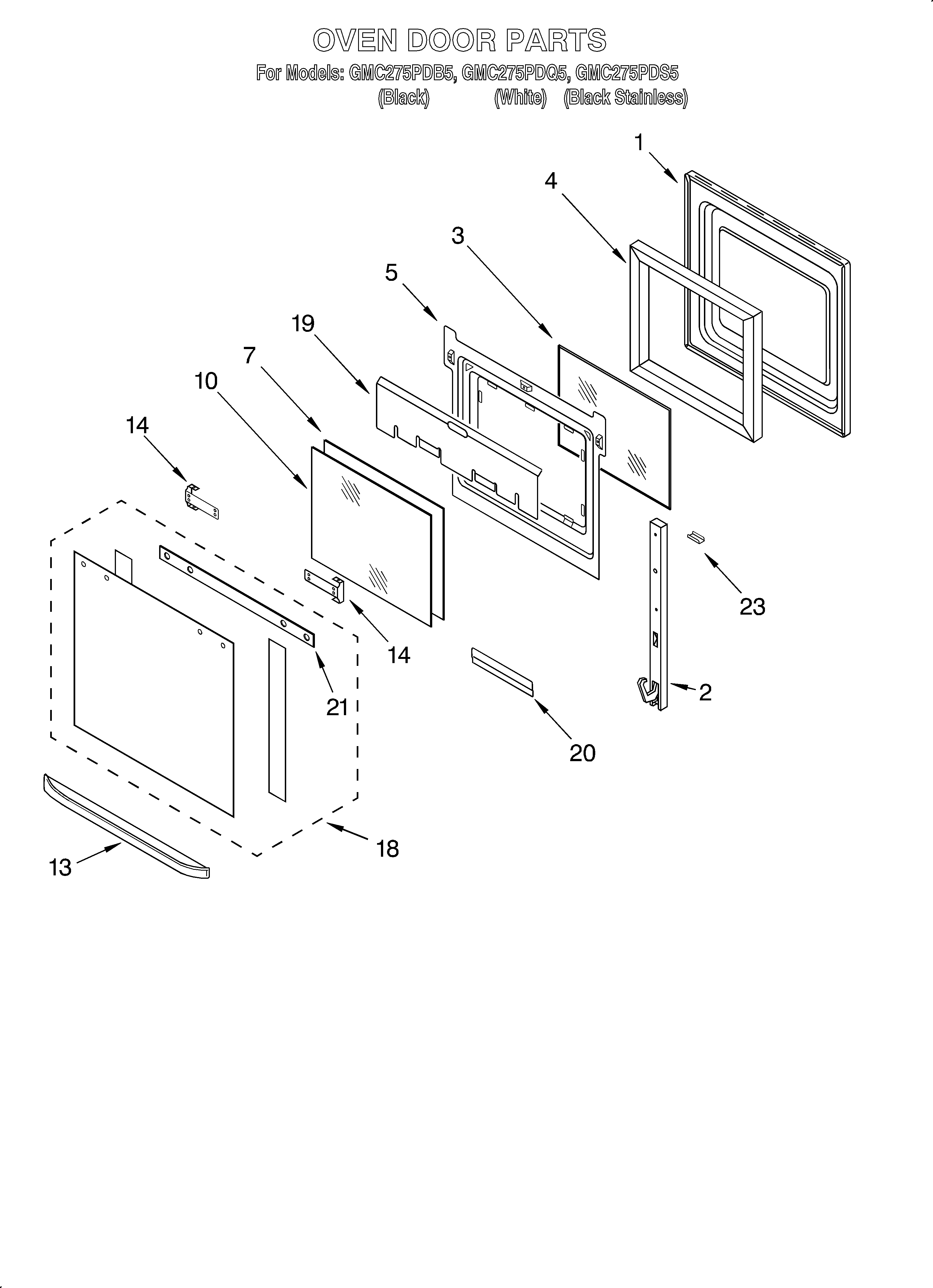

Oven door diagram
Screw (black)
Part #4449743
Replaced by #WP4449743
Manufacturer substitution
This part replaces 4449743. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.06
17% OFF Phone Price : $6.06
Qty
Oven/literature diagram
Range Oven Door Gasket
Part #4455381
Replaced by #WP4455381
Manufacturer substitution
This part replaces 4455381. Substitute parts can look different from the original.
In Stock
$97.69
11% OFF Phone Price : $109.69
Qty
