Model # GAGB28KDSG02 Official Gladiator garageworks premier series

Here are the diagrams and repair parts for Official Gladiator GAGB28KDSG02 garageworks premier series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Lock W10277043
#2

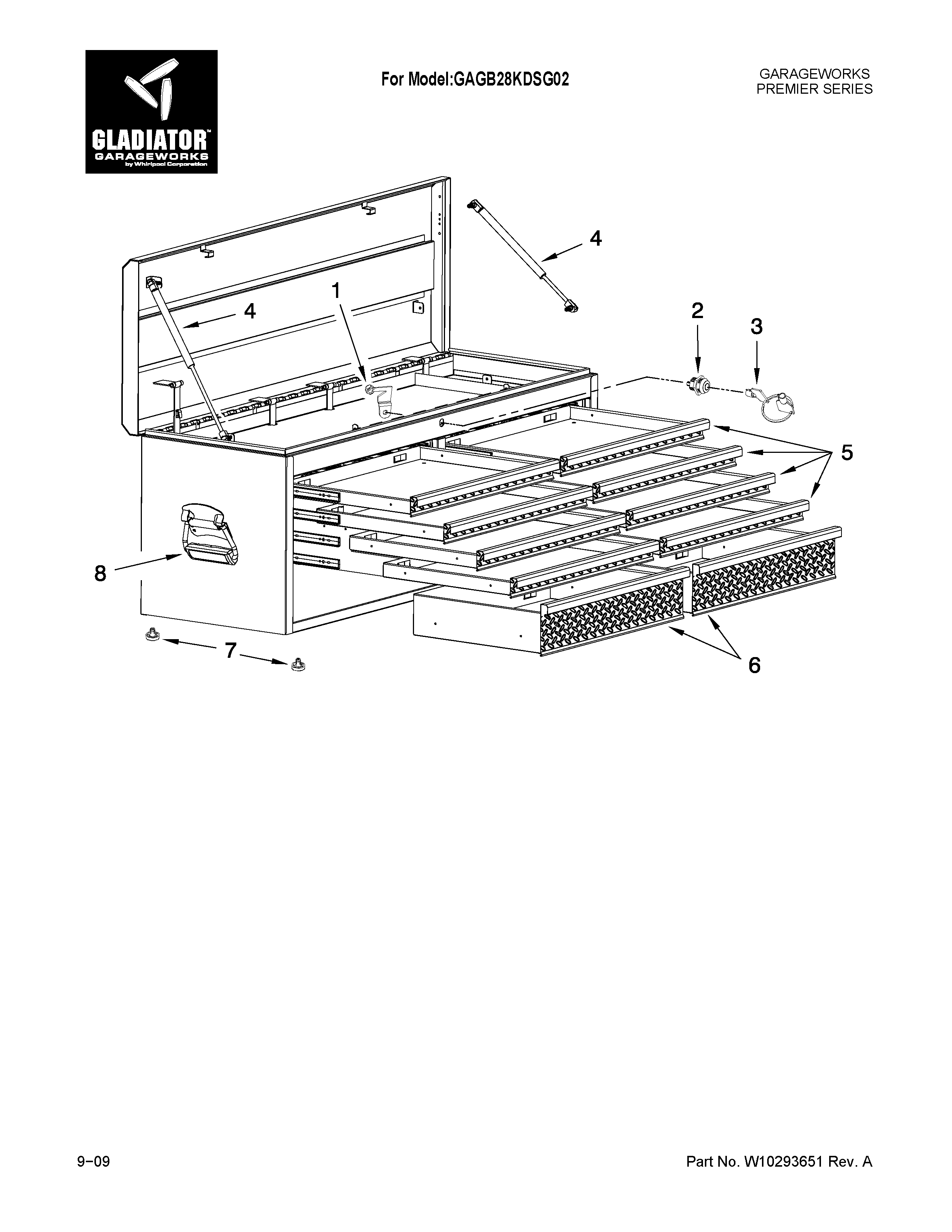

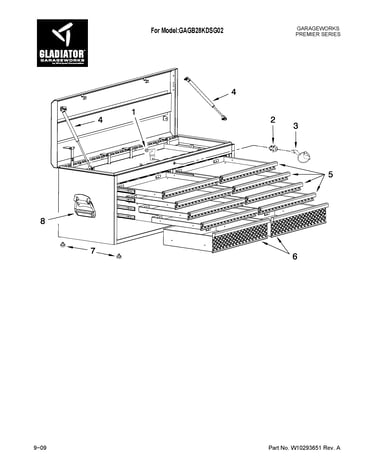

10-drawer 52" tool chest diagram

Lock

Part #W10277043

$17.29 |
10% OFF Phone Price : $19.29
In Stock
Foot W10277038
#7

10-drawer 52" tool chest diagram

Foot

Part #W10277038

$22.65
In Stock
Key W10277044
#3

10-drawer 52" tool chest diagram

Key

Part #W10277044

Replaced by #W11383363

?
Manufacturer substitution
This part replaces W10277044. Substitute parts can look different from the original.
This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Drawer W10277066
#6

10-drawer 52" tool chest diagram

Drawer

Part #W10277066

The manufacturer no longer makes this part, and there's no substitute part

Liner W10277067
#NI

10-drawer 52" tool chest diagram

Liner

Part #W10277067

The manufacturer no longer makes this part, and there's no substitute part

Strut W10277088
#4

10-drawer 52" tool chest diagram

Strut

Part #W10277088

The manufacturer no longer makes this part, and there's no substitute part

Drawer W10277065
#5

10-drawer 52" tool chest diagram

Drawer

Part #W10277065

The manufacturer no longer makes this part, and there's no substitute part

Handle W10277047
#8

10-drawer 52" tool chest diagram

Handle

Part #W10277047

The manufacturer no longer makes this part, and there's no substitute part

Hook W10277045
#1

10-drawer 52" tool chest diagram

Hook

Part #W10277045

The manufacturer no longer makes this part, and there's no substitute part

Part W10277056
#NI

10-drawer 52" tool chest diagram

Part

Part #W10277056

The manufacturer no longer makes this part, and there's no substitute part
