Sharp R-530BW microwave Parts

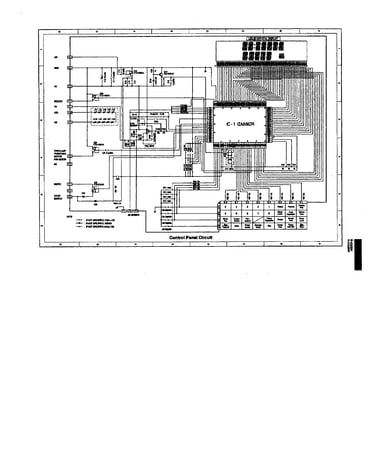

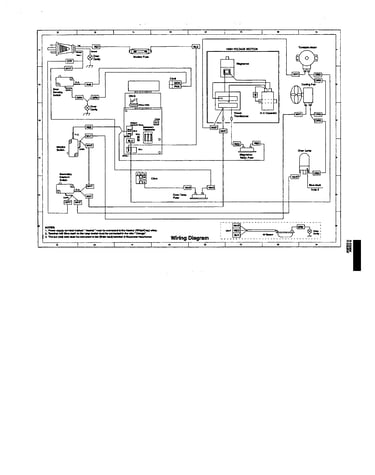

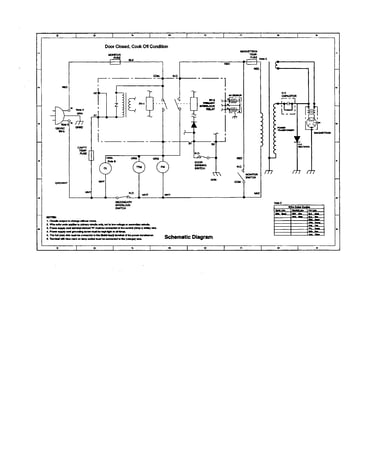

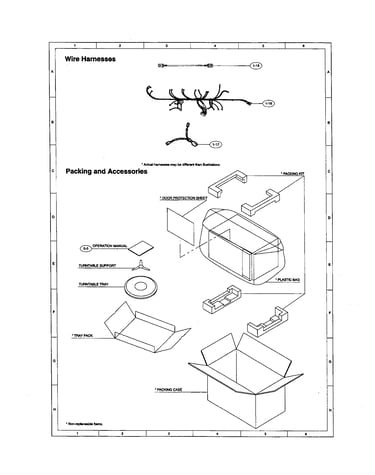

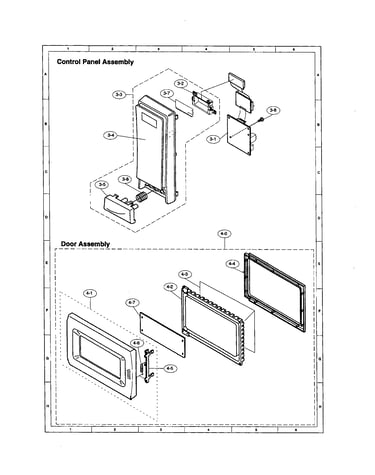

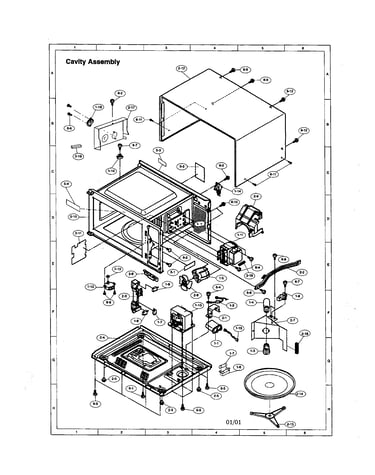

Here are the diagrams and repair parts for Sharp R-530BW microwave, as well as links to manuals and error code tables, if available.

Sharp R-530BW microwave
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for R-530BW Microwaves

  • Switch for Sharp R-530BW - Part QSW-MA110WRE0

    #1-08

    All parts diagram

    Switch

    Part #QSW-MA110WRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Cap H/v for Sharp R-530BW - Part RC-QZB018MRE0

    #1-01

    All parts diagram

    Cap H/v

    Part #RC-QZB018MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Diode for Sharp R-530BW - Part FH-DZB008MRY0

    #1-02

    All parts diagram

    Diode

    Part #FH-DZB008MRY0

    The manufacturer no longer makes this part, and there's no substitute part

  • Relay for Sharp R-530BW - Part RRLY-B002MRE0

    #NI

    All parts diagram

    Relay

    Part #RRLY-B002MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Sharp R-530BW - Part VRD-B12EF242J

    #NI

    All parts diagram

    Capacitor

    Part #VRD-B12EF242J

    The manufacturer no longer makes this part, and there's no substitute part

  • Fan Blade for Sharp R-530BW - Part NFANPB001MRE0

    #2-08

    All parts diagram

    Fan Blade

    Part #NFANPB001MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Outer Case for Sharp R-530BW - Part GCABUB083MRP0

    #2-12

    All parts diagram

    Outer Case

    Part #GCABUB083MRP0

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Film for Sharp R-530BW - Part PSHEPB016MRE0

    #4-03

    All parts diagram

    Door Film

    Part #PSHEPB016MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Transistor for Sharp R-530BW - Part VS2SB1238//-3

    #NI

    All parts diagram

    Transistor

    Part #VS2SB1238//-3

    The manufacturer no longer makes this part, and there's no substitute part

  • Switch for Sharp R-530BW - Part FFS-BA016/KIT

    #1-07

    All parts diagram

    Switch

    Part #FFS-BA016/KIT

    The manufacturer no longer makes this part, and there's no substitute part
