Model # ED-211 Official Ryobi rotary hammer sds

Here are the diagrams and repair parts for Official Ryobi ED-211 rotary hammer sds, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Washer 9760006
#65

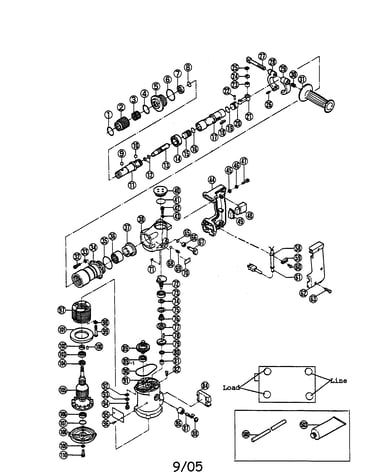

Rotary hammer diagram

Washer

Part #9760006

The manufacturer no longer makes this part, and there's no substitute part

Rubber Knock 6120082
#100

Rotary hammer diagram

Rubber knock

Part #6120082

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer (4) 9550600
#43

Rotary hammer diagram

Spring washer (4)

Part #9550600

The manufacturer no longer makes this part, and there's no substitute part

O-ring P-18 6930070
O-ring p-18

Part #6930070

The manufacturer no longer makes this part, and there's no substitute part

Brush Cap 6570070
#88

Rotary hammer diagram

Brush cap

Part #6570070

The manufacturer no longer makes this part, and there's no substitute part

Piston 6190134
#20

Rotary hammer diagram

Piston

Part #6190134

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring R-30 (not Shown) 9523200
#75

Rotary hammer diagram

Retaining ring r-30 (not shown)

Part #9523200

The manufacturer no longer makes this part, and there's no substitute part

Steel Ball 5/16" 6290059
#10

Rotary hammer diagram

Steel ball 5/16"

Part #6290059

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing #6005llb 9846005
#14

Rotary hammer diagram

Ball bearing #6005llb

Part #9846005

The manufacturer no longer makes this part, and there's no substitute part

Vinyl Tube 9680608

#NI04

All parts diagram

Vinyl tube

Part #9680608

The manufacturer no longer makes this part, and there's no substitute part
