Kenmore
Central Air Conditioner

Model #2537796112 Kenmore air conditioner

Here are the diagrams and repair parts for Kenmore 2537796112 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 83 parts

    Refrigerator Wire Harness Clamp#34

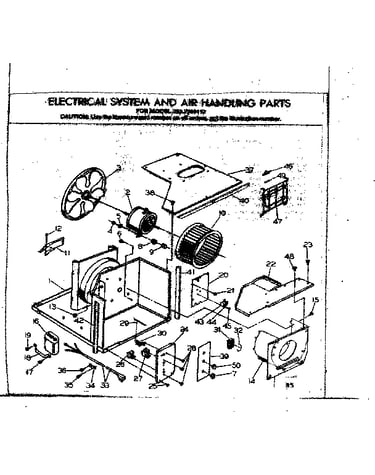

    Electrical system and air handling parts Diagram

    Clamp

    Part #27669
    Replaced by #5303001199
    ?
    Manufacturer substitution
    This part replaces 27669. Substitute parts can look different from the original.
    In Stock
    $42.16
    Refrigerator Compressor Grommet#2

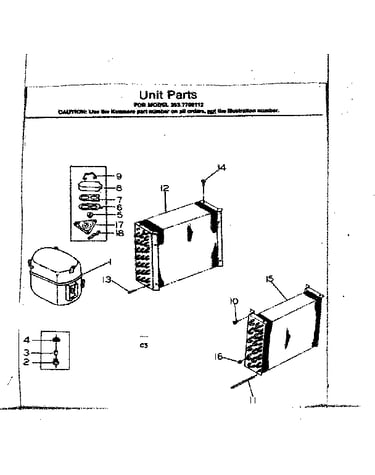

    Unit parts Diagram

    Grommet

    Part #126340
    Replaced by #218513300
    ?
    Manufacturer substitution
    This part replaces 126340. Substitute parts can look different from the original.
    In Stock
    $27.20
    Dehumidifier Screw#28

    Electrical system and air handling parts Diagram

    Screw

    Part #500739
    Replaced by #5303007620
    ?
    Manufacturer substitution
    This part replaces 500739. Substitute parts can look different from the original.
    In Stock
    $7.70
    Air Filter#10

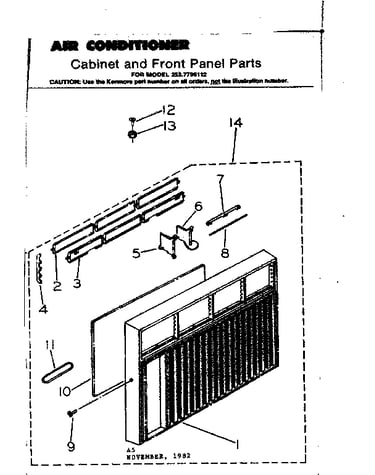

    Cabinet and front panel parts Diagram

    Air filter

    Part #47-9186

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #NI

    All parts Diagram

    Washer

    Part #100033
    Replaced by #3005891
    ?
    Manufacturer substitution
    This part replaces 100033. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.05
    Spring#6

    Unit parts Diagram

    Spring

    Part #145191

    The manufacturer no longer makes this part, and there's no substitute part

    Hinge Pin#12

    Electrical system and air handling parts Diagram

    Hinge pin

    Part #136497

    The manufacturer no longer makes this part, and there's no substitute part

    Pad Base

    #NI

    All parts Diagram

    Pad base

    Part #507904-03

    The manufacturer no longer makes this part, and there's no substitute part

    Screw#35

    Electrical system and air handling parts Diagram

    Screw

    Part #508454

    The manufacturer no longer makes this part, and there's no substitute part

    Capacitor#43

    Electrical system and air handling parts Diagram

    Capacitor

    Part #508501-13

    The manufacturer no longer makes this part, and there's no substitute part
