Panasonic
Plasma Television

Model # TH-103PF9WK Official Panasonic plasma television

Here are the diagrams and repair parts for Official Panasonic TH-103PF9WK plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

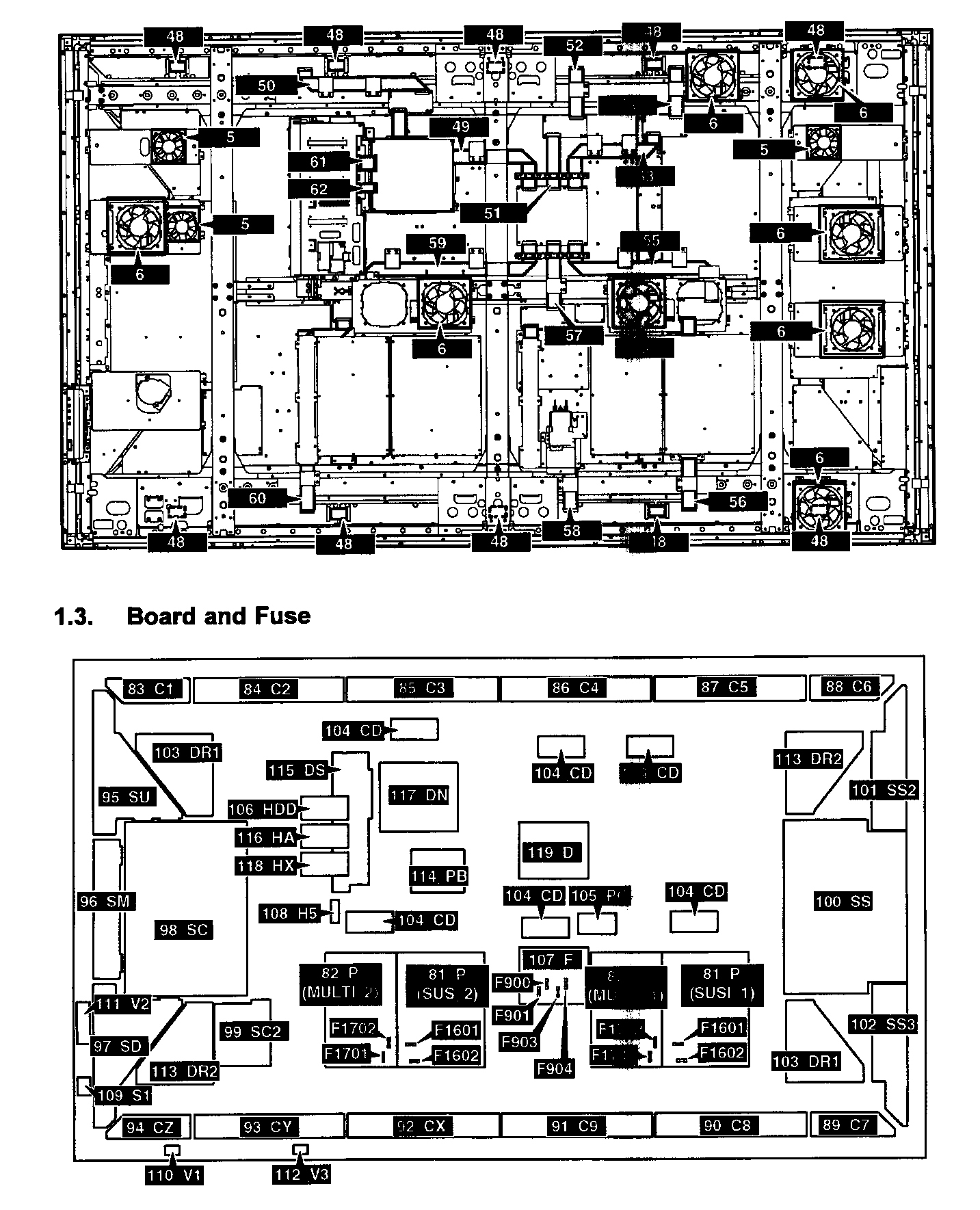

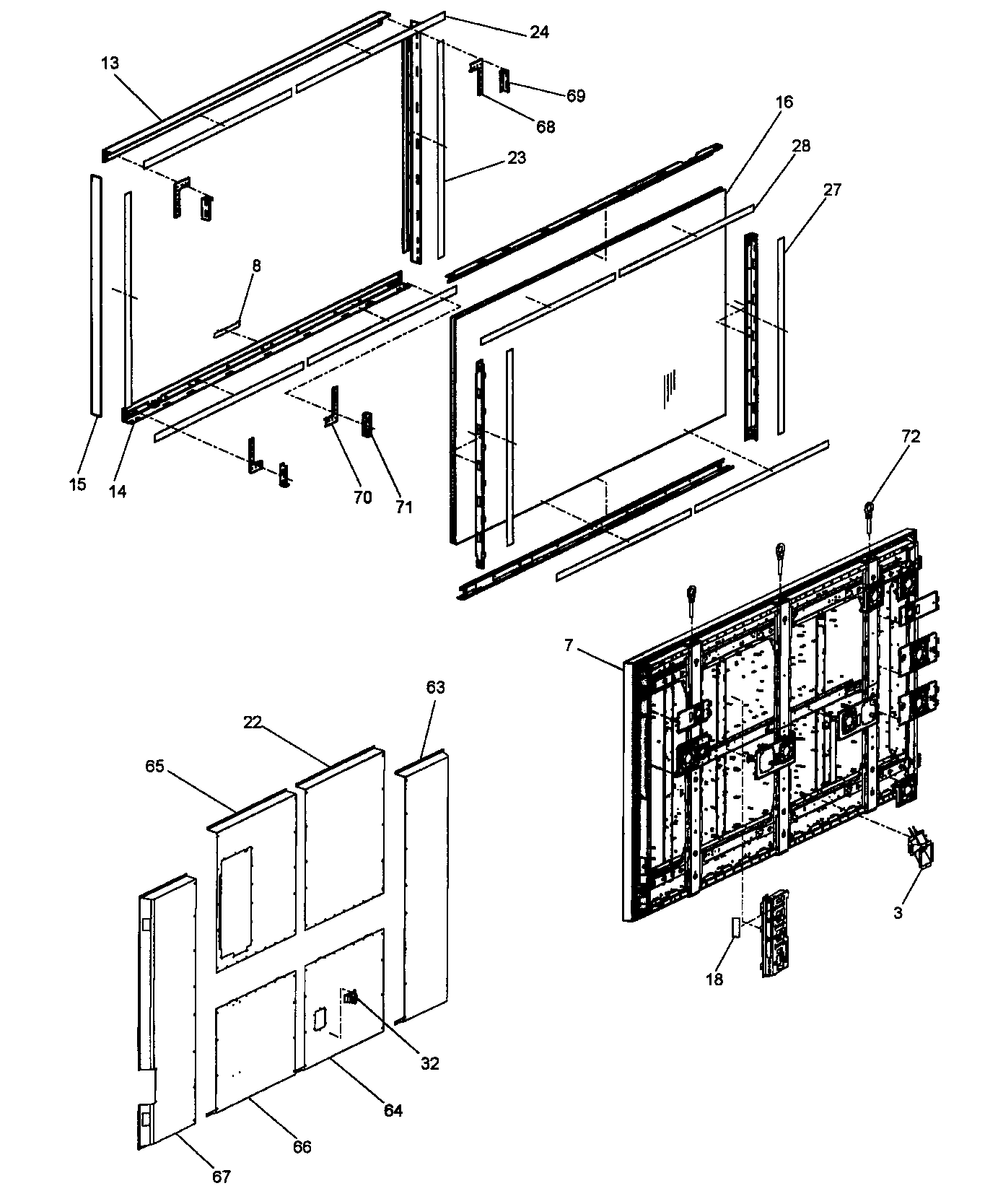

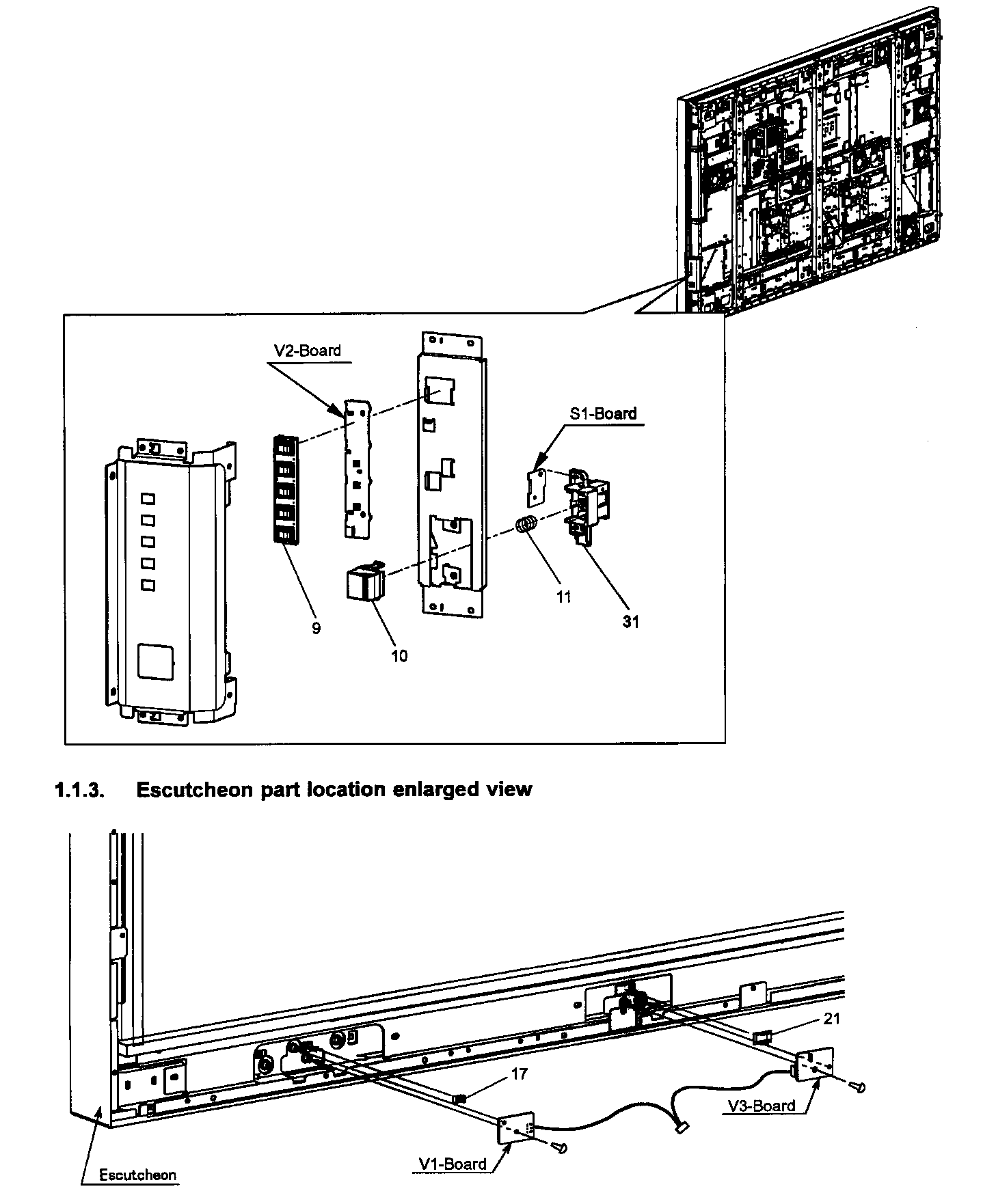

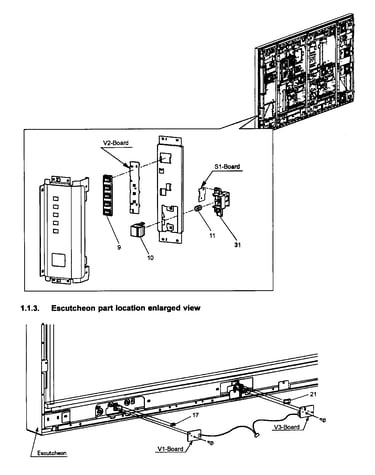

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |

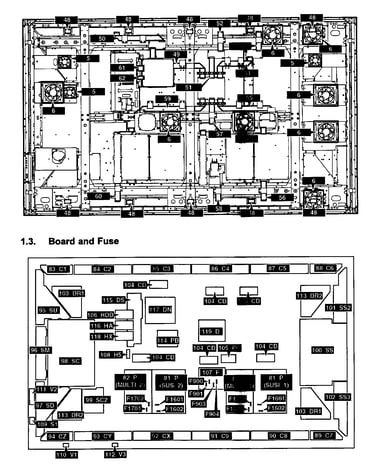

Cable TSXL585
#62

Pcb assy diagram

Cable

Part #TSXL585

The manufacturer no longer makes this part, and there's no substitute part

Cable TSXL579
#60

Pcb assy diagram

Cable

Part #TSXL579

The manufacturer no longer makes this part, and there's no substitute part

Cable TSXL518
#48

Pcb assy diagram

Cable

Part #TSXL518

The manufacturer no longer makes this part, and there's no substitute part

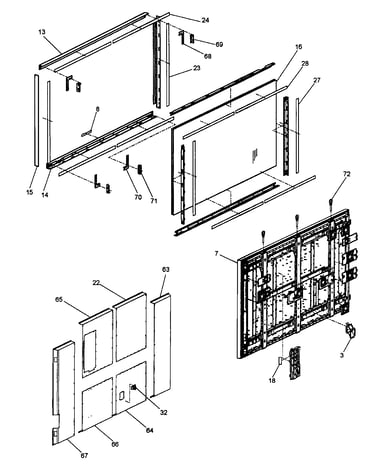

Remote EUR7636070R
#NI

Front panel diagram

Remote

Part #EUR7636070R

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly ZTXMM641MG2
#81

Pcb assy diagram

Pcb assembly

Part #ZTXMM641MG2

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly TNPA4039
#103

Pcb assy diagram

Pcb assembly

Part #TNPA4039

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly TNPA4018
#83

Pcb assy diagram

Pcb assembly

Part #TNPA4018

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly TNPA4028
#93

Pcb assy diagram

Pcb assembly

Part #TNPA4028

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly TNPA4019
#84

Pcb assy diagram

Pcb assembly

Part #TNPA4019

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly TNPA4031
#96

Pcb assy diagram

Pcb assembly

Part #TNPA4031

The manufacturer no longer makes this part, and there's no substitute part
