Jenn-Air
Wall Oven/Microwave Combo

Model # JMW2430IL03 Official Jenn-Air microwave/wall oven combo

Here are the diagrams and repair parts for Official Jenn-Air JMW2430IL03 microwave/wall oven combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

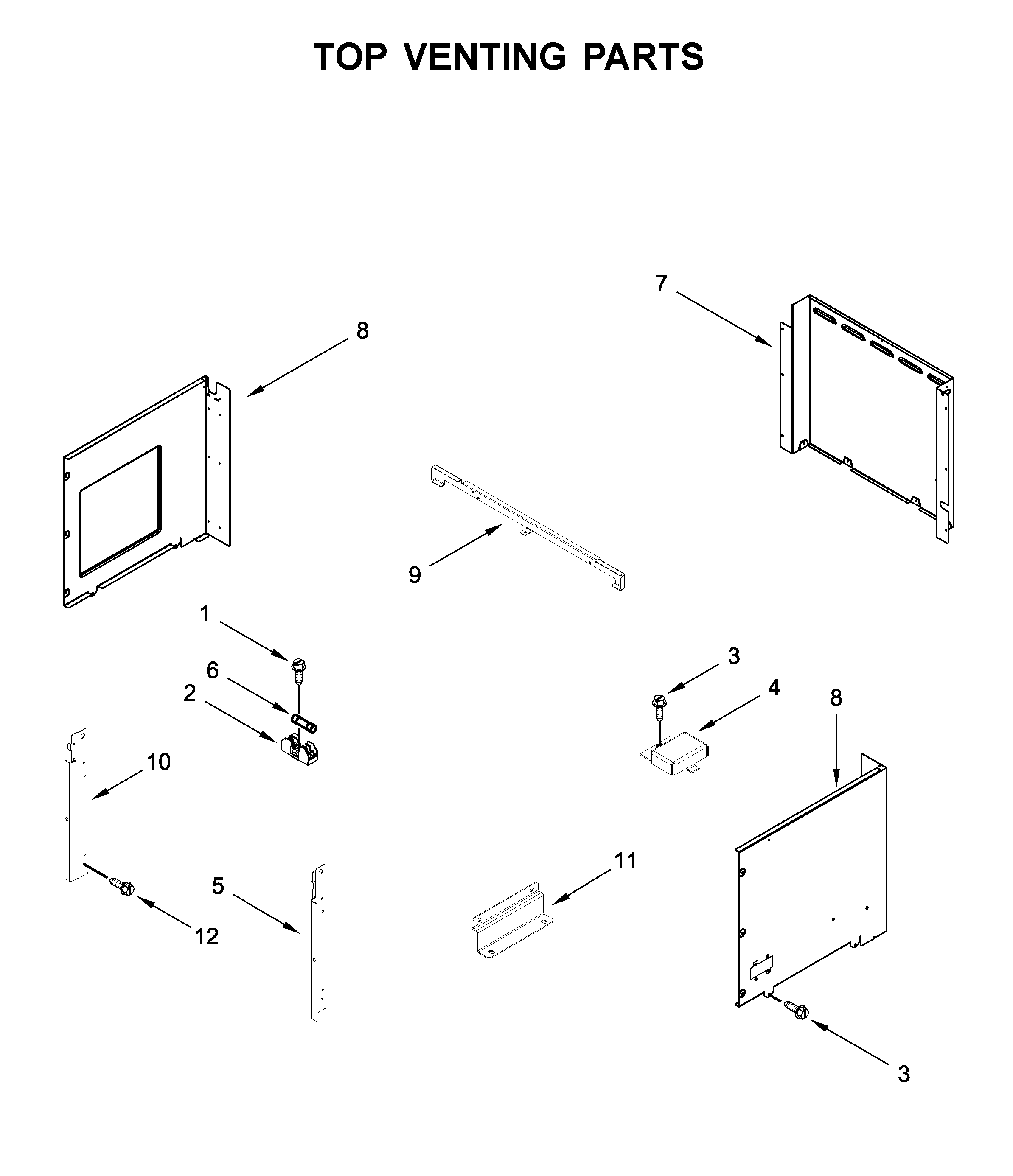

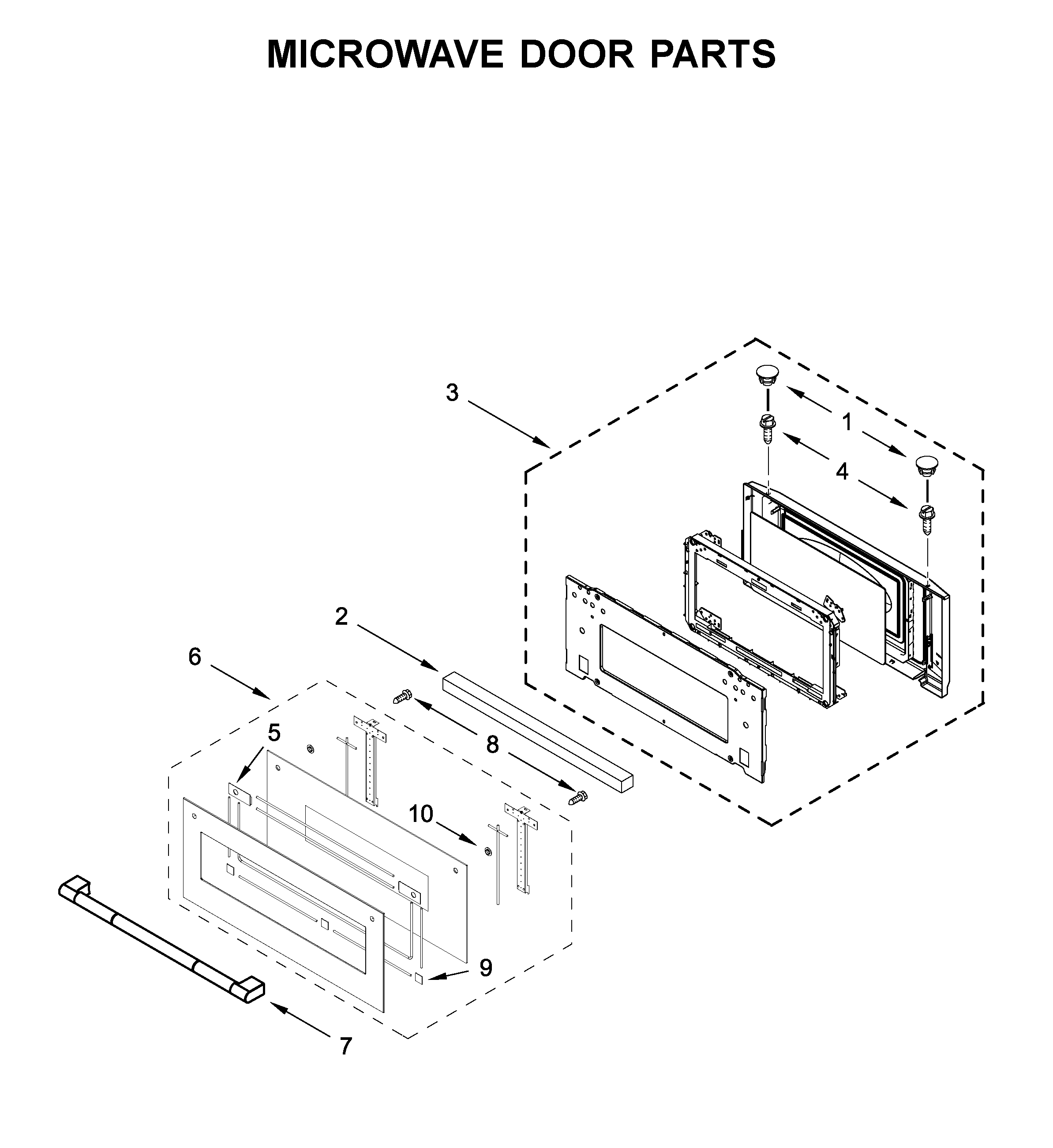

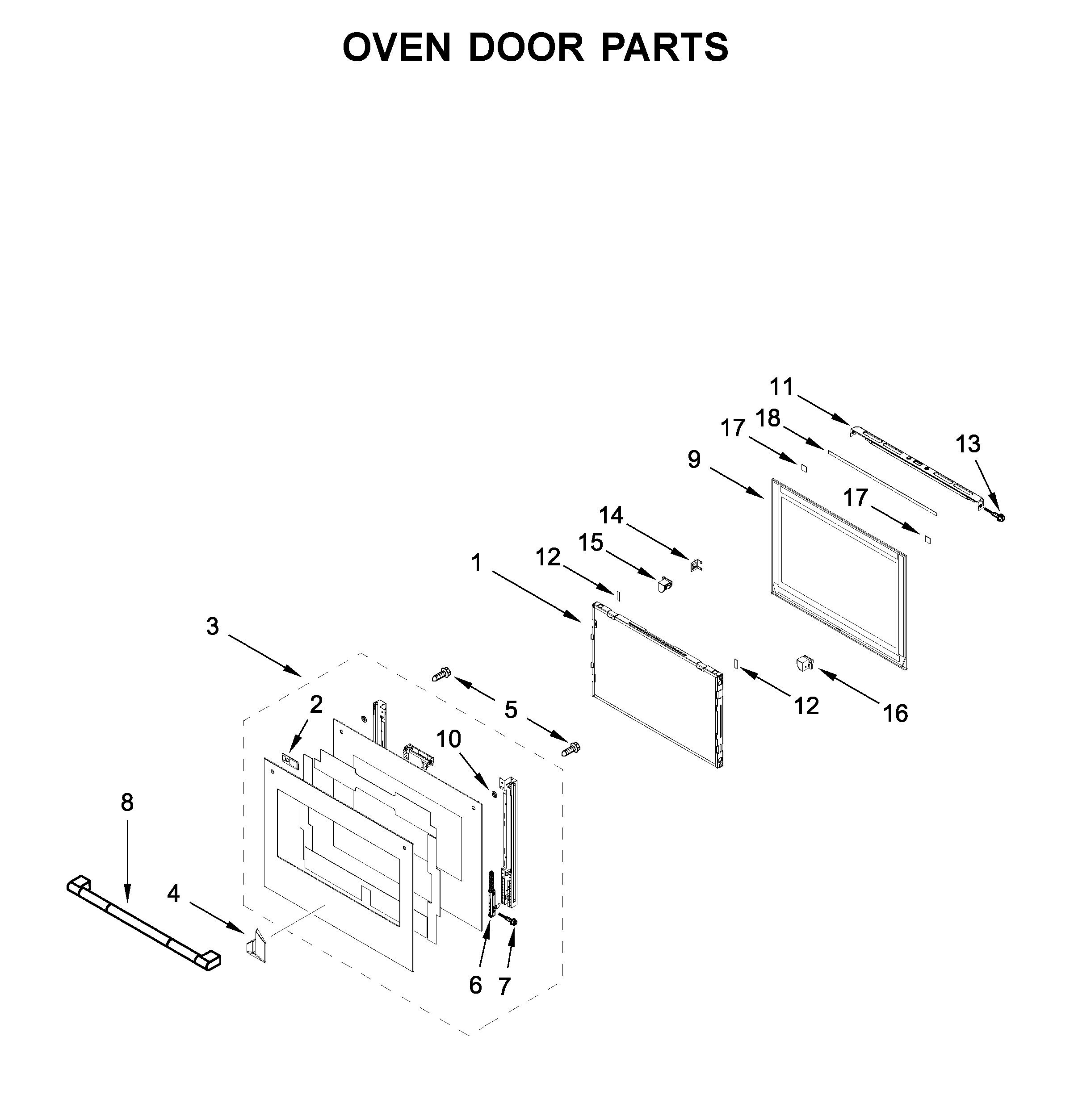

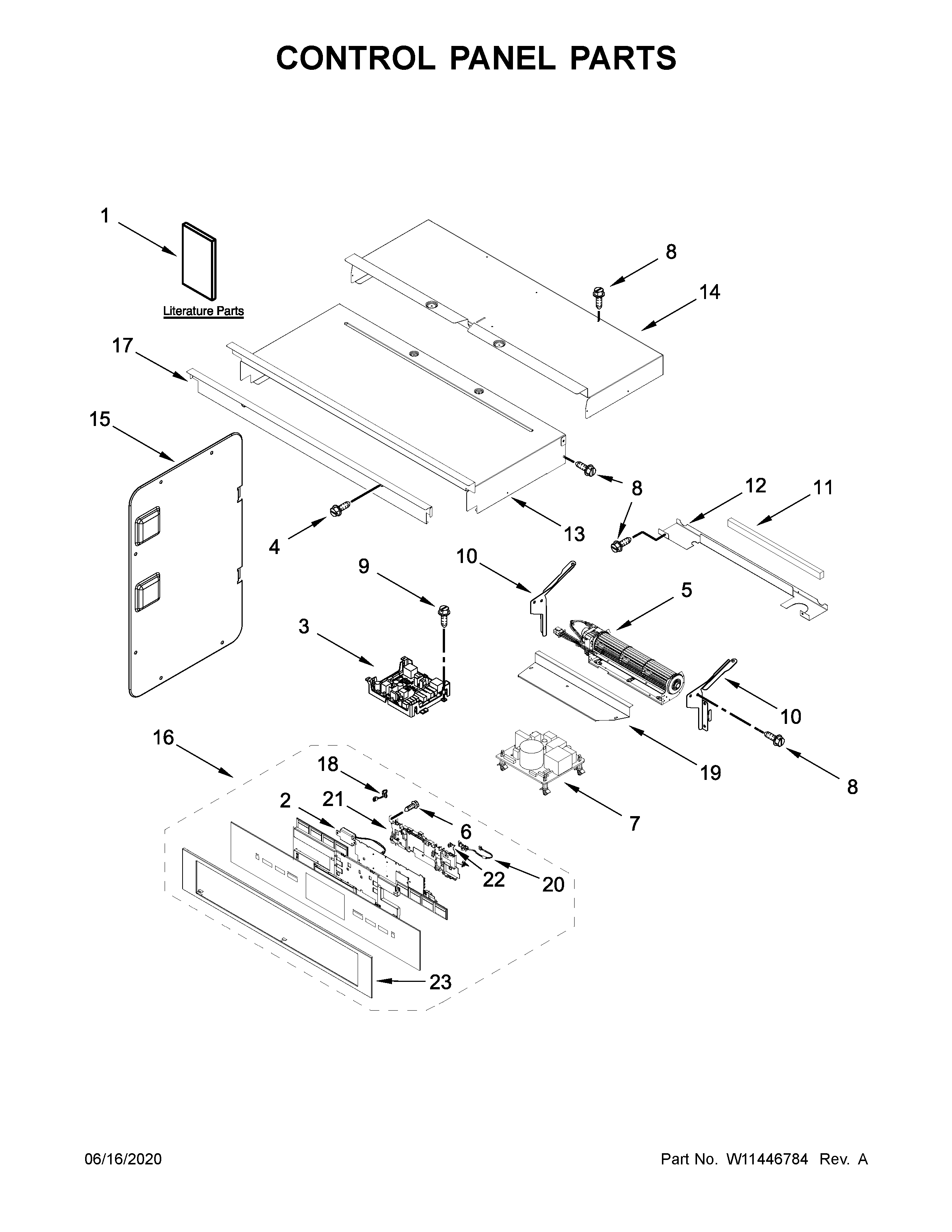

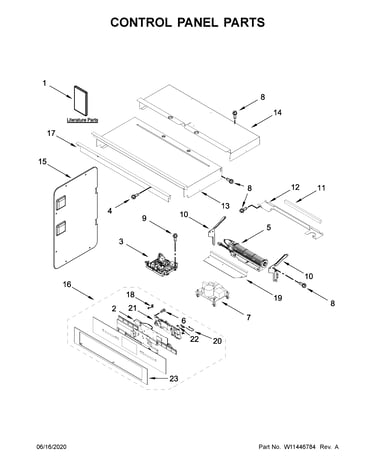

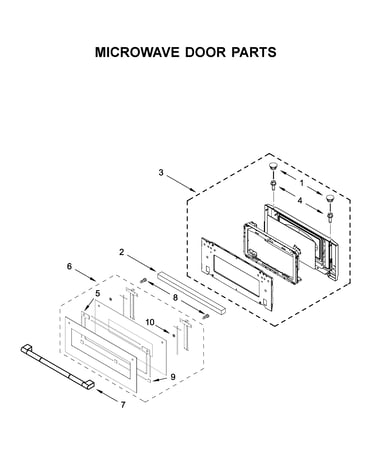

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
Magnetron W11226473
#10

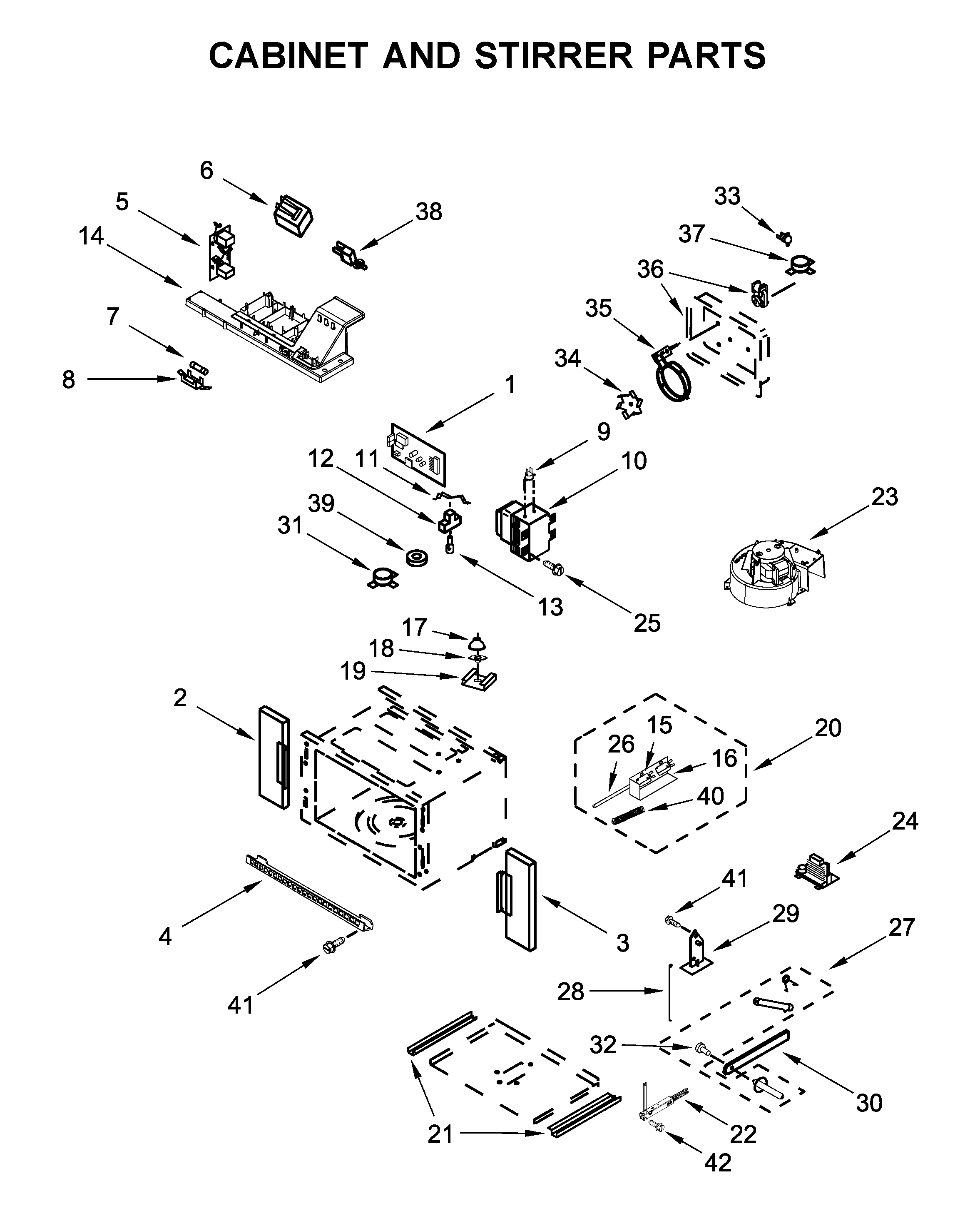

Cabinet and stirrer parts diagram

Magnetron

Part #W11226473

Replaced by #W11346197

?
Manufacturer substitution
This part replaces W11226473. Substitute parts can look different from the original.
BEST SELLER
$170.01 |
19% OFF MSRP : $210.00
In Stock
Spray W 350930
#NI

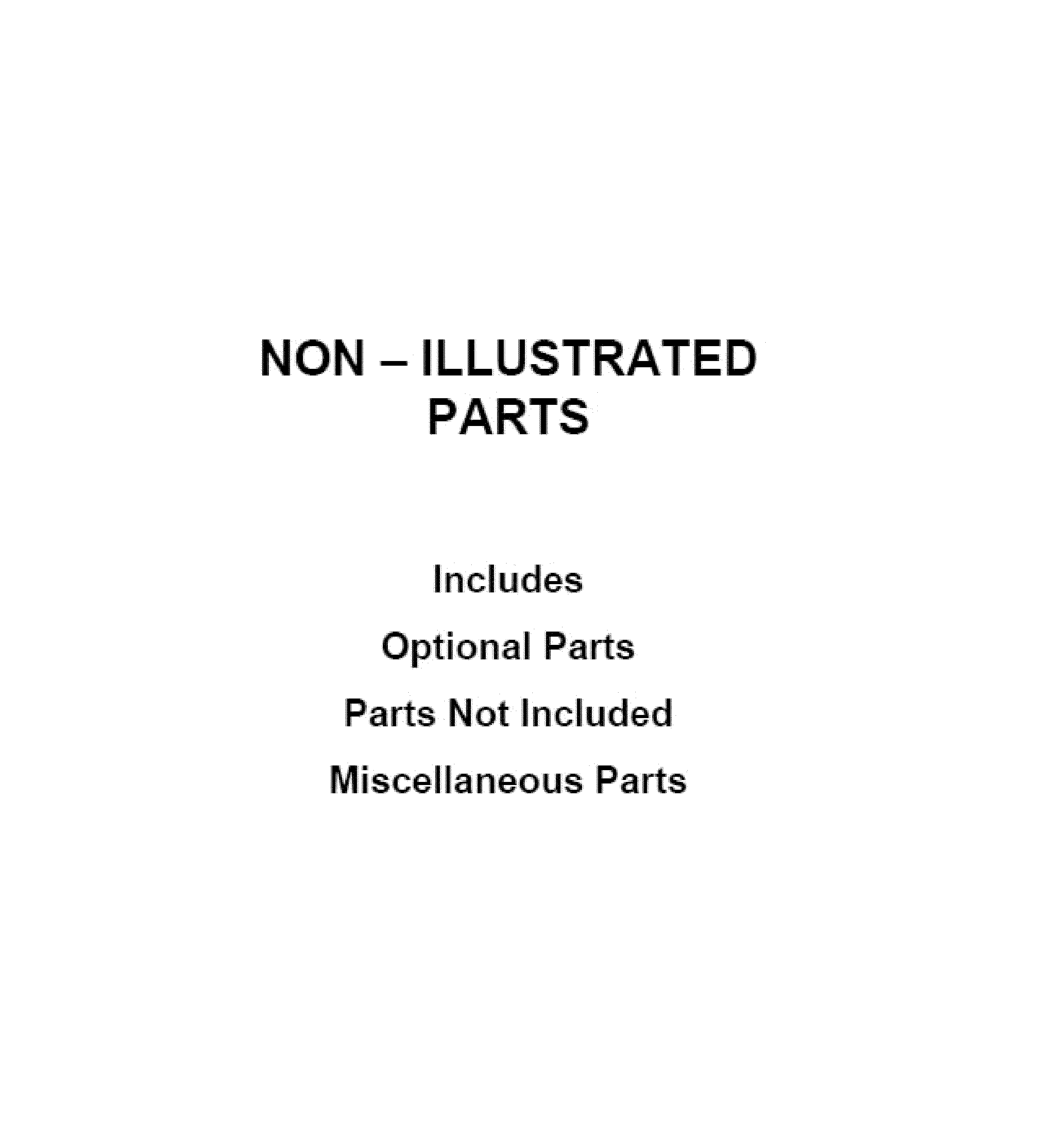

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Turntable, Glass W11340343
#1

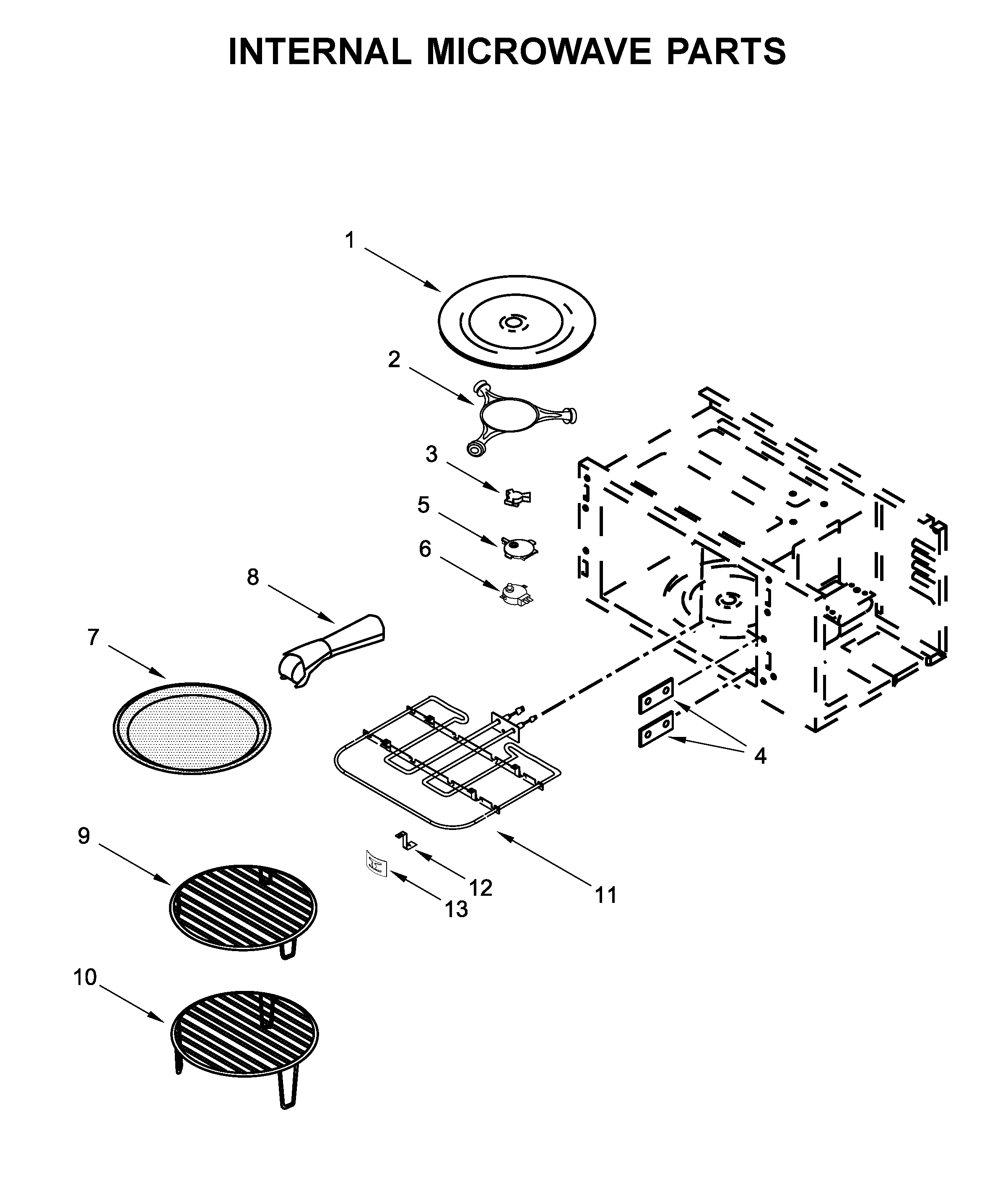

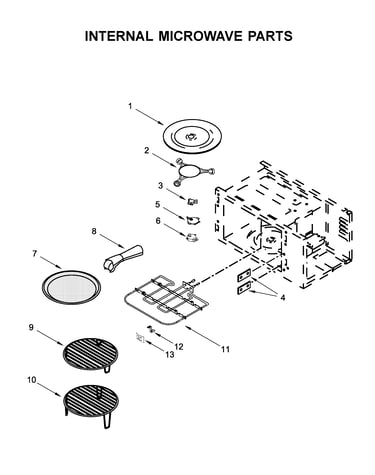

Internal microwave parts diagram

Turntable, glass

Part #W11340343

Replaced by #W11373838

?
Manufacturer substitution
This part replaces W11340343. Substitute parts can look different from the original.
BEST SELLER
$36.25 |
32% OFF MSRP : $53.00
In Stock
Range High-limit Thermostat 4449751
#18

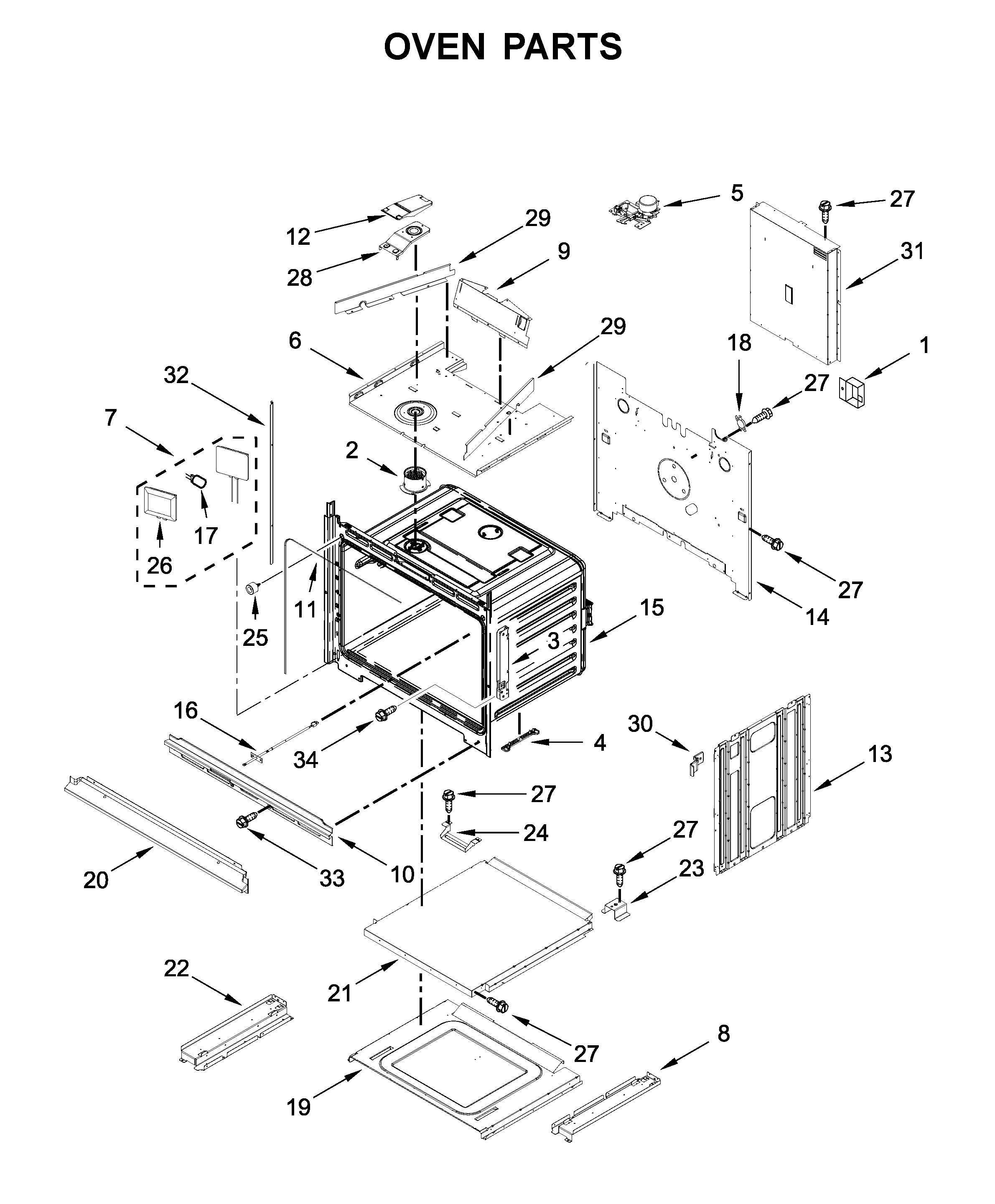

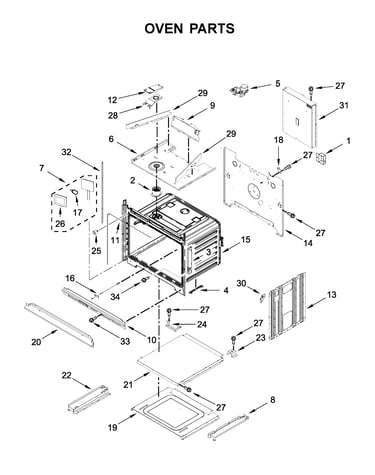

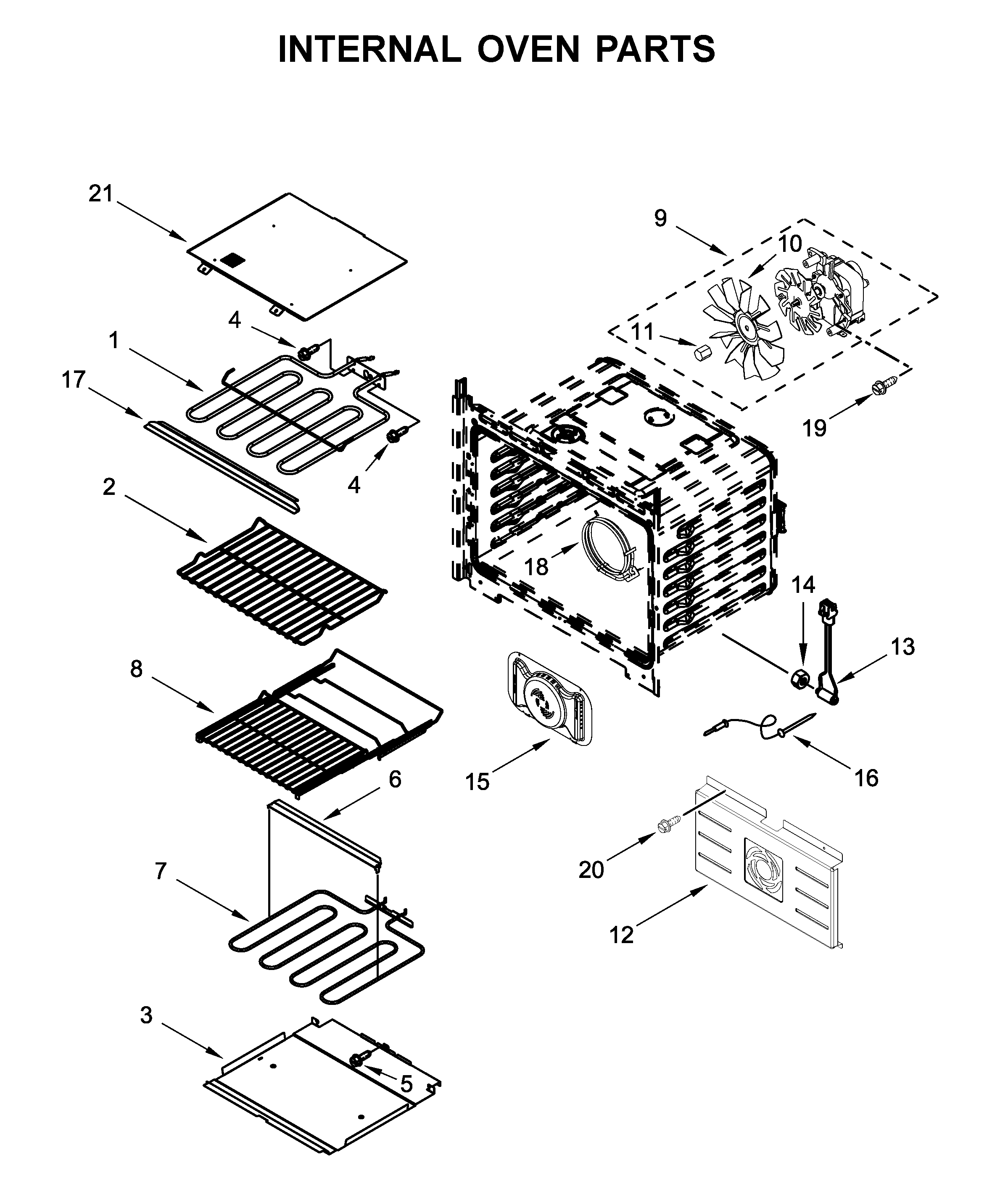

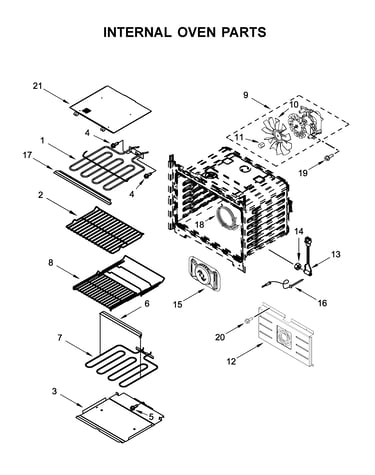

Oven parts diagram

Range high-limit thermostat

Part #4449751

Replaced by #WP4449751

?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
BEST SELLER
$101.25 |
9% OFF Phone Price : $111.25
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.18 |
49% OFF MSRP : $12.00
In Stock
Lock Spring 252262898008
#13

Internal microwave parts diagram

Lock spring

Part #252262898008

Replaced by #W10909479

?
Manufacturer substitution
This part replaces 252262898008. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$23.79 |
17% OFF Phone Price : $28.79
In Stock
O Mica Plate 461967451001
#4

Internal microwave parts diagram

O mica plate

Part #461967451001

Replaced by #W10915651

?
Manufacturer substitution
This part replaces 461967451001. Substitute parts can look different from the original.
$37.25 |
12% OFF Phone Price : $42.25
In Stock
Microwave Turntable Motor 461967848971
#6

Internal microwave parts diagram

Microwave turntable motor

Part #461967848971

Replaced by #W10911403

?
Manufacturer substitution
This part replaces 461967848971. Substitute parts can look different from the original.
$75.47 |
20% OFF MSRP : $94.00
In Stock
Wall Oven Microwave Element Clip 461967753871
#12

Internal microwave parts diagram

Wall oven microwave element clip

Part #461967753871

$11.64
In Stock
Door Latch W10618131
#5

Oven parts diagram

Door latch

Part #W10618131

Replaced by #W10883049

?
Manufacturer substitution
This part replaces W10618131. Substitute parts can look different from the original.
$143.75 |
24% OFF MSRP : $190.00
In Stock
