Model # 580327410 Official Craftsman deluxe portable alternator

Here are the diagrams and repair parts for Official Craftsman 580327410 deluxe portable alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

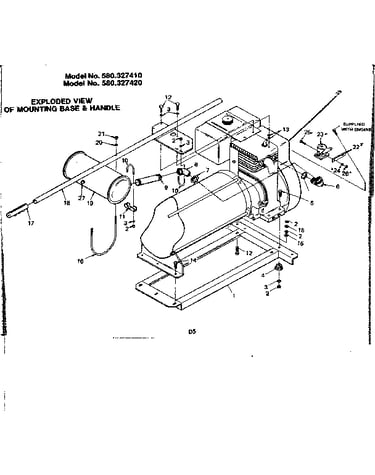

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 124 parts |

#17

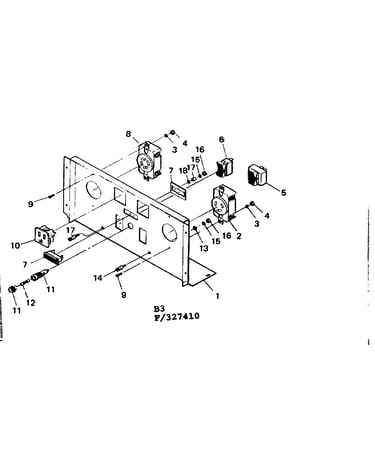

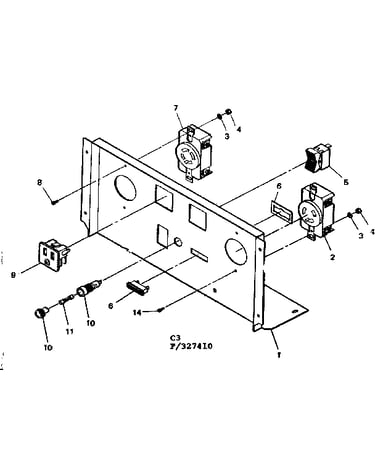

Panel diagram

Binding post

Part #25367

Replaced by #25367GS

$31.71

In Stock

Qty

Outlet

Part #37807

Replaced by #705932

$53.53

In Stock

Qty

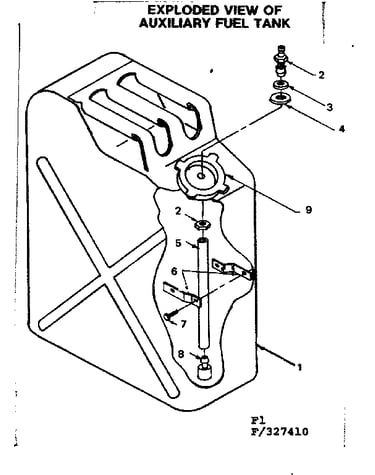

Auxiliary fuel tank diagram

Washer

Part #43441

The manufacturer no longer makes this part, and there's no substitute part

#15

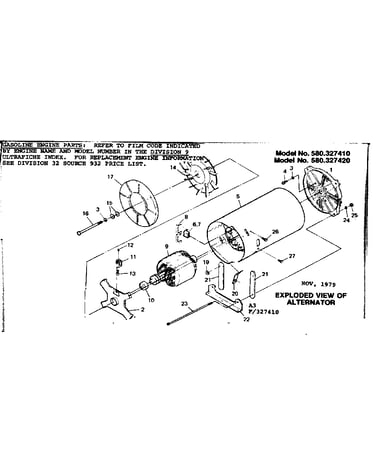

Alternator diagram

Washer

Part #22131

The manufacturer no longer makes this part, and there's no substitute part

Cap screw

Part #22142

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Plug

Part #43483

Replaced by #100522GS

This item is not returnable

$35.79 |

12% OFF Phone Price : $40.79

In Stock

Qty

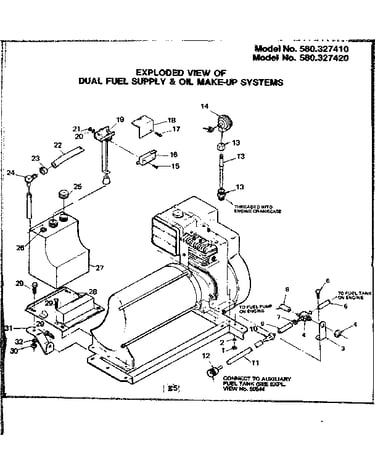

Dual fuel supply & oil make-up systems diagram

Hose clamp

Part #48031-C

The manufacturer no longer makes this part, and there's no substitute part

#17

Alternator diagram

Fan cover

Part #44357

Replaced by #44357GS

$25.89 |

16% OFF Phone Price : $30.89

In Stock

Qty

Housing

Part #22694

Replaced by #22694GS

$9.99 |

9% OFF Phone Price : $10.99

In Stock

Qty

Washer

Part #22145

The manufacturer no longer makes this part, and there's no substitute part
